Download
Fire Suppression Unit Spec Sheet (290K)
Available Options:
| •
|

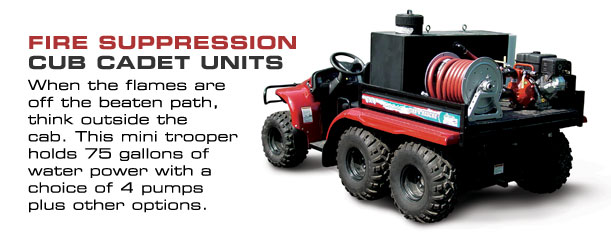

75 Gallon Poly Tank
|
| •
|
2 1/2" Tank
Valve
|
| •
|
Seat belts for all
seating positions
|
| •
|
Smooth aluminum
cab doors with sliding windows (requires the canopy
and soft sided cab enclosure options from Cub Cadet)
|
| •
|
Code 3 3692L4 Siren
with 100-Watt Speaker mounted in the brush guard
of the unit
|
| •
|
Code 3 LED warning
lights – two (2) front, two (2) rear, and one
(1) each side
|
| •
|
PowerArc PP2 warning lights –
two (2) front, two (2) rear and one (1) each side
|
PUMPING SYSTEM OPTIONS:
DARLEY AK 283 PUMP
One (1) Darley AK 283 5.5 HP Honda OHV with recoil
start
Pump Ratings:
95 GPM @ 39 PSI
60 GPM @ 70 PSI
20 GPM @ 90 PSI
DARLEY AK 282 PUMP
One (1) Darley AK 282 9.0 HP Briggs and Stratton
OHV Vangaurd with electric start and manual recoil backup
Pump Ratings:
120 GPM @ 36 PSI
95 GPM @ 83 PSI
60 GPM @ 118 PSI
20 GPM @ 144 PSI
DARLEY AK 290 PUMP
One (1) Darley AK 290
5.5 HP Honda OHV with recoil start
Pump Ratings:
65GPM @ 48 PSI
50 GPM @ 81 PSI
20 GPM @131 PSI
DARLEY AK 291 PUMP
One (1) Darley AK 291 13 HP Briggs and Stratton OHV
Vanguard with electric start and manual recoil back-up
Pump Ratings:
120 GPM @ 40 PSI
95 GPM @ 108 PSI
60 GPM @ 133 PSI
20 GPM @ 146 PSI
Discharge Options:
• 1" Discharge
• 1 1/2" Discharge
• 1" Booster reel manual rewind with 100'
of 3/4" hose
Foam System Option:
• Elkhart 241-30 30 GPM
Foam Eductor
Additional Options:
• Stokes basket storage
on top of tank
|
