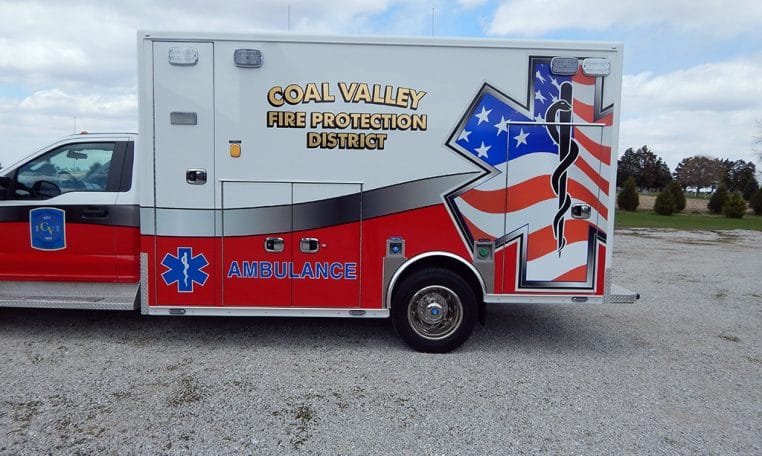

TYPE I AMBULANCE - #A301

COAL VALLEY FIRE PROTECTION DISTRICT - COAL VALLEY, ILLINOIS
FEATURES:

• Chassis: Ford 2019 F-550 4×4 193” WB
• Engine: 6.7 L OHV Powerstroke V8
• Transmission: 6-speed Automatic
• Module Body: 170″ x 96″
• Body Drop: 6″ both sides
• XLT Trim Package
• Mirrors: Manual Telescoping, Heated, Power Adjustable
• Dual Buell Strombos Air Horns
• Pass Thru-Type 1 w/Sliding Plexi Window
• Liquid Springs Rear Suspension
• Interior Head Room: 72″
• Warning Lights: Whelen LED
• TecNiq LED, Angled Chevron Warning Lights on Rear
• Skirt Rail Lights: Whelen Strip Lights
• Siren Speaker: Cast Products
• Stone Guards 22”
• Custom Console in Cab with 4 Glove Holders
• Custom Design Interior
• Circuit Board: RMR Rail System with LED Diagram
• Tire Valve Extensions, S/S Braided, Dual Rear Wheels
• Shoreline: Kussmaul 20amp Auto Eject w/Yellow Cover
• Backup Camera: Zone Defense
• Battery Charger/Converter, Iota DLS-45 W/IQ4 45 Amp
• Electronic Siren: Whelen 295HFSA7
• Spray Foam Insulation for Heating/AC Roof, Doors, and Wheel Wells
• Patient Compartment Blue Strip Lighting
• Cabinetry Color: Gray Pampas
• Solid Surface Countertop-Platinum
• Upholstery: Ash Gray
• Flooring: Lon Floor Flecks (Gun Metal)
• Attendant Seat: EVS 1882 High Back Child Safety w/3 Pt Harness
• Cot Mount Pre-Installation: Stryker #6390 Powerload
• Squad Bench – 4 Point Per4Max seat belts
• Recessed Antimicrobial Grab rail and Door Rails
• Electric O2
• Vacuum System-Onboard

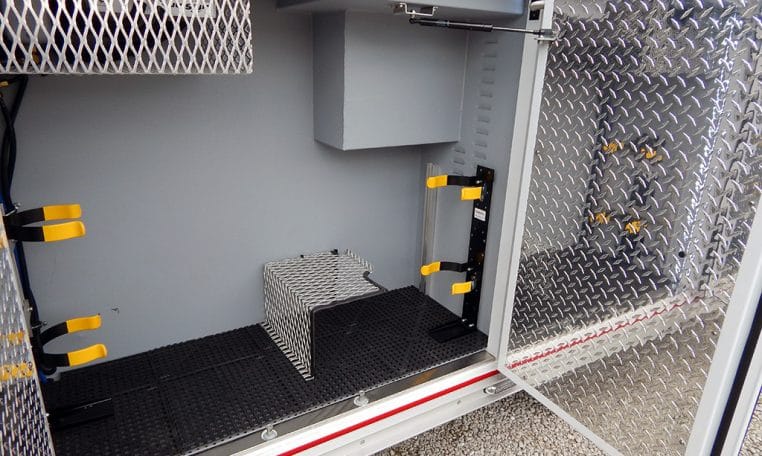

• Dri Deck Tiles (Black) Compartments and Floors
• Star of Life Package
• FAWR: 7,000
• RAWR: 13,660
• GVWR: 18,000

Year: 2019
Make: McCoy-Miller
Model: Ambulance
Chassis: Ford F550
