Delivered Apparatus

FEATURES:

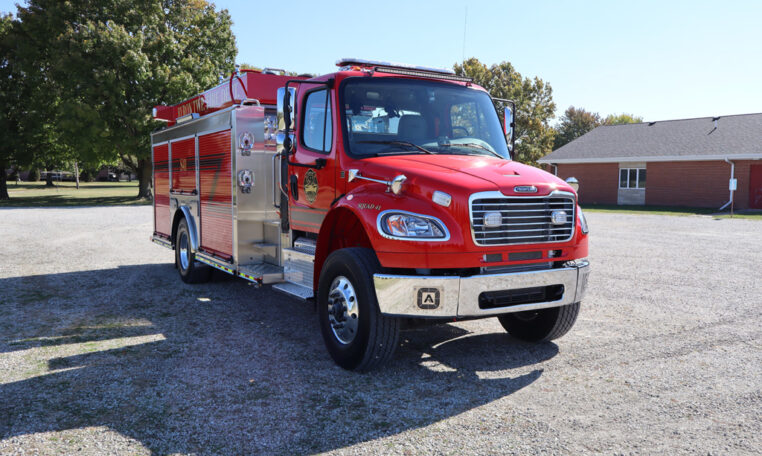

• Freightliner M2 106 2-Door Chassis
• Cummins L9 360 HP Diesel Engine
• Allison 3000 EVS Transmission
• Heavy Duty Stainless Steel Body with Stainless Steel Subframe
• Integrated Top Mount Pump Module with Stainless Steel Subframe
• Hale DSD 1500 GPM PTO Pump
• Trident Air Primer
• FRC Pump Boss Pressure Governor Monitoring System
• Three (3) FRC Tankvision Water Tank Level Gauges, Top and Each Side Panel
• Two (2) 6” Intakes, One (1) Each Side
• One (1) 2½” Gated Intake, Left Side
• One (1) 2½” Discharge, Each Side
• One (1) 3” Discharge Adapted to 2½” MNST, Rear Right
• One (1) 3” Deck Gun Discharge in Dunnage Area with TFT Deck Gun and Extenda-Gun
• One (1) 2½” Preconnect, Hose Bed Bulkhead Left Side
• Two (2) 1½” Crosslay Preconnects Behind Cab in Walkway

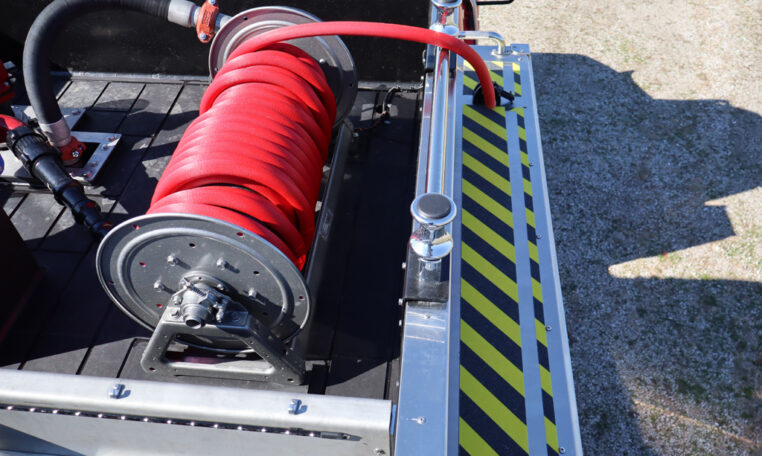

• One (1) Booster Reel in Dunnage Area Right Side, 100’ of 1” Booster Hose
• ROM Painted Roll-Up Doors
• Four (4) Dual Wheel Well Air Bottle Compartments
• Ladder Storage Horizontal in Rear Compartment with Two (2) Suction Hose
• 650 Gallon Poly Tank with Hose Bed
• One (1) 2½” FirePrograms Tank Fill – Right Discharge Panel
• 12 Volt Electrical System with NFPA Compliant Warning Light Package
• Whelen LED Warning Light Package
• Progressive Dynamics Battery Charger
• Kussmaul 20 Amp Super Auto-Eject 120V Shoreline Connection, Left Side
• Kussmaul Auto Air Eject
• Whelen 200W Siren and 100W Speaker
• Federal EQ2B with 200 Watt Federal Speaker
• Two (2) FireTech HiViz 40″ LED Scene Light Bars, One (1) Each Side
• Two (2) FireTech HiViz 8″ LED Scene Light Bars, Rear Center
• One (1) FireTech HiViz 46” LED Brow Light
• One (1) 10’ Attic Ladder, One (1) 14’ Roof Ladder with Hooks, One (1) 24’ 2-Section Ladder, and Two (2) 10’ Lengths of 6” Suction Hose
• 10’-11” Overall Height to Top of Deck Gun, 10’-3” to Top of Body
• 30’ 1” Overall Length
• 211” Wheelbase
• 145.45” Cab to Axle
• 16,000 FAWR
• 30,000 RAWR
• 46,000 GVWR
