Delivered Apparatus

FEATURES:

• HME 1871 MFDxL 12” Raised Roof Chassis
• Cummins L9 450 HP Diesel Engine
• Allison 3000 EVS Transmission
• Heavy Duty 3/16 Aluminum Body

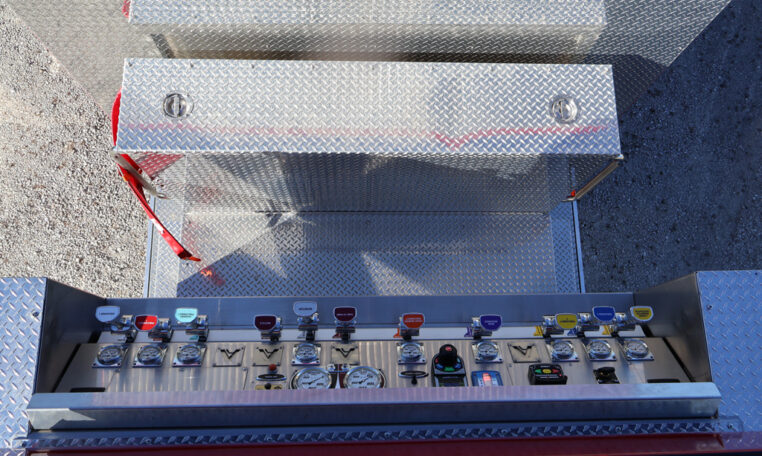

• Integrated Top Mount Pump Module
• Hale DSD 1500 GPM PTO Pump
• Trident Air Primer
• FRC Pump Boss Max Pressure Governor Monitoring System
• FRC Tankvision Water Tank Level Gauge with Three (3) FRC MaxVision Strip Lites
• Two (2) 6” Intakes, One (1) Each Side and One (1) 5” Rear Intake
• One (1) 2½” Gated Intake, Left Side
• One (1) 2½” Discharge, Each Side
• One (1) 3” Discharge Adapted to 5” Storz, Right Side
• One (1) 3” Discharge Adapted to 2½” MNST, Rear Right
• One (1) 3” Deck Gun Discharge in Dunnage Area With Elkhart Extender
• Two (2) 1½” Crosslay Preconnects Behind Cab
• One (1) 1½” Bumper Extension Preconnect
• ROM Roll-Up Doors

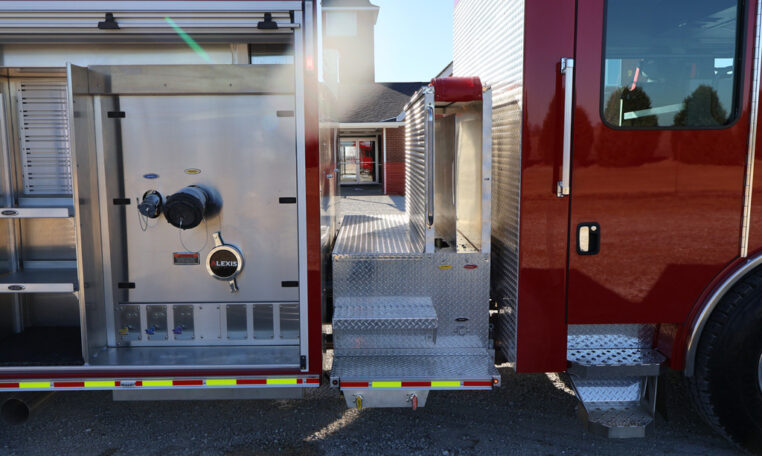

• Three (3) Dual and One (1) Single Wheel Well Air Bottle Compartments
• Ladder Storage Horizontal in Rear Compartment with Two (2) Suction Hose
• Stainless Steel Rear Access Ladder, Left Side
• 1000 Gallon Poly Tank with Hose Bed
• 12 Volt Electrical System with NFPA Compliant Warning Light Package
• Whelen LED Warning Light Package with Rear Arrow Stick
• Kussmaul Chief 4012 Battery Charger with Compressor
• Kussmaul 20 Amp Super Auto-Eject 120V Shoreline Connection, Left Side
• Q2B Mechanical Siren
• Two (2) FireTech HiViz 40″ LED Scene Light Bars, One (1) Each Side
• Two (2) Whelen M9 LED Scene Lights, Rear
• One (1) FireTech HiViz 72” LED Brow Light
• One (1) 10’ Attic Ladder, One (1) 14’ Roof Ladder with Hooks, One (1) 24’ 2-Section Ladder, and Two (2) 10’ Lengths of 6” Suction Hose
• 10’-1” Overall Height
• 34’ 9” Overall Length
• 205” Wheelbase
• 145” Cab to Axle
• 21,500 FAWR
• 31,000 RAWR
• 52.500 GVWR
