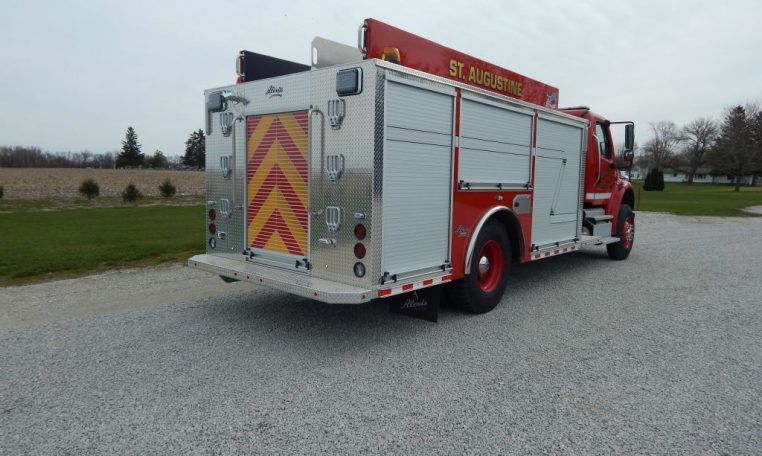

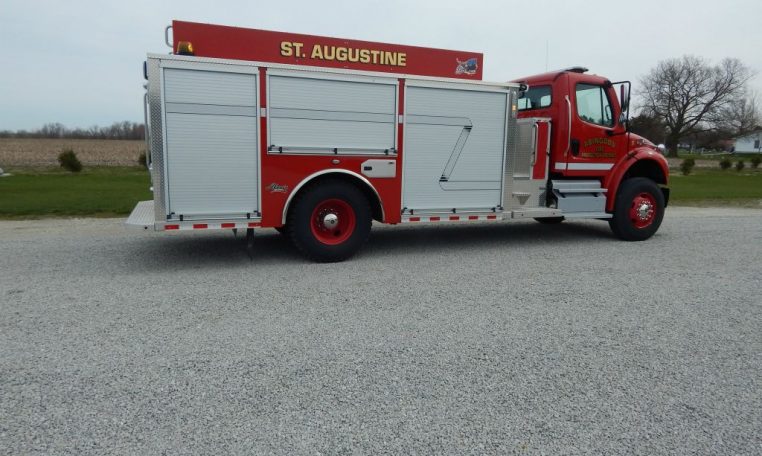

Delivered Apparatus

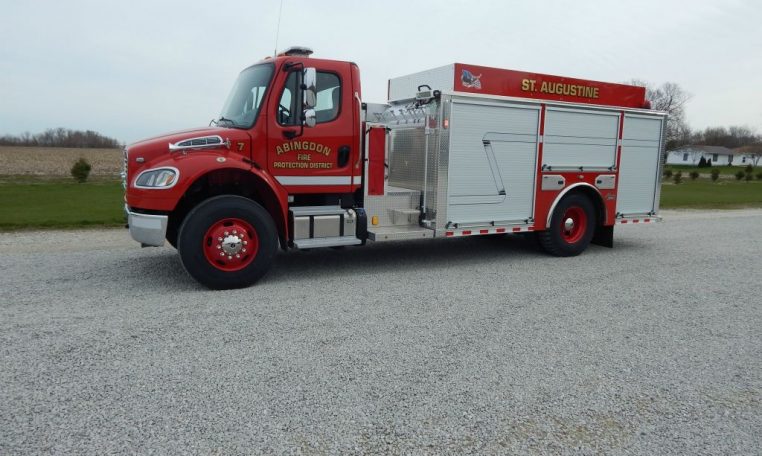

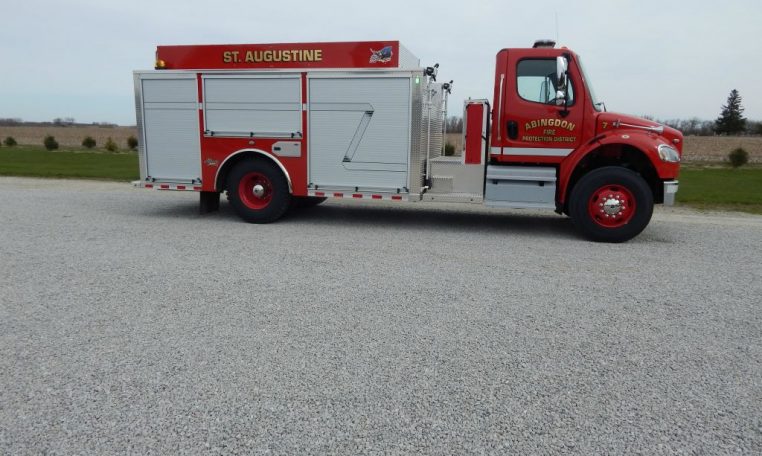

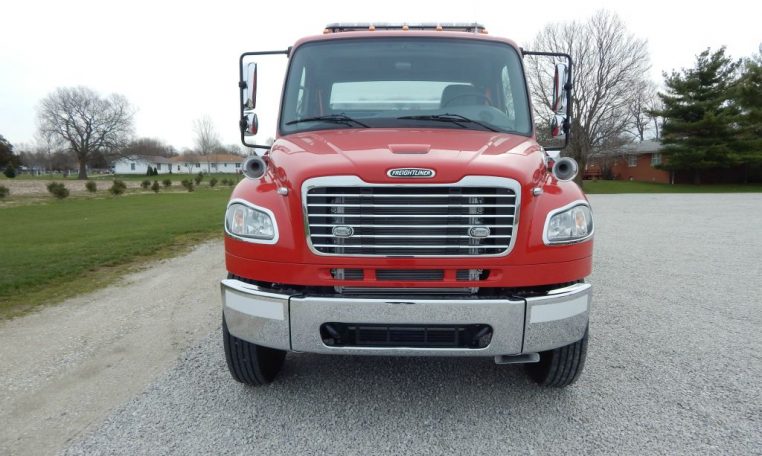

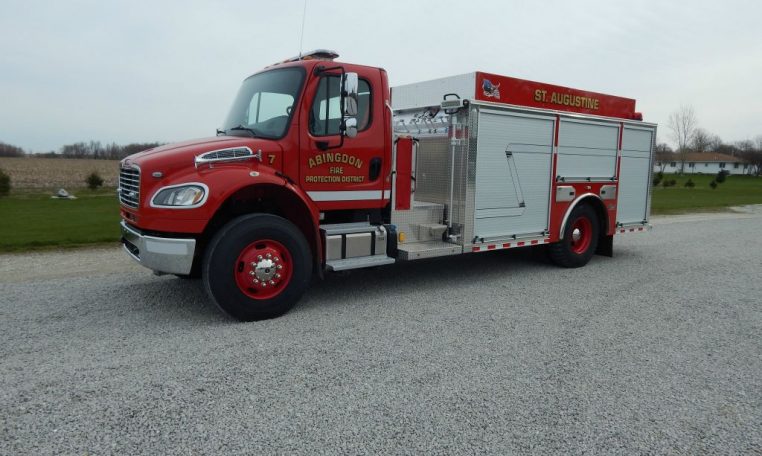

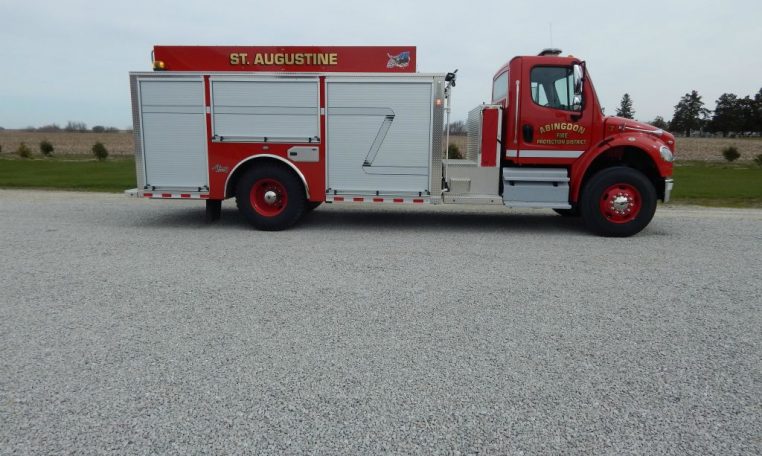

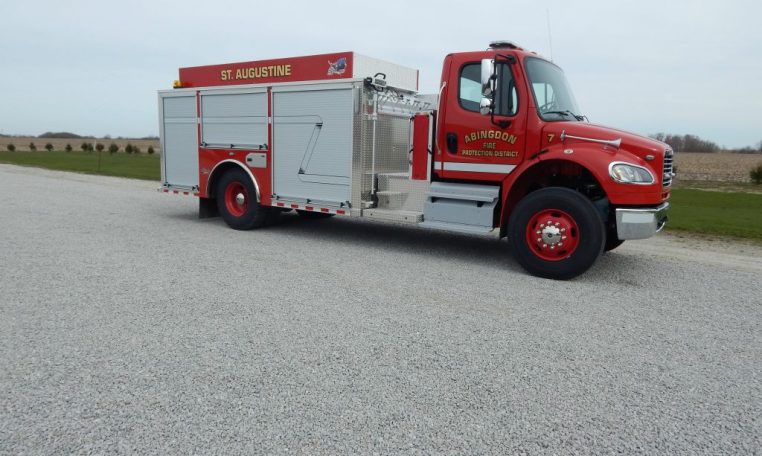

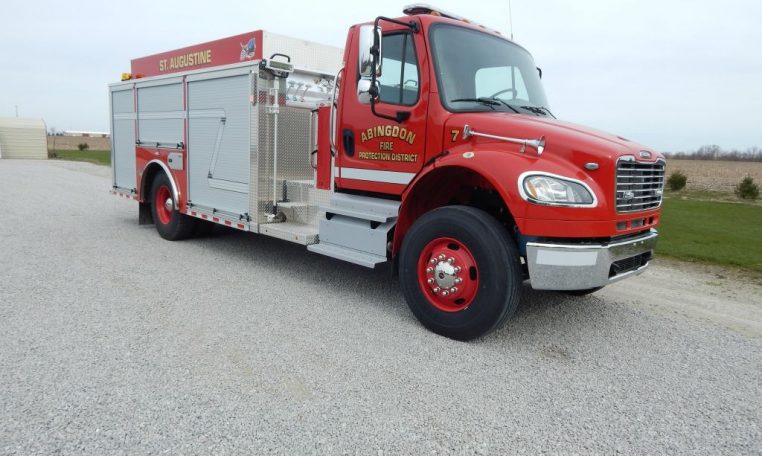

• Freightliner M2 106 2-Door Chassis
• Cummins ISC-330, 330-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty 3/16″ Aluminum Body

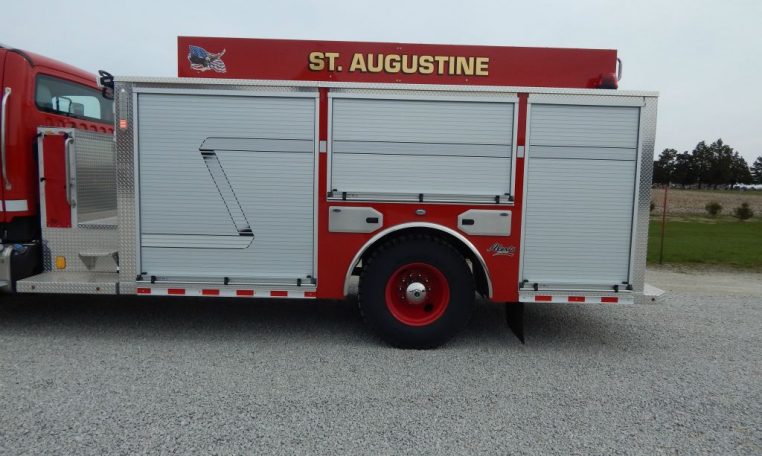

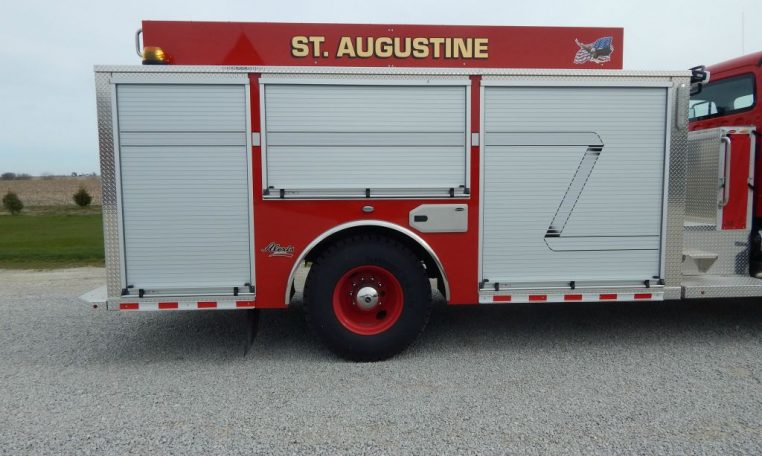

• ROM Roll Up Doors
• 1000-Gallon Poly Tank
• Waterous CXS-PA, 1250-GPM Pump

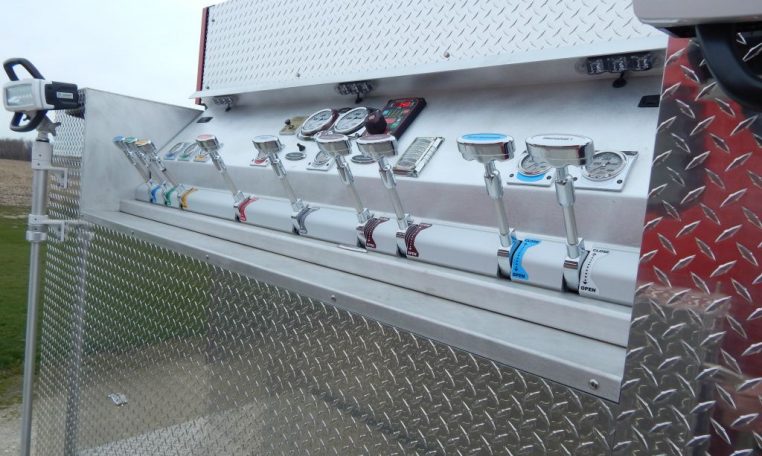

• Pump operator’s panel across top of body
• Two (2) 2 ½” Discharges, one (1) each side
• Three (3) 3″ Discharges, one (1) right side, one (1) rear and one (1) over pump
• Two (2) 1 ½” Preconnects, behind cab
• One (1) 2 ½” Gated Suction, left side
• Two (2) Dual bottle Air bottle compartments, one (1) each side wheel well

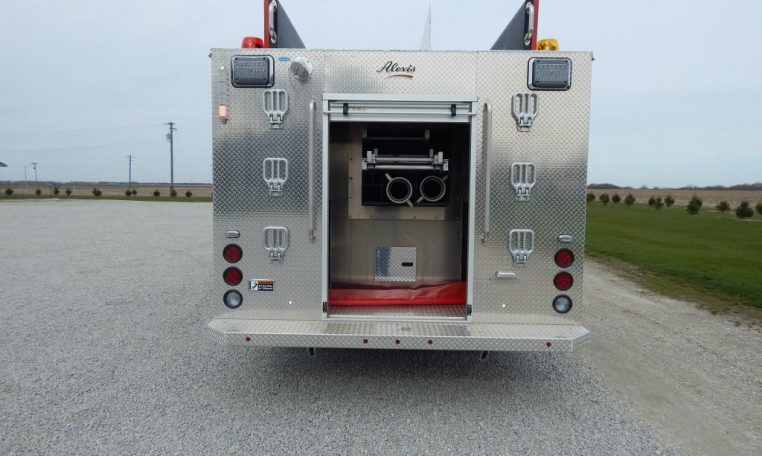

• Ladder storage compartment through the tank with rear access

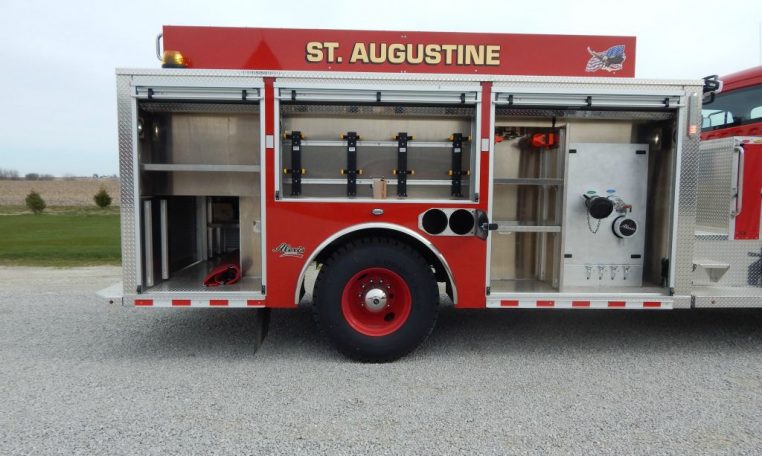

• Four (4) FlameFighter walk-away air pack brackets, right side
• One (1) Hinged tool board, left side
• Progressive Dynamics on-board battery charter with Viair air compressor
• Kussmaul Super Auto Eject 120-volt shoreline
• Whelen Electronic Siren with 100-watt Cast Products speaker
• Whelen LED Scene Light Package
• Whelen LED Warning Light Package

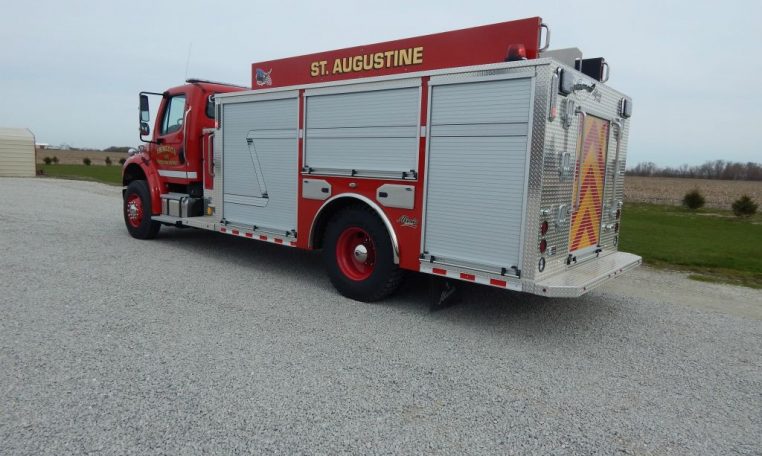

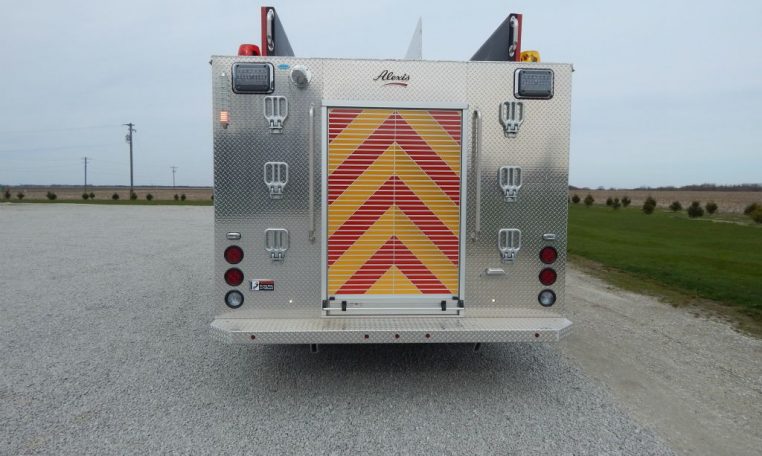

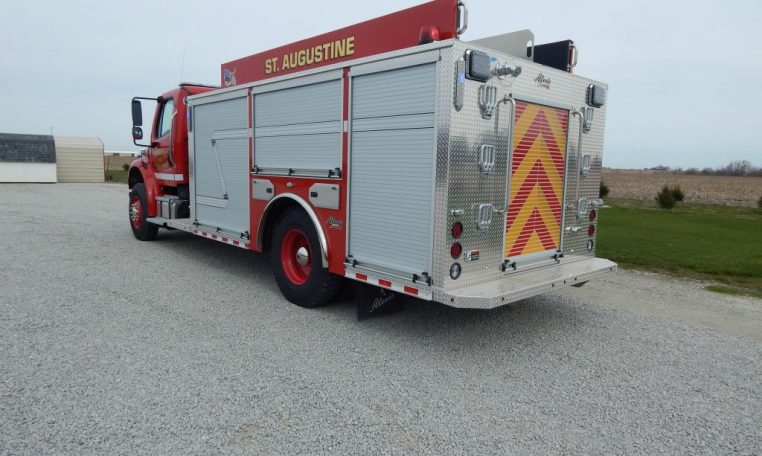

• Chevron pattern striping, rear
• 9′ 9″ Overall height
• 28′ 10″ Overall length
• 210.5″ Wheelbase
• 145″ Cab to Axle
• 14,600 FAWR
• 27,000 RAWR
• 41,600 GVWR
