Delivered Apparatus

FEATURES:

• International HV607 Crew Cab Chassis
• Cummins L9 360 HP Diesel Engine
• Allison 3000 EVS Transmission
• Heavy Duty Stainless Steel Body with Stainless Steel Subframe
• Stainless Steel Top Mount Pump Module with Stainless Steel Subframe

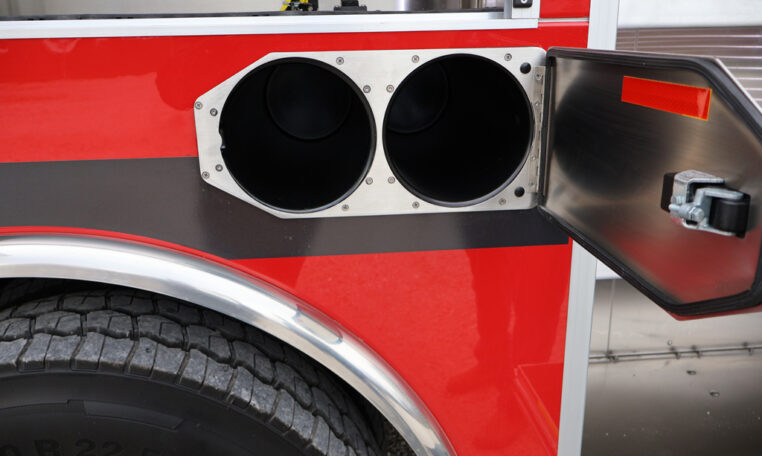

• Two (2) Free Floating Hose Wells, One (1) Each Side in the Running Boards
• Waterous CXVC20 1500 GPM Pump
• Trident 2-Location Air Primer
• FRC Pump Boss Pressure Governor Monitoring System
• FRC TankVision Water Tank Level Gauge with Three (3) Whelen Strip Lites
• Two (2) 6” Intakes, One (1) Each Side
• One (1) 5” Intake Adapted to 6” NSTM, Rear Right Side
• Two (2) 2½” Gated Intakes, One (1) Each Side
• One (1) 2½” Discharge, Each Side and One (1) 2½” Discharge, Rear Left Side
• Two (2) 3” Discharges Adapted to 4” Storz, One (1) Each Side

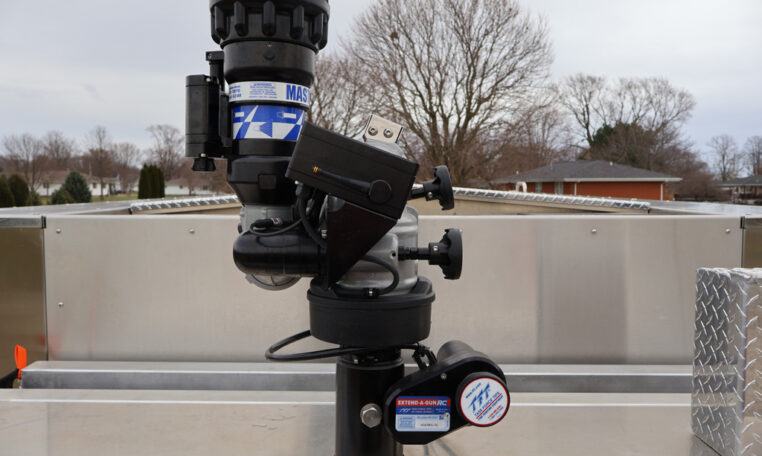

• One (1) 3” Discharge Dunnage Area with TFT Hurricane Remote Controlled Monitor and TFT Remote Controlled Extenda-Gun, Includes Wireless Remote
• One (1) 2½” Mattydale Preconnect
• Two (2) 1½” Cartridge Lay Preconnects with Trays
• ROM Roll-Up Doors
• Four (4) Dual Wheel Well Air Bottle Compartments, Two (2) Each Side
• Fol-Da-Tank Compartment for 2100 Gallon Fol-Da-Tank, Through the Body Left Side
• Ladder Storage Compartment, Vertical Through the Body Right Side
• Two (2) Suction Hose Storage Compartments, One (1) Each Side Upper Rear

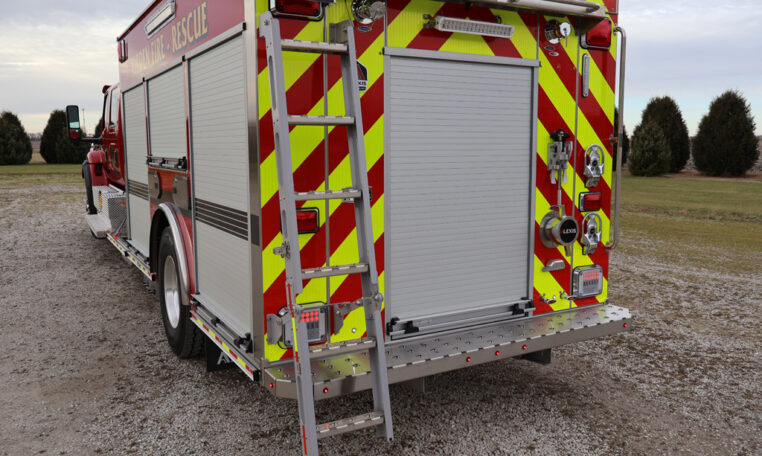

• AFE Stainless Steel Rear Access Ladder with Flip Down Step
• 1000 Gallon Poly Tank
• One (1) 2½” FirePrograms Tank Fill, Rear Right
• 12 Volt Electrical System with NFPA Compliant Warning Light Package
• Whelen LED Warning Light Package
• Progressive Dynamics Battery Charger
• Kussmaul 20 Amp Super Auto-Eject 120V Shoreline Connection, Left Side
• Kussmaul Auto Air Eject
• Whelen 200W Siren and 100W Speaker
• Federal Q2B Surface Mounted Siren, Left Side
• One (1) Firetech HiViz 40” LED Scene Light Bar, Each Side
• One (1) Firetech HiViz 21” LED Scene Light Bar, Rear
• One (1) FireTech HiViz 21” LED Brow Light
• One (1) 10’ Attic Ladder, One (1) 14’ Roof Ladder with Hooks, One (1) 24’ 2-Section Ladder, Two (2) 10’ Lengths of 6” Suction Hose and One (1) 2100 Gallon Fol-Da-Tank
• 9’ 10” Overall Height
• 35’ 1” Overall Length
• 282” Wheelbase
• 170.9” Cab to Axle
• 16,000 FAWR
• 30,000 RAWR
• 46,000 GVWR
