Delivered Apparatus

FEATURES:

• Spartan Metro Star ELFD 10” Raised Roof Chassis
• Cummins L9 450 HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty 304L Stainless-Steel Body and 304L Stainless-Steel Sub-Frame with Lifetime Warranty
• Five (5) Person Cab

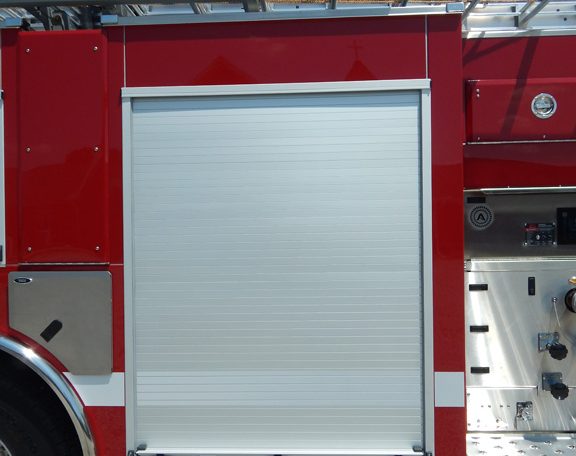

• ROM Series IV Satin Finish Roll-Up Doors
• EMS Compartment with ROM Roll-Up Door, Rear Wall of Cab with Full Height, External Access Doors Both Sides
• Side Control Stainless-Steel Pump Module with 50,000 btu Water Heater, Heat Enclosure, and Hose Well, Left Side
• Hale QMAX-XS 150 1500 GPM Pump
• Hale ESP Priming Pump
• Hale SAM Control Panel
• 30-Gallon Compressed Air Foam System with Hale SmartCAFS Controller
• Two (2) 6” Intakes with Hale MIV Valves, One (1) Each side
• One (1) 2½” Gated Intake, Left Side
• One (1) 5” Front Intake adapted to 6” NST with Low Level Strainer
• Two (2) 2½” Foam Capable Discharges with Akron Electric Valves, Left Side
• One (1) 2½” Discharge with Akron Electric Valve, Right Side
• One (1) 3” Discharge with Akron Electric Valve adapted to 4” Storz, Right Side
• One (1) 2½” Discharge with Akron Electric Valve, Rear
• Foam Capable Cartridge Lay Preconnects with Akron Electric Valve, Two (2) 1½”, One (1) 2½”
• One (1) 2½” Foam Capable Front Bumper Preconnect with Akron Electric Valve
• One (1) 2½” Rear Tank Fill
• Akron Deckmaster Electric Monitor with Akromatic 1250 Nozzle
• 1250-Gallon Poly Tank
• Three (3) Triple Air Bottle Wheel Well Compartments, One (1) Left Side ahead of wheel well, Two (2) Right Side
• One (1) Hinged PAC TRAC Tool Board, R3 Compartment
• PAC TRAC Tool Board Upper Rear Wall, L1 and R3 Compartments
• Cribbing Containment Door, L2 Compartment
• 500# Roll-Out Tray, One (1) Each, R1 and Rear Compartments
• Spacesaver 400V Vertical Fill Enclosure with Air Control Panel with Slide-Out Platform, L3 Compartment
• Four (4) Cascade 6000 psi Bottles, Rear
• Zico Hydraulic Ladder Rack with One (1) 14’ Roof Ladder and One (1) 35’ Two (2) Section Ground Ladder, Right Side
• One (1) 17’ Little Giant Storage Compartment Above the Pump Module
• Progressive Dynamics 40 Amp Battery Charger with Kussmaul Auto Eject 120V Shoreline Connection
• Vanner VLT12 3000W Inverter, L1 Compartment
• Whelen Warning Light Package
• FireTech Side and Rear Scene Lights
• Two (2) Akron Telescopic Lights, One (1) Each Side behind the cab
• One (1) Backup Camera with Cab Display
• Nine (9) Folding Steps, Three (3) Each, Pump Module Left Side, Rear Left Side, Rear Right Side
• Diamond Grade Chevron Striping
• Whelen Electric Siren with 100 Watt Speaker
• 10’ 3” Overall height
• 36’ 3” Overall length
• 238” Wheelbase
• 164” Cab to Axle
• 21,5000 FAWR
• 31,000 RAWR
• 51,500 GVWR
