Delivered Apparatus

FEATURES:

• Spartan Gladiator MFD Chassis with 10” Raised Roof
• Cummins X15 565 HP Diesel Engine
• Allison 4000 EVS Transmission
• Heavy Duty Stainless Steel Body with Stainless Steel Subframe
• Stainless Steel Side Control Pump Module with Stainless Steel Subframe
• Waterous CXVC20 1500 GPM Pump
• Trident Air Primer
• FRC Pump Boss Pressure Governor Monitoring System
• FRC TankVision Water Tank Level Gauge with Three (3) Whelen Strip Lites
• FRC TankVision Foam Tank Level Gauge
• Two (2) 6” Intakes, One (1) Each Side
• One (1) 5” Front Bumper Intake
• Three (3) 2½” Gated Intakes, One (1) Each Side and One (1) Rear
• Two (2) 2½” Discharge, Left Side and One (1) 2½” Discharge, Right Side
• One (1) 2½” Discharge, Rear Left Side
• One (1) 4” Discharge with 4” Storz Elbow, Right Side
• FoamPro 2001 Foam System with 30 Gallon Foam Tank and Power-Fill Foam Tank Refill System
• One (1) 3” Discharge Dunnage Area with TFT Crossfire Deck Gun and Extenda-Gun
• One (1) 2½” Preconnect Front of Hose Bed on the Right Side
• Two (2) 1½” Mattydale Preconnects
• One (1) ½” Bumper Extension Preconnect
• One (1) Booster Reel with 100’ of 1” Hose, Pump Module Dunnage Right Side

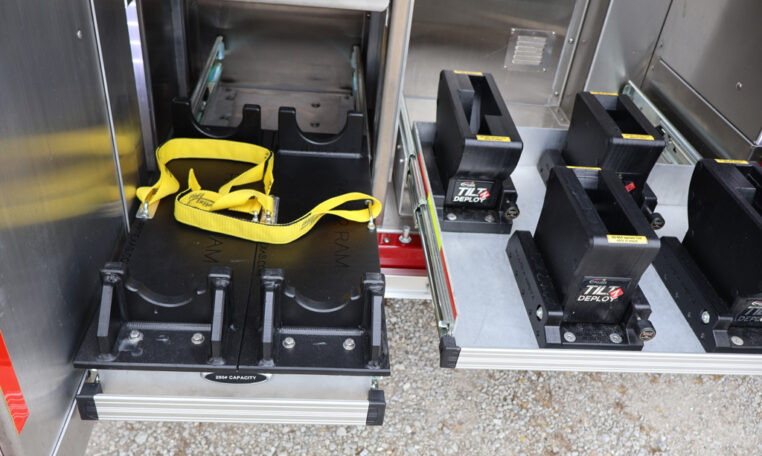

• Two (2) Triple Air Bottle Wheel Well Compartments
• One (1) Fire Extinguisher Wheel Well Compartment
• Beveled Lap Style Doors
• Hydraulic Single Arm Ladder Rack. Right Side
• Suction Hose Storage in Hose Bed

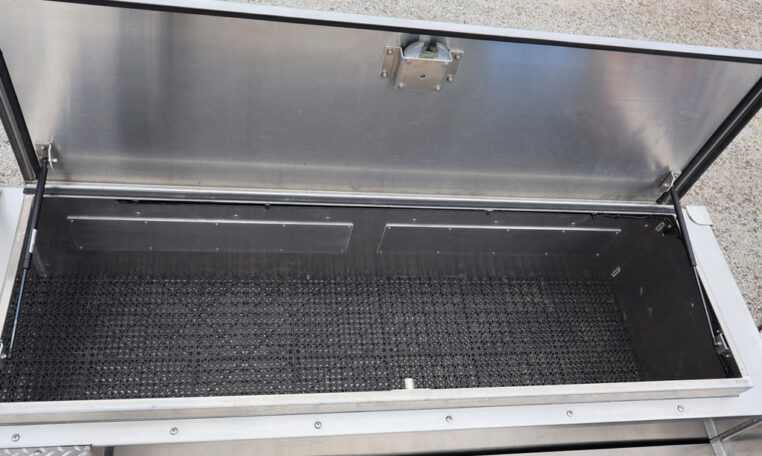

• Two (2) Upper Storage Compartment, One (1) Each Side
• AFE Stainless Steel Rear Access Ladder with Flip Down Step
• 750 Gallon Poly Tank
• 12 Volt Electrical System with NFPA Compliant Warning Light Package
• Kussmaul Chief 4012 Battery Charger with Kussmaul 120 Volt Air Pump
• Kussmaul 20 Amp Super Auto-Eject 120V Shoreline Connection, Left Side of Cab
• Whelen LED Warning Light Package with Rear Arrow Stick
• Whelen 200W Siren and CPI 100W Speaker
• Eight (8) Firetech Guardian LED Scene Lights, Three (3) Each Side and Two (2) Rear
• One (1) Firetech HiViz LED Brow Scene Light Bar
• One (1) Vanner 3000 Watt Inverter with Change Over Relay and Two (2) Power Strips
• One (1) 10’ Attic Ladder, One (1) 14’ Roof Ladder with Hooks, One (1) 24’ 2-Section Ladder, and Two (2) 10’ Lengths of 6” Suction Hose
• 9’-10” Overall Height
• 31’-3” Overall Length
• 186” Wheelbase
• 132” Cab to Axle
• 22,800 FAWR
• 31,000 RAWR
• 53,800 GVWR
