Delivered Apparatus

FEATURES:

• Spartan Metro Star MFD 10” Raised Roof Chassis
• Cummins L9 450 HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty Stainless-Steel Body and Sub-Frame

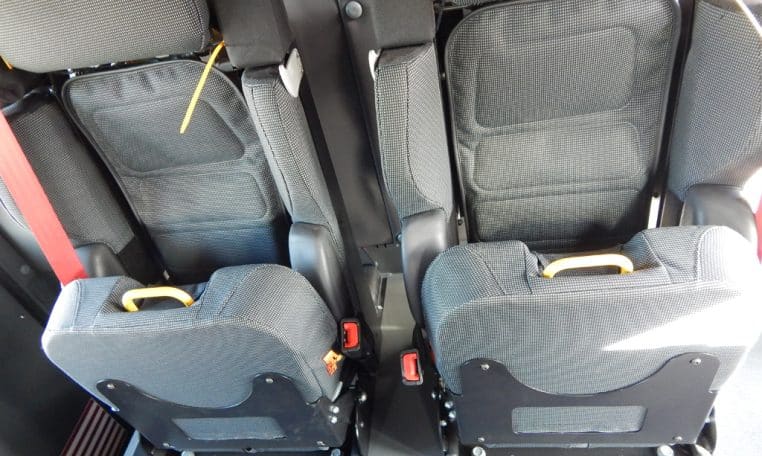

• Six (6) Person Cab

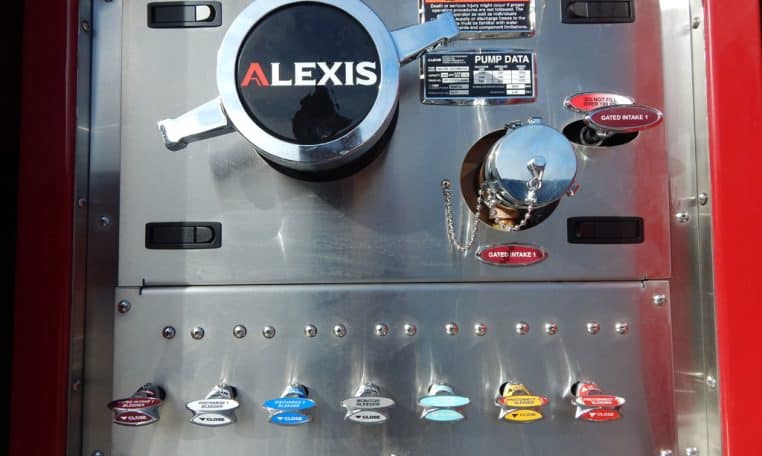

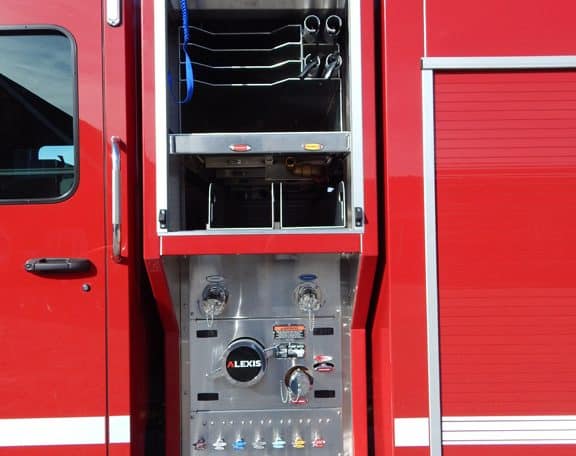

• Side Control Stainless-Steel Pump Module
• Hale DSD 125 Single Stage Split-Shaft 1250 GPM Pump
• Trident Air Prime System
• FRC Pump Boss Pressure Governor & Monitoring System
• Two (2) 6” Intakes, One (1) Each Side
• Two (2) 2½” Gated Intakes, One (1) Each Side
• Five (5) 2½” Discharges, Two (2) Each Side, One (1) Rear with Blitzfire Monitor
• One (1) 1½” Preconnect, Front Bumper
• One (1) 2½” Preconnect, Front of Hose Bed
• Two (2) 1½” Cartridge Lay Preconnects, Pump Module
• Booster Reel 150’ of 1”, Rear
• Foam Pro 1600 Foam System with 20 Gallon Tank
• Foam Capable Discharges, Two (2) 1½” Preconnects
• 500-Gallon Poly Tank with Stainless-Steel Side Panels
• Hose Bed with One (1) Divider, LED Lighting, Hypalon cover
• EMS Compartment in Cab with 120V Power Strip
• One (1) Custom Bumper Extension with Lower Hose Well Drop-Down Access Door Capacity 100’ of 1 ¾” Hose, Upper Hinged Compartment for Storing Extrication Tools and Batteries

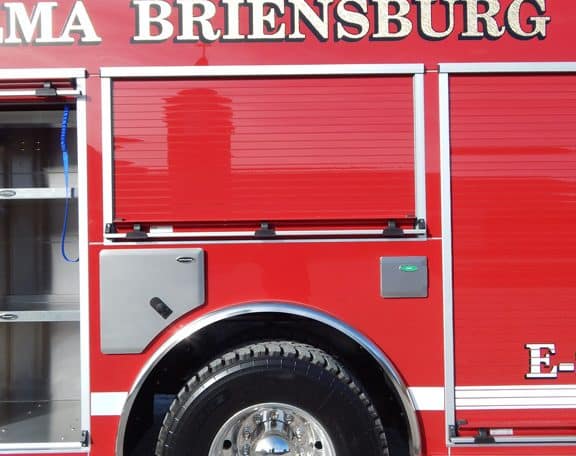

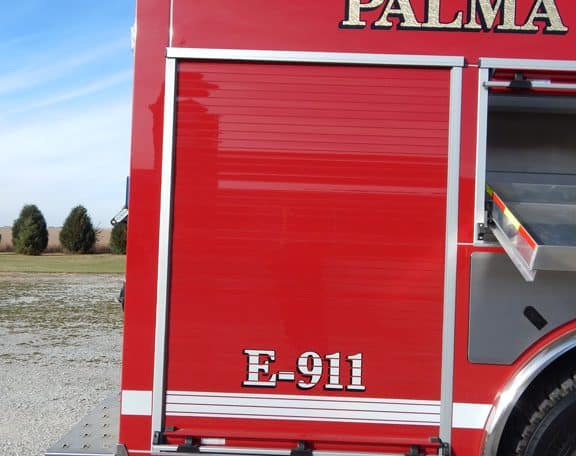

• ROM Painted Roll-Up Doors
• Aluminum Rub Rails with LED Warning Lights & LED Undercarriage Lights
• Pump Operators Panel, L1 Compartment
• Two (2) Vertical Compartment Dividers, One (1) Each L1, R1 Compartments
• One (1) Hinged PACTRAC Tool Board, L2 Compartment

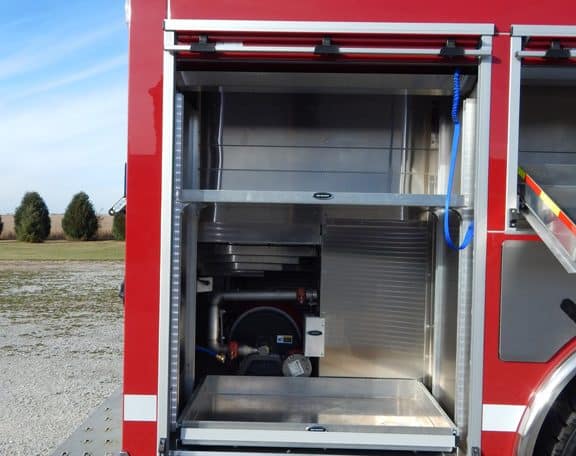

• One (1) 500# Roll Out Tray, L3 Compartment
• Two (2) Roll Out Drop-Down Trays, One (1) L3, One (1) R2
• Two (2) 250# Roll Out Trays, One (1) R1, One (1) R3
• One (1) Vertical Pull Out Board with Shoe Box, R1 Compartment

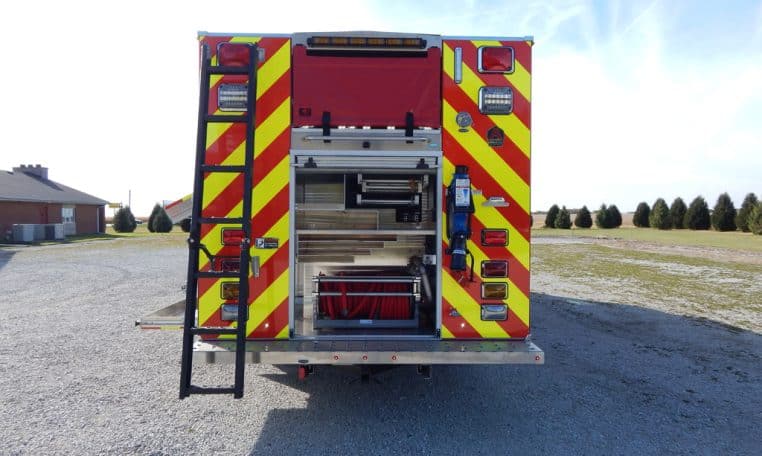

• One (1) Each, 10’ Attic Ladder, 12’ Roof Ladder with Hooks, 24’ Two Section Ladder, Rear through Tank
• One (1) 6’ Pike Pole, One (1) 8’ Pike Pole, One 6’ NY Hook, Rear Through Tank

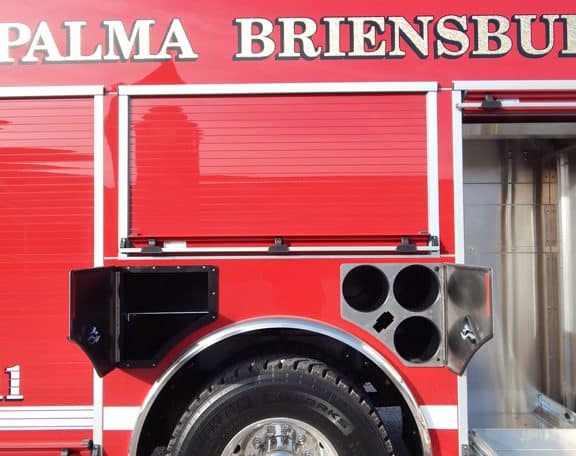

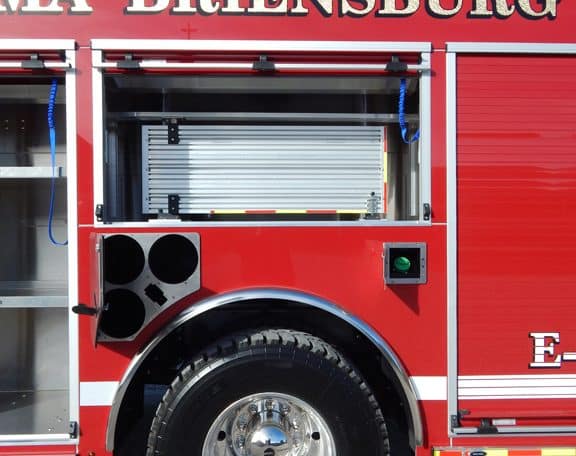

• Two (2) Triple Wheel Well Air Bottle Compartments, One (1) Each Side Ahead of Rear Wheel Well
• One (1) Dual Fire Extinguisher Compartment, Right Side Behind Wheel Well
• Hitch Receiver and Winch Wiring, One (1) Each Side Behind Rear Wheels, One (1) Rear
• AFE Stainless Steel Flip Down Top Access Ladder
• Four (4) Upper Storage Compartments
• Oil Dry Hopper, Upper Storage Compartment into R1
• One (1) Adjustable Hosebed Divider
• One (1) Hinged Aluminum Treadplate Hose Bed Cover
• Kussmaul 20 Amp Super Auto-Eject 120V Shoreline Connection
• Whelen Warning Light Package
• FireTech Scene Lights, Three (3) Each Side, Two (2) Rear
• Whelen LED Arrow Stick
• Whelen LED Tank Gauge, One (1) Each Side, One (1) Rear
• Federal Q2B Siren Pedestal Mounted Front Bumper
• Two Air Horns, Recess Mounted in Front Bumper
• Diamond Grade Chevron Striping
• 10’ Overall height
• 32’ 8” Overall length
• 195” Wheelbase
• 141” Cab to Axle
• 20,000 FAWR
• 27,000 RAWR
• 47,000 GVWR
