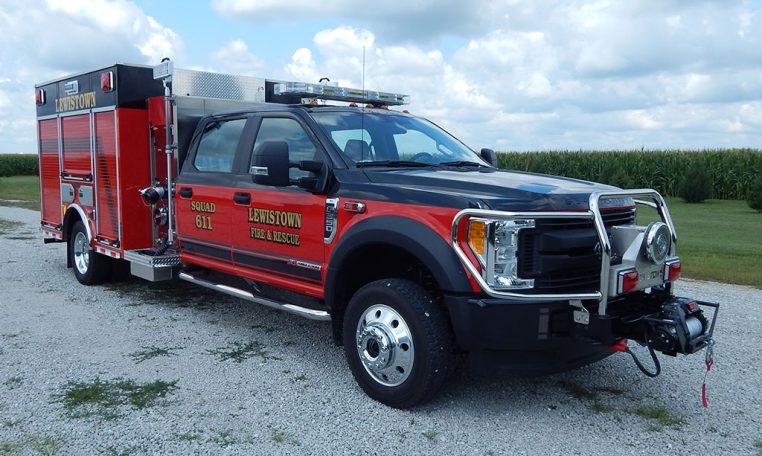

Delivered Apparatus

• Ford F-550 XL, 4×4 4-Door DRW Chassis
• Ford Power Stroke 6.7L V8, 300-HP Diesel Engine
• Ford TorqShift 6-speed Automatic Transmission
• Luverne stainless steel Nerf Bars
• One (1) Warn Stainless steel Brush Guard with wrap around and front receiver
• Two (2) H. O. Bostrom SCBA seats, cab rear forward facing
• Heavy Duty 3/16” Aluminum Body with ROM Painted Roll Up Doors
• One (1) Reese type rear trailer/winch hitch with electrical connections
• One (1) Warn 9.5 Multi-Mount Winch with cover and electrical connections
• Two (2) Winch points, one (1) each side behind rear wheel
• 300-Gallon Poly Tank with 20-Gallon foam tank
• Hale DSD125, 1250-GPM Pump with left side pump operator’s panel
• Three (3) 2 ½” Discharges, two (2) left and one (1) right side
• One (1) 3” Discharge, right side and One (1) 2 ½” Preconnect, front of hosebed
• Two (2) 1 ½” Mattydale Preconnects, across top of body
• One (1) 2 ½” Gated Suction, left side
• Waterous Aquis 1.5 Foam system
• Two (2) Free floating hose wells, one (1) each side running board
• Suction hose storage compartment, upper left side
• Attic ladder, pike pole, back board storage compartment, upper right side
• Custom hosebed storage and lower rear body storage compartments
• Two (2) Dual bottle Air bottle compartments, right side wheel well
• Two (2) Vertical Pull-out tool boards, left side
• Turtle Tile on floors and/or shelves and trays of compartments
• Two (2) Dual Hydraulic hose reels, upper rear compartment
• Floor mounted console for emergency switches with map/binder storage, cab
• Cab custom storage compartment between rear seats
• Federal E-Q2B Siren with 200-watt speaker
• Fire Research LED Scene light Package
• One (1) Audiovox back-up camera system with 7” color monitor
• Whelen LED Warning Light Package
• Diamond Grade Chevron pattern striping, rear
• 8’ 7” Overall height
• 25’ 7” Overall length
• 203.8” Wheelbase
• 84” Cab to Axle
• 7,500 FAWR
• 14,700 RAWR
• 19,500 GVWR
