Delivered Apparatus

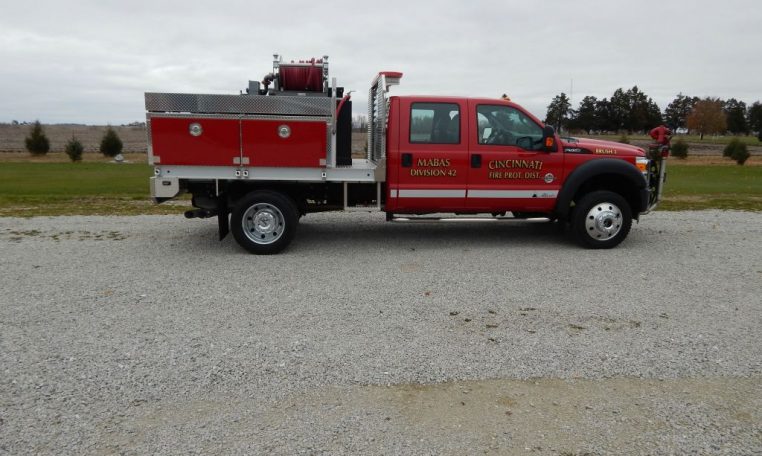

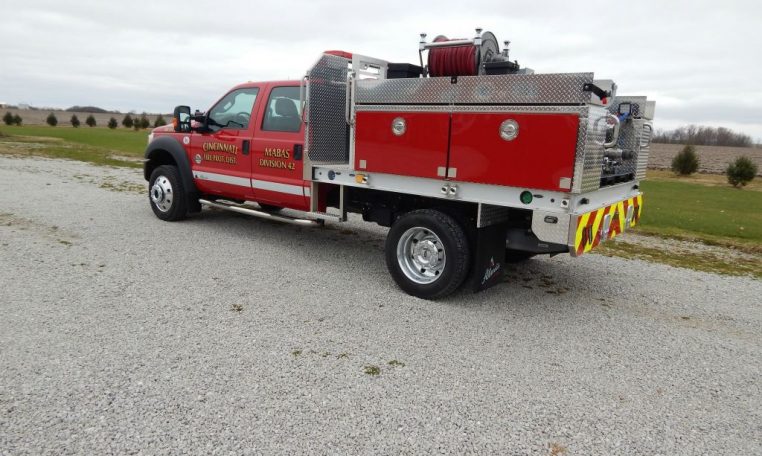

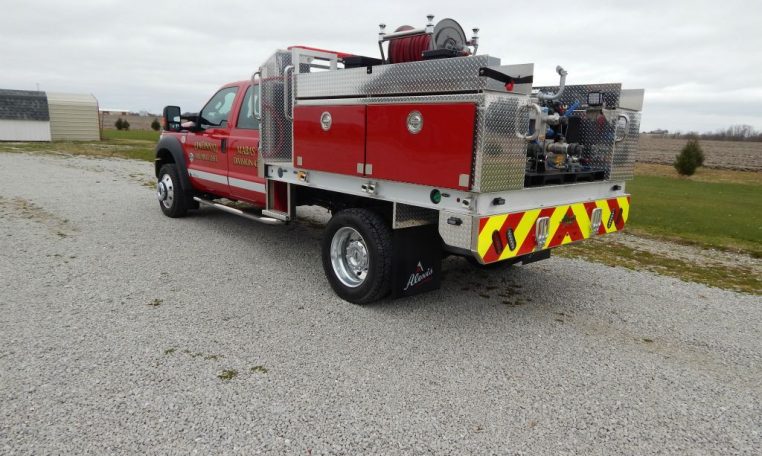

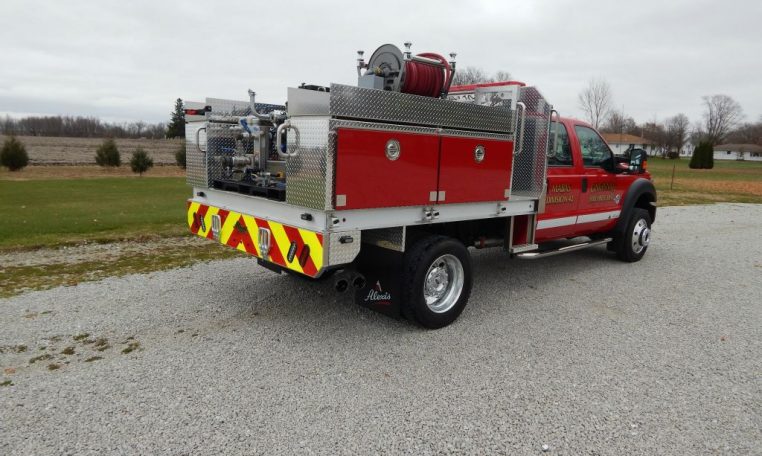

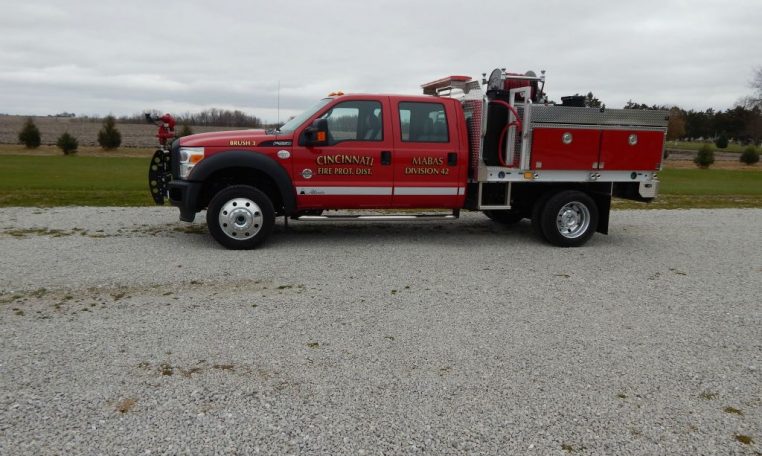

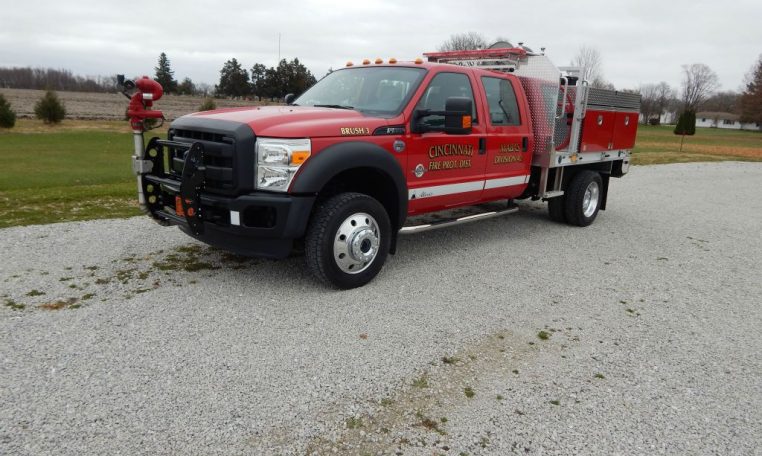

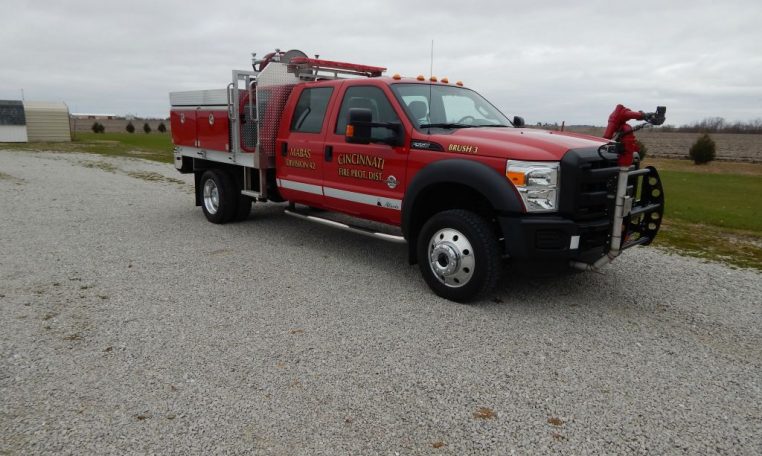

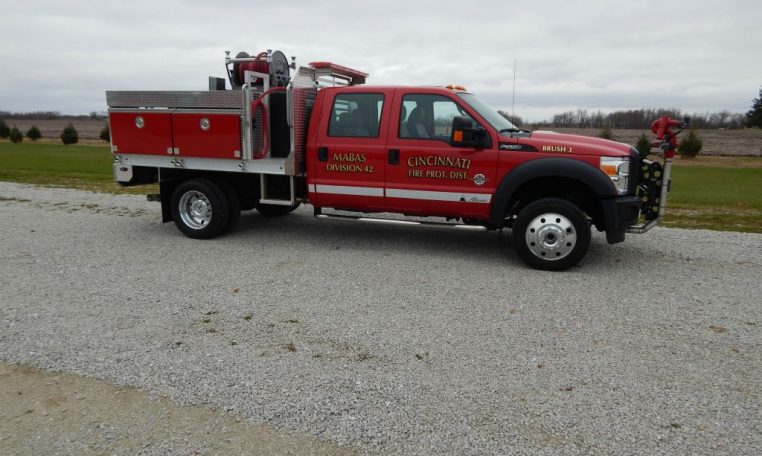

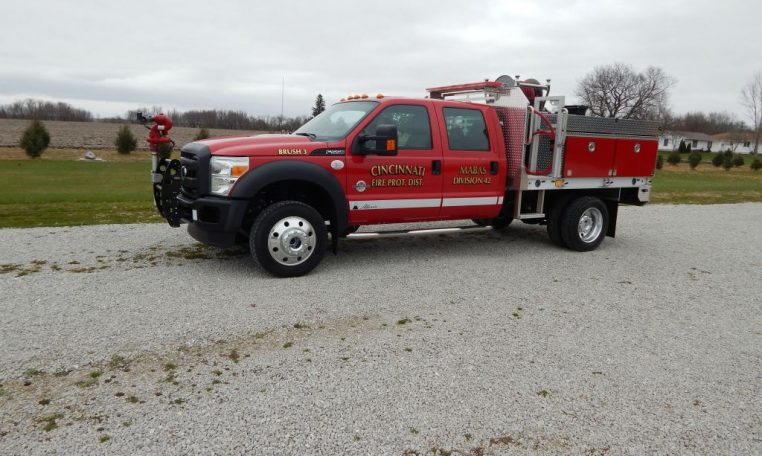

• Ford F-550 XL, 4-Door 4×4 DRW Chassis
• Ford Power Stroke 6.7L V8, 300-HP Diesel Engine
• Ford Torqshift 6-speed Automatic Transmission
• Heavy Duty 3/16″ Aluminum Body

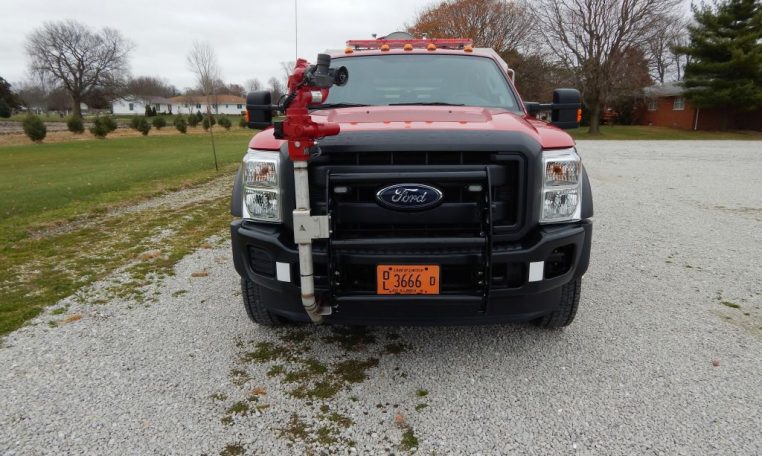

• AMI Grill Guard

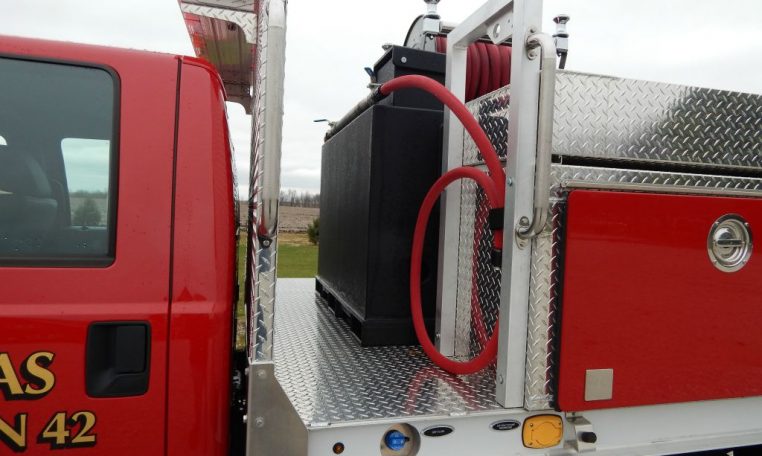

• 300-Gallon Poly Skid Tank

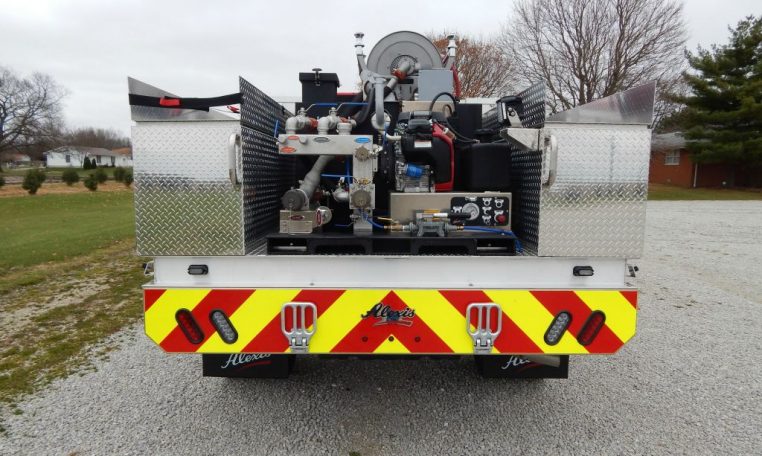

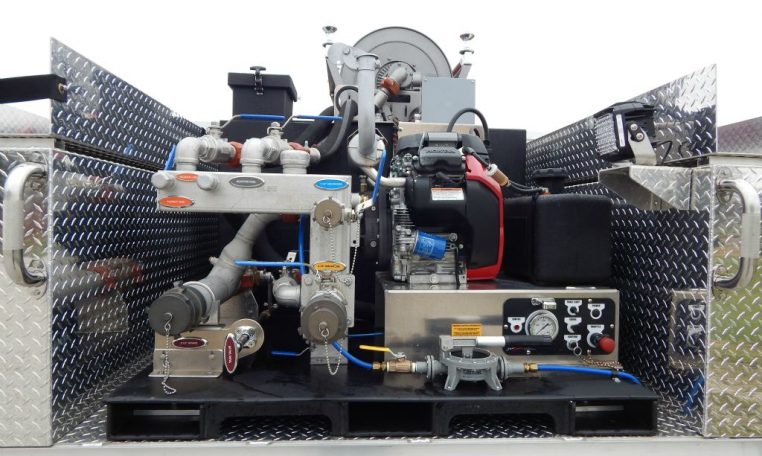

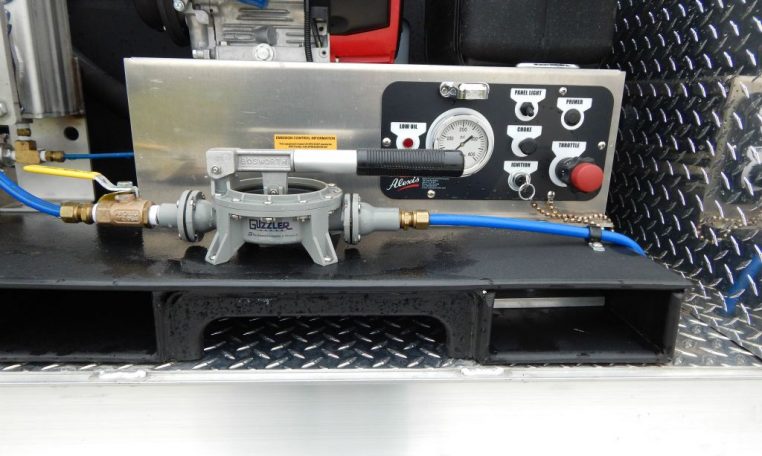

• Darley 1 ½ AGE Pump with 20-HP Honda Gasoline engine
• One (1) 2 ½” Discharge, rear
• One (1) 1 ½” Discharge, rear

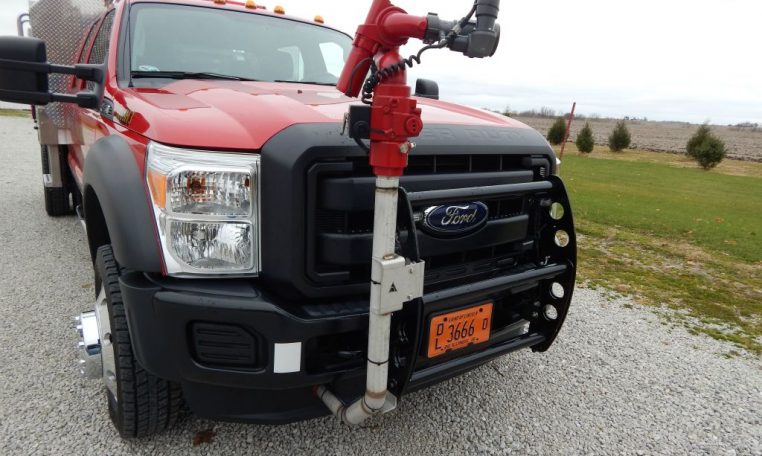

• Akron Forestry Monitor controlled from cab
• One (1) Hannay electric Booster Reel with 150-ft of 1″ hose

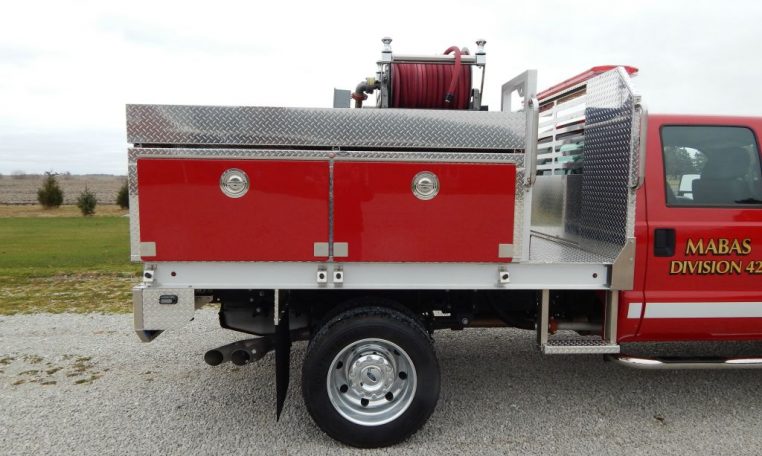

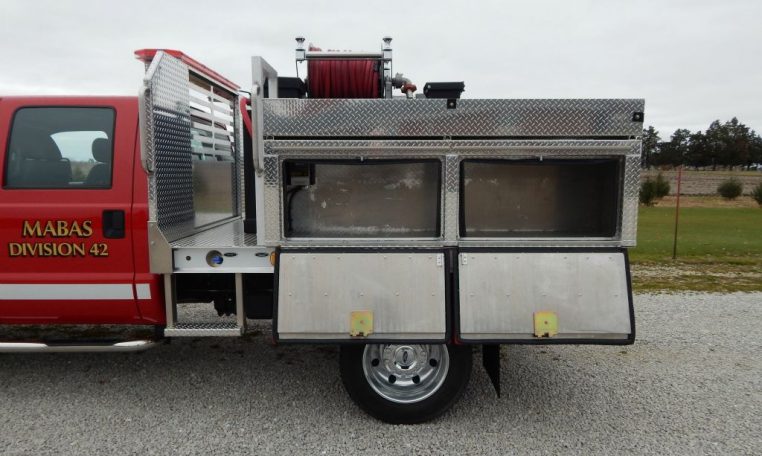

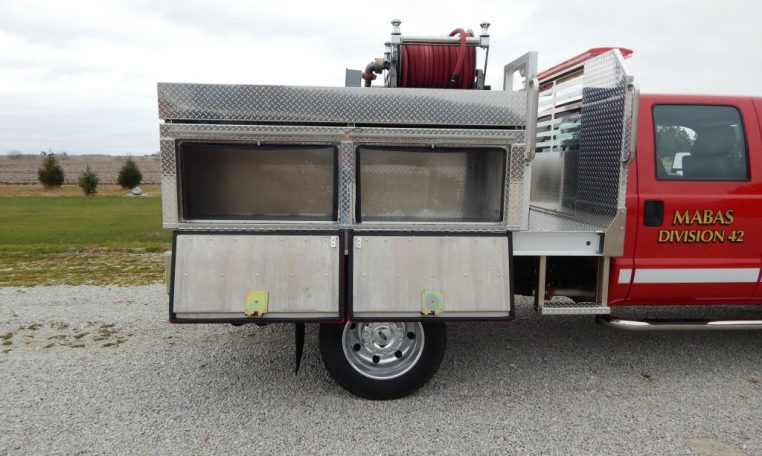

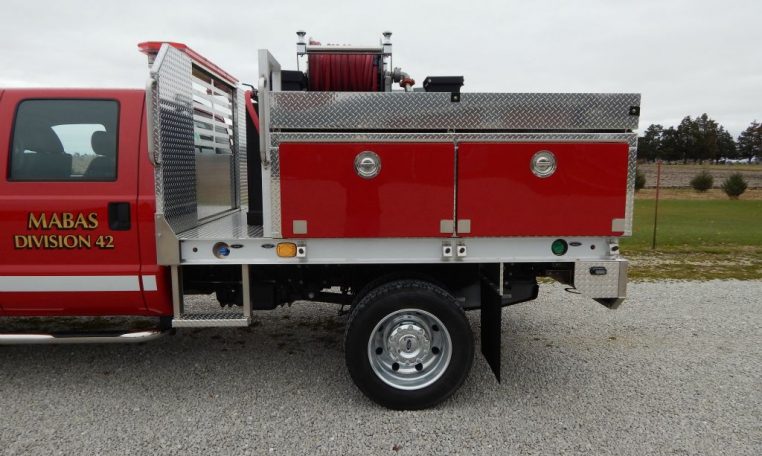

• Two (2) compartments with two (2) drop down doors each, one (1) each side

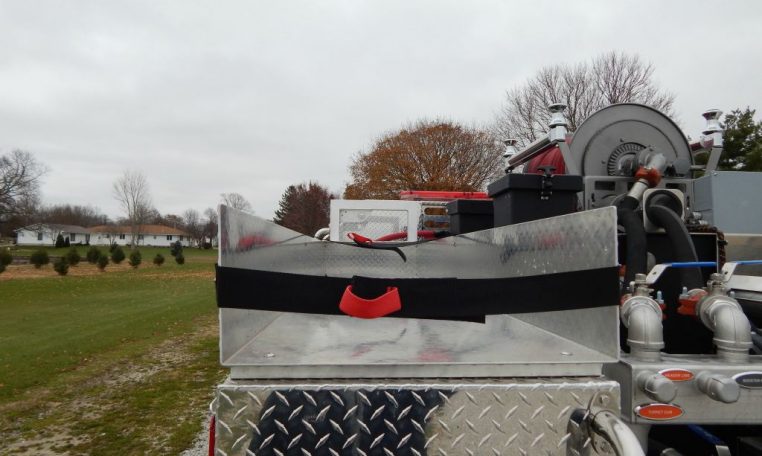

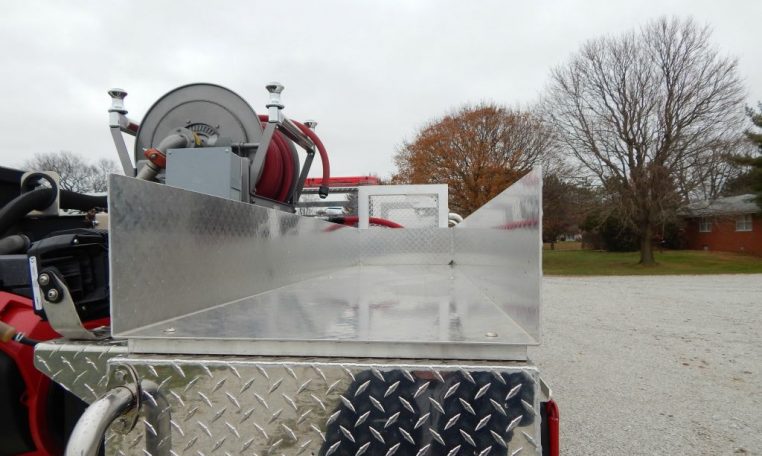

• One (1) Hose tray, compartment top
• One (1) Upper long storage compartment with rear access, compartment top
• Progressive Dynamics on-board battery charger
• Kussmaul Super Auto Eject 120-volt shoreline connection
• Floor mounted console for emergency switches, cab
• Whelen Swivel Deck Light, rear
• Code 3 Electronic Siren with 100-watt Code 3 speaker
• Code 3 LED Warning Light Package

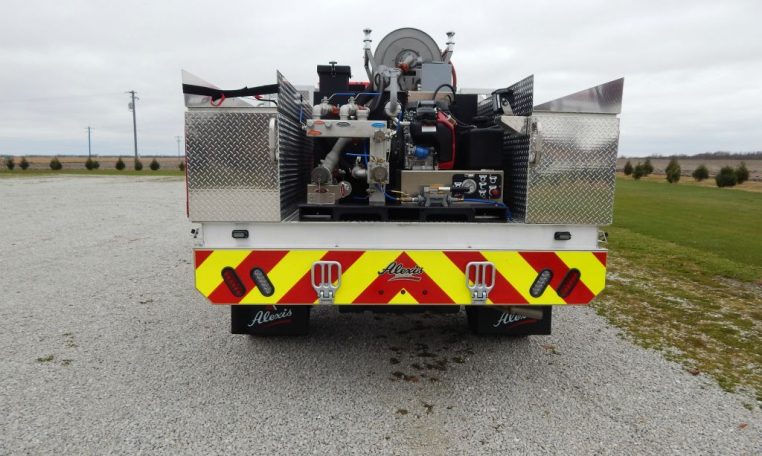

• Diamond Grade Chevron pattern striping, rear
• Overall height
• Overall length
• 176″ Wheelbase
• 60″ Cab to Axle
• 7,000 FAWR
• 14,706 RAWR
• 19,500 GVWR
