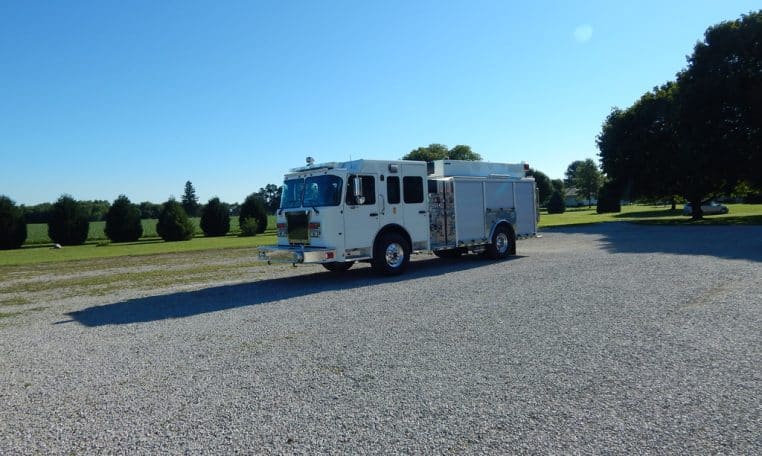

Delivered Apparatus

FEATURES:

• Spartan FC-94 MFD 10” Raised Roof Chassis
• Cummins L9 450 HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Personnel Capacity: Four (4)
• Heavy Duty Aluminum Body and Sub-Frame
• Hale DSD 150 SS 1500 GPM Split Shaft Pump
• 1000-Gallon Poly Tank
• FoamPro 2001 System with 30-Gallon Foam Tank
• Foam Capable Discharges: Two (2) 1½ Crosslay Preconnects, One (1) 1½” Front Bumper Preconnect, One (1) 2½” Right Rear Discharge
• 6” Intake, One (1) Each Side
• 2 ½” Gated Intake, One (1) Each Side
• Mattydale Preconnects, Two (2) 1 ½”, One (1) 2 ½”
• Two (2) 2 ½” Discharges, Left Side
• One (1) 2 ½” Discharge, Right Side
• Two (2) 3” Discharges, One (1) Right Side Adapted to 5” Storz, One (1) Rear
• ROM Locking Roll Up Doors
• One (1) Dual Air Bottle Compartment, Right Side
• One (1) Triple Air Bottle Compartment, Right Side
• One (1) Fire Extinguisher Compartment, Left Side
• Two (2) 250# Roll Out Trays, L3, R3 Compartments
• One (1) 500# Roll Out Tray, Rear
• Zico Extrication Tool Holder, R3 Compartment
• ChanL PanL Pull Out Boards with Shoe Box, Two (2) L1, Two (2) R1 Compartments
• Four (4) Walk-Away Air Pak Brackets, R1 Compartment
• EMS Compartment, Rear Wall of Cab
• Horizontal Ladder, Suction, and Pike Pole Storage, Rear Through Tank

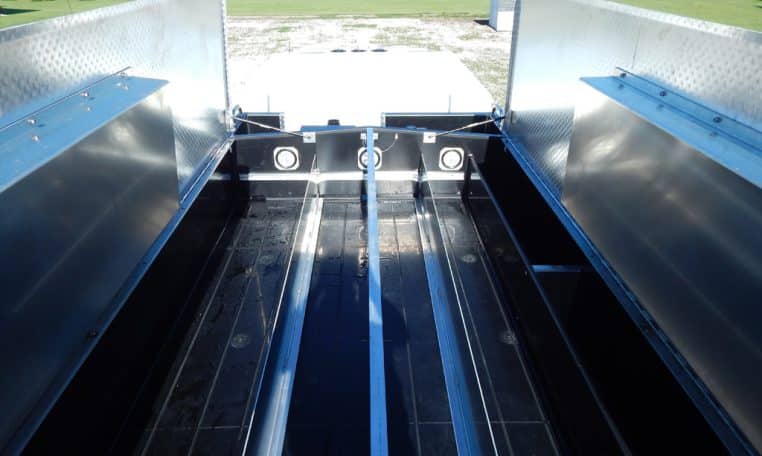

• Two (2) Hose Bed Dividers
• AFE Stainless Steel Top Access Ladder
• Progressive Dynamics 40-Amp Charger with Air Compressor
• Kussmaul 20-Amp Super Auto-Eject, Cab Left, Above Wheel Well
• 24” Front Bumper Extension with 1 ½” Preconnect and Center Hose Well
• Federal Q2B Siren, Recess Mounted Front Bumper
• Whelen Electric Siren & 100 W Speaker
• Two (2) Air Horns, Recessed Front Bumper
• Whelen Warning Light Package
• One (1) FireTech 21” Brow Light, Front
• GoLight Remote Controlled LED Spotlight
• Two (2) FireTech 40” Scene Lights, One (1) Each Side
• Two (2) FireTech 8” Scene Lights, Rear
• Whelen LED Arrow Stick, Rear
• Aluminum Rub Rails with LED Ground Lights and LED Warning Lights
• LED Bulkhead Hose Bed Lighting
• Back-Up Camera with Cab Display
• 10’ 2” Overall height
• 31’ Overall length
• 180” Wheelbase
• 126” Cab to Axle
• 20,000 FAWR
• 27,000 RAWR
• 47,000 GVWR
