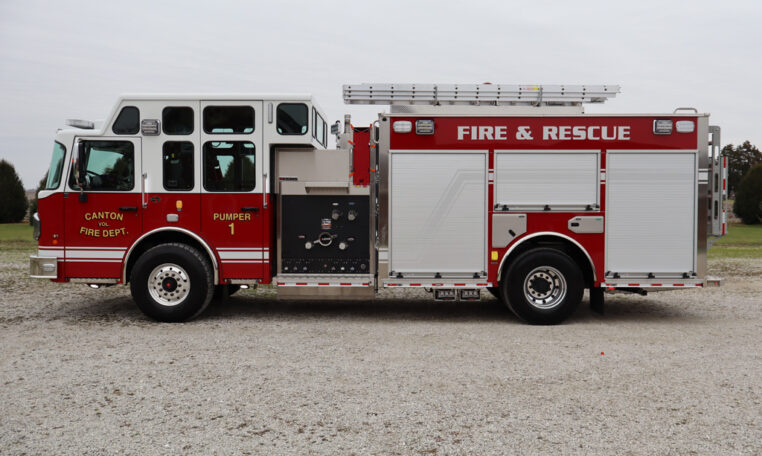

Delivered Apparatus

FEATURES:

• Spartan Metro Star MFD Chassis with 20” Raised Roof and Pump Panel Hood
• Cummins L9 380 HP Diesel Engine
• Allison 3000 EVS Transmission
• Heavy Duty Stainless Steel Body with Stainless Steel Subframe
• Stainless Steel Enclosed Top Mount Pump Module with Stainless Steel Subframe
• Waterous CXVC20 1500 GPM Pump
• Trident Air Primer
• Diesel Fired Heated Pump Enclosure
• FRC Pump Boss Pressure Governor Monitoring System
• FRC TankVision Water Tank Level Gauge with Three (3) Whelen Strip Lites
• Two (2) 6” Intakes with TFT External Intake Valves, One (1) Each Side
• Two (2) 2½” Gated Intakes, One (1) Each Side
• One (1) 2½” Discharge, Each Side and Two (2) 2½” Discharges, Rear
• One (1) 4” Discharge, Right Side
• FoamPro 1600 Foam System with 25 Gallon Foam Tank
• One (1) 3” Discharge Dunnage Area for Deck Gun
• Two (2) 1½” Mattydale Preconnects
• Three (3) Triple Wheel Well Air Bottle Compartments
• ROM Roll-Up Doors
• Four (4) Dual Wheel Well Air Bottle Compartments, Two (2) Each Side
• Hydraulic Single Arm Ladder Rack with Suction Hose Storage. Right Side
• AFE Stainless Steel Rear Access Ladder with Flip Down Step
• 1000 Gallon Poly Tank
• One (1) 2½” FirePrograms Tank Fill, Rear Right
• 12 Volt Electrical System with NFPA Compliant Warning Light Package
• Kussmaul AutoCharge 40 LPC Battery Charger with Kussmaul 120 Volt Air Pump
• Kussmaul 20 Amp Super Auto-Eject 120V Shoreline Connection, Left Side of Cab
• Whelen LED Warning Light Package with Rear Arrow Stick
• Whelen 200W Siren and Two (2) CPI 100W Speakers
• Eight (8) Firetech GESM Guardian LED Scene Lights, Three (3) Each Side and Two (2) Rear
• Two (2) FRC Spectra LED Telescopic Lights, One (1) Each Side at the Front of the Body
• FRC Inview 360 Camera System
• One (1) 10’ Attic Ladder, One (1) 14’ Roof Ladder with Hooks, One (1) 35’ 3-Section Ladder, and Two (2) 10’ Lengths of 6” Suction Hose
• 11’-8” Overall Height
• 32’-3” Overall Length
• 205” Wheelbase
• 151” Cab to Axle
• 21,500 FAWR
• 31,000 RAWR
• 52,500 GVWR
