Delivered Apparatus

FEATURES:

• Spartan Metro Star EMFD 10” Raised Roof Chassis
• Weldon Vista Display Screen – Cab Dash Left Side
• 450 HP Cummins L9 Diesel Engine
• Allison 3000 EVS Automatic Transmission
• 24” Front Bumper Extension with 6” Front Intake
• 1½” Front Bumper Preconnect with Center Hose Well
• 1000 Gallon Poly Tank with Lifetime Warranty
• Heavy Duty Stainless-Steel Subframe & Body
• Side Control Pump Module with Stokes Basket Storage
• Waterous CXV 1500 GPM Pump
• Two (2) 6” Intakes, One (1) Each Side
• One (1) Rear 6” Intake
• Two (2) 2 ½” Discharges, Left Side
• One (1) 2 ½” Gated Intake, Left Side
• One (1) 2½” Discharge Right Side
• One (1) 3” Discharge Right side with 5” Storz Elbow
• Akron 3423 Deck Gun with TFT Extenda-Gun
• One (1) 2½” Hose Bed Preconnect – Right Side
• Two (2) 1½” Cartridge Lay Preconnects with Trays and Black Die-Cut Hypalon Covers
• One (1) 4” Rear Tank Fill Adapted to 5” Storz with a 5” Storz x 2½” Reducer
• Hose Bed with Black Hypalon Cover and Two (2) Dividers

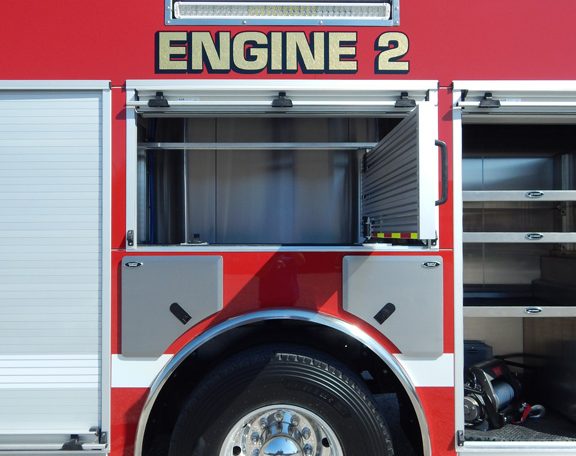

• ROM Roll Up Doors

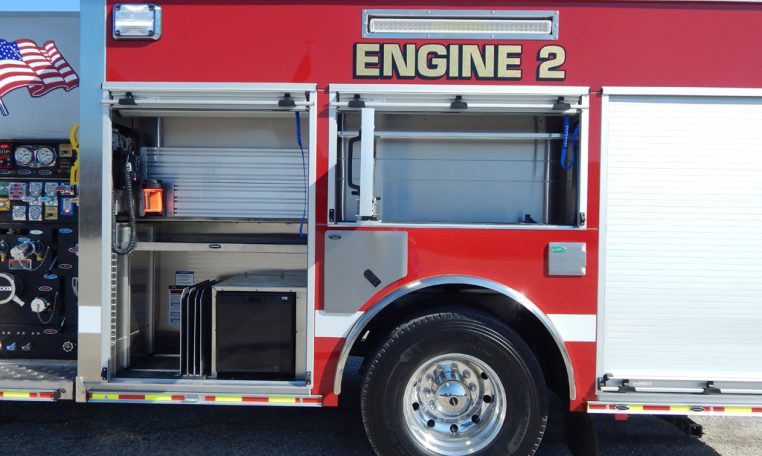

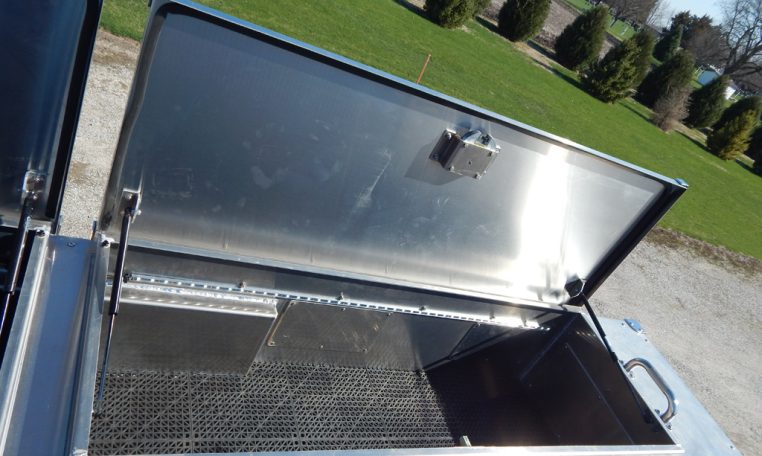

• Compartments with Efficient Storage
• Whelen LED Warning Light Package
• Whelen Electronic Siren w/ 100-watt Speaker
• Federal Q2B Recess Mounted in the Bumper
• 360º Firetech HiViz Scene Lighting
• Backup Camera
• SmartPower 10 KW Hydraulic Generator with Electric Cord Reel and Power Strips
• Command Light CL602A-SPC 120 Volt Light Tower with six (6) FRC Spectra light heads mounted on the Cab Roof with Brush Guard
• Diamond Grade Chevron Striping, Rear
• 11’ Overall Height
• 33’-9” Overall Length
• 205” Wheelbase
• 145” Cab to Axle
• 21,500 FAWR
• 27,000 RAWR
• 48,500 GVWR
