Delivered Apparatus

FEATURES:

• Spartan Metro Star MFD 10” Raised Roof Chassis
• Cummins L9, 450-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy-Duty Stainless-Steel Body and Sub-Frame with ROM Roll Up Doors
• Six (6) person Cab seating with five (5) SCBA seats
• 24” Front bumper extension with 5” front suction and preconnected hose
• Front bumper center hosewell with 1 ½” Preconnect
• 1000-Gallon Poly Tank with 10-gallon foam tank
• One (1) 2 ½” Fireman’s Friend Tank fill, rear

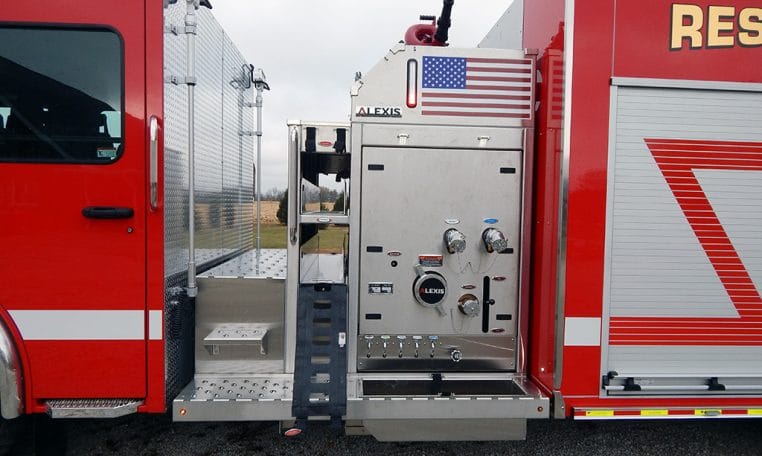

• Waterous CX, 1500-GPM Pump with operator’s control across top of apparatus
• Four (4) 2 ½” Discharges, two (2) left, one (1) right side and one (1) rear
• Two (2) 1 ½” Cartridge Lay Preconnects, front of pump module
• Two (2) 3” Discharges, one (1) right side and one (1) over pump for deck gun

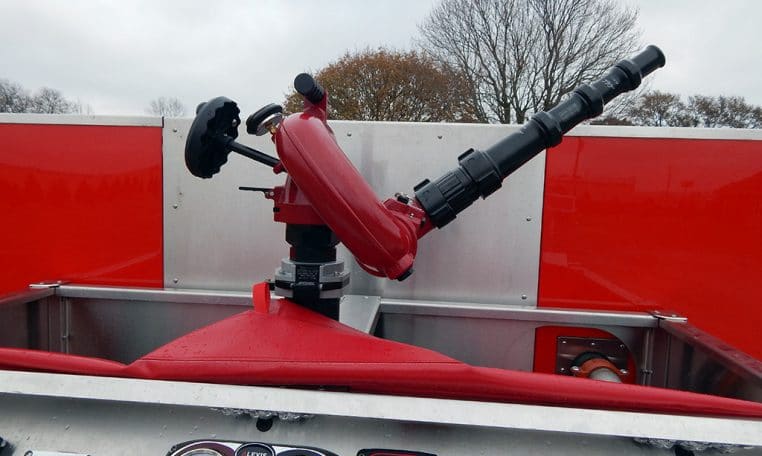

• TFT Crossfire monitor with base, stream shaper and tips
• TFT Extend-a gun 18” telescoping waterway
• Two (2) 2 ½” Gated Suction, one (1) each side
• Waterous Aquis 1.5 Foam System
• Two (2) free floating hose wells, one (1) each side running board
• Two (2) Triple bottle Air bottle compartments, right side wheel well
• One (1) Wheel chock compartment, left side wheel well

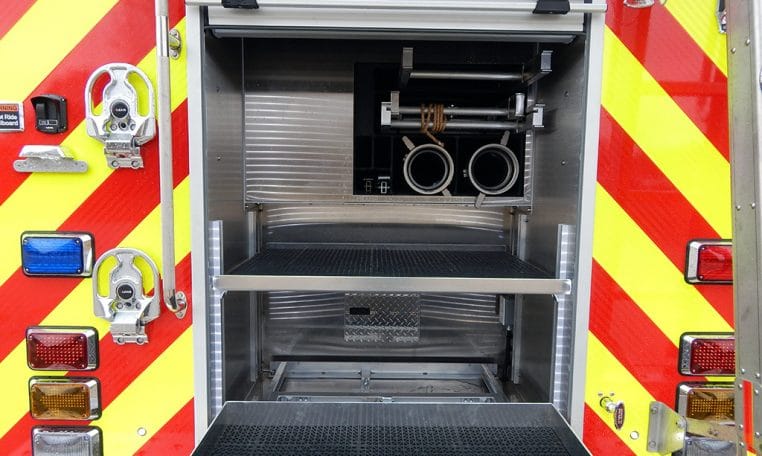

• Ladder, Suction hose and Pike pole storage, through the tank with rear access
• Two (2) Vertical pull-out Tool boards, one (1) each side
• Turtle Tile on the floors and/or shelves and trays of compartments

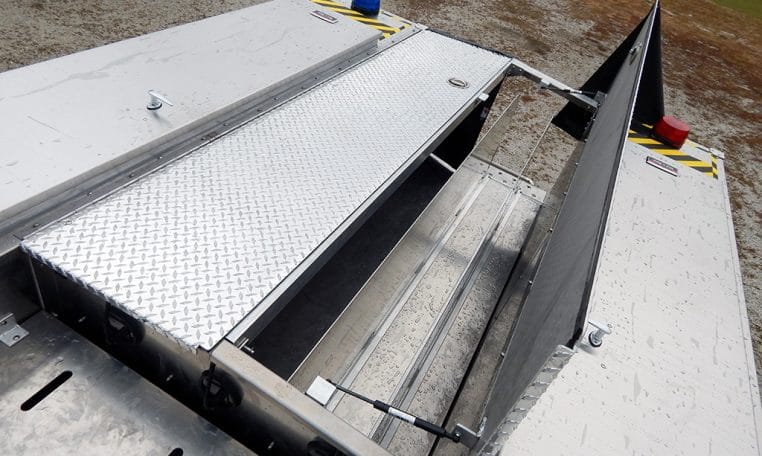

• Two (2) Upper storage compartments, one (1) each side roof
• One (1) Stainless Steel Top access ladder, rear mounted
• Progressive Dynamics on-bard Battery charger with Viair air compressor
• Whelen Electronic Siren with 100-watt Cast products speaker
• Whelen LED Warning Light and Scene Light Packages
• Two (2) 24” Hadley Air horns, front bumper
• Diamond Grade Chevron pattern striping, rear
• 10’ 6” Overall height
• 35’ 7” Overall length
• 227” Wheelbase
• 173” Cab to Axle
• 21,500 FAWR
• 31,000 RAWR
• 52,500 GVWR
