Delivered Apparatus

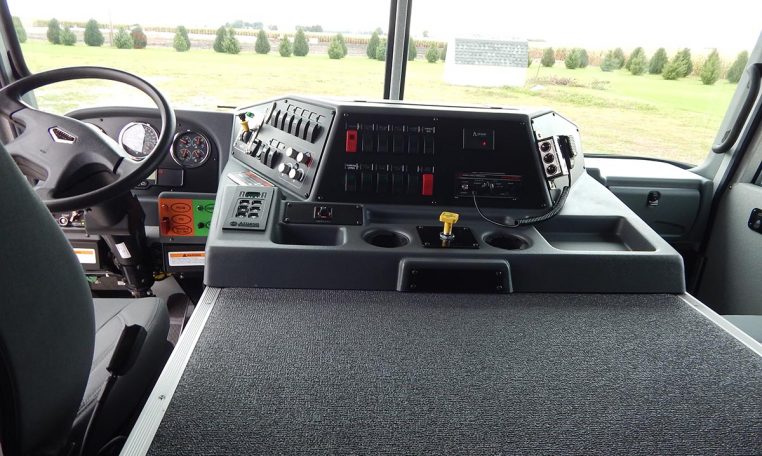

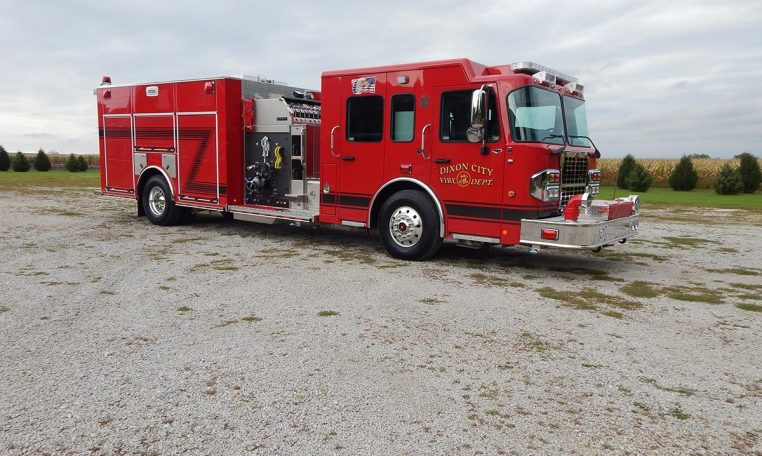

• Spartan Metro Star LFD 10” Raised Roof Chassis
• Cummins L9, 450-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission

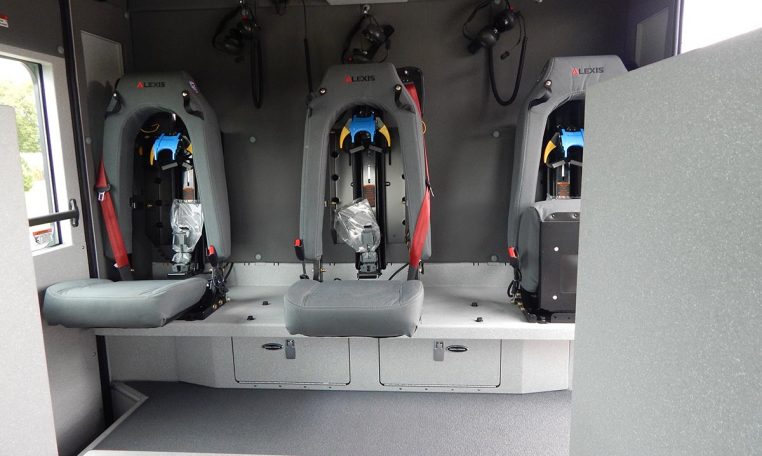

• Five (5) Person Cab Seating with Four (4) SCBA Seats
• Heavy Duty Aluminum Body with Galvanized Steel Sub-Frame
• ROM Painted Roll Up Doors
• Front Bumper Extension with Electric Booster Reel for 100-ft of 1” Hose
• Two (2) EMS Compartment with Shelves and Roll Up Doors, cab
• 750-Gallon Poly Tank with 30 Gallon Foam Tank
• One (1) 2 ½” FirePrograms Tank fill, rear
• Hale QMAX, 2000-GPM Pump with Operator’s Panel Across Top
• One (1) 2 ½” Mattydale Preconnect, Top of Pump Module
• Two (2) 1 ½” Cartridge Lay Preconnects, Front of pump module
• One (1) 2 ½” Preconnect, Front of Hosebed
• Four (4) 2 ½” Discharges, Two (2) Left, One (1) Right and One (1) Rear
• Two (2) 3” Discharges, one (1) Right Side and one (1) over pump for Deck Gun
• Task Force Tips Hurricane Remote Control Monitor with Stream Straightener
• Two (2) 2 ½” Gated Suction, One (1) Each Side
• Two (2) 5” Suction, Front and Rear
• Foam Pro 2001 Foam System with Power Fill Foam tank refill system
• Two (2) Free floating Running board hose well compartments, one (1) each side
• Two (2) Triple bottle Air Bottle Compartments, One (1) Each Side
• One (1) Fire Extinguisher wheel well Compartment, right side
• Five (5) Vertical Pull-Out Tool Boards, three (3) Left Side and two (2) Right Side
• Ladder, Pike Pole and Suction Storage through tank with rear access
• FireCom Wireless Intercom System
• Smart Power LRT-8, 8000-watt Generator with 120-volt System
• One (1) Electric cord reel with 150-ft of 10/3 cord, rear
• Two (2) FRC Spectra 120-volt LED Tripod scene lights, rear
• Night Scan Vertical Light Tower with six (6) Whelen 150-watt LED lights
• Whelen LED Warning Light Package
• Diamond Grade Chevron Pattern Striping, Rear
• 10’ 8” Overall height
• 37’ 7” Overall length
• 249” Wheelbase
• 181.5” Cab to Axle
• 18,000 FAWR
• 27,000 RAWR
• 45,000 GVWR
