Delivered Apparatus

FEATURES:

• Spartan Metro Star LFD 10” Raised Roof Chassis
• Cummins L9, 450-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty Stainless Steel Body and Sub-Frame

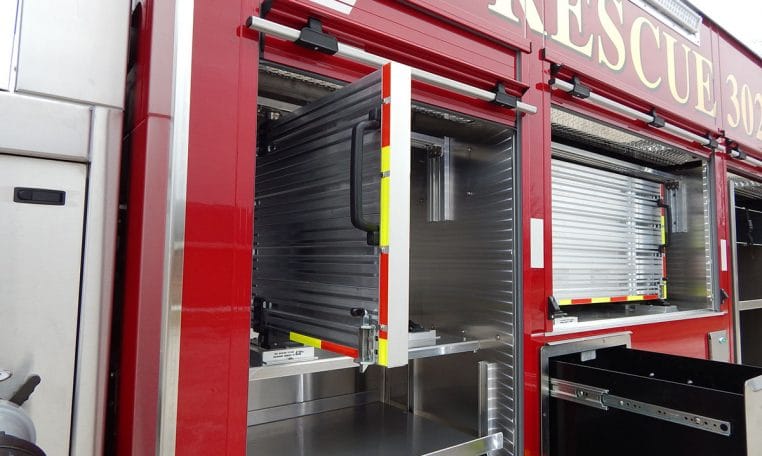

• Painted ROM Roll Up Doors
• Six (6) Person Cab Seating with Five (5) SCBA Seats
• 24” Front Bumper Extension with One (1) 1½” Preconnect and 100’ of 1¾” Hose
• Two (2) Custom EMS Compartments, Rear Wall of Cab
• 750-Gallon Poly Tank
• Darley PSM 1250-GPM Pump with Operator’s Panel Across Top of Apparatus
• Two (2) 6” Non-gated Suction, One on Each Side
• One (1) 5” Non-gated Suction, Rear
• One (1) 2½” Gated Suction, Left Side
• Two (2) 2½” Discharges, One on Each Side
• Two (2) 3” Discharges, Left and Rear
• Two (2) 1½” Cartridge Lay Preconnects

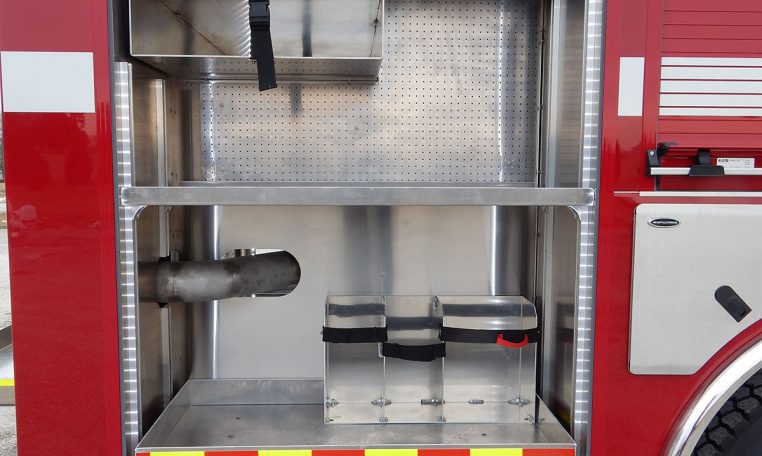

• Two (2) Triple Bottle Air Bottle Compartments, Right Side
• One (1) Wheel Well Oil Dry Hopper, Left Side
• Four (4) Hinged Tool Boards, Left and Right Side Compartments

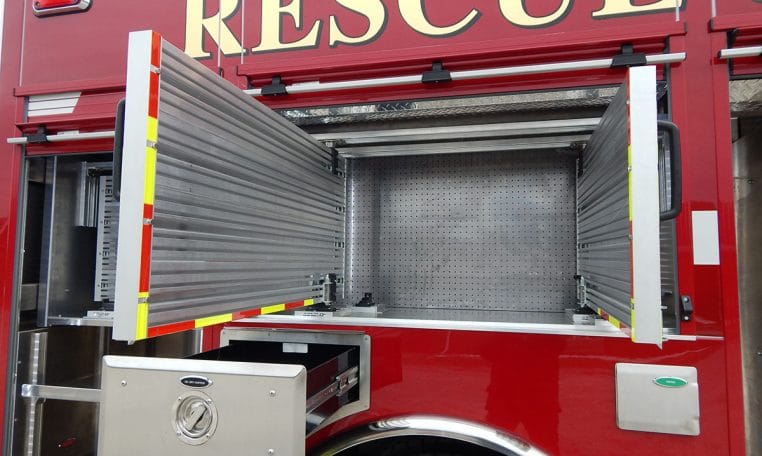

• Aluminum Pegboard in Compartments
• One (1) Backboard and Stokes Basket Storage Rack, Rear
• Ladder and Pike Pole Storage, Rear

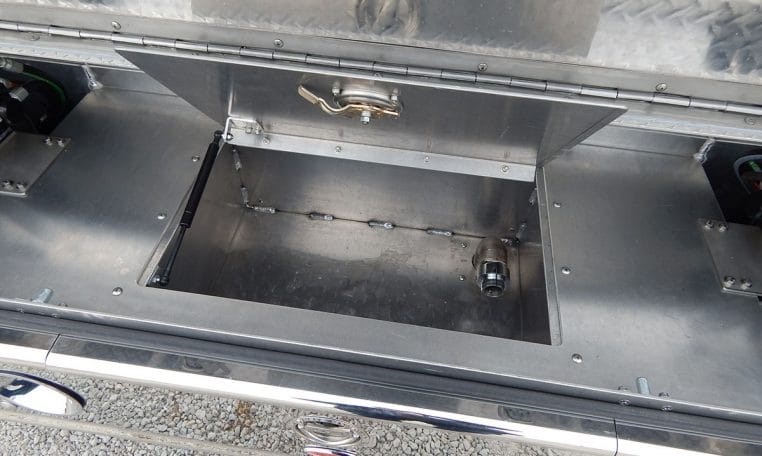

• Four (4) Upper Storage Compartments, Body Roof
• Two (2) Hannay Hydraulic Hose Reels with 100’ of Hose, Front Bumper
• One (1) Sho-Me Arrow Stick
• One (1) Audiovox Back-Up Camera System with 7” Color Monitor
• One (1) Federal Q2B Siren
• Whelen Warning Lights Package
• FireTech Scene Lights Package
• Diamond Grade Chevron Pattern Striping, Rear
• 10’ 6” Overall height
• 34’ 6” Overall length
• 203” Wheelbase
• 135.5” Cab to Axle
• 20,000 FAWR
• 27,000 RAWR
• 47,000 GVWR
