Delivered Apparatus

• Spartan MFD Metro Star
• 450 HP Cummins Engine
• Allison 3000 EVS Transmission
• Occupant Protection Advanced Protection System
• 24” Bumper Extension with Air Horns, Q Siren, Preconnect
• EMS Compartment with Refrigerator, Strip Plug, Shelves
• Hale QMAX-XS 150 HM 1500 GPM single Stage Pump
• Trident Air Primer-Two (2) Location
• Class One Total Pressure Governor
• Stainless Steel Side Control Pump Module
• Stainless Steel Manifold and Plumbing
• Discharges- Two (2) 1.5” Mattydales Preconnects, One (1) 1.5” Bumper Preconnect, Two (2) Left Side 2.5”, One (1) Right Side 2.5”, One (1) Right Side 3”, One (1) Rear 3”
• 3” Fix Monitor Piping for Deck Gun
• Rear Suction Intake
• Heavy-Duty Stainless-Steel Body
• Sub-Frame- Stainless Steel
• Assortment of Shelves, Roll Out Trays, Tool Boards, etc.
• Painted ROM roll Up Doors
• Three (3) Duel SCBA Wheel Well Compartments

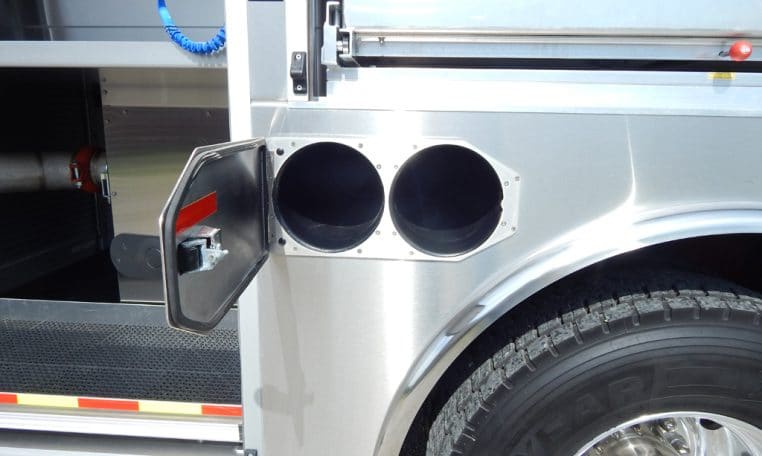

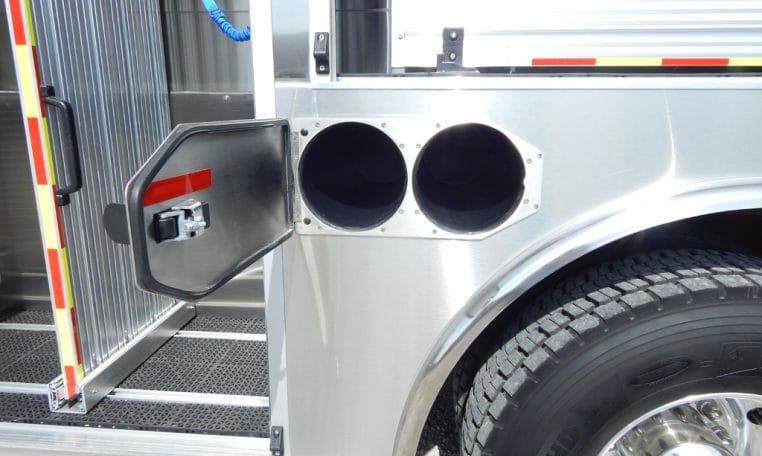

• Ladder, Suction Hose, Pike Pole Storage Through the Tank-Ground Accessible
• 1000 Gallon Poly Tank
• Fire Program Tank Fill-2.5”
• Whelen LED Warning Light Package
• Rub Rail LED Warning Lights and LED Ground Lights
• Whelen Siren & Speaker
• Fire Tech 12V LED Scene Lights
• NFPA Striping and Chevron
• 10’ 1” Overall height
• 32’ 8” Overall length
• 182” Wheelbase
• 128” Cab to Axle
• 20,000 LB FAWR
• 27,000 LB RAWR
• 47,000 GVWR
