Delivered Apparatus

Custom Built Since 1947.

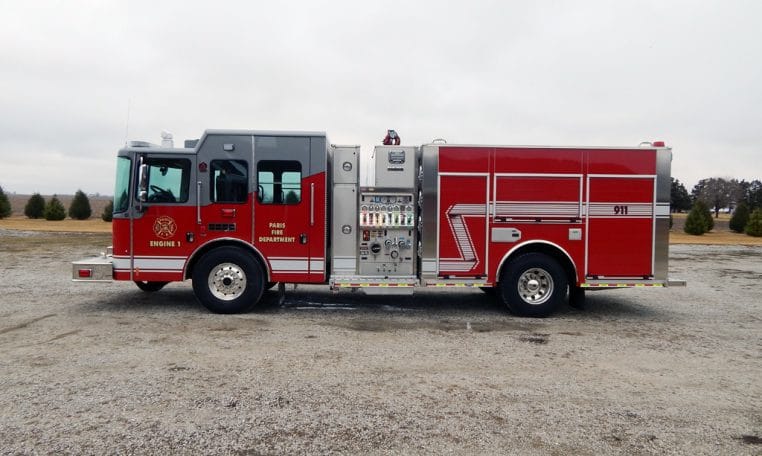

CUSTOM SIDE CONTROL PUMPER #2336

PARIS FIRE DEPARTMENT - PARIS, ILLINOIS
FEATURES:
  • HME 1871 MFDxL 12” Raised Roof Chassis
  • Cummins L9 400 HP Diesel Engine
  • Allison 3000 EVS Automatic Transmission
  • Heavy Duty Stainless-Steel Body & Subframe
  • Six (6) Person Cab Seating w/ Five (5) SCBA Seats
  • ROM Painted Roll-up Doors
  • Darley PSM 1500-GPM Pump
  • 1000-Gallon Poly Tank
  • Two (2) 6” Suctions, One (1) Each Side

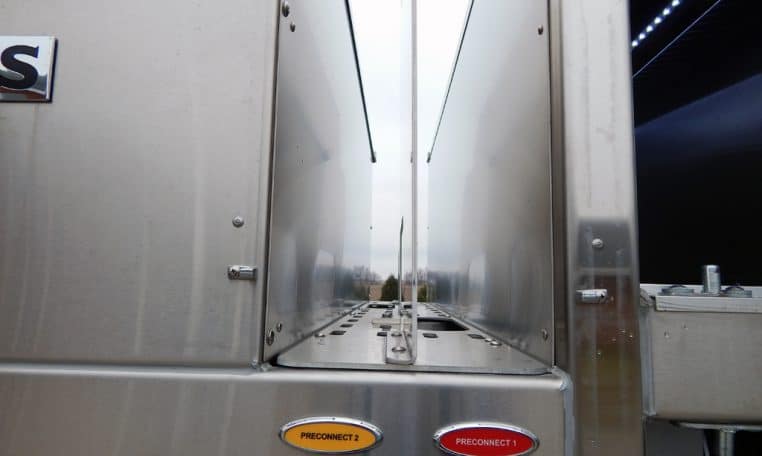

  • Two (2) 1 ½” Mattydale Preconnects
  • Four (4) 2 ½” Discharges, Two (2) Left, One (1) Right, One (1) Rear
  • Two (2) 3” Discharges, One (1) Right Side, One (1) Deck Gun

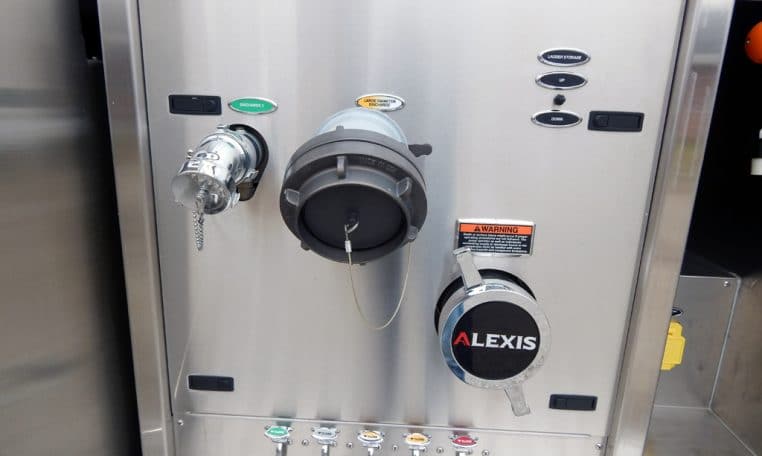

  • One (1) 2 ½” Gated Suction, Left Side
  • One (1) 1 ½” Preconnect, Front Bumper Extension
  • Running Board Free Floating Hose Well, Left Side
  • Transverse Storage Compartments, Ahead of Pump Module
  • Three (3) Dual Air Bottle Compartments, One (1) Left, Two (2) Right
  • Ziamatic Electrically Controlled Ladder Rack, Right Side
  • Kussmaul Super Auto Eject Shoreline Connection
  • Smart Power 10kW Hydraulic Generator
  • Two (2) CMW Electric Cord Reels
  • Whelen LED Warning Light Package
  • Fire Research Scene Light Package
  • Whelen Electronic Siren w/ Cast Products 100-watt Speaker
  • Federal Q2B Siren
  • GoLight Remote Controlled Spotlight, Cab Roof
  • Suction Hose/Pike Pole Storage, Right Side of Hosebed
  • Diamond Grade Chevron Striping, Rear
  • 9’ 10” Overall Height
  • 32’ 8” Overall Length
  • 195” Wheelbase
  • 135” Cab to Axle
  • 20,000 FAWR
  • 27,000 RAWR
  • 47,000 GVWR
Year: 2019
Make: Alexis Fire Equipment
Model: Pumper
Chassis: Custom
Body Style: Side Control Pumper
Pump Size: 1500
Tank Size: 1000
Feature: Electric Ladder Rack
Exterior Color: Red with Gray
New Delivery: New Delivery
