Delivered Apparatus

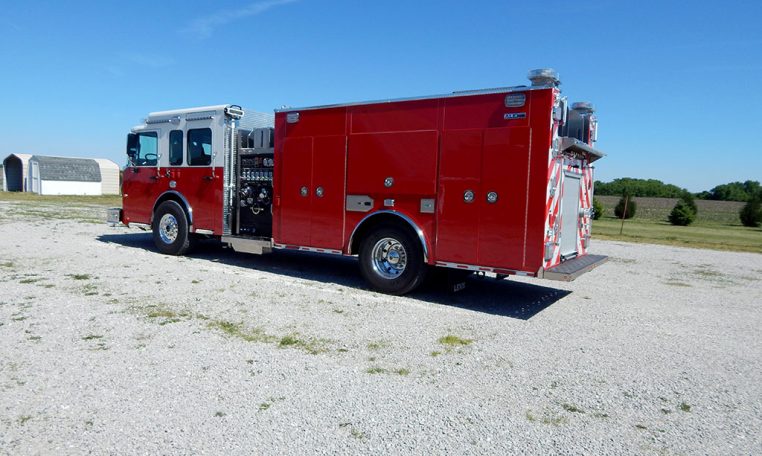

• Spartan Metro Star EMFD 10” raised roof Chassis
• Cummins L9, 450-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty Aluminum Body with Galvanized steel Sub-Frame
• Hemmed Pan Doors
• 24” Front bumper extension with 5” Suction, 1 ½” Preconnect and hosewell
• Six (6) Person cab seating with four (4) SCBA seats
• 1000-Gallon Poly Tank
• Hale QMAX 150, 1500-GPM Pump
• One (1) 2 ½” Discharge, rear
• One (1) 2 ½” Preconnect, front of hosebed
• Two (2) 3” Discharges, one (1) each side
• 5” Rear Suction and one (1) 2 ½” Gated Suction, right side
• Four (4) 1 ½” Mattydale Preconnects
• Two (2) Free floating Running board hosewells, one (1) each side
• Three (3) Triple bottle Air bottle compartments, one (1) left and two (2) right side
• One (1) Oil Dry Hopper with dispensing system, left side
• Ladder and Pike Pole storage right side vertical with rear access
• Audiovox back-up Camera system with 7” color monitor
• Federal Q2B mechanical Siren, recessed front bumper
• Show-Me Electronic Siren with Cast Products 100-watt speaker
• Two (2) Air Horns, front bumper
• Smart Power HR-15, 15,000 watt hydraulic generator with 120-volt system
• One (1) Akron Electric cord reel with junction box, rear
• Two (2) Akron Extend-Lite 120-volt SceneStar LED telescopic lights
• Whelen and FRC 12-volt LED Scene Light Packages
• Whelen LED Warning Light Package
• Diamond Grade Chevron pattern striping, rear
• 9’ 10” Overall height
• 33’ 9” Overall length
• 205” Wheelbase
• 145” Cab to Axle
• 21,500 FAWR
• 27,000 RAWR
• 48,500 GVWR
