Delivered Apparatus

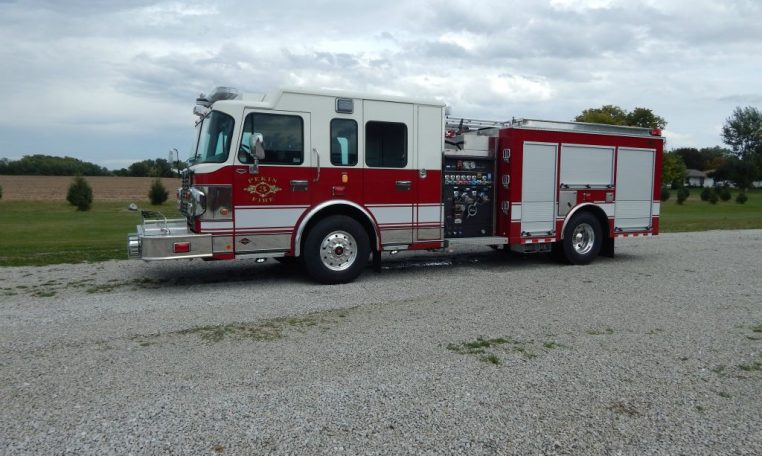

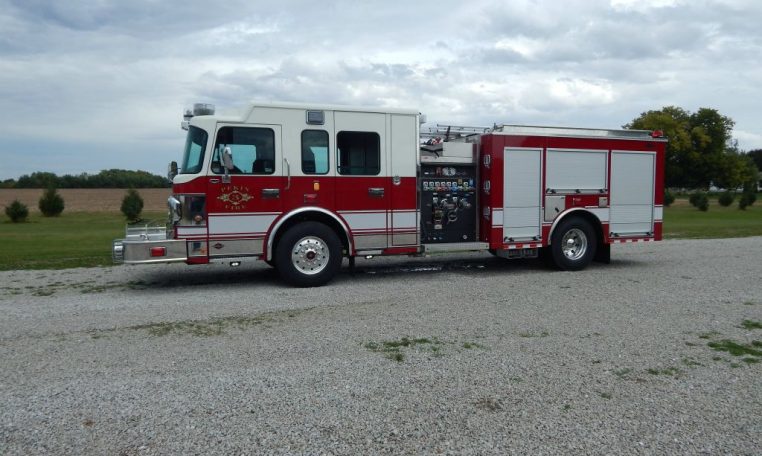

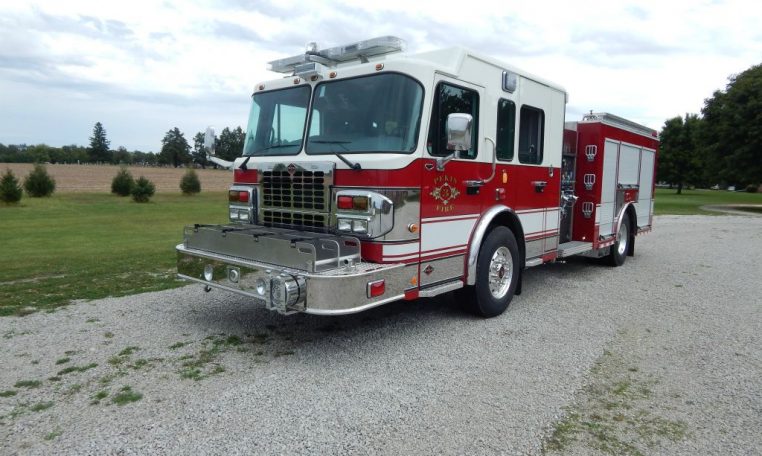

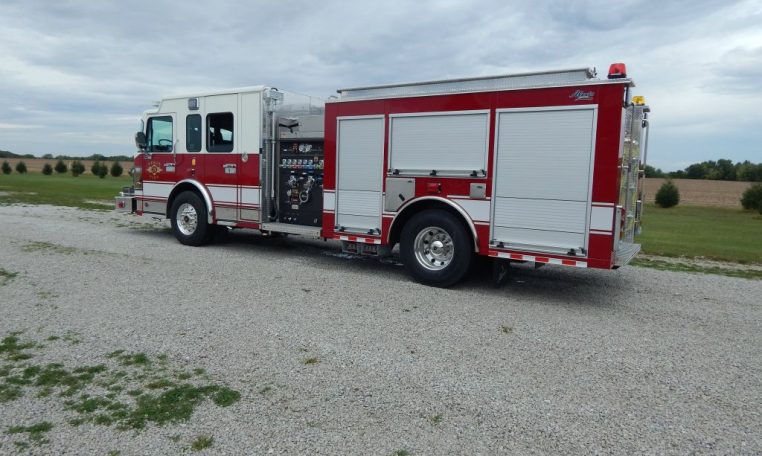

• Spartan Metro Star ELFD with 10″ raised roof Chassis
• Cummins ISL9, 450-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Four (4) man cab seating with three (3) SCBA seats

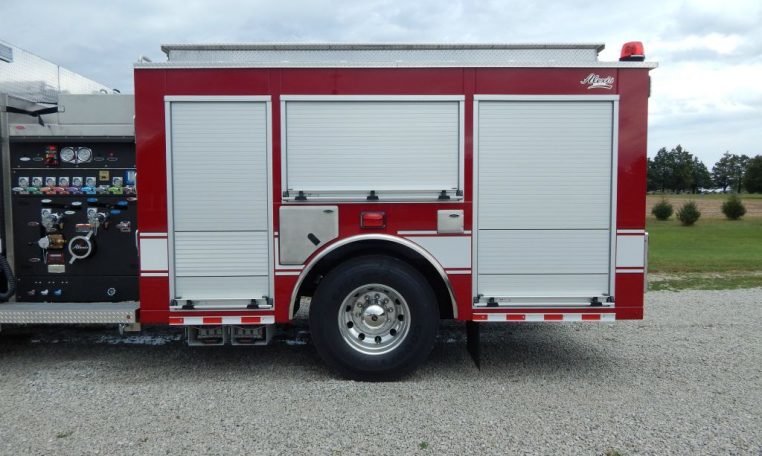

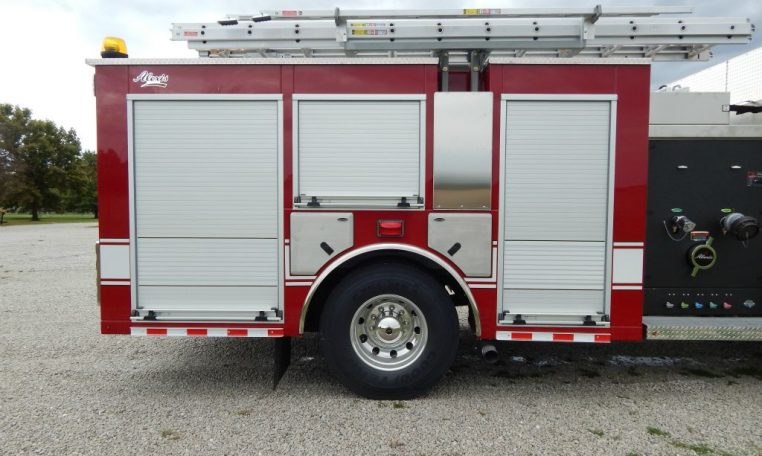

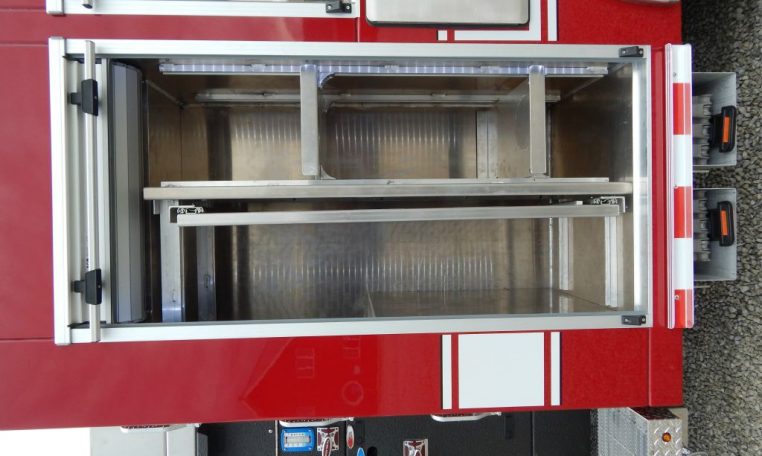

• Heavy Duty 3/16″ Aluminum Body with ROM Roll up compartment doors
• 750-Gallon Poly Tank

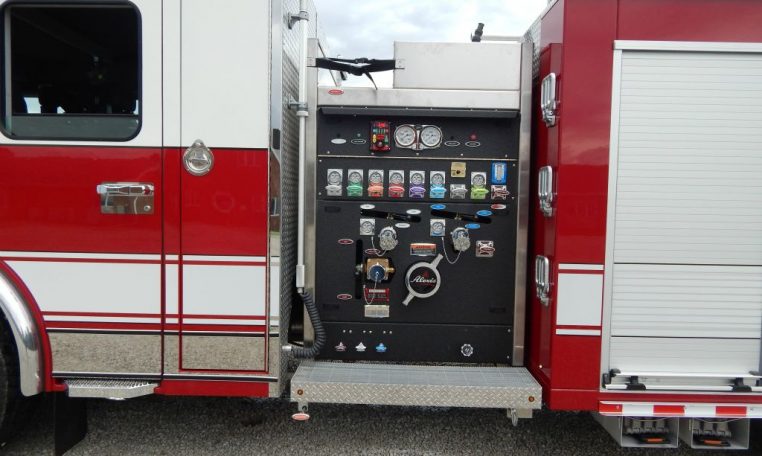

• Waterous CSU 1250 GPM Pump with left side operator’s panel
• Four (4) 2 ½” Discharges, two (2) left, one (1) right side and one (1) rear
• One (1) 2 ½” Mattydale Preconnect, across top of pump module
• Two (2) 3″ Discharges, One (1) right side and one (1) over pump for Deck Gun

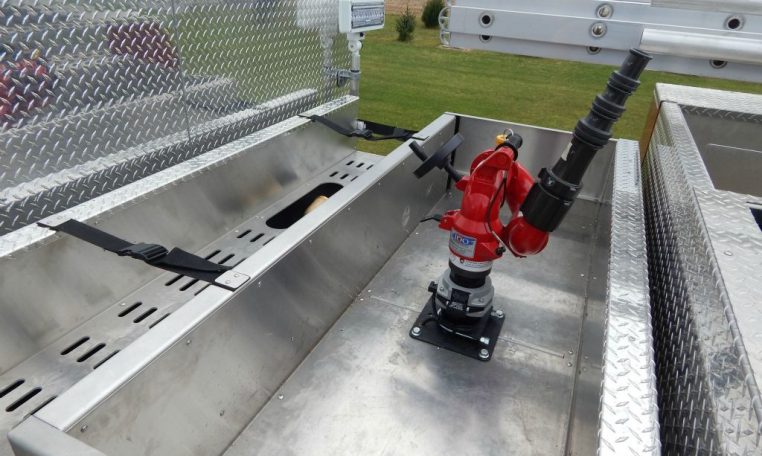

• Elkhart Stinger Deck Gun with TFT Extend-a-Gun

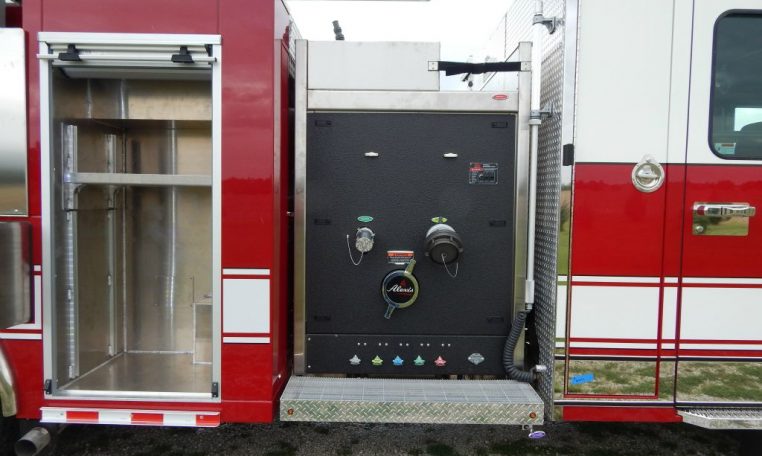

• One (1) 2½” Gated Suction, left side

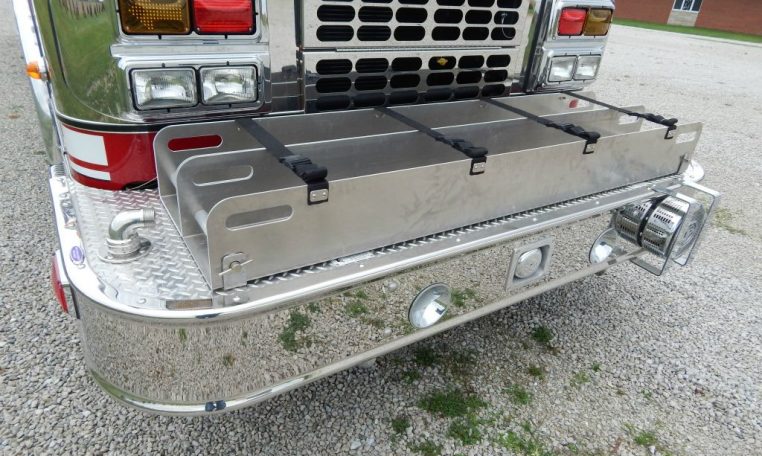

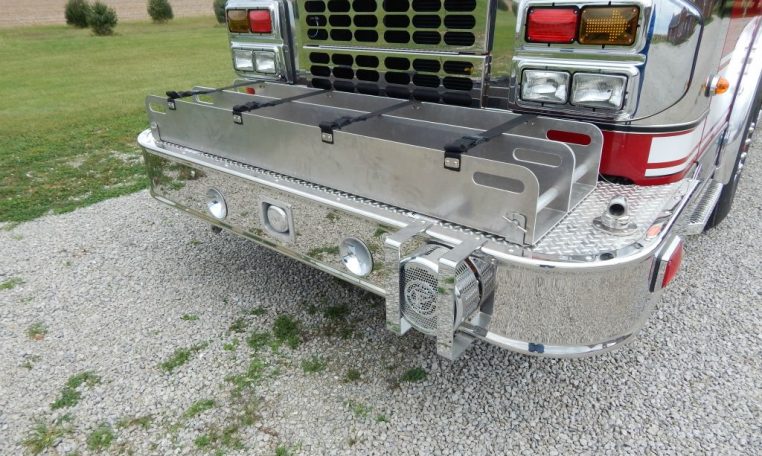

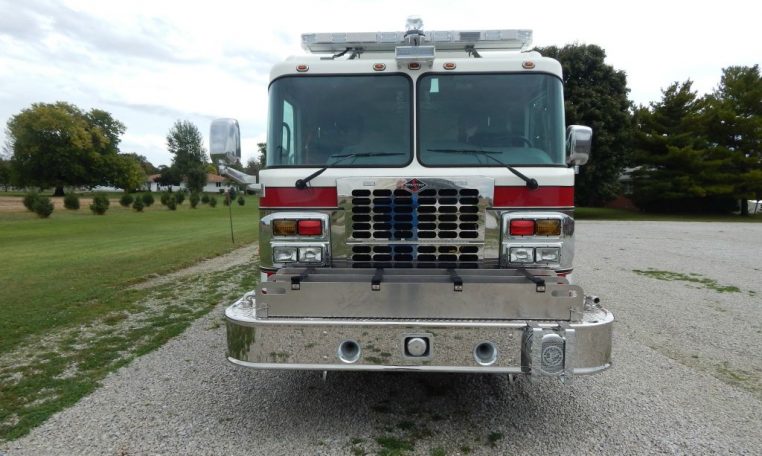

• 28″ Front bumper extension with two (2) 1½” Cartridge Lay preconnects
• One (1) Vertical Pull out tool board, left side

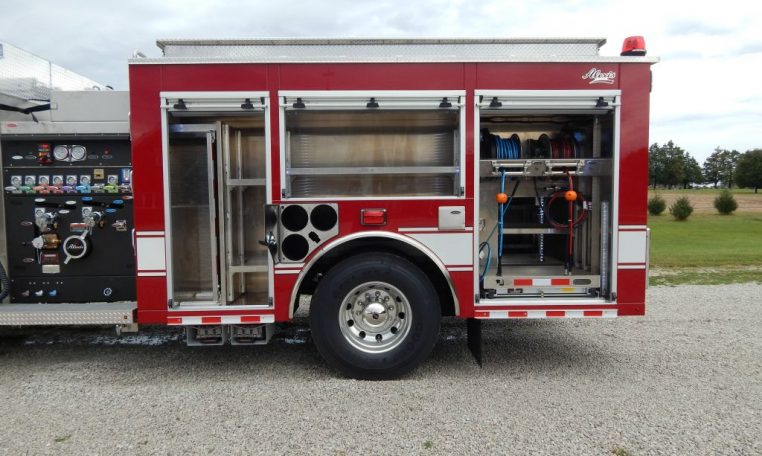

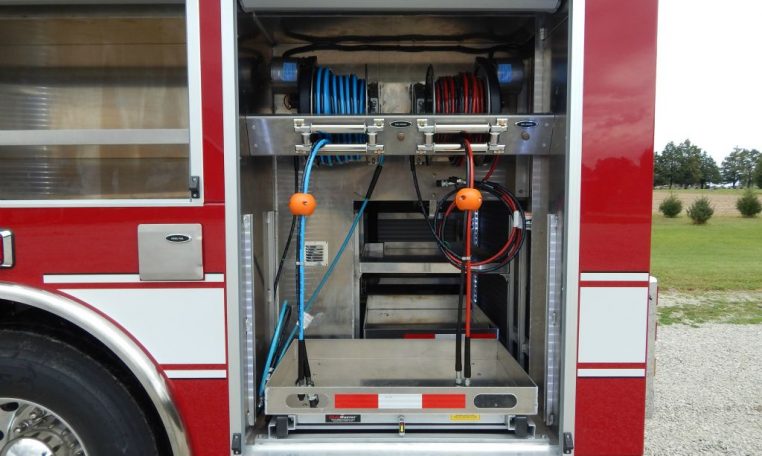

• Two (2) Hannay Dual Hydraulic Hose Reels, left side

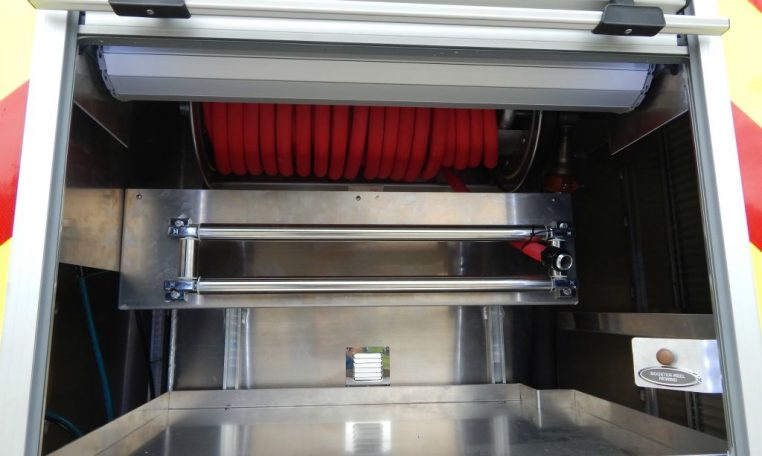

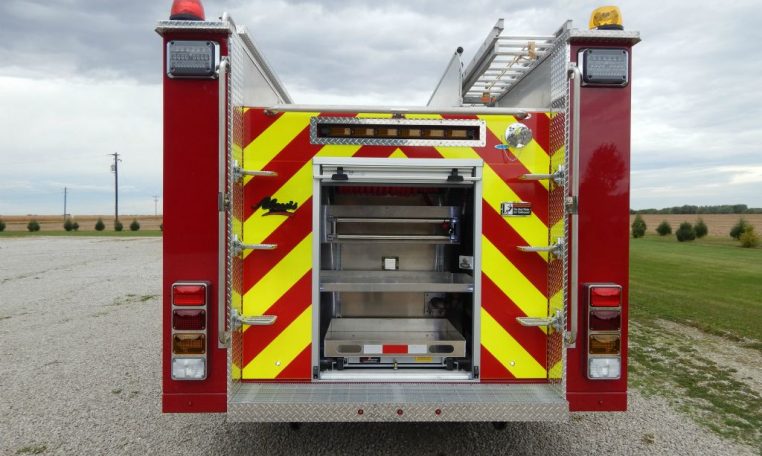

• One (1) Booster Reel with 100′ of 1″ hose, rear compartment
• EMS Cabinet, chassis cab rear wall

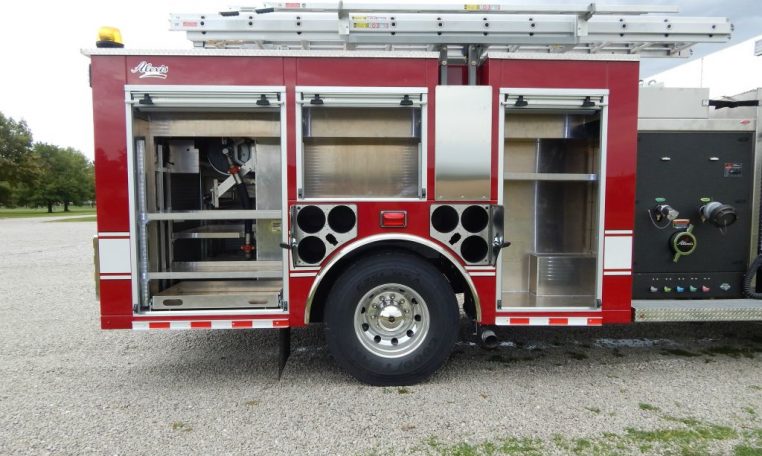

• Three (3) Triple Bottle Air bottle compartments, one (1) left and two (2) right

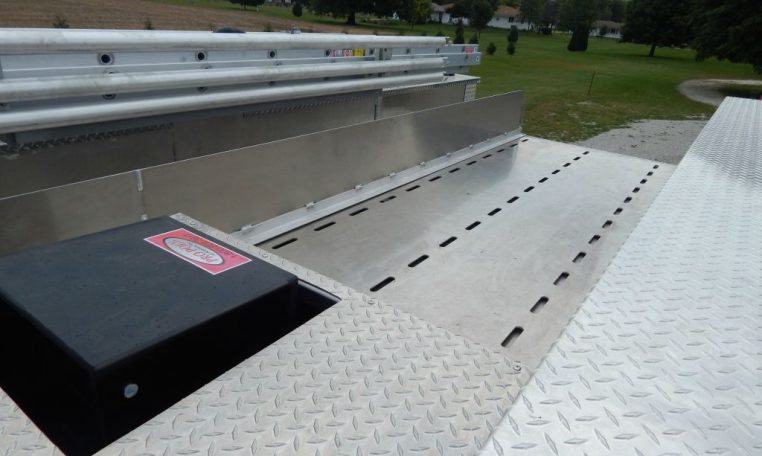

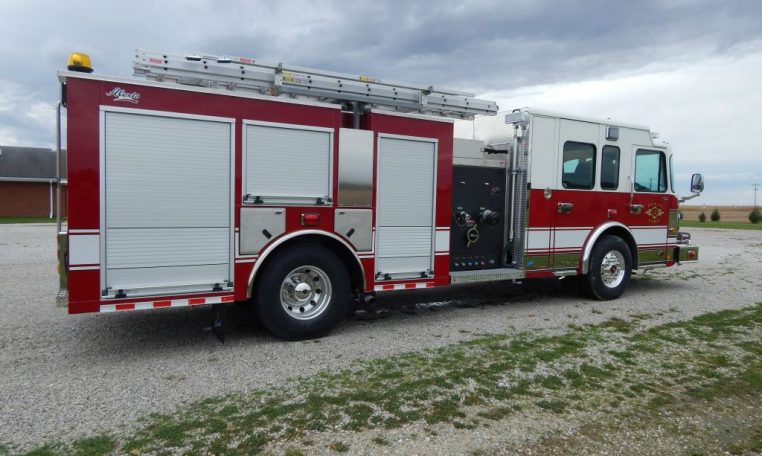

• Zico hydraulic ladder rack with Pike Pole storage, right side
• Suction hose storage compartment for one (1) hose, upper left side
• Kussmaul 1200 on-board battery charger with Super Auto Eject shoreline
• Federal Q2B mechanical Siren, front bumper
• Whelen Electronic siren with one (1) Cast products 100-watt speaker
• Two (2) Air Horns, front bumper
• Two (2) Fire Research Spectra telescopic LED floodlights, one (1) each side
• One (1) FRC 12-volt LED Brow light
• One (1) Federal Visibeam wireless spotlight, cab roof center
• Four (4) Whelen LED Scene lights, One (1) each side and two (2) rear
• Whelen LED Warning Light Package

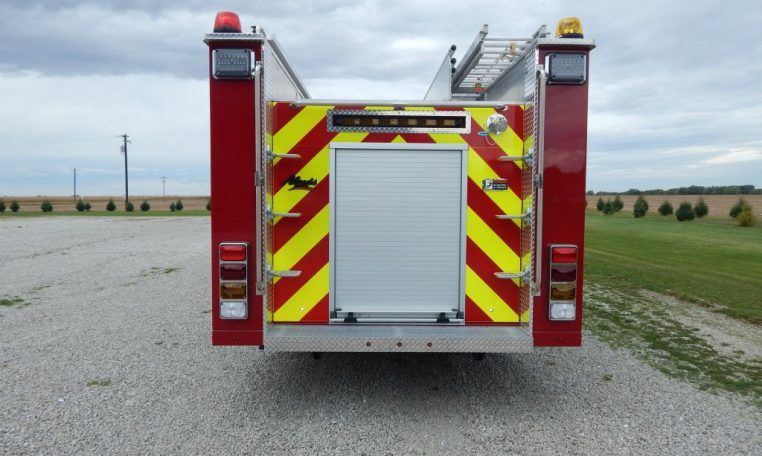

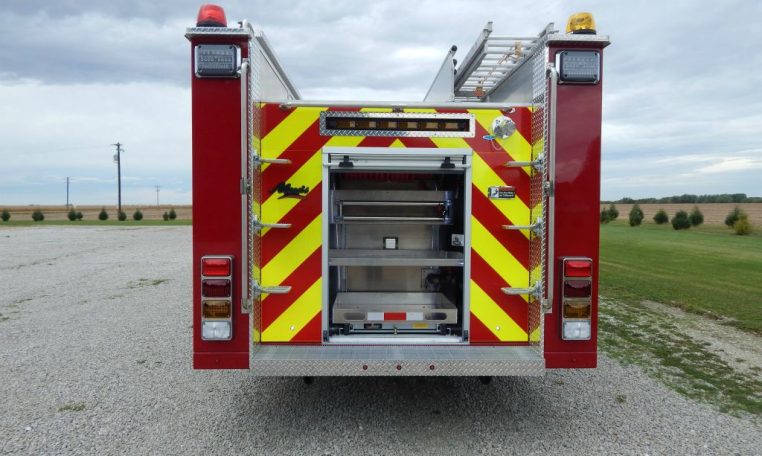

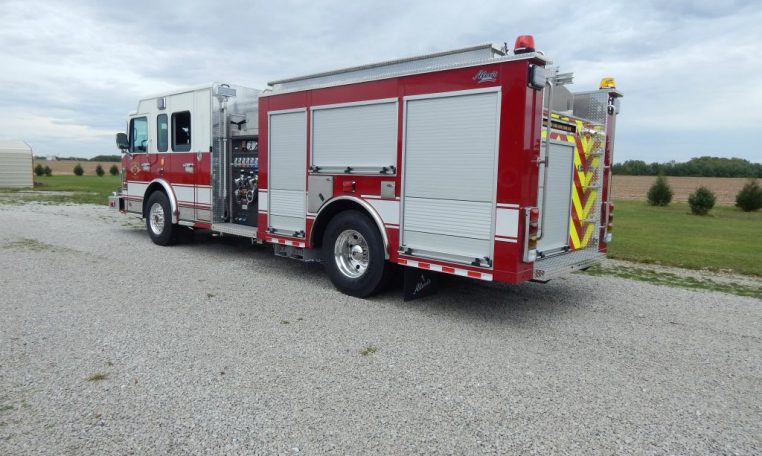

• Diamond Grade Chevron pattern striping, rear
• 9′ 10″ Overall height
• 33′ 2″ Overall length
• 202″ Wheelbase
• 128″ Cab to Axle
• 20,000 FAWR
• 27,000 RAWR
• 47,000 GVWR
