Delivered Apparatus

FEATURES:

• Spartan FC-94 Chassis
• 450 HP Cummins L9 Diesel Engine
• Allison 3000 EVS Transmission
• Heavy Duty Stainless-Steel Body and Sub-Frame

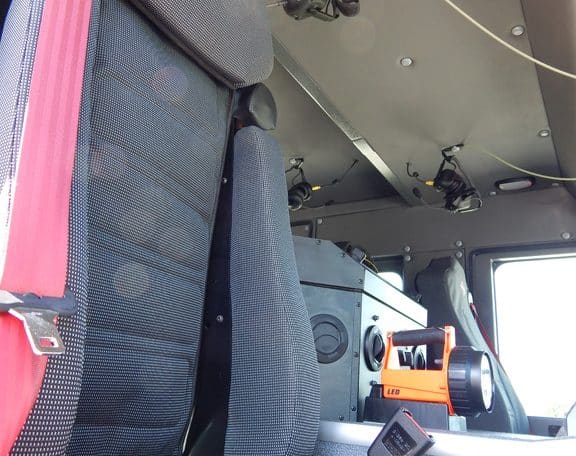

• Four (4) Person Cab
• One (1) Center Console with Switches
• Painted ROM Roll-Up Doors
• One (1) 24” Front Bumper Extension with Compartment for Hurst E-Tools Set

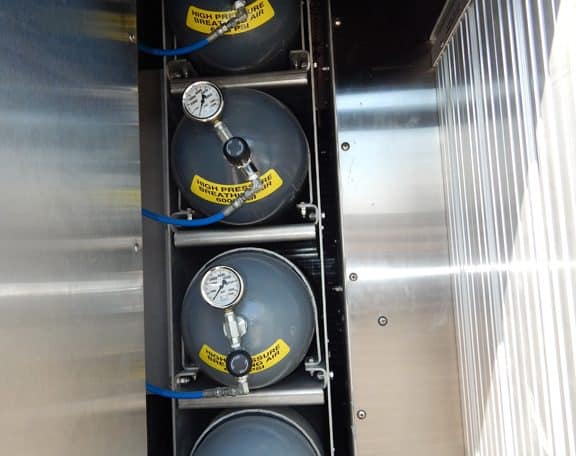

• One (1) Cascade System 4-Bank, L4 Compartment
• One (1) Vertical Air Bag Rack, R1 Compartment
• Vertical Pull Out Board, One (1) L1, One (1) R2,
• 500# Roll Out Tray, One (1) L2, One (1) L3, One (1) R2
• 250# Roll Out Tray, One (1) R2
• Two (2) Roll Out Drop Down Trays, R3 Compartment
• Manual Awning, Left Side
• AFE Stainless-Steel Top Access Ladder
• Aluminum Rub Rails with LED Warning Lights & LED Undercarriage Lights
• One (1) Each, 10’ Attic Ladder, 14’ Roof Ladder with Hooks, 24’ Two Section Ladder, Rear Compartment Access
• One (1) Stokes Basket, One (1) Backboard, Three (3) 6’ and One (1) 8’ Pike Poles, Rear Compartment Access
• Whelen Warning Light Package
• Whelen and FireTech Scene Lights
• Roto-Rays Warning Light
• Federal Q2B Siren
• Whelen Arrow Stick Traffic Advisor
• EMS Compartment with Shelving, In Rear of Cab
• Hitch Receiver with Winch Wiring, Front, Each Side, Rear
• Four (4) Top Compartments and One (1) Oil Dry Hopper Compartment with Fill below L4
• 10’ 2” Overall height
• 32’ 7” Overall length
• 190” Wheelbase
• 136” Cab to Axle
• 20,000 FAWR
• 27,000 RAWR
• 47,000 GVWR
