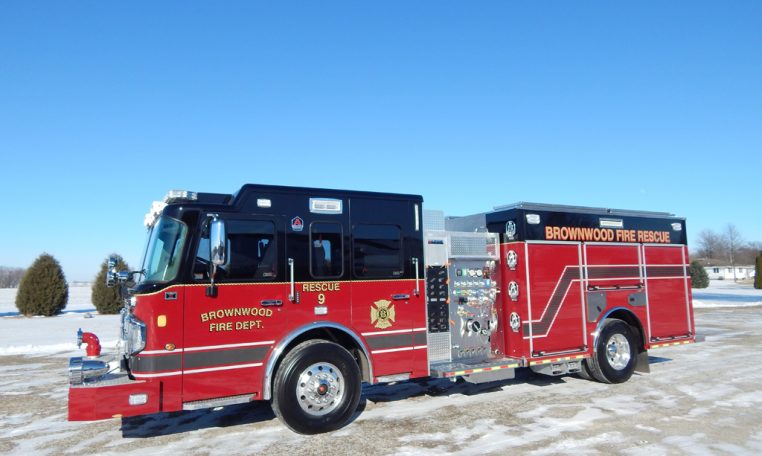

Delivered Apparatus

FEATURES:

• Spartan Metro Star EMFD 10” Raised Roof Chassis
• Cummins X12 500 HP Diesel Engine
• Allison 4000 EVS Automatic Transmission
• Heavy Duty Stainless-Steel Body and Sub-Frame

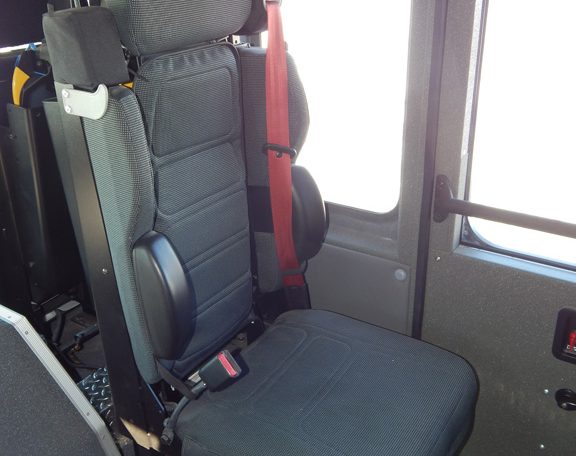

• Six (6) Person Cab
• Side Control Stainless-Steel Pump Module
• MAC1 LEA150 Single Stage Split-Shaft Pump
• Trident Air Prime System
• FRC Pump Boss Pressure Governor & Monitoring System
• Two (2) 6” Intakes, One (1) Each Side
• One (1) 2½” Gated Intake, Left Side
• One (1) 5” Front Suction Adapted to 6” NST
• Four (4) 2½” Discharges, Two (2) Left, One (1) Right, One (1) Rear
• One (1) 3” Discharge Adapted to 5” Storz, Right Side
• Two (2) 1½” Cartridge Lay Preconnects, Pump Module
• One (1) 1½” Front Bumper Preconnect
• Booster Reel 150’ of 1”, Rear Compartment
• Foam Pro 1600 Foam System with 20 Gallon Tank
• Foam Capable Discharges, One (1) 1½” Cartridge Lay Preconnect, One (1) 1½” Front Bumper Preconnect
• 800-Gallon Poly Tank
• Hose Bed with Two (2) Dividers, LED Lighting, Folding Aluminum Tread Plate Cover
• 21” Front Bumper Extension with Center Hose Well
• ROM Painted Roll-Up Doors
• Aluminum Rub Rails with LED Warning Lights & LED Undercarriage Lights
• Two (2) Vertical Compartment Dividers One (1) Each L1/L3 Compartments
• One (1) PAC TRAC Hinged Swing Out Tool Board, L2 Compartment
• Two (2) PAC TRAC Vertical Pull Out Tool Boards, One Each L1/L3 Compartments

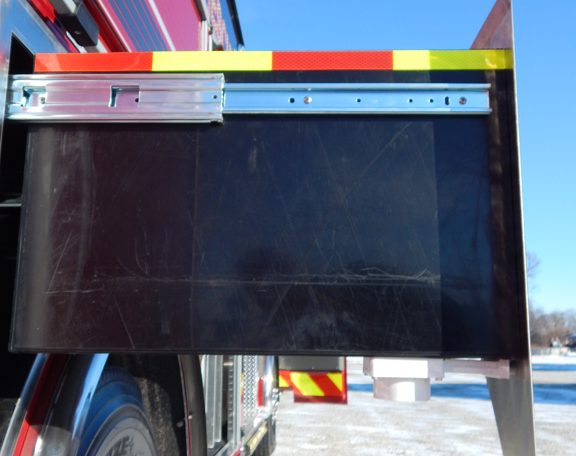

• Two (2) 500# Roll Out Trays, One (1) R3, One (1) Rear
• One (1) 250# Roll Out Tray, L3 Compartment
• One (1) PAC TRAC Tool Board, Rear Wall R2 Compartment
• One (1) Air Bag Storage Rack, L3 Compartment
• One (1) Triple Bottle Wheel Well Storage Compartment, Ahead of Left Wheel Well
• One (1) Fire Extinguisher Wheel Well Storage Compartment, Ahead of Right Wheel Well
• Oil Dry Hopper Wheel Well Storage Compartment, Behind Right Wheel Well
• Ladder Storage Compartment, 10’ Attic Ladder, 14’ Roof Ladder with Hooks, 24’ Two Section Ladder, Rear Access

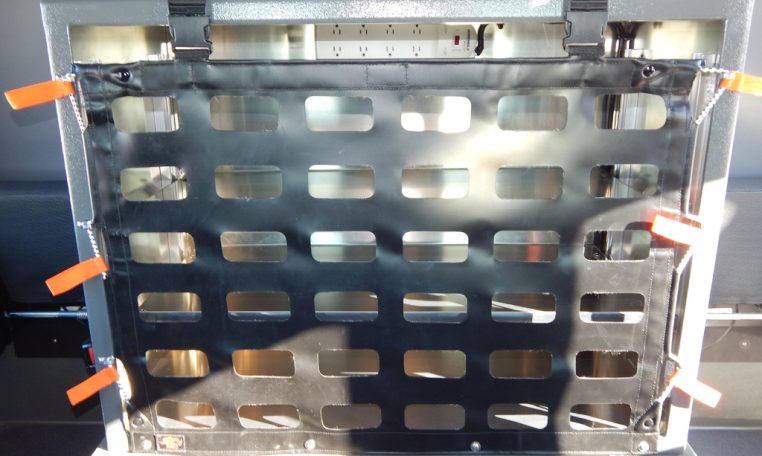

• One (1) EMS Compartment with 120V Power Strip, Rear Wall of Cab
• Running Board Hose Wells One (1) Each Side of Pump Module
• Eight (8) Folding Steps, Four (4) Ahead of L1 Compartment, Four (4) Rear
• Four (4) Top Storage Compartments
• Kussmaul 20 Amp Super Auto-Eject 120V Shoreline Connection, Ahead of Driver’s Door
• Whelen Warning Light Package
• Two (2) Whelen Pioneer Scene Lights, One (1) Each Side of Cab
• Two (2) FireTech 21” Scene Lights, One Each Side
• Two (2) Whelen Scene Lights, Rear
• One (1) Command Light Knight 2 KL409D-H4 LED Light Tower
• One (1) Roto-Ray
• Three (3) FRC Tank Level Gauges, One (1) Each Side, One (1) Rear
• Federal Q2B Siren Pedestal Mounted Front Bumper
• Whelen Electric Siren & 100W Speaker
• Two Air Horns, Recess Mounted in Front Bumper
• Diamond Grade Chevron Striping
• 9’ 10” Overall height
• 33’ 9” Overall length
• 208” Wheelbase
• 148” Cab to Axle
• 20,000 FAWR
• 26,000 RAWR
• 46,000 GVWR
