Delivered Apparatus

FEATURES:

• Spartan FC-94 MFD 10” Raised Roof
• Cummins L9 450 HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty Stainless-Steel Body and Sub-Frame
• Six (6) Person Cab
• One (1) EMS Compartment Rear Wall of Cab with 120V Power Strip

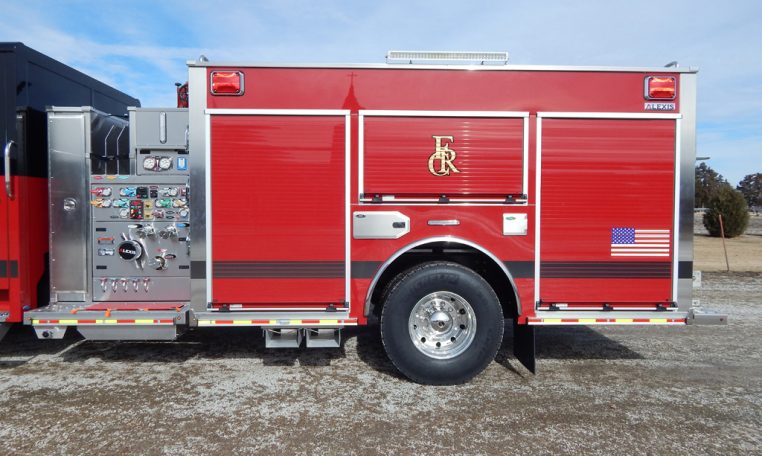

• Side Control Stainless-Steel Pump Module
• Hale DSD 150 Single Stage Split-Shaft 1500 GPM
• Trident Air Prime System
• FRC Pump Boss Pressure Governor & Monitoring System
• Two (2) 6” Intakes, One (1) Each Side
• One (1) 2½” Gated Intake, Left Side
• One (1) 5” Front Bumper Intake adapted to 6” NST
• Four (4) 2½” Discharges, Two (2) Left, One (1) Right, One (1) Rear
• One (1) 3” Discharge, Right Side Adapted to 4” Storz
• Two (2) 1½” and One (1) 2½” Mattydale Preconnects
• Akron 3433 Apollo Hi-Riser Deck Gun, Above Pump Module
• 1000-Gallon Poly Tank
• Hose Bed with One (1) Divider, LED Lighting, Hypalon Cover
• 24” Front Bumper Extension with Center Hose Well
• ROM Painted Roll-Up Doors
• Aluminum Rub Rails with LED Warning Lights & LED Undercarriage Lights
• Transverse Storage Compartment Ahead of Pump Module
• Two (2) Peg Boards, Upper Rear Wall of L1 Compartment and Rear Wall of R2 Compartment
• One (1) PAC Trac Hinged Tool Board L2 Compartment
• One (1) 500# Roll Out Tray, Rear Compartment
• Two (2) Dual Air Bottle Wheel Well Storage Compartments, One (1) Each Side Ahead of Wheel Well
• Kussmaul 20 Amp Super Auto-Eject 120V Shoreline Connection, Above Left Front Wheel Well
• Two (2) Whelen Scene Lights, One (1) Each Side of Cab
• Four (4) FireTech Scene Lights, One (1) Each Side, Two (2) Rear
• One (1) Whelen Traffic Advisor Mounted on Hinged Cross Bar Rear of Hose Bed
• Three (3) Whelen Tank Level Gauges, One (1) Each Side and Rear
• Federal Q2B Siren Pedestal Mounted Front Bumper
• Whelen Electric Siren & 100W Speaker
• Two (2) Air Horns, Recess Mounted in Front Bumper
• Diamond Grade Chevron Striping
• 9’ 10” Overall height
• 33’ 3” Overall length
• 198.5” Wheelbase
• 144.5 Cab to Axle
• 21,500 FAWR
• 31,500 RAWR
• 53,000 GVWR
