Delivered Apparatus

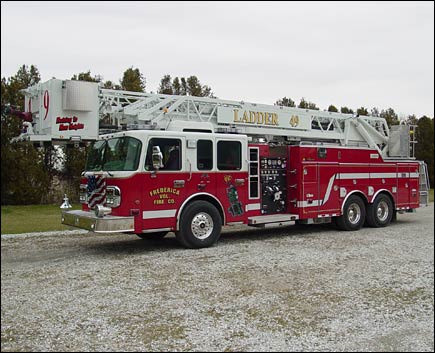

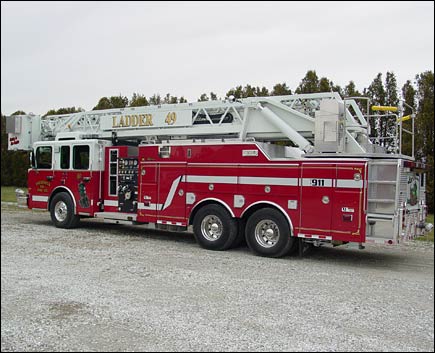

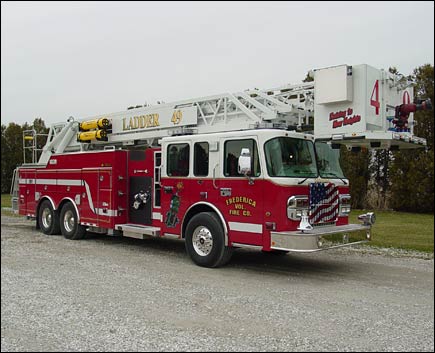

• Spartan Gladiator MFD (medium four door) Tandem Chassis
• Detroit Series 60, 490-HP Diesel Engine
• Allison 4000 EVS Automatic Transmission
• Heavy Duty 3/16″ Aluminum Body

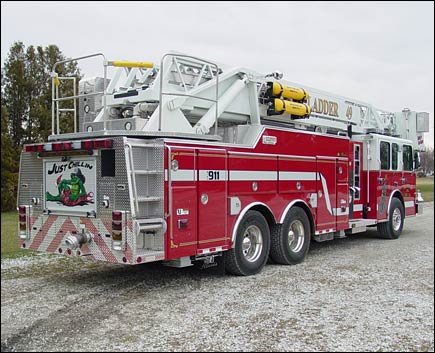

• 104-Foot Four-Section Rear-Mount Platform
• Breathing Air System to the end of the Platform
• UPF 300-Gallon Rectangular Poly Tank

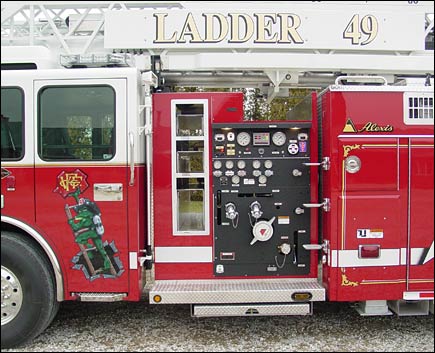

• Waterous CMU, 1500-GPM Pump with left side controls
• Three (3) 2 ½” Discharges, two (2) left and one (1) right side
• One (1) 3″ Discharge, right side and One (1) 4″ Discharge feeding the waterway
• Two (2) 1 ½” and one (1) 2 ½” Cartridge Lay Preconnects
• One (1) 2 ½” Gated Pre-connect Discharge, platform basket

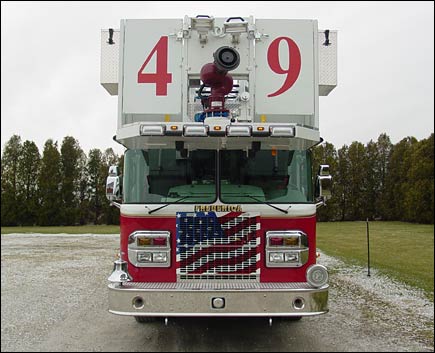

• Akron Remote Controlled Electric monitor at the end of platform

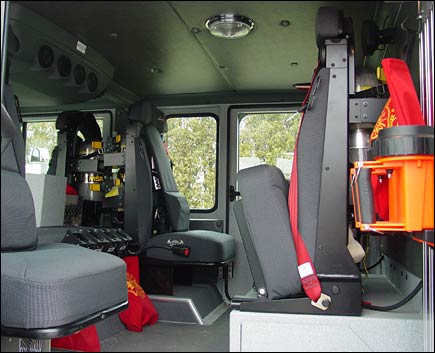

• Tool Board for two (2) long tools and two (2) axes, between rear seats in cab

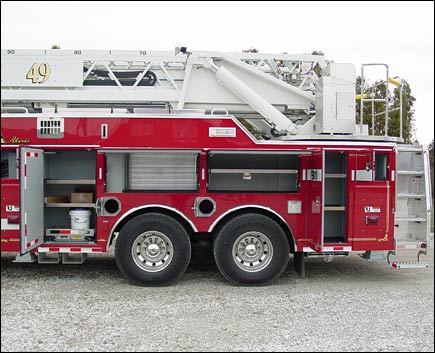

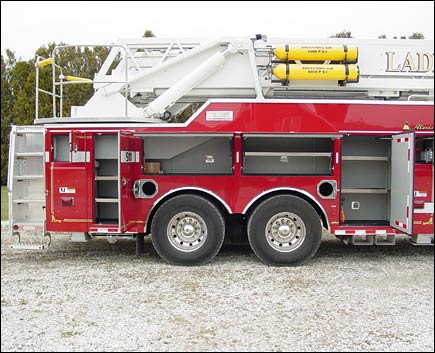

• Box Style Doors, each side with rear ROM Roll Up Door
• Ladder storage within torque box with rear access
• Two (2) Whelen Scene lights, one (1) each side of cab
• Kussmaul Auto Charge 35/10, 35-amp battery conditioner
• Kussmaul Super Auto Eject 20-amp receptacle, left side cab
• Kussmaul Air Auto Eject, cab side
• Four (4) Arrow 12-volt lights, two (2) base and two (2) aerial support
• Onan 10-kW Hydraulically driven Generator
• One (1) Hannay 120-volt Electric Cord Reel with 200-ft. of 12/3 cord
• Two (2) Extenda Light 120-volt 750-watt telescopic flood lights
• Two (2) Recessed 120-volt 750-watt flood lights, rear
• Four (4) Fire Research 120-volt flood lights, around platform basket
• Two (2) Fire Research 120-volt Telescopic flood lights, platform basket
• Federal Q2B 10″ electric Siren and 12″ Chrome Bell, front
• Dual Grover Stuttertone Air horns, one (1) each side front bumper
• Whelen Warning Light Package
• 11′ 8″ Overall height
• 44′ 3″ Overall length
• 242″ Wheelbase
• 188″ Cab to Axle
• 21,500 FAWR
• 60,000 RAWR
• 81,500 GVWR
