Delivered Apparatus

FEATURES:

• Freightliner M2 106 4-Door Chassis
• Cummins L9, 350-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty Stainless steel Body and Sub-Frame
• ROM Roll Up Doors with right side hem door over wheel well
• Five (5) person cab seating with four (4) SCBA seats
• 1000-Gallon Poly Tank
• Darley PSM 1500-GPM Pump with operator’s panel across top of apparatus
• Four (4) 2 ½” Discharges, two (2) left side, one (10 right side and one (1) rear
• Two (2) 3” Discharges, one (1) right side and one (1) over pump for deck gun
• One (1) 2 ½” Gated Suction, left side
• Two (2) 1 ½” Cartridge Lay Preconnects, front of body

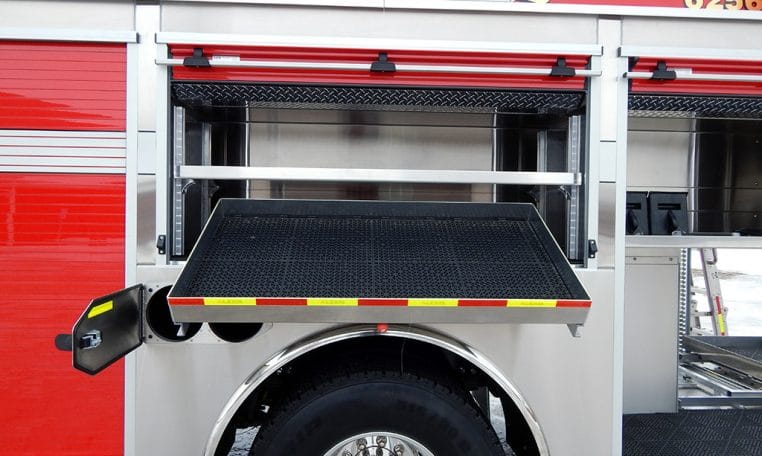

• Three (3) Dual bottle Air bottle compartments, one (1) left and two (2) right side
• Ziamatic Electrically controlled Ladder rack, right side
• Suction Hose storage compartment, right side with rear access
• Progressive Dynamics on-board battery charger with Viair Air compressor
• Blue Sea Sure Eject 120-volt shoreline connection
• Floor mounted console for emergency switches, cab
• Whelen Electronic Siren with 100-watt Whelen speaker
• FRC Spectra Scene Light Package
• Whelen LED Warning Light Package

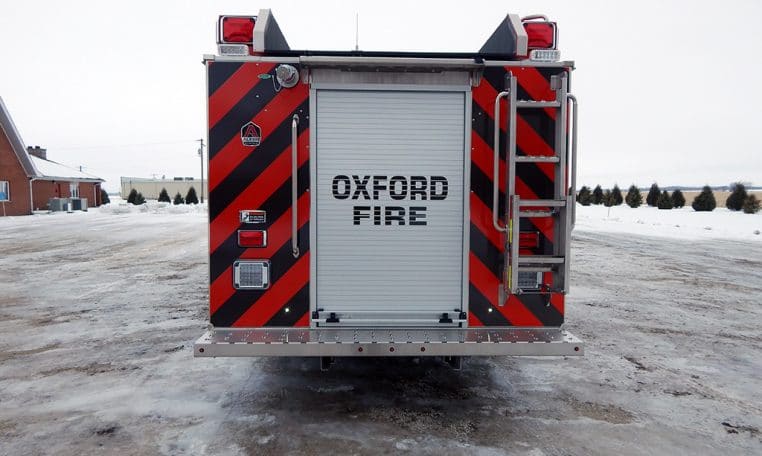

• Diamond Grade Chevron pattern striping, rear
• 10’ Overall height
• 33’ 10” Overall length
• 266” Wheelbase
• 153.2” Cab to Axle
• 14,600 FAWR
• 27,000 RAWR
• 41,600 GVWR
