Delivered Apparatus

• HME 1871 SFO Chassis
• Cummins ISC8.3, 330-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission

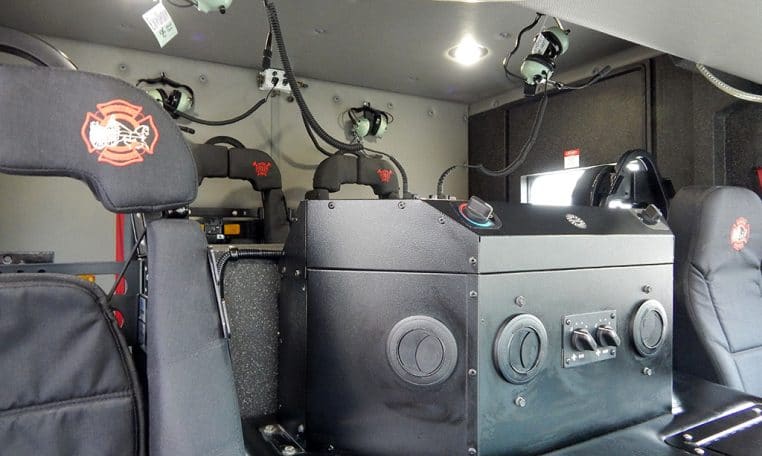

• Six (6) man cab seating with five (5) SCBA seats
• Custom EMS cabinet with shelves and roll up door, cab
• 21” front bumper extension with 1 ½” Preconnect
• One (1) Warn 12,000-lb permanent mount Winch, Front bumper center
• On-Spot Automatic Tire chains
• Stainless steel Body with Gortite Roll Up compartment Doors
• 500-Gallon Poly Tank
• Hale QFLO, 1250-GPM Pump with left side operator’s controls
• Five (5) 2 ½” Discharges, two (2) each side and one (1) rear
• One (1) 3” Discharge, above pump for deck gun
• Two (2) 2 ½” Crosslay preconnects, top of pump module
• One (1) 2 ½” Gated Suction, left side
• Hale “FoamLogix” Foam System with 30-Gallon foam tank, CAFS and refill
• Ladder and backboard storage through tank with rear access
• Two (2) Suction hose storage gutters, left side
• Seven (7) SCBA bottle wheel well storage, three (3) left and four (4) right side
• Four (4) bank 6000-PSI Cascade system with control panel and fill enclosure
• Two (2) Hannay Dual Hydraulic hose reels with 100-ft of ¼” hose each
• David Clark Intercom System
• Progressive Dynamics battery charger with Viair air compressor and Auto Eject
• One (1) Audiovox back-up Camera system with 7” color monitor
• Federal Signal Electronic Siren with two (2) Cast Products 100 watt speakers
• Federal Q2B Siren, front bumper extension
• One (1) Smart Power LI-10, 15kW Liberator Generator with 120-volt system
• Two (2) Akron Electric Cord reels with 200-ft of 12/3 cord and junction boxes
• Command Light Knight 2 Light Tower with six (6) 500-watt lights
• FRC Focus and Whelen LED Scene light Packages
• Whelen LED Warning Light Package

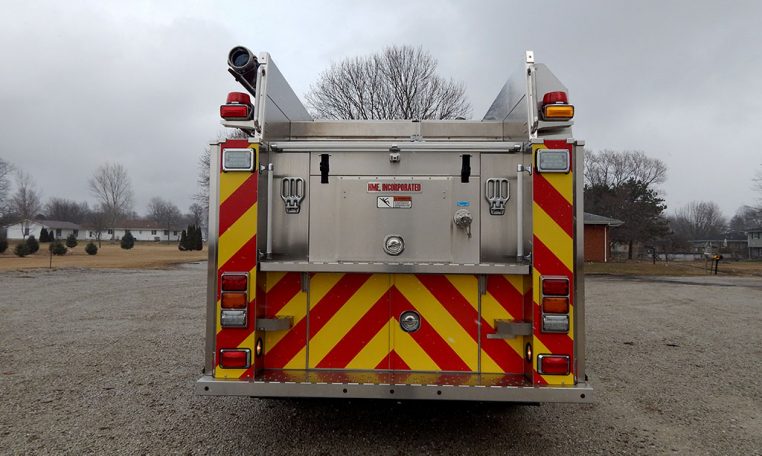

• Chevron pattern striping, rear
• 9’ 6”Overall height
• 24’ 7” Overall length
• 142” Wheelbase
• 86” Cab to Axle
• 16,540 FAWR
• 24,000 RAWR
• 40,540 GVWR
