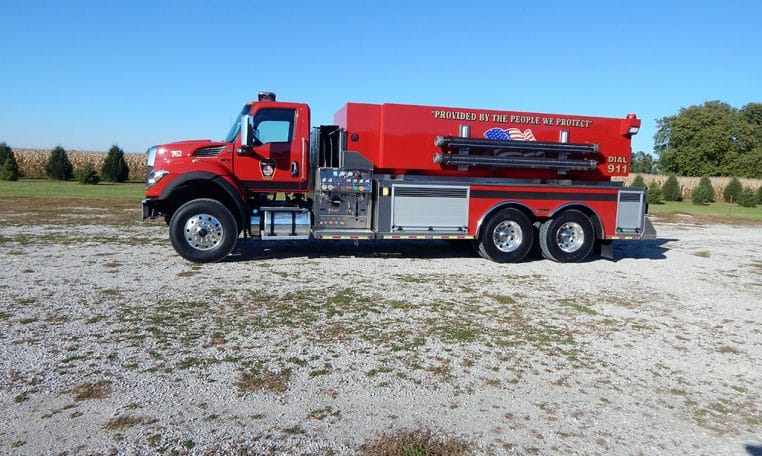

Delivered Apparatus

FEATURES:

• International HV607 Tandem 2-Door Chassis
• Cummins L9, 450-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty Stainless Steel Body and Sub-frame
• ROM Roll Up Doors
• 3000-Gallon Wet side Poly Tank
• One (1) 2 ½” Fire Programs Tank fill, rear
• One (1) Newton 10” square manual swivel dump with 36” extension
• Darley PSM 1500-GPM PTO Pump
• Left side intermediate pump operator’s panel
• Three (3) 2 ½” Discharges, two (2) left side and one (1) right side
• One (1) 3” Discharge with 5” Storz, right side
• One (1) 1 ½” and one (1) 2 ½” Mattydale Preconnects, behind cab
• One (1) 2 ½” Gated Suction, left side
• Folding Tank storage, right side compartment top
• Suction hose storage, left side compartment top
• Manual battery recharge shoreline connection
• Air coupling for external air compressor
• Floor mounted console for emergency switches, cab
• Whelen Electronic Siren with 100-watt Whelen speaker
• Whelen LED Scene Light Package, one (1) light each side and two (2) rear
• Whelen LED Warning Light Package
• Diamond Grade Chevron pattern striping, rear
• 10’ 3” Overall height
• 31’ 6” Overall length
• 238” Wheelbase
• 170.9” Cab to Axle
• 16,000 FAWR
• 40,000 RAWR
• 56,000 GVWR
