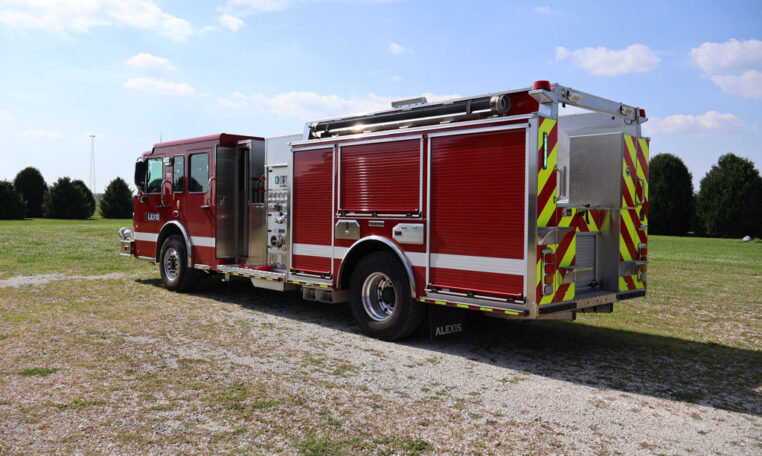

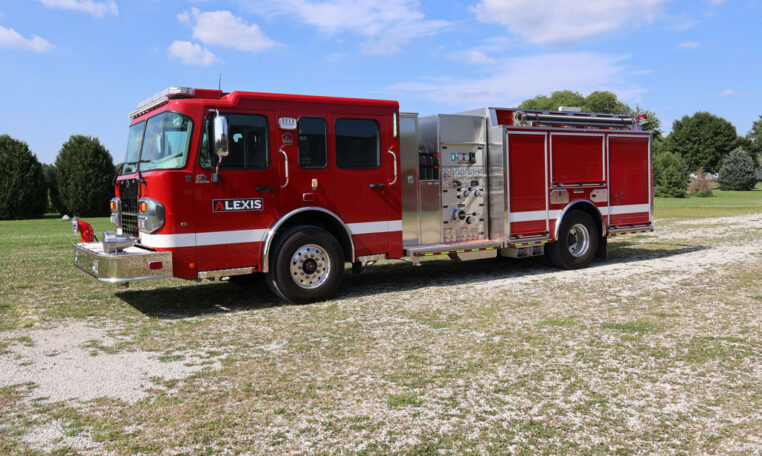

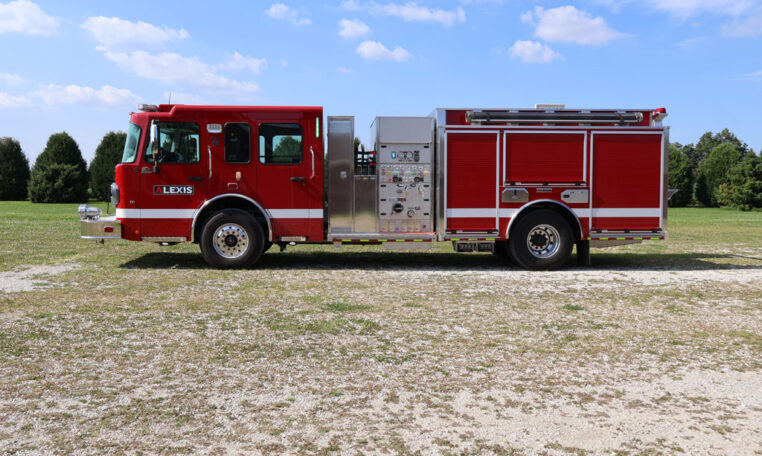

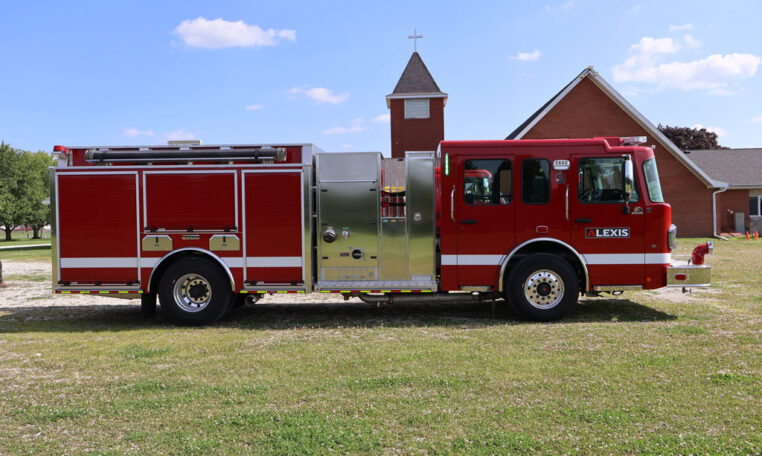

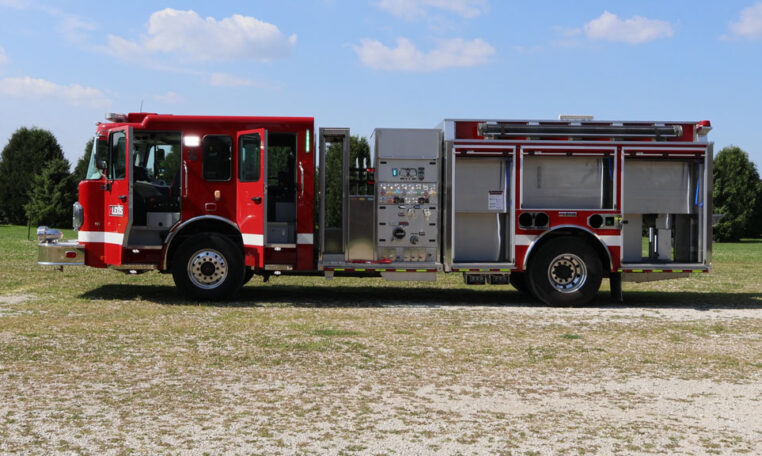

AFE DEMO #2645 - SIDE CONTROL PHANTOM PUMPER
ALEXIS FIRE EQUIPMENT - ALEXIS IL
FEATURES:

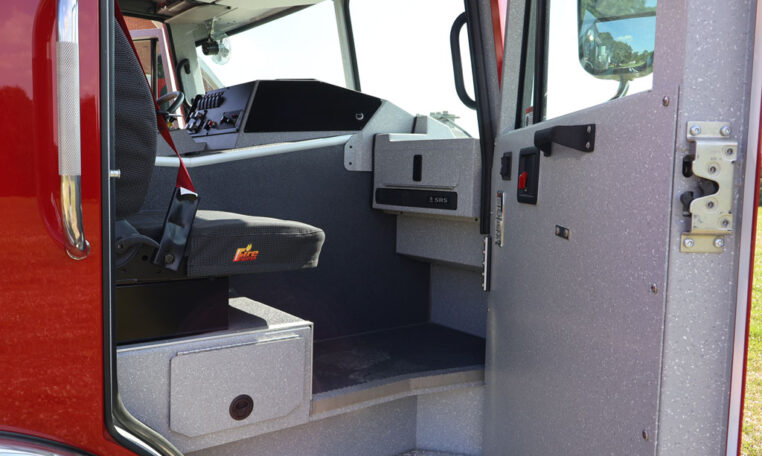

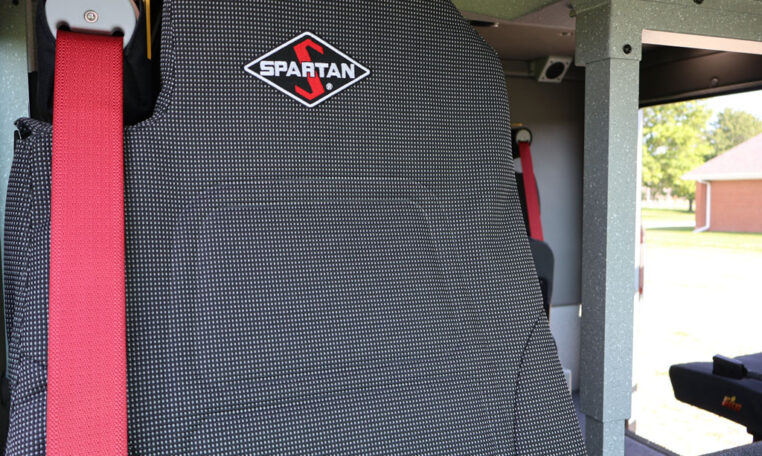

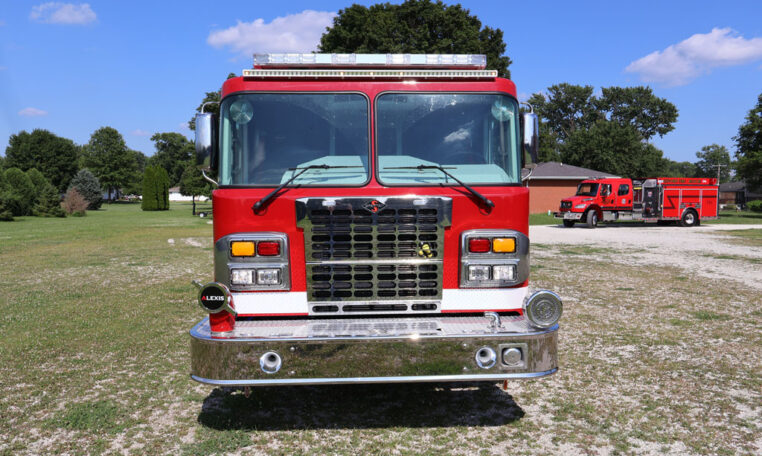

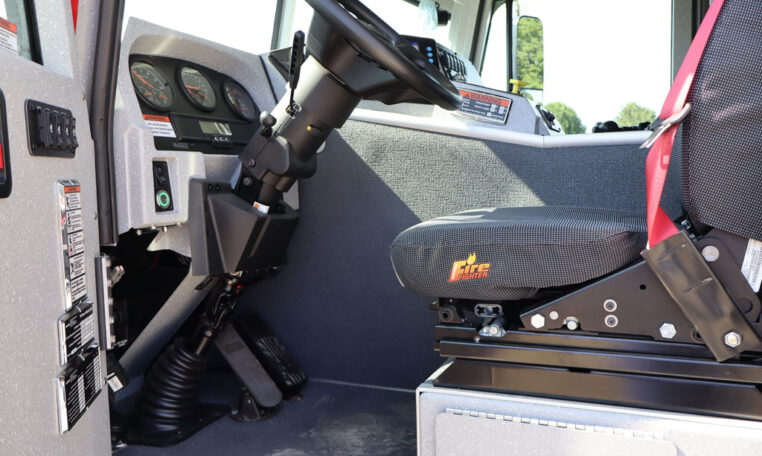

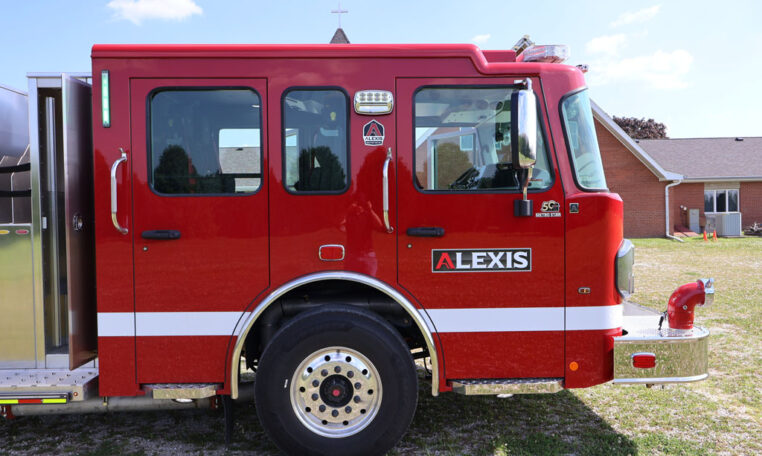

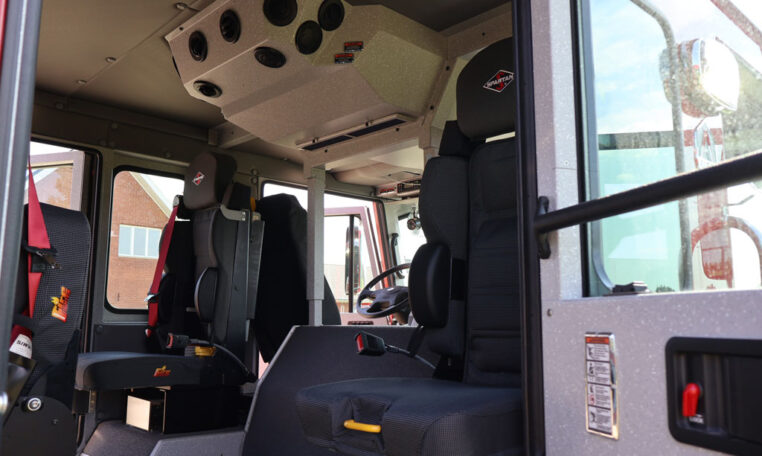

- Spartan Metro Star EMFD 5” Raised Roof Cab
- Cummins 450 HP L9 Engine
- Allison 3000 EVS Automatic Transmission
- Heavy Duty Stainless Steel Body with Stainless Steel Subframe

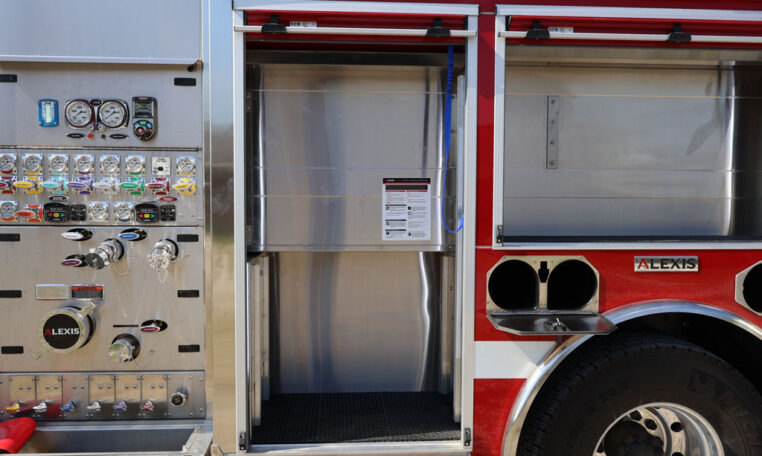

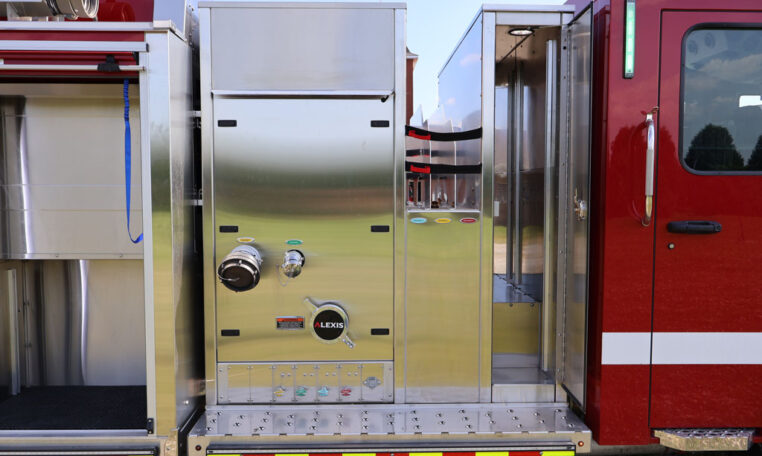

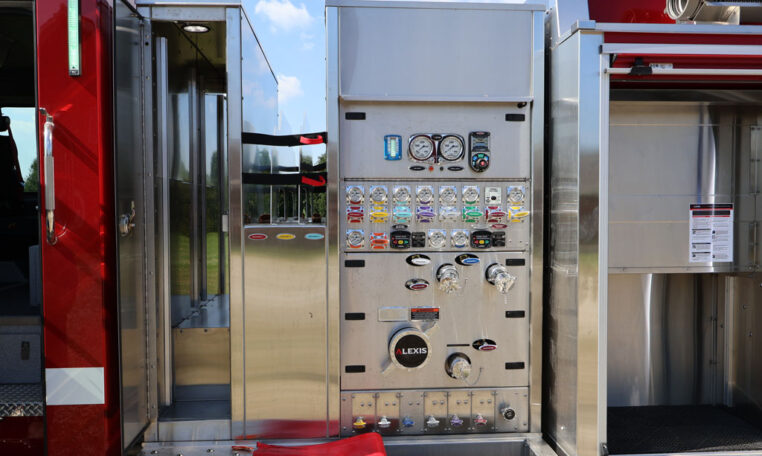

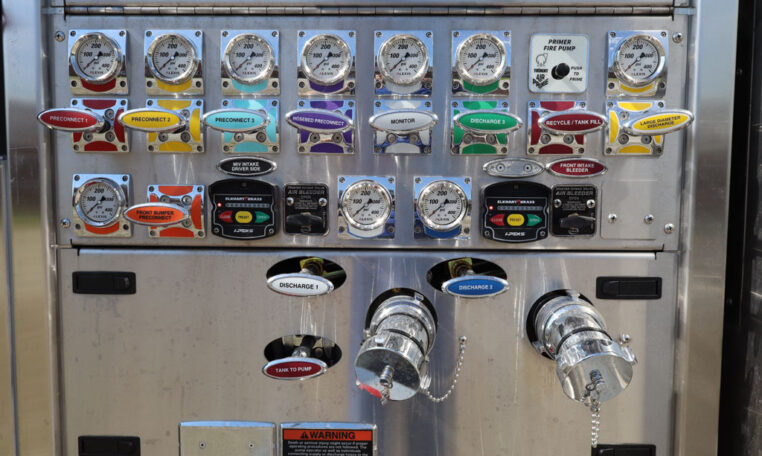

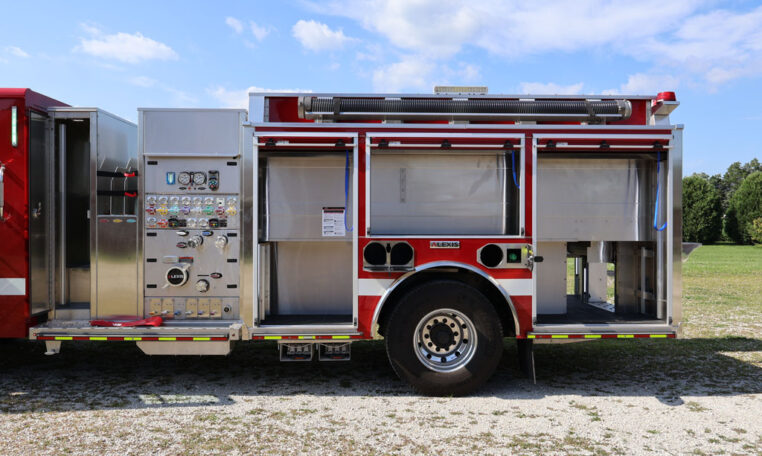

- Stainless Steel Side Control Pump Module with Stainless Steel Subframe

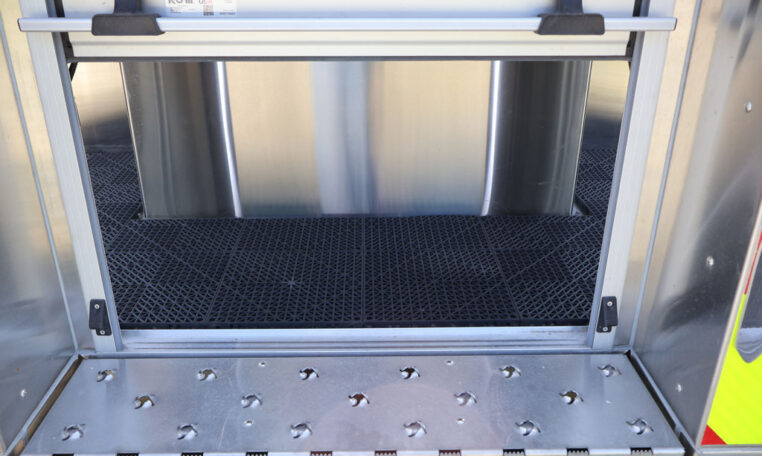

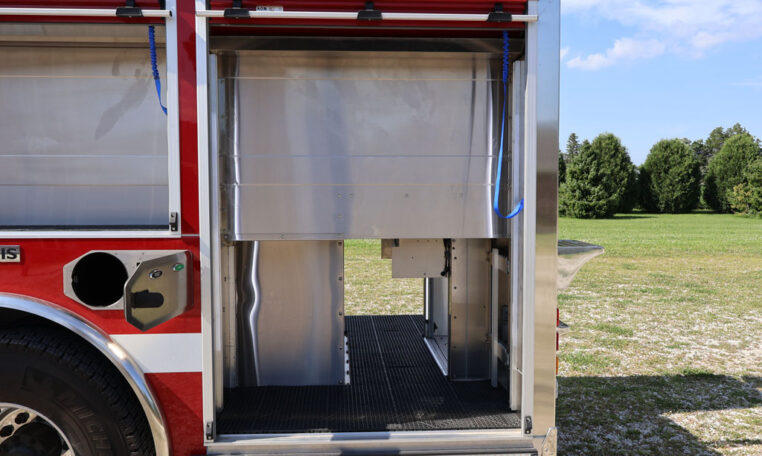

- Transverse Storage Compartment Ahead of Pump Panel on Each Side
- Darley PSM 1500 GPM Split-Shaft Pump
- Trident Air Prime System

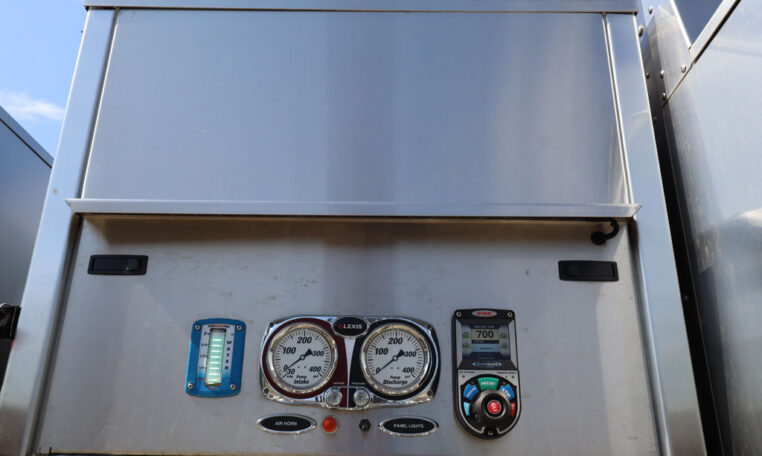

- FRC Pump Boss Max Pressure Governor
- FRC Tankvision Water Tank Level Gauge with Three (3) MaxVision Strip Lites

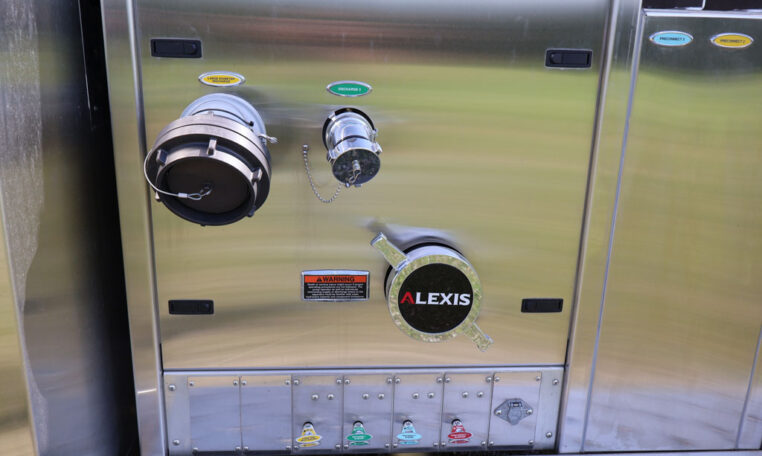

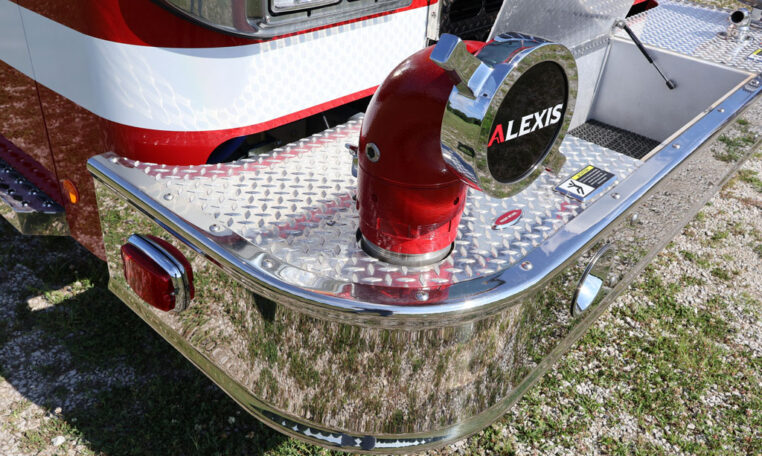

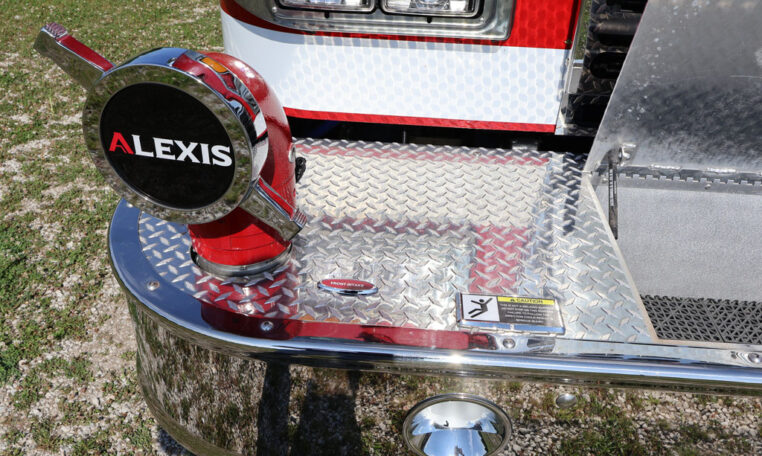

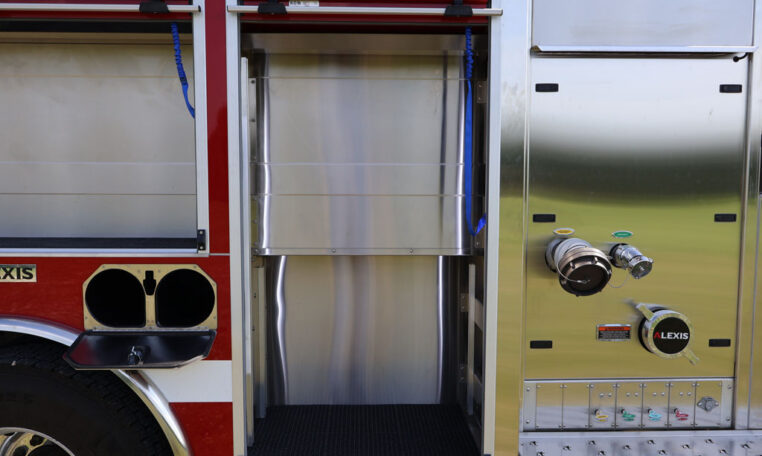

- Two (2) 6” Intakes, One (1) Each Side and One (1) 5” Front Intake with 6” NST Swivel

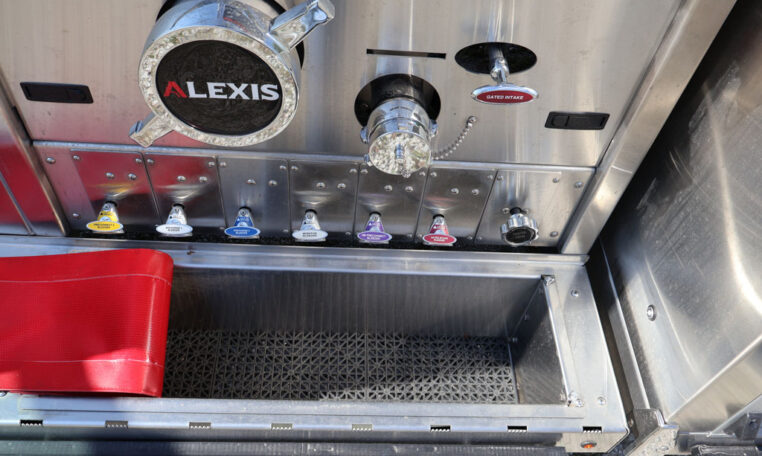

- One (1) 2½” Gated Intake, Left Side
- Two (2) 2½” Discharges Left Side and One (1) 2½” Discharge Right Side
- One (1) 3” Discharge Adapted to 5” Storz, Right Side
- One (1) 3” Discharge in Dunnage Area for Deck Gun
- One (1) 2½” Discharge, Front of Hose Bed on the Left Side

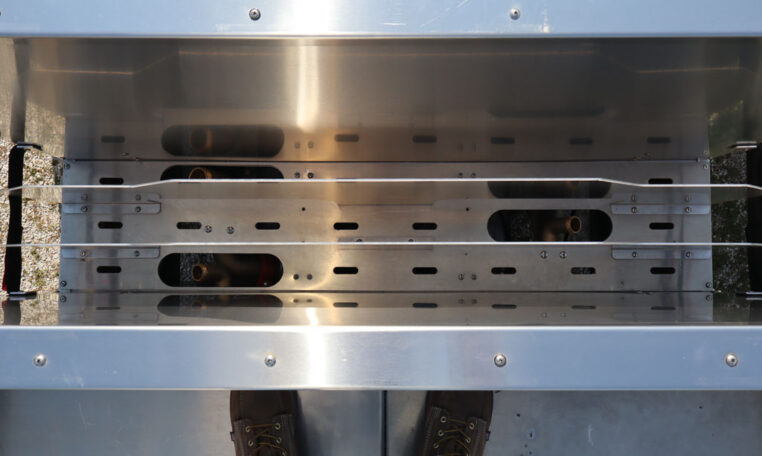

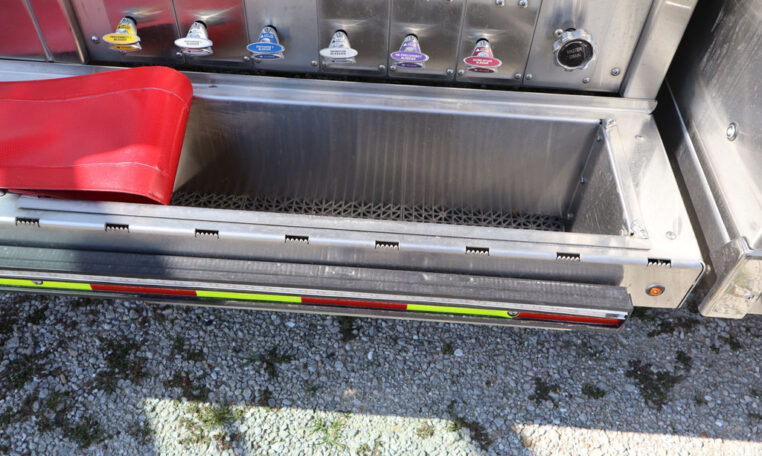

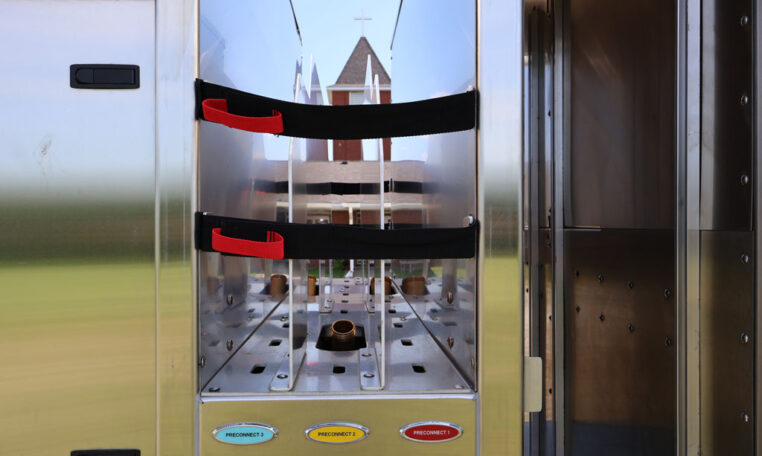

- Two (2) 1½” and One (1) 2½” Mattydale Preconnects Deep Cut Single Lay for Improved Accessibility

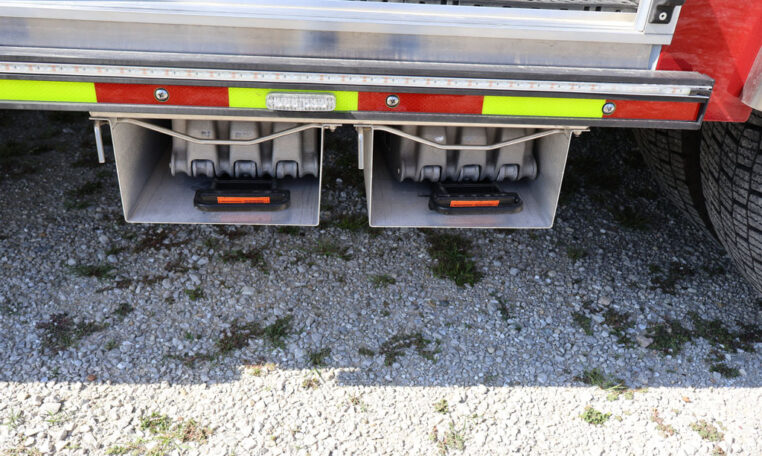

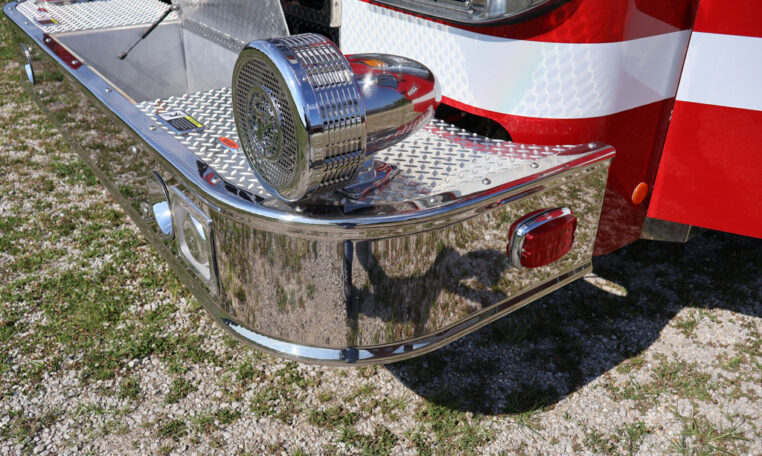

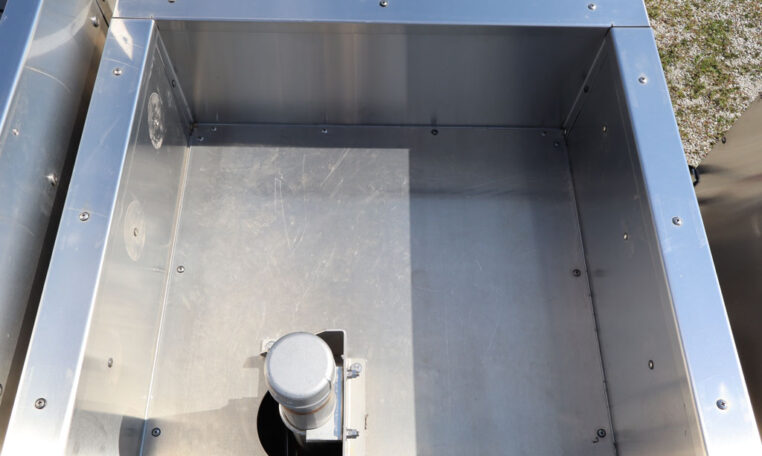

- One (1) 1½” Bumper Extension Preconnect

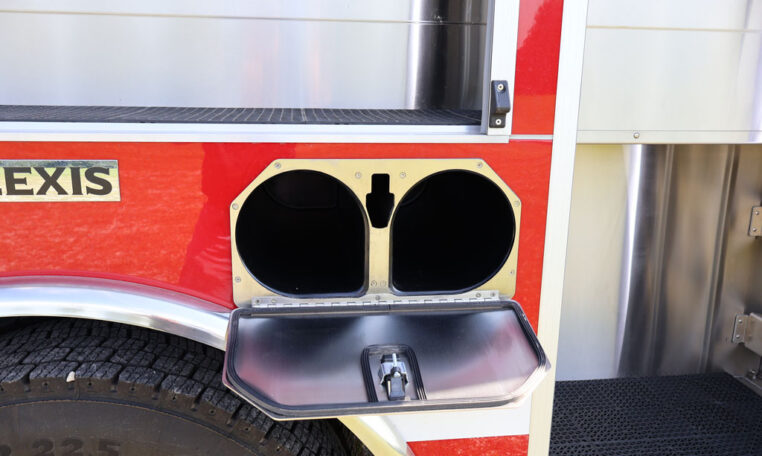

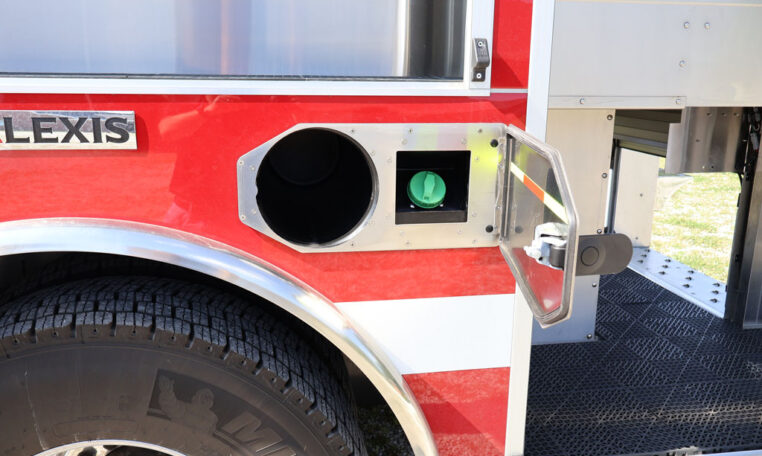

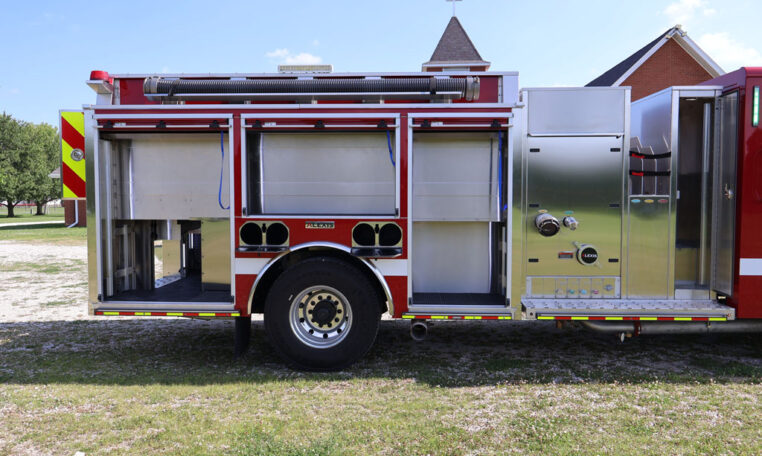

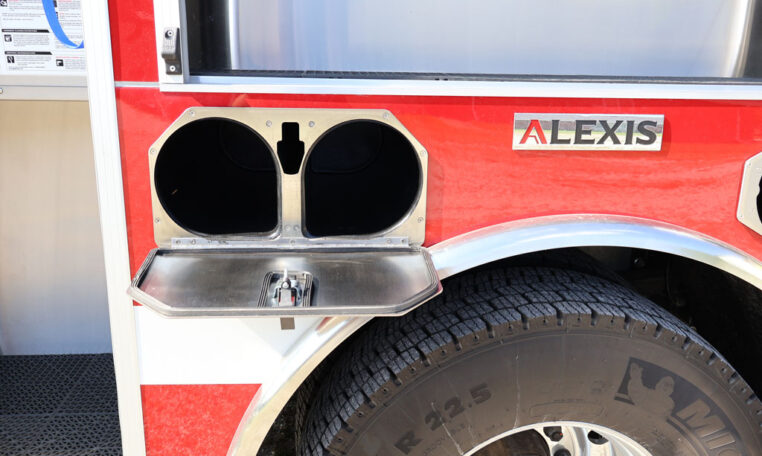

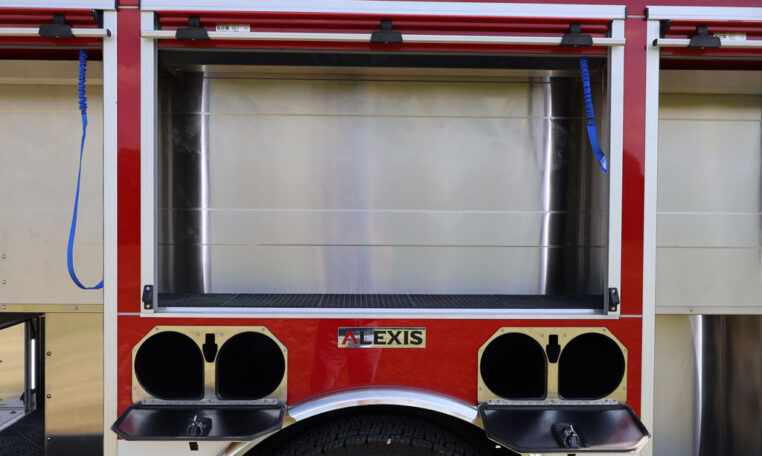

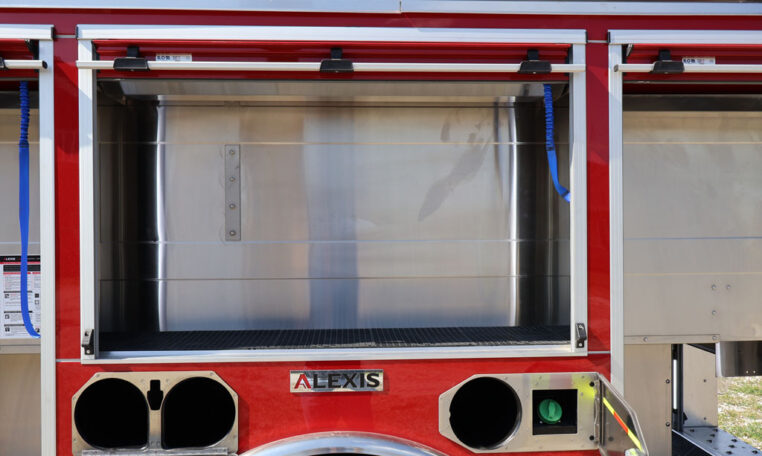

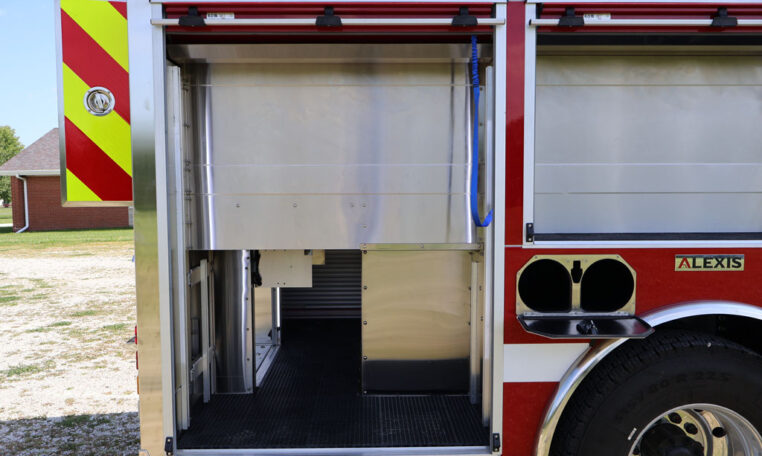

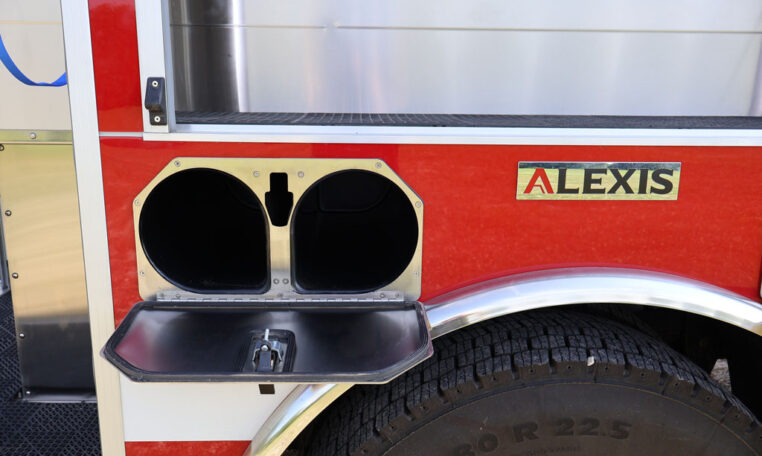

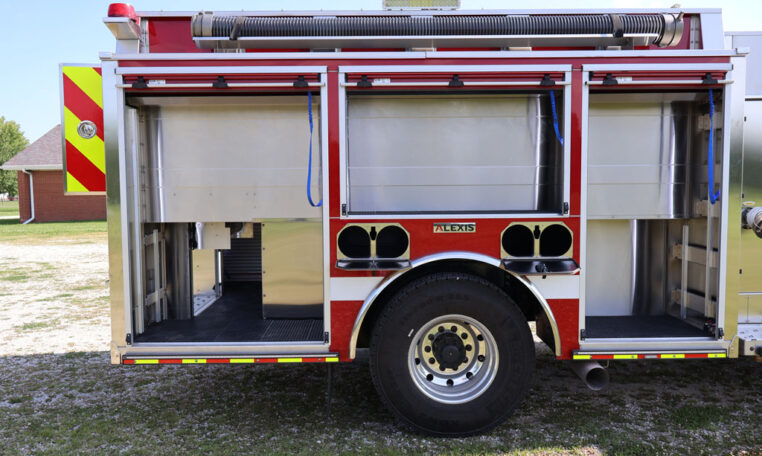

- Three (3) Dual and One (1) Single Wheel Well Air Bottle Compartments

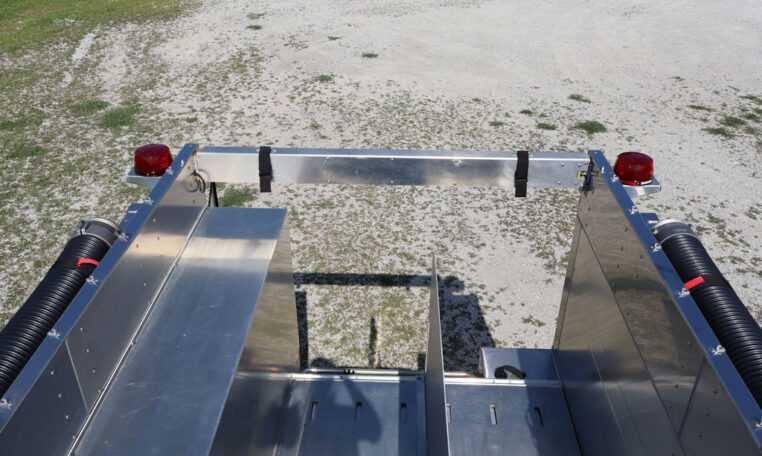

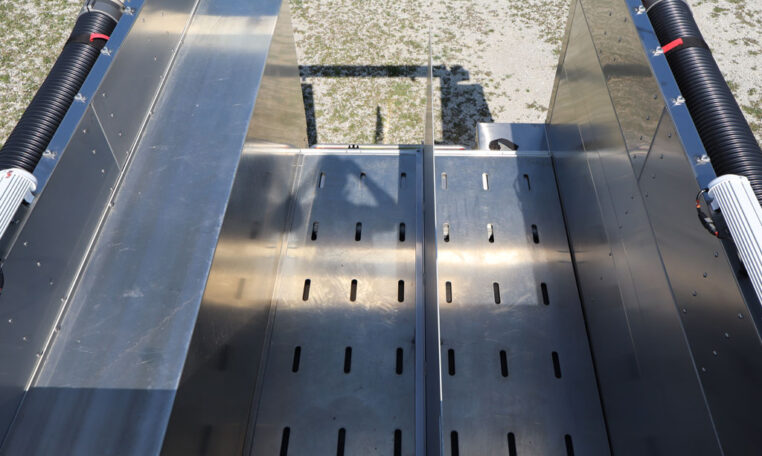

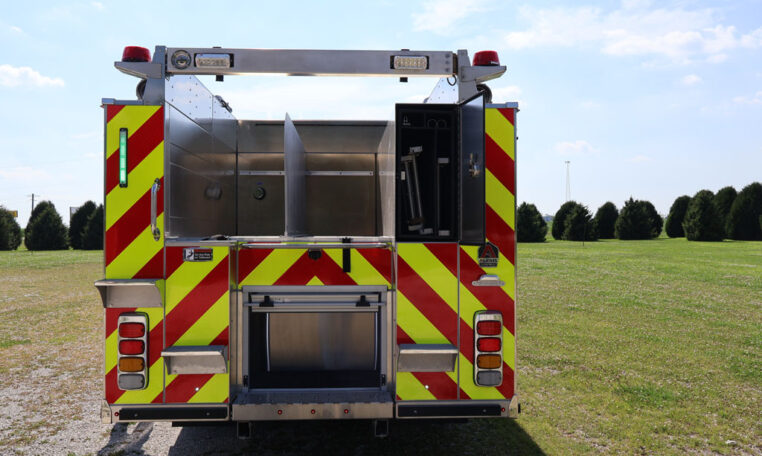

- Low Hose Bed for Improved Accessibility
- ROM Painted Roll-Up Doors

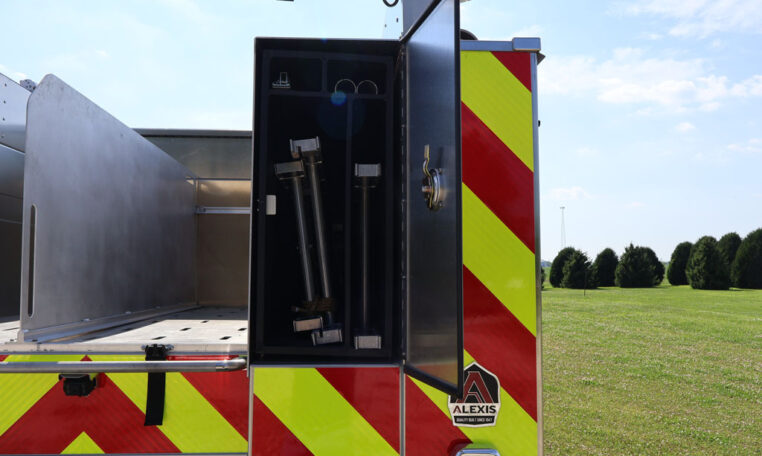

- Ladder Storage Compartment Vertical in Hose Bed Right Side
- Suction Hose Storage One (1) Each Side
- 750 Gallon Poly Tank
- 12 Volt Electrical System with NFPA Compliant Warning Light Package
- Progressive Dynamics Battery Charger
- Kussmaul 20 Amp Super Auto-Eject 120V Shoreline Connection, Left Side of Cab
- Whelen LED Warning Light Package
- Whelen 200W Siren and CPI 100W Speaker
- Federal Q2B Siren
- One (1) FireTech HiViz 72” LED Brow Light and One (1) Whelen M9 LED Scene Lights on Each Side of the Cab
- Two (2) FireTech HiViz 21″ LED Scene Light Bars, One (1) Each Side
- Two (2) FireTech HiViz 8″ LED Scene Light Bars, Rear One (1) Each Side
- One (1) 10’ Attic Ladder, One (1) 14’ Roof Ladder with Hooks, One (1) 24’ 2-Section Ladder, and Two (2) 10’ Lengths of 6” Suction Hose
- 9’-8” Overall Height
- 33’-2” Overall Length
- 211” Wheelbase
- 151” Cab to Axle
- 21,500 FAWR
- 31,000 RAWR
- 52,500 GVWR
