Delivered Apparatus

FEATURES:

• Spartan Gladiator ELFD 10” Raised Roof Crew Cab
• Diesel Engine 500HP Cummins x12-EPA 2021
• Allison 4000 EVS Transmission
• Heavy Duty Stainless Steel Body and Stainless Steel Subframe
• 750 Gallon Poly Tank
• Waterous CXVC20 Pump 1500GPM
• One (1) 6” Suction Each Side
• One (1) 5” Front Suction
• One (1) 2½” Gated Suction Left Side
• Three (1) 1¾” Cartridge Lay Preconnects
• One (1) 2½” Discharge on the left Side
• One (1) 2½” Discharge on the Right side
• Three (3) 2½” Discharges on the Rear with Three (3) 2½” NSTF X 1½” Reducers
• One (1) 4” Discharge Right side Electrically Controlled with a 5” Storz Adapter
• One (1) 4” Discharge at the rear Electrically Controlled with a 5” Storz Adapter
• 24” Bumper Extension with Center Suction Hose Well, Right Storage Well, Left Hose well and 2½” Preconnect
• Akron 3440 Deck Master with 3406 12” Riser, Panel Mount Control, and Wireless Controller

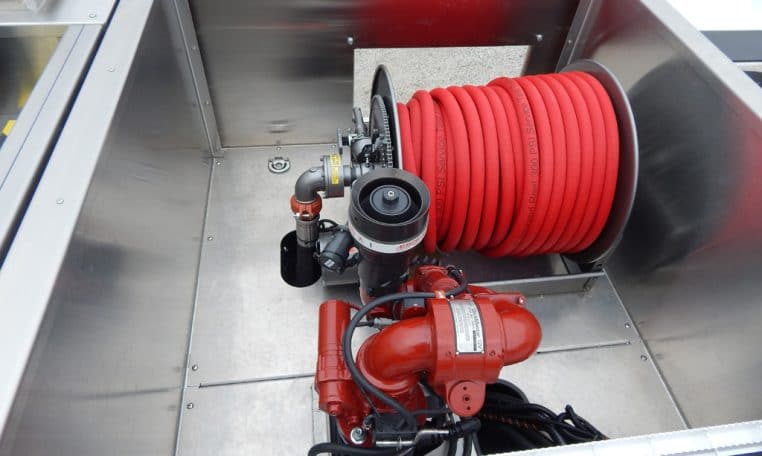

• One (1) Hannay EF30-23-24 Booster Reel Upper Pump Module Dunnage Left Side
• Aluminum Covered Doghouse with a custom (6) Slot Map Box in Cab
• Custom EMS Compartment located behind the doghouse in the Cab
• Pac Trac on the rear wall of the cab
• Smart HR-10 Hydraulic Generator
• Whelen Warning Light Package
• FireTech Hi Viz LED Scene Lights Recessed one (1) Each Side
• FireTech Hi Viz LED 72” Brow Light
• Roto-Rays Red/Clear/Blue LED Warning Light above the grille
• Two (2) Mars 888 Clear LED warning lights one (1) each side outboard of the grille
• Night Scan Spectra Max LED Light Tower on cab roof
• Painted Brush Guard protector for light tower
• Whelen PSTANK2 LED Tank Level Gauges
• Federal Q2B Siren
• One (1) Power Call UDX -7 Siren Mounted in Cab
• 100W Siren Speakers
• Whelen Howlers behind the Front Bumper
• Low Hose Bed with Custom lift up cover over the front of the hose bed
• Custom Hose Bed dividers for ease of loading hose
• 24” deep rear tail step
• ROM Roll Up Doors
• Two (2) Dual Air Bottle Compartments One (1) on each Left and Right Wheel Well
• One (1) Triple Air Bottle Compartment Right Wheel Well
• Two (2) Hitch Receiver Assemblies Left and Right-Side Wheel Well
• Front and Rear Hitch Receivers with Winch Wiring
• C-Tech custom toolbox mounted on the floor of L1
• Pull Out tool board with removable shoe box in the rear of L1
• Pac Trac Full Height on rear wall of the R3 Compartment

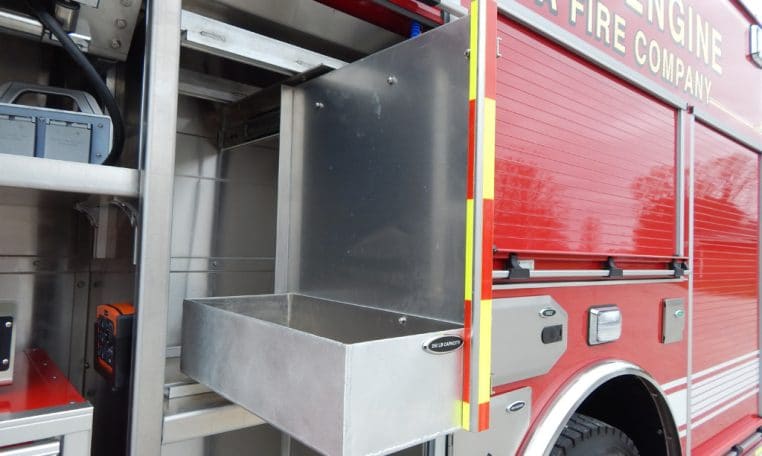

• Two (2) Pac Trac full height vertical pull out tool boards with removable shoe boxes in R3

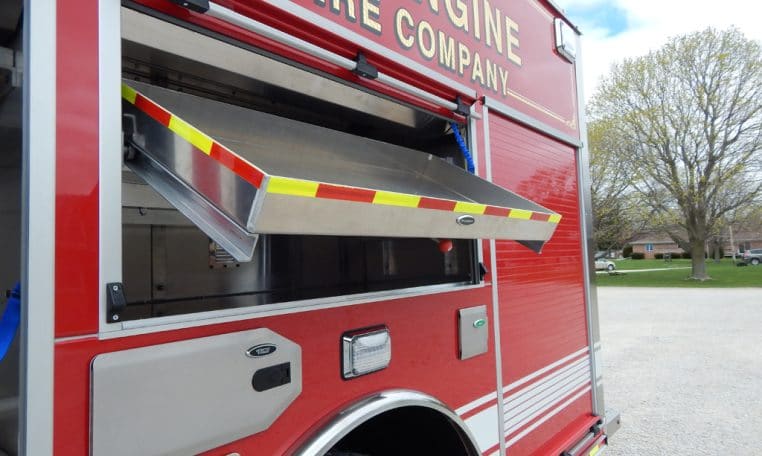

• Two (2) Drop Down Trays one (1) each in L2 and R1 Compartments
• Two (2) 500# Roll Out Trays one (1) each in L3 and R1 Compartments
• Four (4) Upper Storage Compartments
• One (1) Lower Rear Storage Compartment Box Door
• One (1) Rear Ladder Compartment with Door

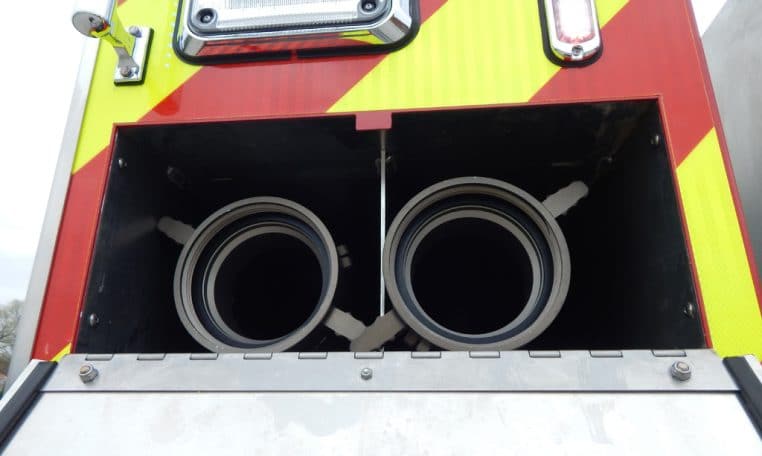

• Suction Storage Compartment for Two (2) Hard Suction Hoses with Drop Door Rear Left
• Stainless Steel Rear Access Ladder
• Custom Graphics Package
• 10’ 8” Overall Height
• 36’ 4” Overall Length
• 224” Wheelbase
• 150” Cab to Axle
• 23000 FAWR
• 31000 RAWR
• 54000 GVWR
