Delivered Apparatus

FEATURES:

• Ford F750 Crew Cab 4×4 Chassis
• 6.7 L Power Stroke Turbo Diesel 330 HP Engine
• Ford TorqShift HD 10-Speed Transmission
• Heavy Duty Stainless Steel Body with Stainless Steel Subframe

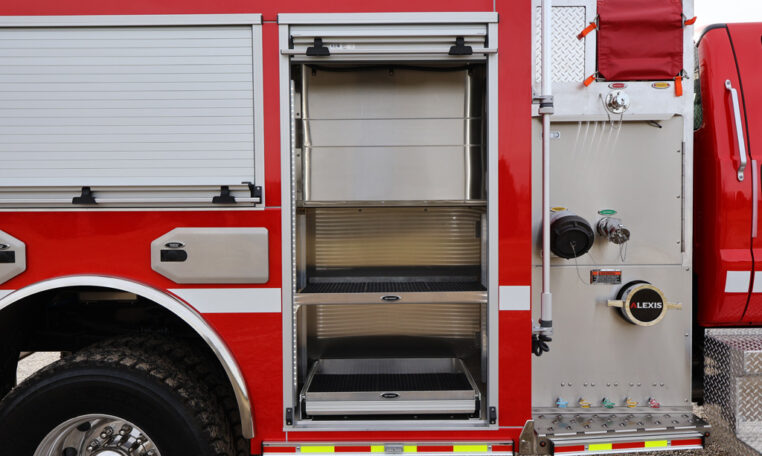

• Stainless Steel Side Control Pump Module with Stainless Steel Subframe
• Hale DSD 1500 GPM Pump
• Hale ESP-12PVG Primer
• FRC Pump Boss Pressure Governor Monitoring System
• FRC TankVision Water Tank Level Gauge
• Two (2) 6” Intakes, One (1) Each Side
• One (1) 2½” Gated Intake Left Side
• Two (2) 2½” Discharges, Left Side, One (1) 2½” Discharge Right Side
• Two (2) 2½” Discharges, Rear
• One (1) 3” Discharge Adapted to 5” Storz, Right Side
• FoamPro 1600 Foam System with 20 Gallon Foam Tank
• One (1) 3” Deck Gun Discharge, Dunnage Area
• Two (2) 1½” LA Style Preconnects with Removable Trays
• ROM Roll-Up Doors
• Four (4) Dual Wheel Well Air Bottle Compartments, Two (2) Each Side
• Two (2) Ladder Storage Compartments, Vertical Through the Body One (1) Each Side
• Two (2) Suction Gutters, One (1) Each Side
• 500 Gallon Poly Tank
• One (1) 2½” FirePrograms Tank Fill, Rear
• 12 Volt Electrical System with NFPA Compliant Warning Light Package
• Whelen LED Warning Light Package
• Progressive Dynamics Battery Charger with Viair Compressor
• Kussmaul 20 Amp Super Auto-Eject 120V Shoreline Connection, Left Side
• Federal EQ2B Siren
• Two (2) FRC Spectra Telescopic Lights, One (1) Each Side
• One (1) 10’ Attic Ladder, One (1) 12’ Roof Ladder with Hooks, One (1) 26’ 3-Section Ladder, One (1) 17’ Little Giant Ladder, and Two (2) 10’ Lengths of 6” Suction Hose
• 9’ 11” Overall Height
• 30’ 2” Overall Length
• 218” Wheelbase
• 108” Cab to Axle
• 14,000 FAWR
• 26,000 RAWR
• 37,000 GVWR
