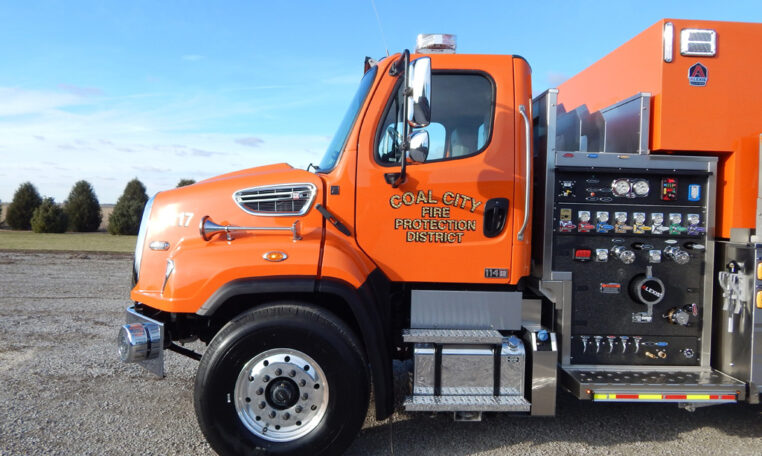

3500 GALLON TANKER #2523
COAL CITY FIRE PROTECTION DISTRICT - COAL CITY, ILLINOISFEATURES:
- Freightliner 114 SD Chassis
- Cummins 500 HP X12 Engine
- Allison 4500 EVS Automatic Transmission
- Heavy Duty Stainless-Steel Body and Sub-Frame
- Two (2) Person Cab

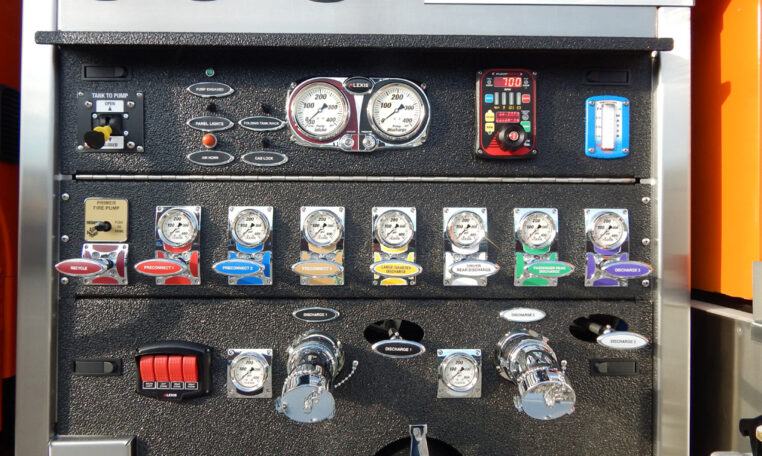

- Stainless-Steel Side Mount Pump Module
- Waterous CSU 150 1500 GPM Single Stage Split Shaft Pump
- Trident Air Prime System
- FRC Pump Boss Pressure Governor & Monitoring System
- Two (2) 6” Intakes, One (1) Each Left and Right Side
- One (1) 2½” Gated Intake, Left Side
- Two (2) 2½” Discharges, Left Side
- One (1) 2½” Discharge, Right Side
- Two (2) 2½” Discharges, Rear
- One (1) 3” Discharge Adapted to 5” Storz, Right Side
- Two (2) 1½” and One (1) 2½” Mattydale Preconnects
- One (1) Dual Wheel Well Air Bottle Compartment, Left Side Ahead of Rear Wheels
- Two (2) SCBA Complete Air Pack Wheel Well Compartments, One (1) Each Side Between Rear Tandem Wheels
- One (1) Fire Extinguisher Compartment Right Side Ahead of Wheel Well

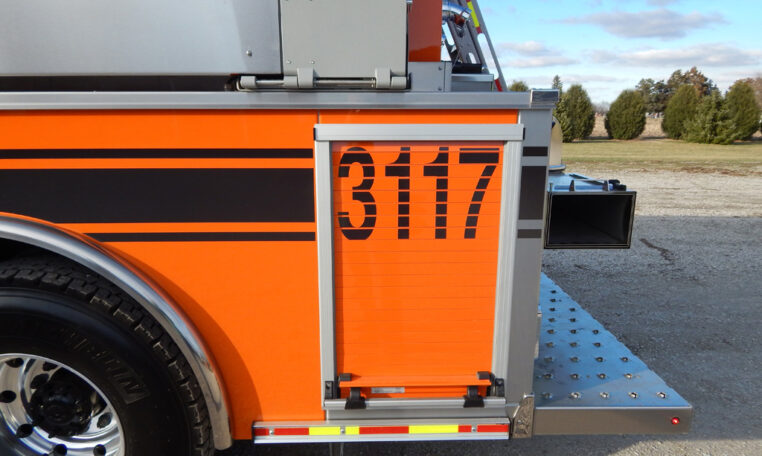

- ROM Painted Roll-Up Doors

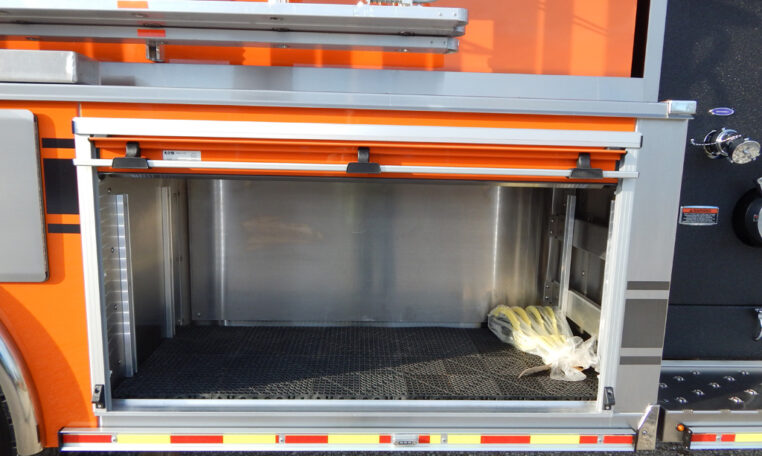

- One (1) 500# Roll Out Tray, L1 Compartment
- 3500 Gallon Poly Tank
- One (1) 4″ Adapted to 5” Storz and One (1) 2½” FirePrograms Valve Tank Fill
- One (1) 10” Newton Stainless-Steel Manual Swivel Dump, Rear
- Hose Bed w/ Two (2) Dividers, Hypalon Cover
- One (1) 10” Newton Stainless-Steel Electric Swivel Dump, Rear
- Progressive Dynamics Battery Charger w/ Kussmaul 120V 20A Super Auto Eject, Left Front Boody Post
- Tecniq Warning and Scene Light Package
- Whelen 200W Siren and 100W Speaker
- Federal Q2B Siren
- Six (6) Tecniq K90 LED Scene Lights, Two (2) Each Side, Two (2) Rear
- Whelen TAL65 LED Traffic Advisor
- Rub Rails w/ Under Carriage Lighting
- Fire Tech FT-B-46-W 12 Volt LED Brow Light
- FRC 360 Camera System
- Zico Hydraulic PTS-HA Folding Tank Bracket, Compartment Top Left Side with Suction Hose Storage and Low Level Strainer
- Ladder Storage Brackets Right Side
- AFE Rear Access Ladder
- 10’ 5” Overall Height
- 33’ 6” Overall Length
- 245” Wheelbase
- 179.4” Cab to Axle
- 20,000 FAWR
- 52,000 RAWR
- 72,000 GVWR
