Delivered Apparatus

FEATURES:

• International HV607 Chassis
• 450 HP Cummins L9 Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty Stainless-Steel Body and Sub-Frame
• Two (2) Person Cab

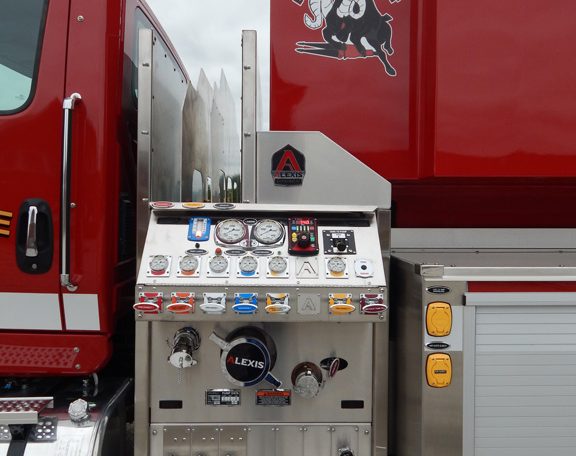

• Stainless-Steel Intermediate Pump Module
• Waterous CXVPA 1250 GPM PTO Pump
• Waterous Priming Pump
• FRC Pump Boss Pressure Governor & Monitoring System
• Two (2) 6” Intakes, One (1) Left, One (1) Right
• One (1) 2½” Gated Intake, Left Side
• One (1) 4” FirePrograms Tank Fill, Rear Left of Dump
• One (1) 2½” Ball Valve Tank Fill, Rear Right of Dump
• One (1) 2½” Discharge, Left Side
• One (1) 2½” Discharge, Right Side
• One (1) 3” Discharge, Right Side, Adapted to 5” Storz
• Mattydale Preconnect Module, Two (2) 1½”, One (1) Deadlay
• 3000-Gallon Poly Tank
• One (1) 10” Newton Stainless-Steel Swivel Dump
• Hose Bed with LED strip Lighting and One (1) Vertical Divider

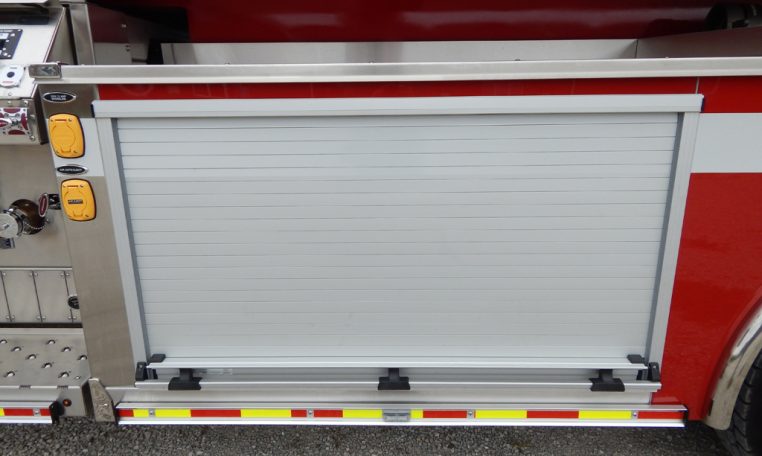

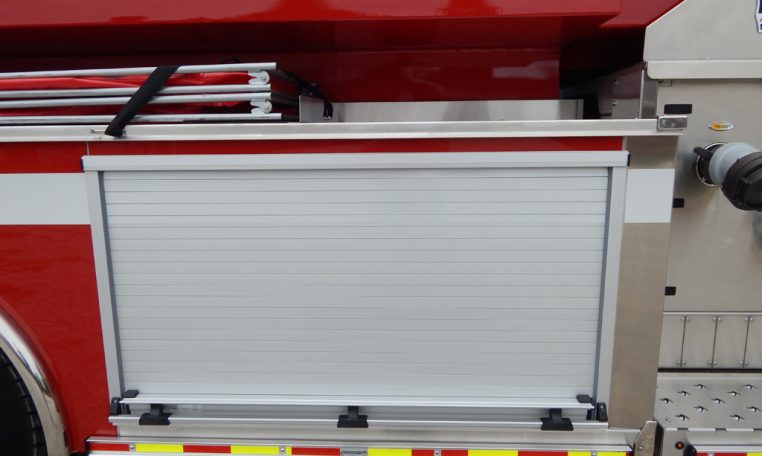

• Satin Finish ROM Doors
• One (1) 250# Roll-Out-Tray L1 Compartment
• One (1) 250# Roll-Out-Tray R1 Compartment
• Aluminum Rub Rails with LED Warning Lights & LED Undercarriage Lights
• Two (2) Hard Suction Above Compartment Tops Left Side, One (1) Hard Suction Gutter Left Side of Tank
• 3000-Gallon Folding Tank Above Compartment Tops Right Side
• Progressive Dynamics Battery Charger with 120V Auto Eject Shoreline Inlet
• Whelen Warning Light Package
• FireTech Side and Rear Scene Lights
• One (1) Back-up Camera with Cab Display
• Diamond Grade Chevron Striping
• 9’ 11” Overall Height
• 33’ 8” Overall Length
• 238” Wheelbase
• 170.7” Cab to Axle
• 16,000 FAWR
• 40,000 RAWR
• 56,000 GVWR
