Delivered Apparatus

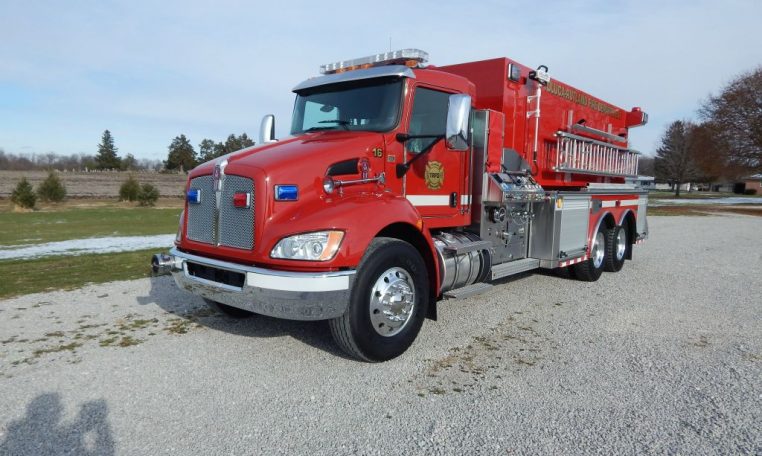

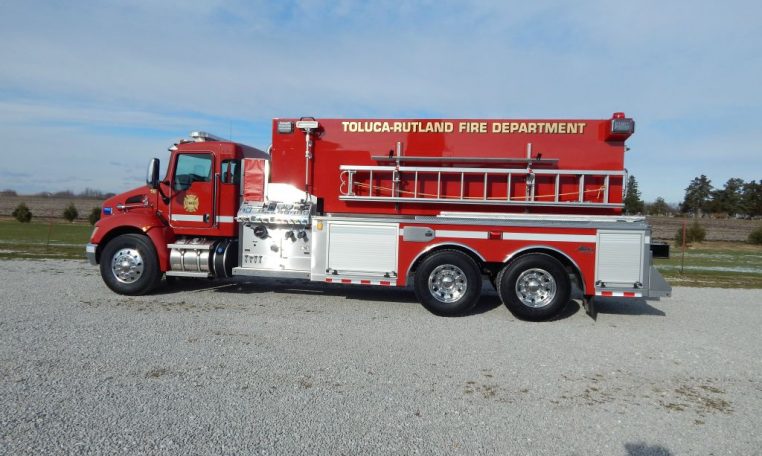

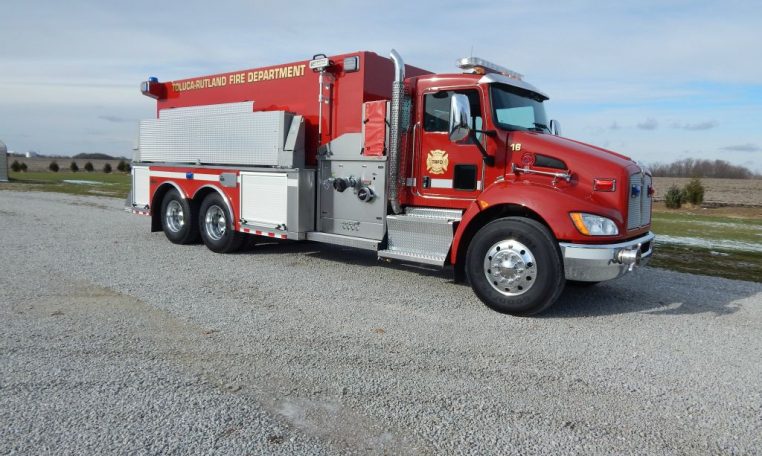

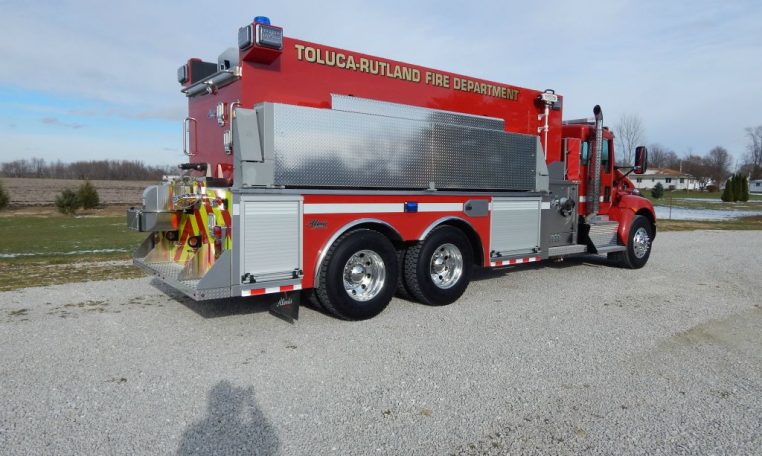

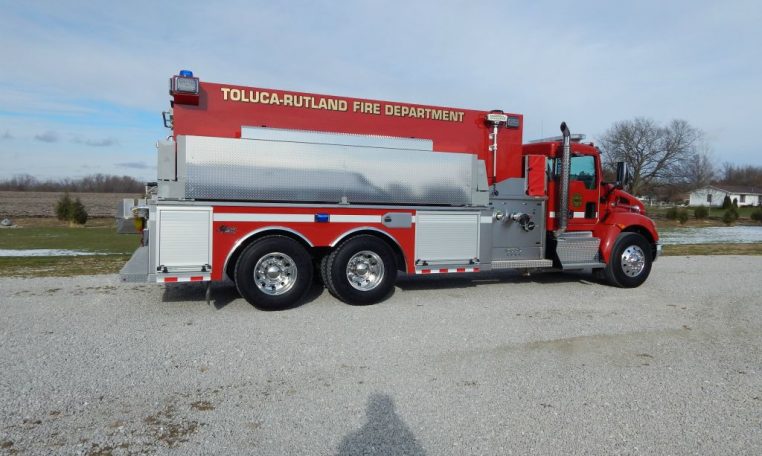

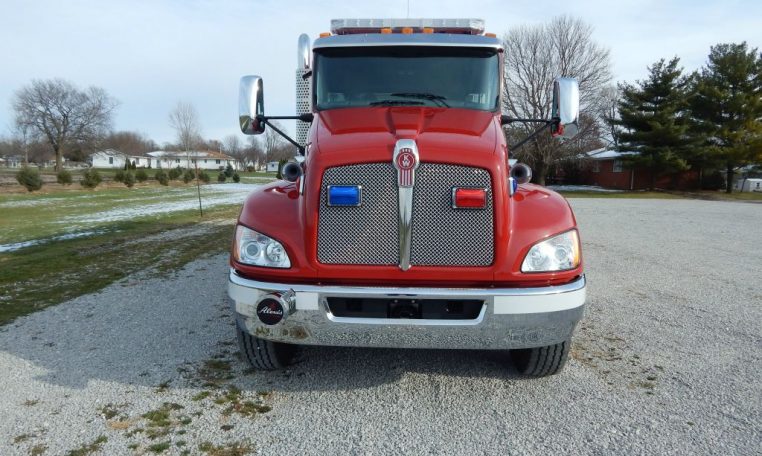

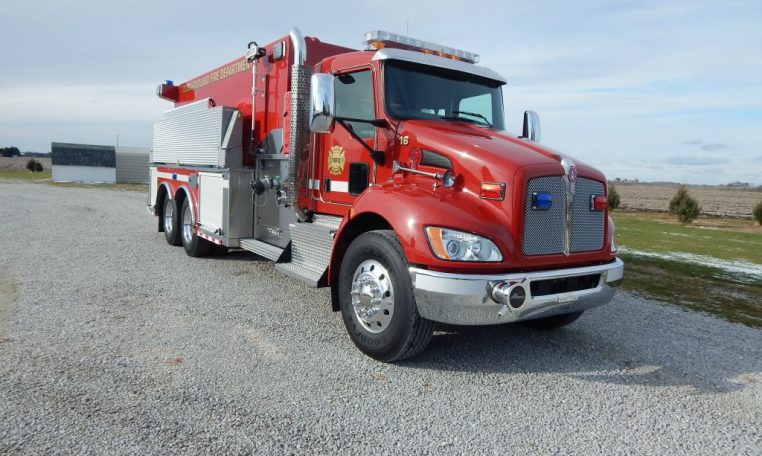

• Kenworth T300 2-Door Chassis
• Pacaar PX9, 380-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty Stainless Steel Body with ROM Roll Up Doors
• Wet Side 3000-Gallon Poly Tank
• One (1) 2 ½” and one (1) 4″ Fireman’s Friend Tank Fills, rear

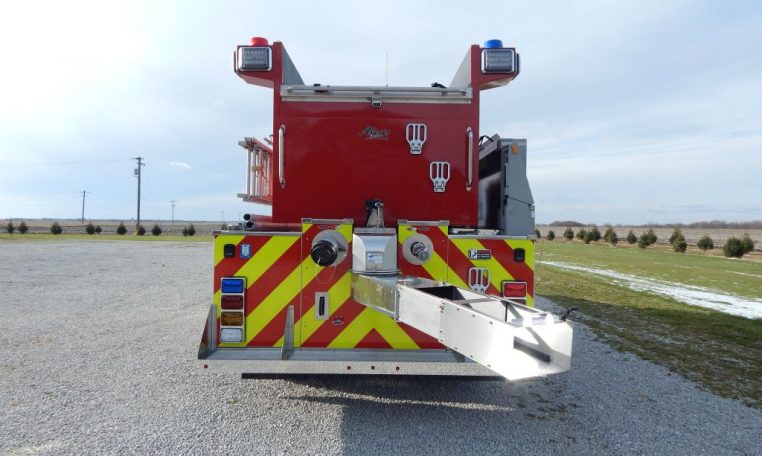

• One (1) Newton 10″ square electric swivel dump with 36″ manual extension

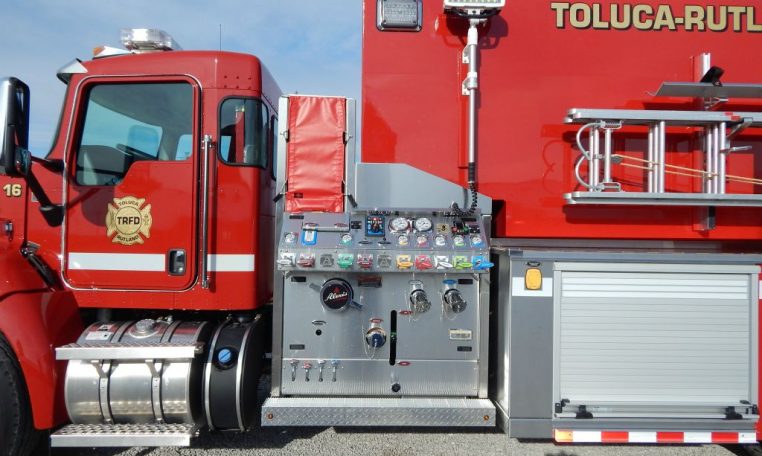

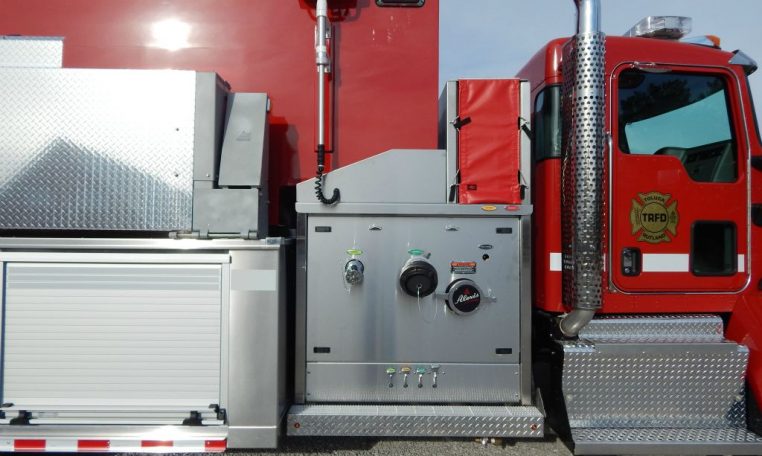

• Darley PSM 1500-GPM Pump with left side operator’s panel under tank
• Three (3) 2 ½” Discharges, two (2) left and one (1) right side
• Two (2) 3″ Discharges, one (1) right side and one (1) over pump for Deck Gun
• One (1) Akron Apollo Deck Gun with TFT Extend-A-Gun
• One (1) 5″ Front Suction through the bumper
• One (1) 2 ½” Gated Suction, left side
• One (1) 1 ½” and one (1) 2 ½” Mattydale Preconnect with Deadlay, across top
• Two (2) Dual bottle Air bottle compartments, one (1) each side wheel well
• One (1) Vertical pull-out tool board, left side
• Two (2) FlameFighter walk-away Air pack brackets, right side

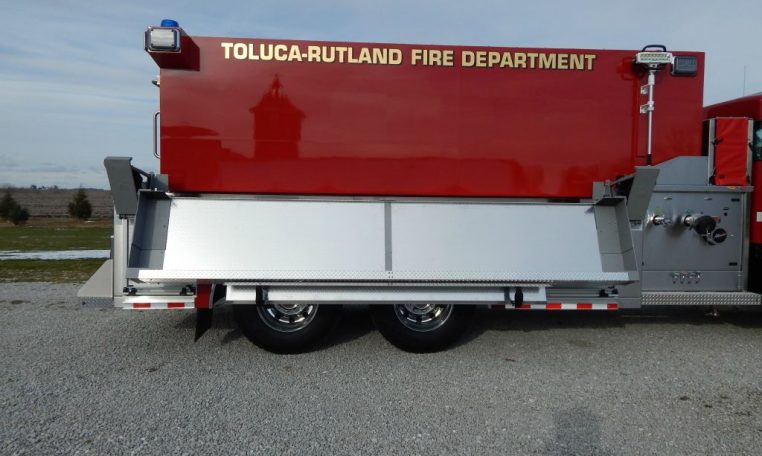

• Zico Electric Folding Tank bracket for 3500-Gallon tank, right side
• Two (2) Suction Hose storage gutters, one (1) each side

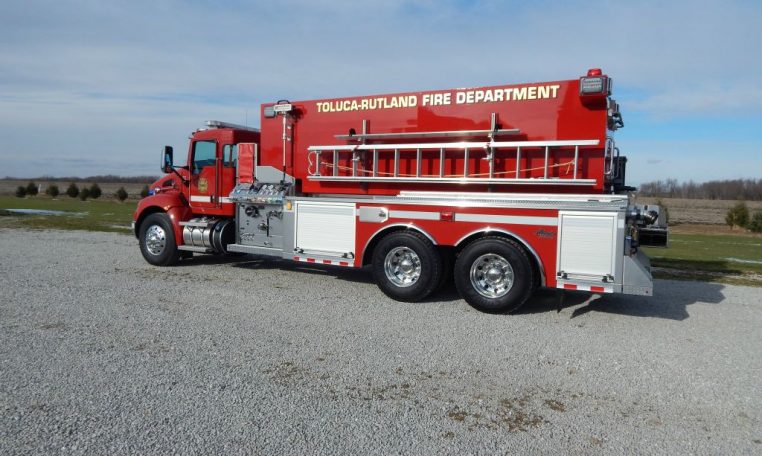

• Ladder brackets and two (2) Pike Pole storage tubes, left side
• Progressive Dynamics on-board battery charger with Viair Air compressor
• Kussmaul Super Auto Eject 120-volt shoreline connection

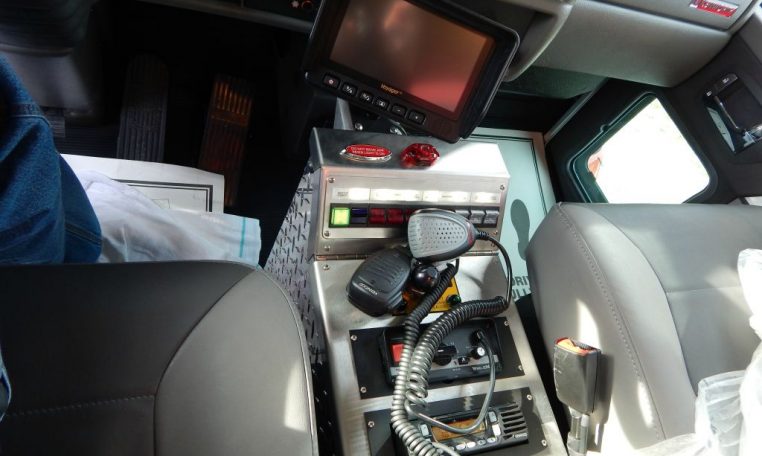

• Floor mounted console for emergency switches with map/binder storage, cab
• Whelen Electronic Siren with Whelen 100-watt speaker
• Two (2) Air Horns, one (1) each side of chassis hood
• Six (6) Whelen LED Scene lights, two (2) each side and two (2) rear
• Two (2) Akron Extenda-Lite 12-volt 220-watt SceneStar LED Telescopic lights
• One (1) Audiovox back –up camera system with 7″color monitor
• Whelen LED Warning Light Package

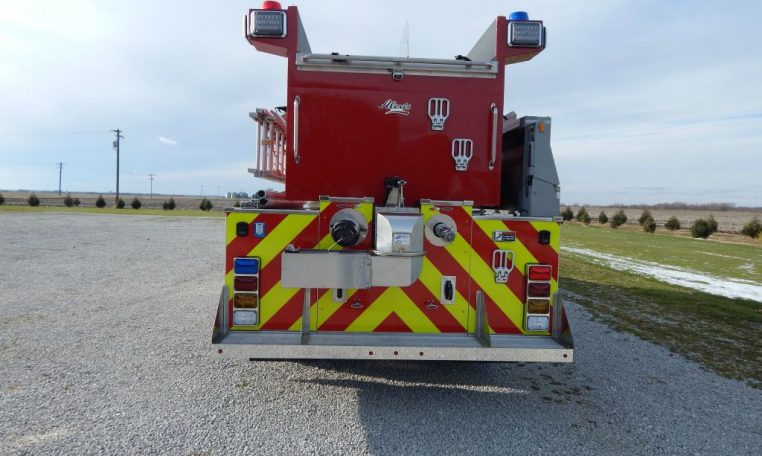

• Diamond Grade Chevron pattern striping, rear
• 10′ 10″ Overall height
• 31′ 8″ Overall length
• 237″ Wheelbase
• 169″ Cab to Axle
• 16,000 FAWR
• 40,000 RAWR
• 56,000 GVWR
