Delivered Apparatus

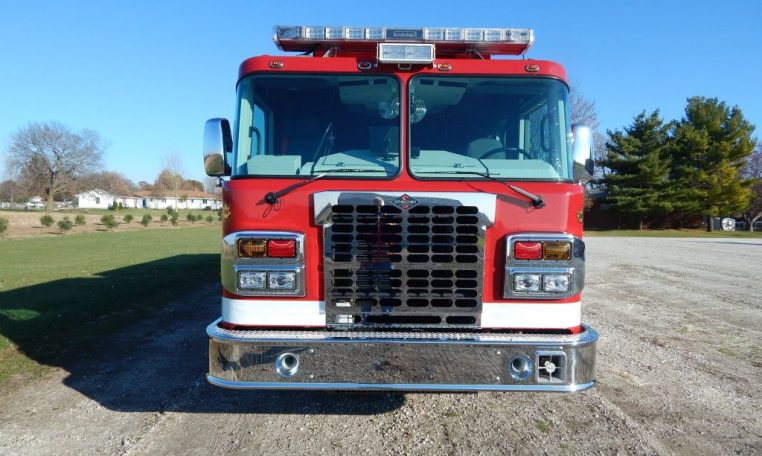

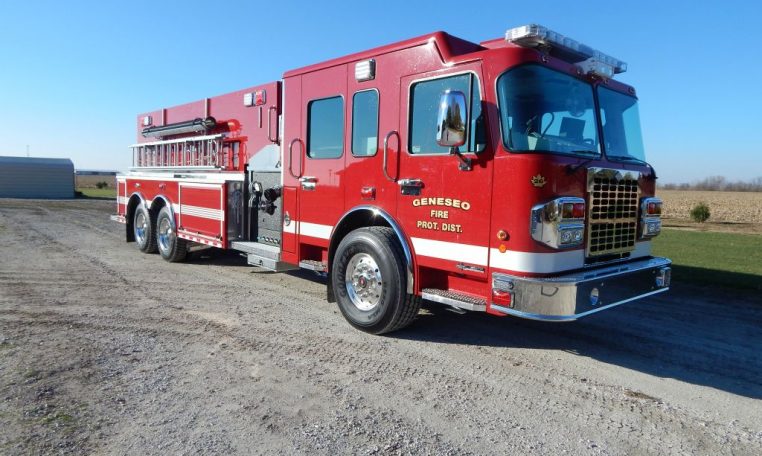

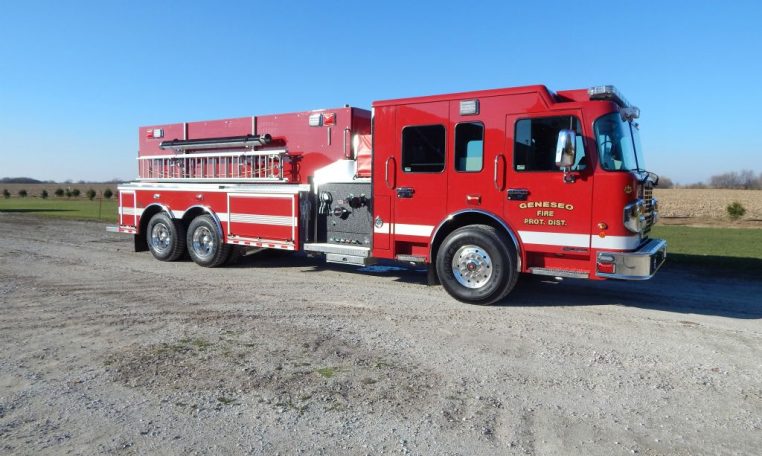

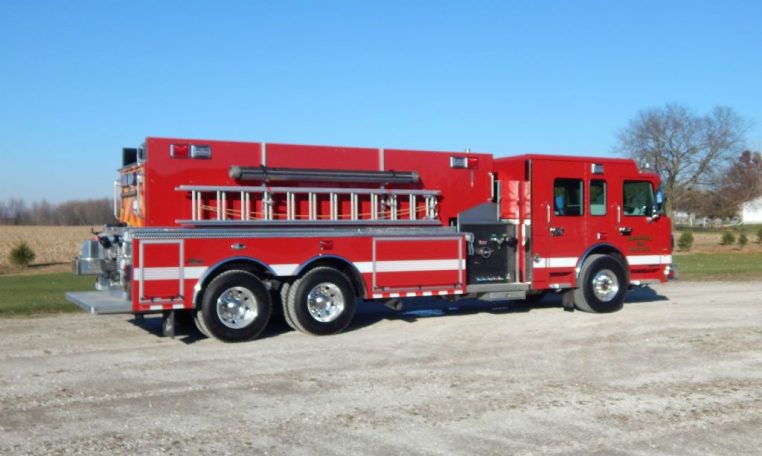

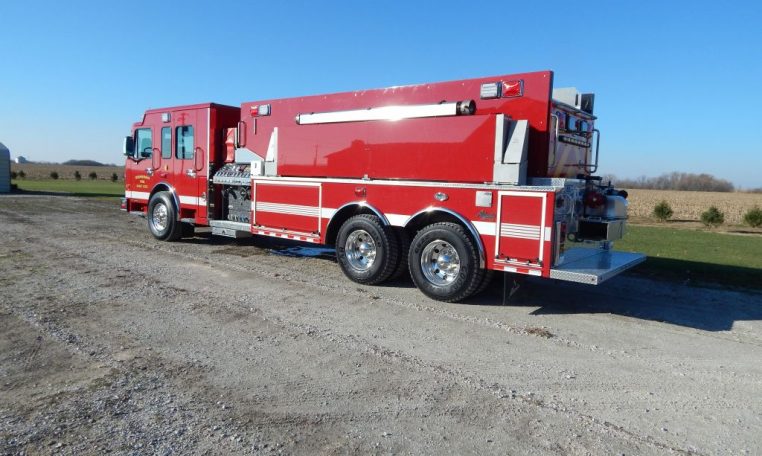

• Spartan Metro Star LFD 10″ raised roof Chassis
• Cummins ISL9, 450-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Five (5) man cab seating with three (3) SCBA seats
• Heavy Duty 3/16″ Aluminum Body
• ROM painted Roll Up Doors
• 3000-Gallon Poly Tank

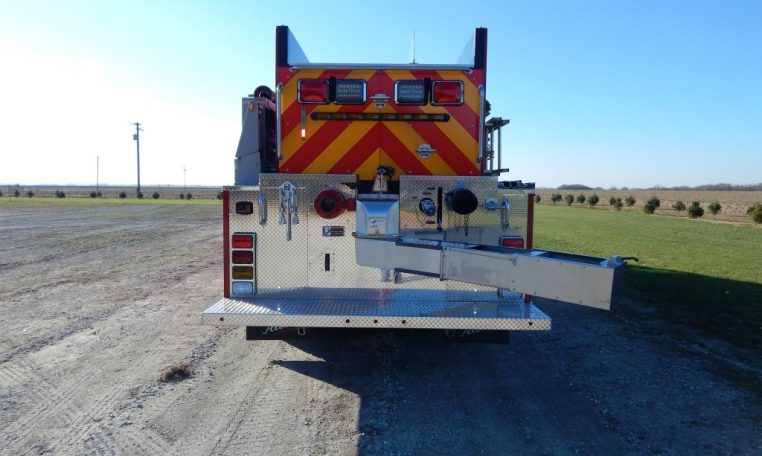

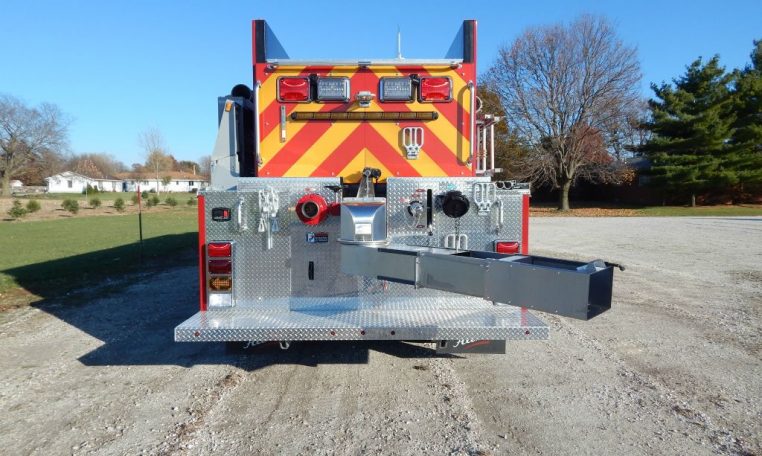

• One (1) Newton 10″ electric swivel dump with 36″ extension, rear
• One (1) 2 ½” and one (1) 4″ tank fill, rear

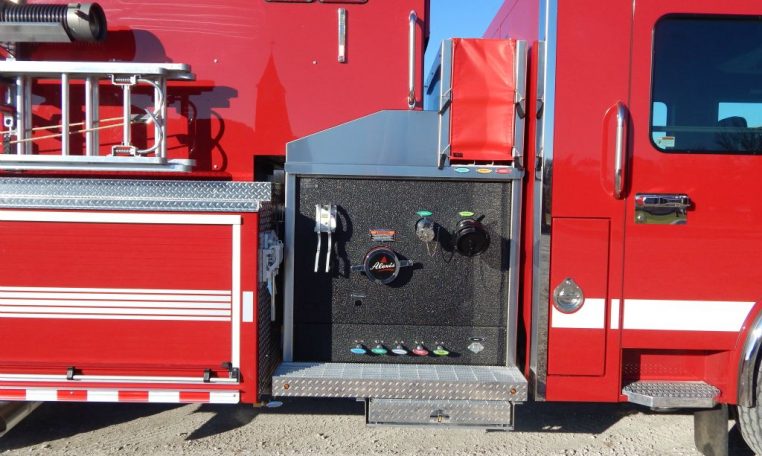

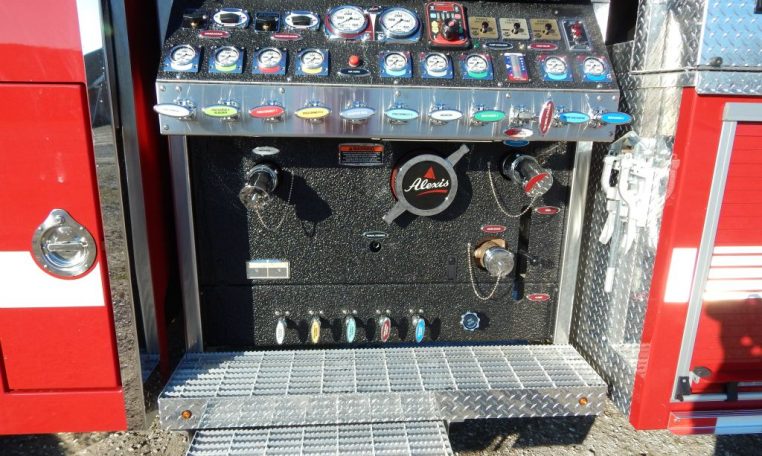

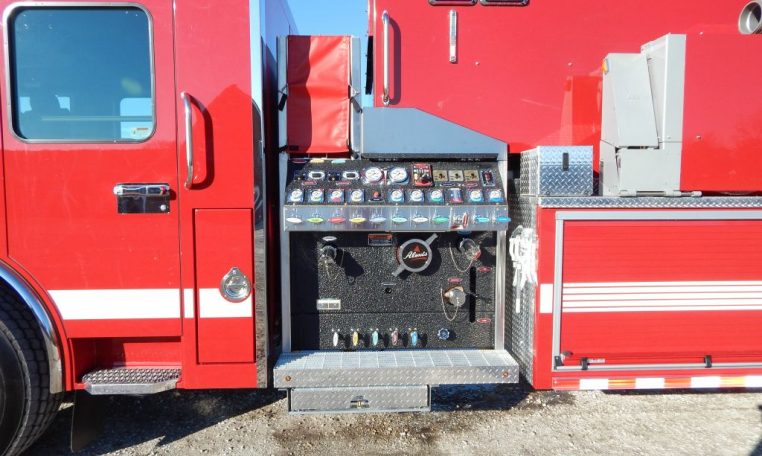

• Waterous CXS, 1500-GPM Pump
• Three (3) 2 ½” Discharges, two (2) left and one (1) right side
• Three (3) 3″ Discharges, one (1) right, one (1) rear and one (1) over pump
• One (1) 2 ½” Gated Suction, left side
• Three (3) Mattydale Preconnects, one (1) 2 ½” and two (2) 1 ½”, top of body
• One (1) Hannay electric Booster Reel with 150-ft of 1″ hose, right side

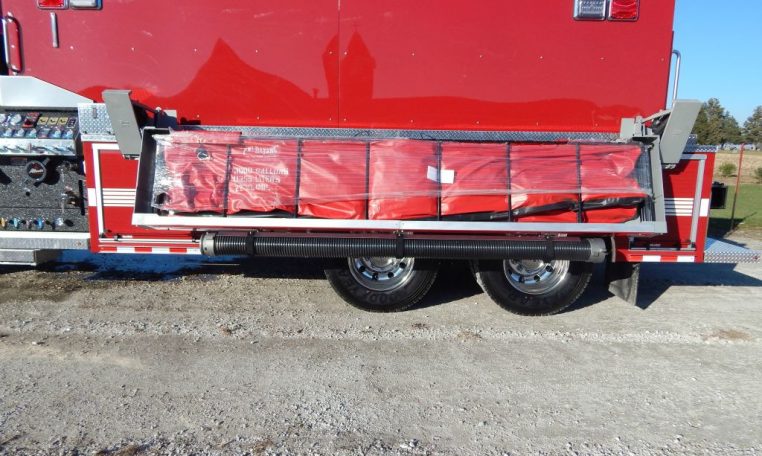

• One (1) Ziamatic Hydraulic folding tank rack fro 3000-gallon tank, left side

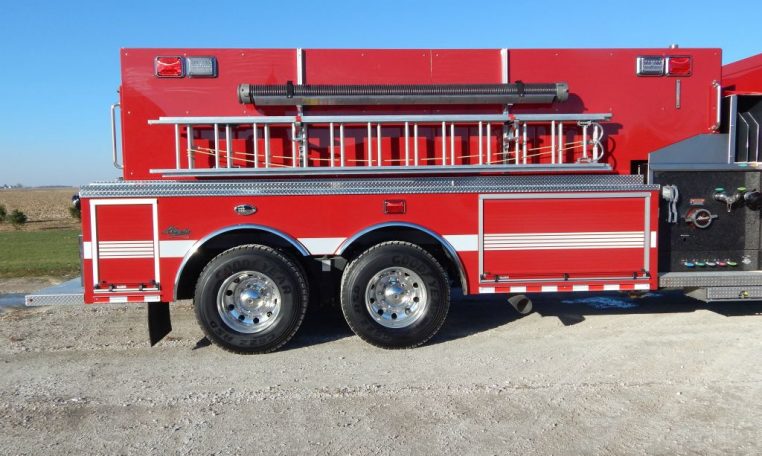

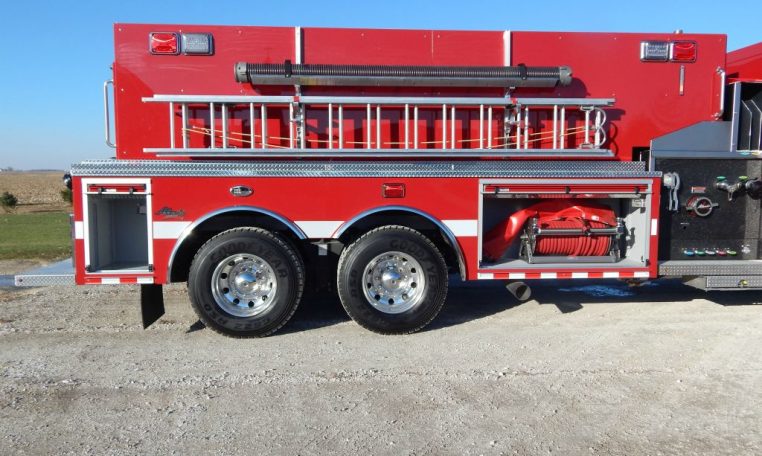

• Ladder brackets and two (2) Suction hose storage gutters , right side

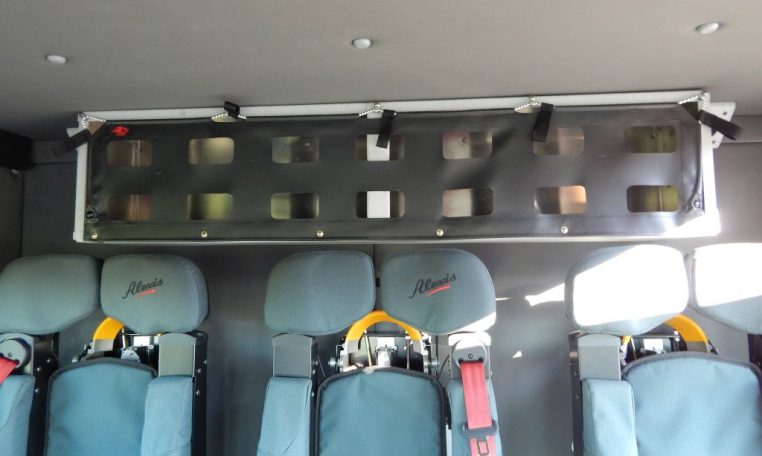

• EMS cabinet with cargo netting, cab
• Progressive Dynamics on-board battery charger with Viair air compressor

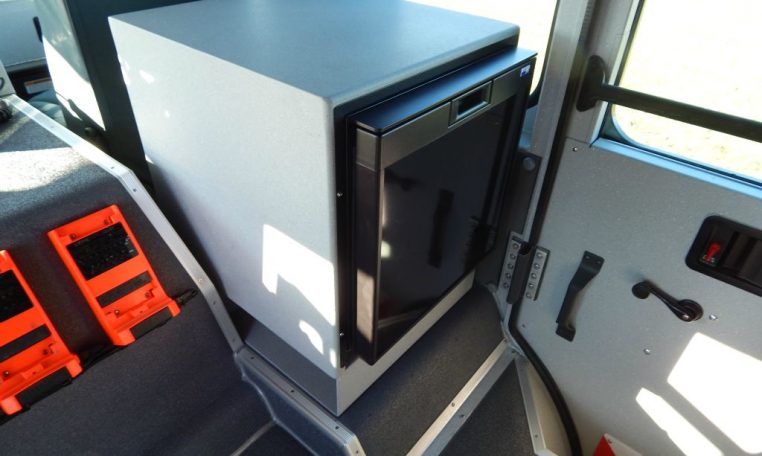

• Norcold built-in refrigerator, cab
• Two (2) Air Horns, front bumper
• Federal Signal Electronic Siren with Whelen 100-watt speaker
• Whelen LED Scene light Package
• Whelen LED Warning Light Package

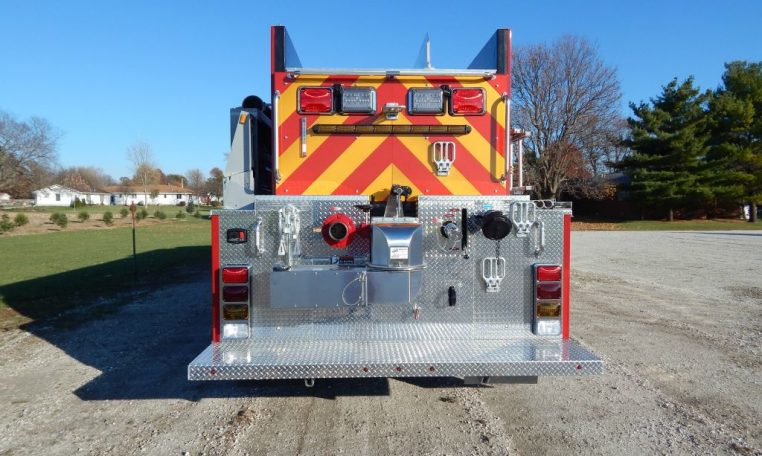

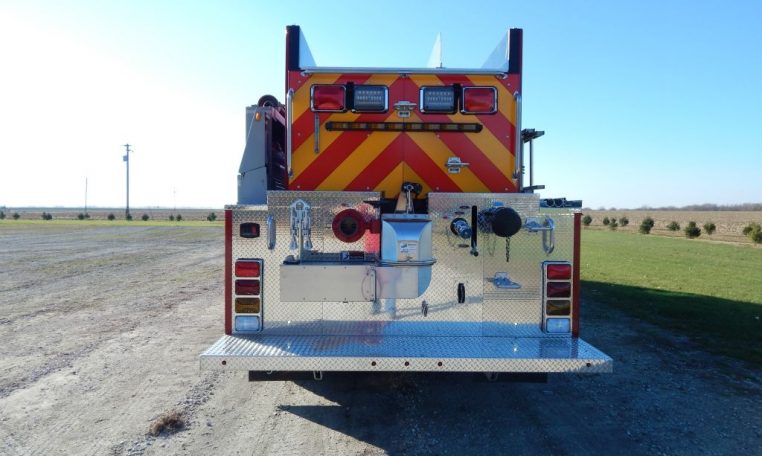

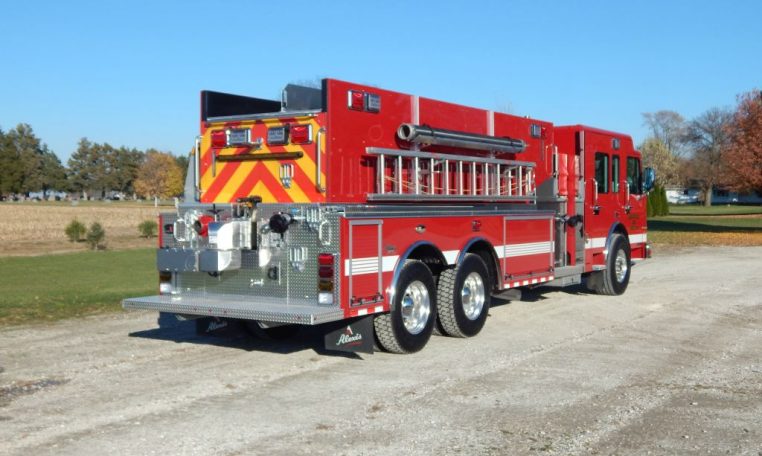

• Chevron pattern striping, rear
• 9′ 8″ Overall height
• 36′ 11″ Overall length
• 252.5″ Wheelbase
• 185″ Cab to Axle
• 23,000 FAWR
• 44,000 RAWR
• 67,000 GVWR
