Delivered Apparatus

• Freightliner M2 112 2-Door Tandem Chassis
• Detroit DD13 12.8L 450 HP Diesel Engine
• Allison 4000 EVS Automatic Transmission
• Heavy Duty Stainless Steel Body and Sub-Frame
• ROM Roll Up Doors
• 3000-Gallon Wet Side Poly Tank
• One (1) 10” Square Newton Electric Swivel Dump with 36” Manual Extension
• Two (2) 2 ½” FirePrograms Tank Fills, Rear
• Waterous CXVK 1000-GPM Pump

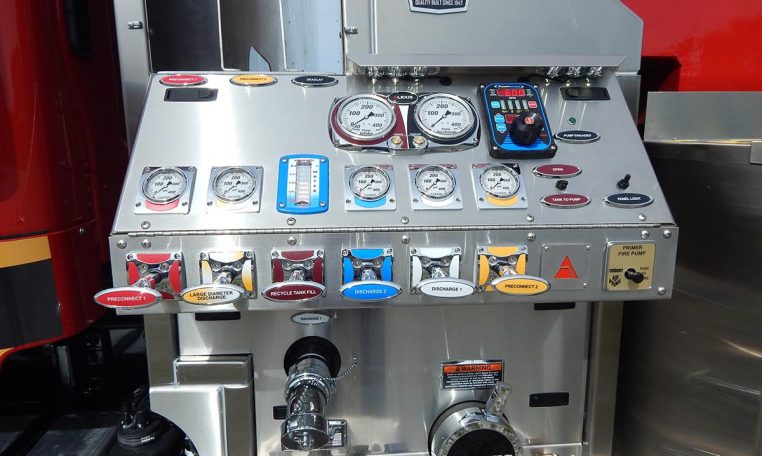

• Left Side Intermediate Pump Operator’s Panel
• Two (2) 2 ½” Discharges, one (1) on Each Side
• One (1) 3” Discharge, Right Side
• One (1) 1 ½” and One (1) 2 ½” Mattydale Preconnect, Behind Cab
• Hinged and Painted Folding Tank Bracket, Right Side Compartment Top
• Suction Hose Storage, Left Side of Tank
• AFE Top Access Ladder, rear mounted
• Progressive Dynamics On-board Battery Charger with Viair Air Compressor
• Blue Sea Auto Eject 120-volt Shoreline Connection
• One (1) Hose Tray with Aluminum Treadplate, Rear step
• Floor Mounted Console for Emergency Switches with Map/Binder Storage, Cab
• One (1) Audiovox Back-up Camera system with 7” color monitor
• Federal Q2B Electronic Siren with 200-watt speaker, Front Bumper
• Whelen and FRC LED Scene Light Packages
• Whelen LED Warning Light Package
• Chevron pattern striping, rear
• 10’ 5” Overall height
• 32’ 8” Overall length
• 236” Wheelbase
• 170.45” Cab to Axle
• 18,000 FAWR
• 44,000 RAWR
• 62,000 GVWR
