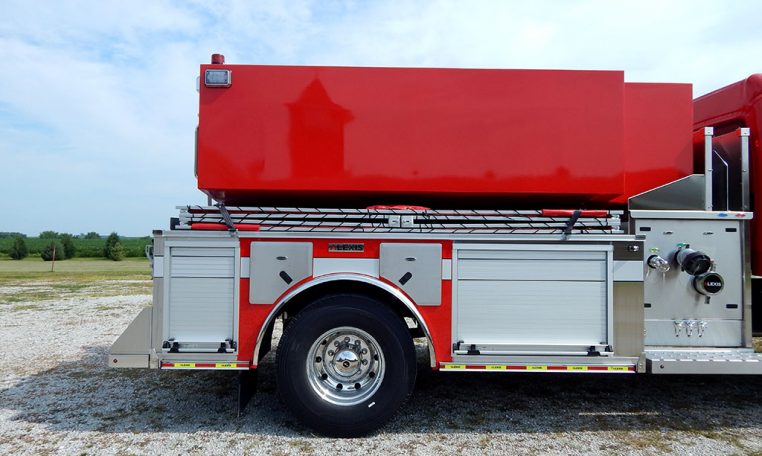

Delivered Apparatus

• Freightliner M2 106, 4-Door Chassis
• Cummins L9, 350-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty Stainless Steel Body
• Stainless steel Sub-Frame
• ROM Roll Up Doors
• 2000-Gallon Wetside Poly Tank
• Two (2) 2 ½” Fire Programs Tank Fills, rear
• One (1) Newton 10” square manual swivel dump with 36” manual extension
• Darley PSM 1250-GPM Pump with left side intermediate pump panel
• Three (3) 2 ½” Discharges, two (2) left and one (1) right side
• One (1) 3” Discharge, right side
• One (1) 1 ½” and one (1) 2 ½” Mattydale Preconnect, behind cab
• One (1) 2 ½” Gated Suction, left side
• Two (2) Triple bottle Air bottle compartments, right side wheel well
• Folding Tank storage for 2100 gallon tank, top of compartments, right side
• Suction hose storage, top of compartments, left side
• Ladder and Pike pole storage, left side
• Progressive Dynamics on-board battery charger with Viair air compressor
• Manual shoreline connection
• Floor mounted console for emergency switches, cab
• Audiovox Back up Camera system with 7” Color monitor and side camera
• Code-3 Electronic Siren with Code-3 100-watt speaker
• Code-3 LED Scene Light Package
• Code-3 LED Warning Light Package
• Whelen LED Arrow Stick, rear
• Diamond Grade Chevron pattern striping, rear
• 9’ 7” Overall height
• 29’ 9” Overall length
• 247” Wheelbase
• 134.2” Cab to Axle
• 16,000 FAWR
• 30,000 RAWR
• 46,000 GVWR
