1500GPM SIDE CONTROL PUMPER #2547

LEAVENWORTH COUNTY FIRE DISTRICT #2 - LINWOOD, KANSAS
FEATURES:
  • Spartan Metro Star EMFD Flat Roof Chassis
  • Cummins 450 HP L9 Engine
  • Allison 3000 EVS Automatic Transmission
  • Heavy Duty Stainless Steel Body and Stainless Steel Subframe
  • Stainless Steel Side Control Pump Module
  • Free Floating Hose Well Left Running Board
  • Hale QMAX-XS 1500GPM Single Stage Pump
  • SAM Water Control System with all Electric Valves
  • Class 1 ITL Water Tank Guage with Whelen PSTANK2 Strip Lite at Rear
  • Two (2) 6” Intakes, One (1) Each Side with Hale MIV Valves
  • One (1) 2½” Gated Intake, Each Side
  • Two (2) 2½” Discharges Left Side and Two (2) 2½” Discharge Right Side

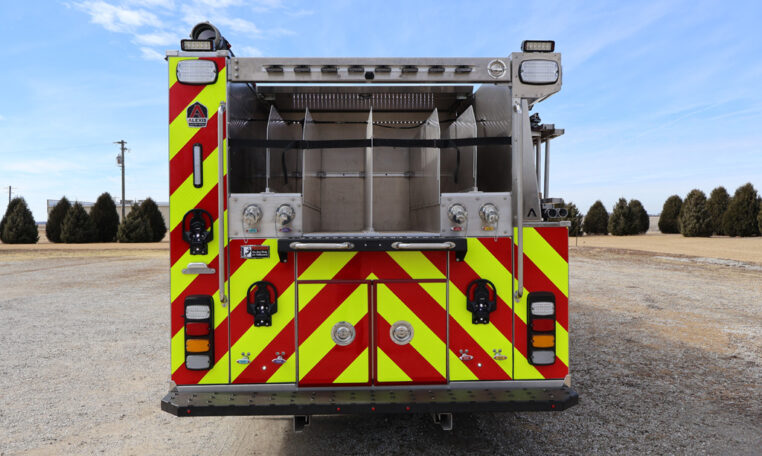

  • Four (4) 2½” Discharges Rear
  • One (1) 4” Discharge Adapted to 4” Storz, Right Side
  • One (1) 3” Discharge in Pump Module Dunnage for Deck Gun
  • Hale SmartFOAM 2.1A Foam System with 20 Gallon Tank
  • One (1) 1½” Bumper Extension Preconnect
  • One (1) Booster Reel Dunnage Area with 150’ of 1” hose
  • Three (3) Triple Wheel Well Air Bottle Compartment, One (1) Left and Two (2) Right
  • ROM Painted Roll-Up Doors
  • Ladder Storage Rack Right Side
  • Hard Suction Hose Storage One (1) Each Side
  • 1000 Gallon Poly Tank
  • 12 Volt Electrical System with NFPA Compliant Warning Light Package
  • Kussmaul Auto Charge LPC40 Battery Charger with Blue Sea 12V Pump in Cab
  • Blue Sea 20 Amp Super Auto-Eject 120V Shoreline Connection, Left Side of Cab
  • Whelen LED Warning Light Package with Ion LED Arrow Stick Rear
  • Whelen Cencom CORE Warning Light Control System
  • Federal Q2B Recess Mounted Siren Left Side
  • Two (2) FireTech HiViz 27″ LED Scene Light Bars, One (1) Each Side
  • Twi (2) FireTech HiViz 8″ LED Scene Light Bars, Rear One (1) Each Side
  • One (1) FireTech HiViz 72” LED Brow Light
  • One (1) 10’ Attic Ladder, One (1) 14’ Roof Ladder with Hooks, One (1) 24’ 2-Section Ladder, and Two (2) 10’ Lengths of 6” Suction Hose
  • 10’ Overall Height
  • 33’-9” Overall Length
  • 205” Wheelbase
  • 145” Cab to Axle
  • 21,500 FAWR
  • 27,000 RAWR
  • 48,500 GVWR
Year: 2025
Make: Alexis Fire Equipment
Model: Pumper
Chassis: Custom
Body Style: Side Control Pumper
Pump Size: 1500
Tank Size: 1000
Feature: 20-Gallon Foam Tank
Exterior Color: Red with Black
New Delivery: New Delivery
