Delivered Apparatus

FEATURES:

• Spartan FC-94 MFD 10” Raised Roof Chassis
• 450 HP Cummins L9 Engine
• Allison 3000 EVS Automatic Transmission
• Four (4) Person Cab
• Heavy Duty Aluminum Body and Sub-Frame
• 1000-Gallon Poly Tank

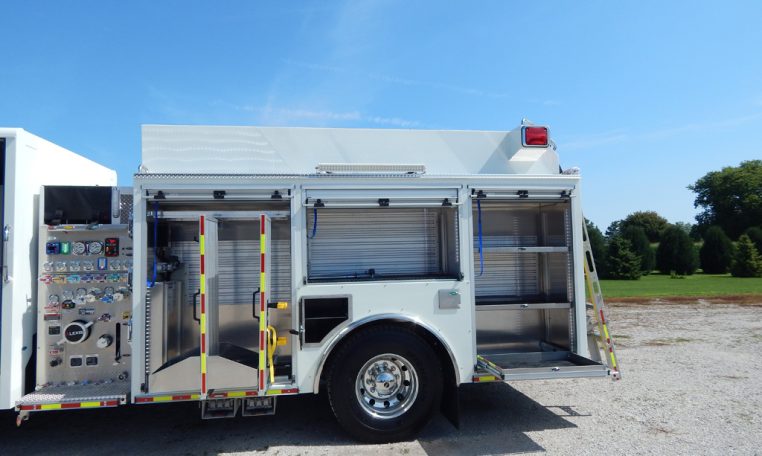

• Stainless-Steel Side Control Pump Module
• Hale DSD150 Single Stage Split-Shaft 1500 GPM Pump
• Trident Air Prime System
• FRC Pump Boss Pressure Governor & Monitoring System
• Two (2) 6” Intakes, One (1) Each Side
• Two (2) 2½” Gated Intakes, One (1) Each side
• Two (2) 2½” Discharges, Left Side
• One (1) 2½” Discharge, Right Side
• One (1) 3” Discharge, Right Side Adapted to 4” Storz
• One (1) 3” Discharge, Rear Adapted to 2½” NST
• One (1) 24” Front Bumper Extension with 1 ¾” Preconnect and Center Hose Well
• Mattydale Preconnects, Two (2) 1½” and One (1) 2½”
• FoamPro 2001 with 30 Gallon Tank, All Preconnects Foam Capable
• ROM Locking Roll-Up Doors
• AFE Stainless-Steel Top Access Ladder

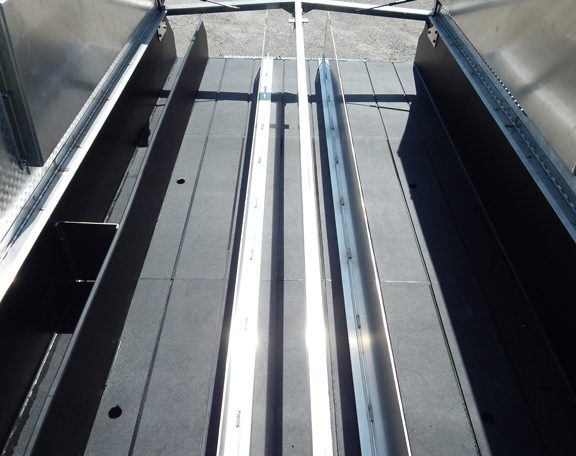

• Hose Bed with Two (2) Dividers, LED Strip Lights, and Aluminum Treadplate Cover
• Ladder and Hard Suction Storage, Rear Through the Tank, One (1) 24’ 2-Section Ladder, One (1) 14’ Roof Ladder with Hooks One (1) 10’ Attic Ladder, Two (2) 10’ x 6” Hard Suction, Five (5) Pike Pole Tubes
• EMS Compartment, Rear Wall of Cab
• One (1) Fire Extinguisher Wheel Well Compartment, Left Side Ahead
• One (1) Dual Air Bottle Wheel Well Compartment, Right Side Ahead
• One (1) Triple Air Bottle Wheel Well Compartment, Right Side Behind
• Two (2) Vertical PacTrac Pull-Out Boards, L1 Compartment
• Two (2) Vertical PacTrac Pull-Out Boards, R1 Compartment
• 250# Roll Out Trays, One (1) L3 Compartment, One (1) R3 Compartment
• 500# Roll Out Tray, One (1) Rear Compartment
• Progressive Dynamics Battery Charger with Viair Compressor Kussmaul 20 Amp Super Auto-Eject 120V Shoreline Connection, Left Side of Cab
• Whelen LED Warning Light Package
• Whelen and FireTech Scene Lights
• One (1) Golight with Remote Control, Mounted Center of Lightbar
• One (1) Whelen Traffic Advisor Light
• Whelen Electric Siren & 100W Speaker
• 10’ 2” Overall height
• 31’ Overall length
• 180” Wheelbase
• 126” Cab to Axle
• 20,000 FAWR
• 27,000 RAWR
• 47,000 GVWR
