Delivered Apparatus

Custom Built Since 1947.

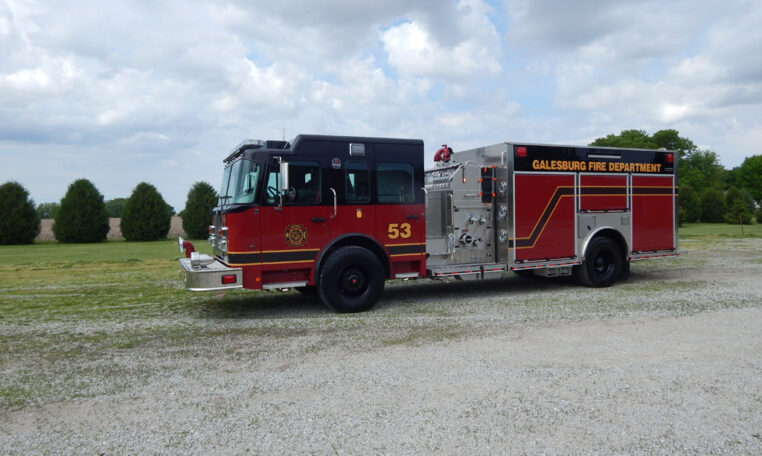

1500 GPM TOP CONTROL PUMPER #2533

GALESBURG FIRE DEPARTMENT - GALESBURG, ILLINOIS
FEATURES:
  • Spartan FC-94 MFD 10” Raised Roof
  • Cummins L9 450 HP Diesel Engine
  • Allison 3000 EVS Transmission
  • Heavy Duty Stainless-Steel Body and Subframe
  • Four (4) Person Cab
  • ROM Painted Roll-Up Doors
  • Hale DSD 1500 gpm Pump
  • Trident Air Primer, Two (2) Location
  • 750 Gallon Poly Tank
  • Stainless-Steel Top Mount Pump Module w/ 22” Midship Walkway
  • Two (2) 6” Intakes, One Each Side, Left and Right
  • One (1) 5” Front Intake
  • One (1) 2½” Gated Intake, Left Side
  • Three (3) 2½” Discharges, Two (2) Left and One (1) Right Side
  • One (1) 3” Discharge Reduced to 2½” MNST, Rear
  • One (1) 3” Discharge Adapted to 5” Storz, Right Side
  • Two (2) 1½” Mattydale Preconnects Deep Cut
  • TFT Crossfire XFC-42 Deck Gun with 18” Extend-A-Gun
  • Two (2) Free Floating Hose Wells, One Each Left and Right Side Running Boards
  • Two (2) Triple Air Bottle Wheel Well Compartments, One (1) Each Side Ahead
  • One (1) Fire Extinguisher Wheel Well Compartment, Right Side Behind
  • Hinged PacTrac Tool Board, L2 Compartment
  • One (1) 500# Roll Out Tray, L3 Compartment
  • One (1) 500# Roll Out Tray, Rear Compartment
  • AFE Stainless Steel Top Access Ladder
  • Kussmaul Battery Conditioner and Air Compressor with a Kussmaul 20-Amp 120V Super Auto-Eject Shoreline
  • Whelen LED Warning Light Package
  • FireTech Scene Light Package
  • 9’ 10” Overall Height
  • 36’ 1” Overall Length
  • 224” Wheelbase
  • 170” Cab to Axle
  • 21,500 FAWR
  • 31,500 RAWR
  • 53,000 GVWR
Year: 2024
Make: Alexis Fire Equipment
Model: Pumper
Chassis: Custom
Body Style: Top Control Pumper
Pump Size: 1500
Tank Size: 750
Exterior Color: Red with Black
New Delivery: New Delivery
