Delivered Apparatus

FEATURES:

• Spartan Gladiator LLFD 10” Raised Roof
• Cummins L9 400 HP Diesel Engine
• Allison 3000 EVS Transmission
• Heavy Duty Stainless-Steel Body and Subframe
• Four (4) Person Cab

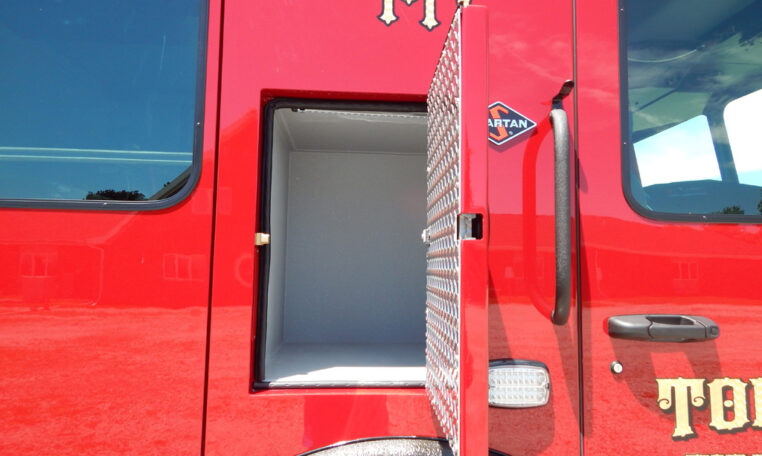

• EMS Compartment in Cab Forward Facing Center Rear Wall
• External Chassis Storage Compartments, One (1) Each Side Above Wheel Wells, One (1) Each Side Rearward of Rear Doors
• Side Mount Stainless-Steel Pump Module w/ Black Reflex Coating
• ROM Painted Roll-Up Doors
• MAC1 TAC150 1500 GPM Single Stage Pump
• Trident Automatic Air Primer
• 750 Gallon Poly Tank
• FRC Pump Boss Pressure Governor & Monitoring System
• Two (2) 6” Intakes, One Each Left and Right Sides
• 24” Extended Front Bumper /w One (1) 2½” Preconnect & Center Hosewell
• Two (2) 1½” Mattydale Preconnects
• Five (5) 2½” Discharges, Two (2) Left Side, One (1) Right Side, Two (2) Rear
• One (1) 3” Discharge Adapted to 5” Storz, Right Side
• Akron 3423 Deck Gun with TFT 18” Extend-A-Gun
• Hannay Booster Reel in Rear Compartment 200’ of 1”
• Two (2) Free Floating Hose Wells, One (1) Each Side Pump Module Running Boards
• FoamPro 1600 Foam System
• Foam Capable Discharges One (1) 1½” Bumper Preconnect, Two (2) 1½” Mattydale Preconnects, One (1) 2½” Rear Discharge, One (1) 1″ Rear Booster Reel
• Rear Access Ladder Compartment in Low Hosebed, Right Side
• One (1) Single Air Bottle Wheel Well Compartment, Left Side Behind Rear Wheels Adjacent to Fuel Fill
• Two (2) Triple Air Bottle Wheel Well Compartments, One each Side Ahead of Rear Wheels
• One (1) Fire Extinguisher Compartment, Right Side Behind
• Kussmaul Battery Conditioner and Air Compressor w/ Shoreline Electrical Inlet
• Whelen LED Warning Light Package
• FireTech Scene Light Package
• Whelen Traffic Advisor Light Mounted on Hinged Hosebed Crossbar
• 9’ 11” Overall Height
• 32’ 11” Overall Length
• 194” Wheelbase
• 124” Cab to Axle
• 20,000 FAWR
• 27,00 RAWR
• 47,000 GVWR
