Delivered Apparatus

FEATURES:

• Ford F-550 4×4 Super Duty Crew Cab Chassis
• 6.7L 4V OHV V8 Turbo Diesel Engine
• TorqShift 10-Speed Automatic Transmission
• Heavy Duty Stainless Steel Body and Stainless Steel Subframe
• Stainless Steel Side Control Pump Module with Stainless Steel Subframe
• LuVerne Stainless Steel Cab Side Entry Steps

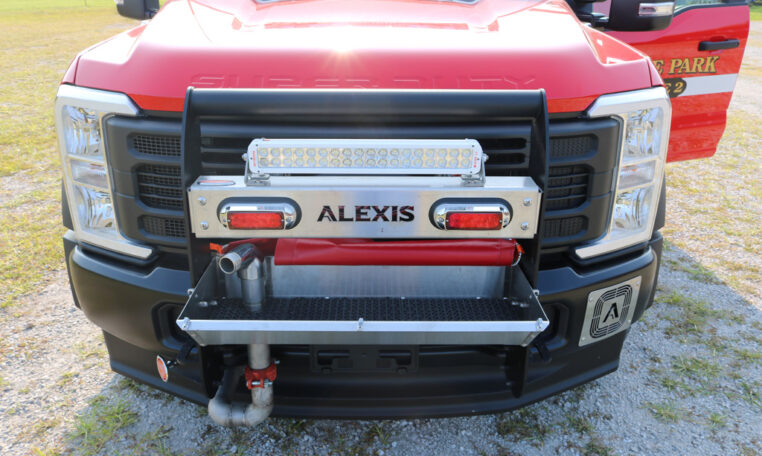

• Go Industries Brush Guard with Hitch and Rear Hitch with Winch Wiring
• Front Hose Well for 100’ of 1½” Hose
• Hale DSD 1500 GPM Split Shaft Pump with Hale ESP Priming Pump
• FRC InControl Pressure Governor and FRC TankVision Water Tank Level Gauge
• Two (2) 6” Intakes, One (1) Each Side
• One (1) 5” Rear Intake, Adapted to 6” NSTM
• One (1) 2½” Gated Intake Left Side
• One (1) 2½” Discharge, Each Side and One (1) 3” Discharge, Right Side
• One (1) 3” Deck Gun Discharge with Akron 3433 Hi Riser Monitor
• One (1) 1½” Brush Guard Preconnect
• FoamPro 1600 Foam System with 10 Gallon Integral Foam Tank
• Two (2) 1½” and One (1) 2½” Mattydale Preconnects
• Three (3) Single Wheel Well Air Bottle Compartments
• ROM Satin Finish Roll-Up Doors
• 265-Gallon Poly Tank
• 12 Volt Electrical System with NFPA Compliant Warning Light Package
• Progressive Dynamics Charger with Viair Compressor and Auxiliary Air Tank
• Kussmaul 120V 20A Super Auto Eject, Left Side Above Rear Wheel Well
• Whelen LED Warning and LED Scene Light Package
• Whelen Electronic Siren & 100W Speaker
• Two (2) FRC Telescopic LED Lights, One (1) Each Side Ahead of the Body
• FireTech HiViz 21” LED Brow Light Mounted on the Brush Guard and Brow
• Hard Suction Storage Left Side and Ladder Storage Right Side
• One (1) 10’ Attic Ladder, One (1) 12’ Roof Ladder with Hooks, One (1) 24’ 2-Section Ladder, and Two (2) 10’ Lengths of 6” Suction Hose
• 9’-6” Overall Height
• 28’-3” Overall Length
• 203.8” Wheelbase
• 84” Cab to Axle
• 7,500 FAWR
• 14,700 RAWR
• 19,500 GVWR
