Delivered Apparatus

FEATURES:

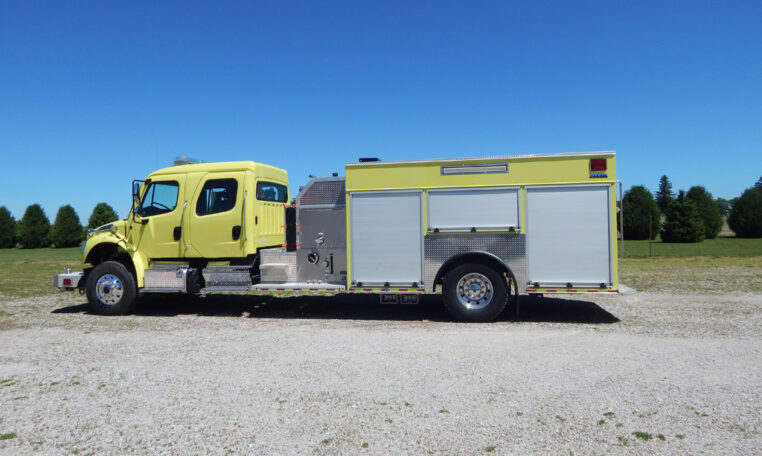

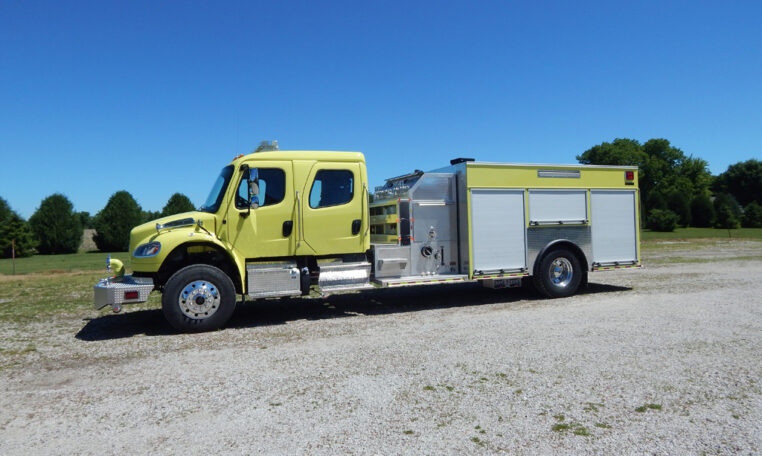

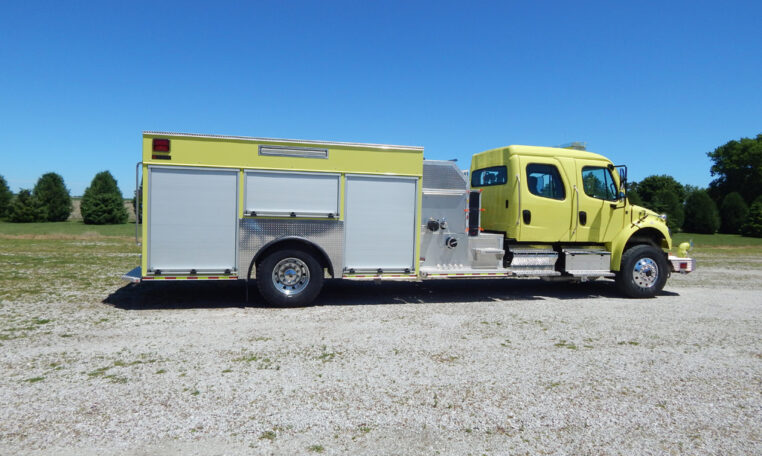

• Freightliner M2 106 Crew Cab Chassis
• Cummins L9 360 HP Diesel Engine
• Allison 3000 EVS Transmission
• Heavy Duty Aluminum Body and Subframe

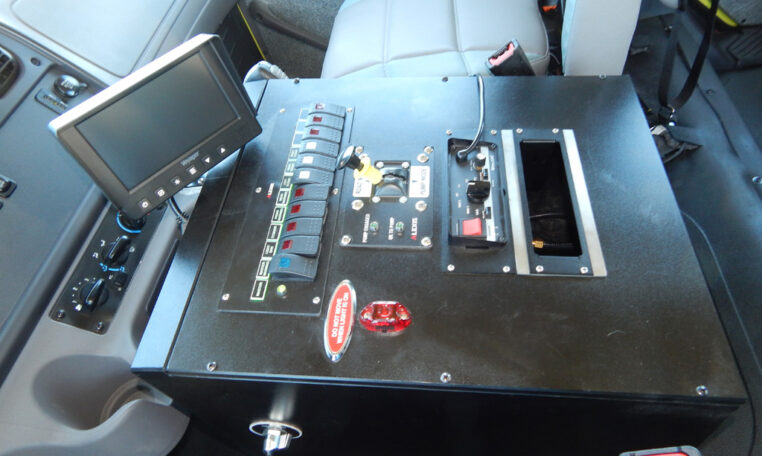

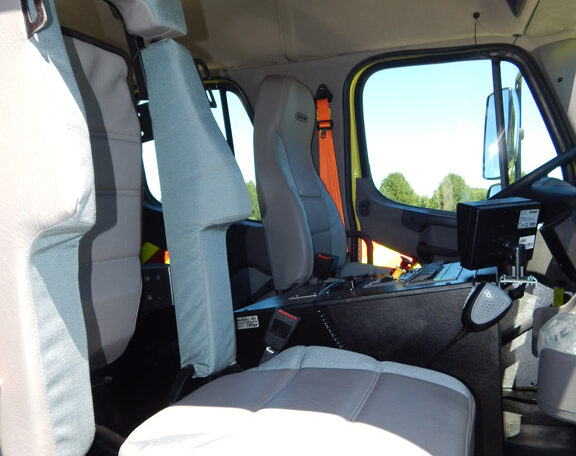

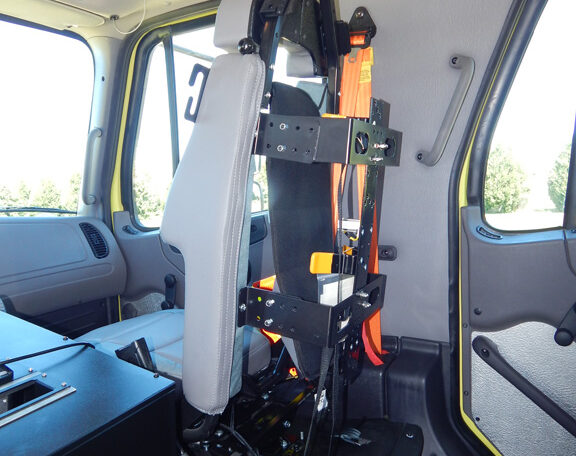

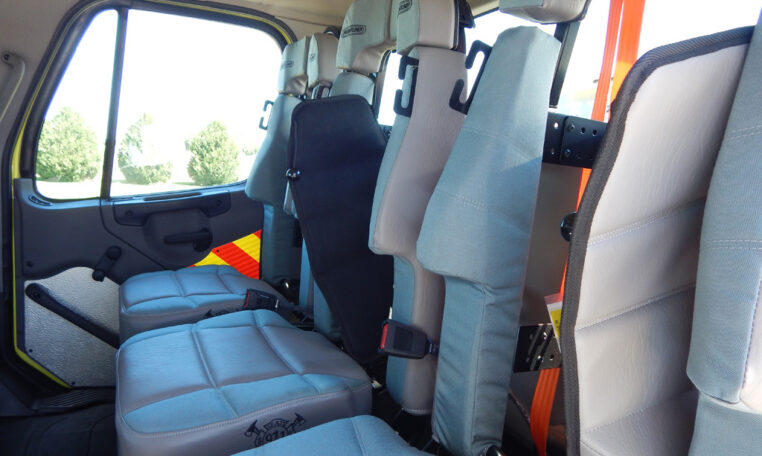

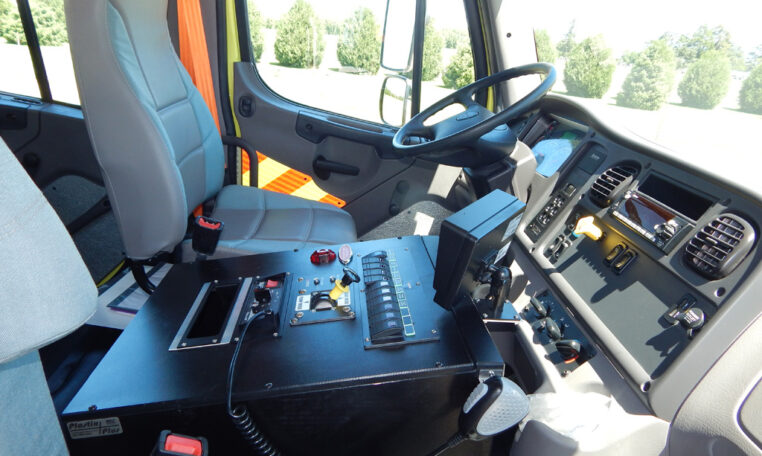

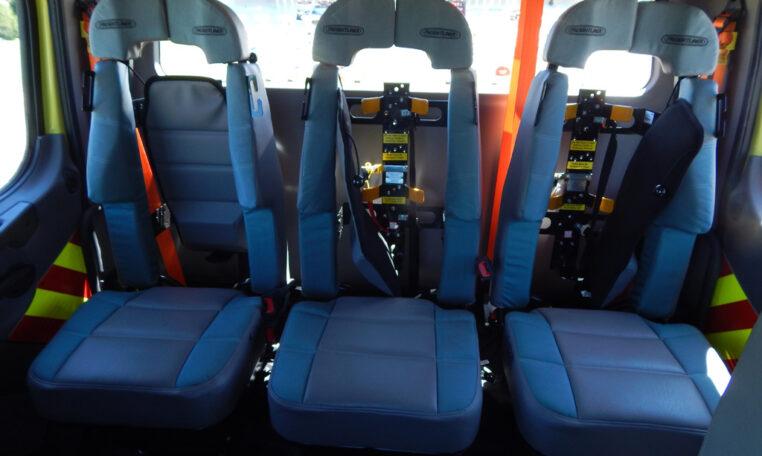

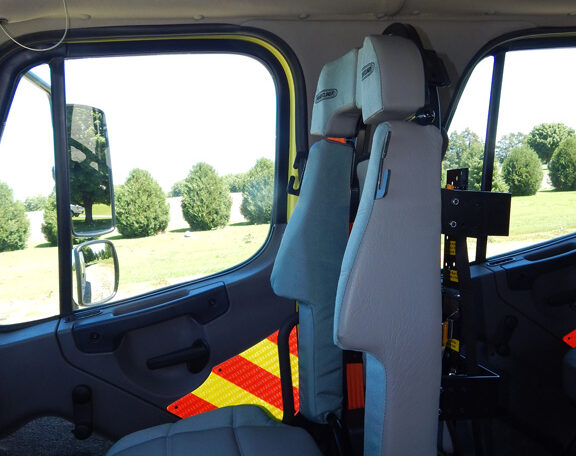

• Five (5) Person Cab
• Hale DSD 1500 GPM Split Shaft Pump
• Trident Air Prime System

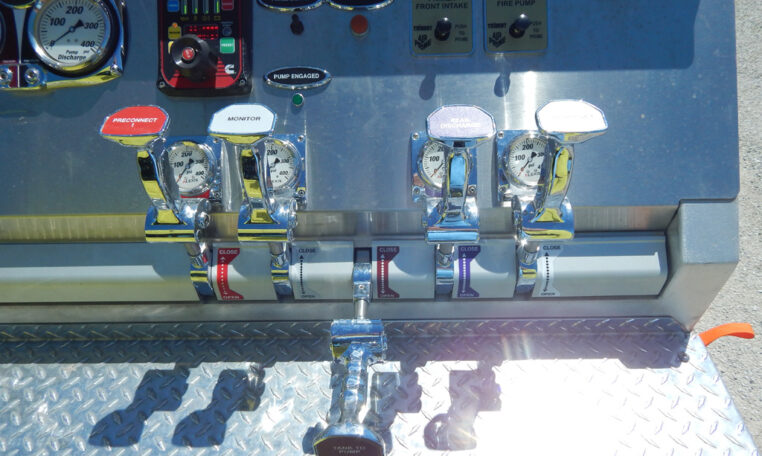

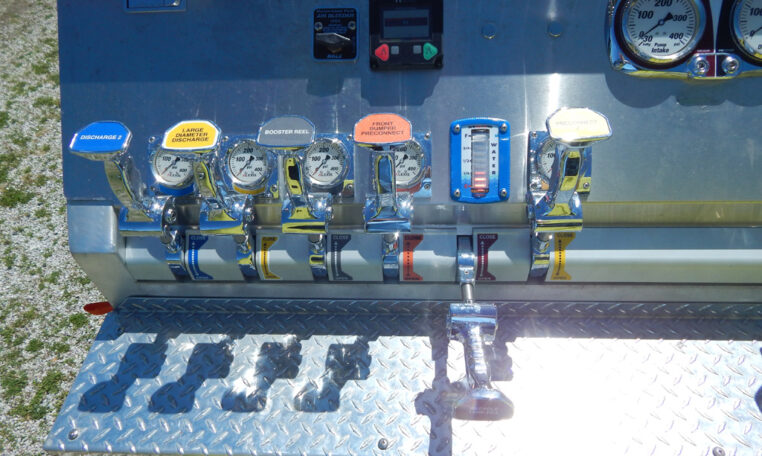

• FRC Pump Boss Pressure Governor & Monitoring System

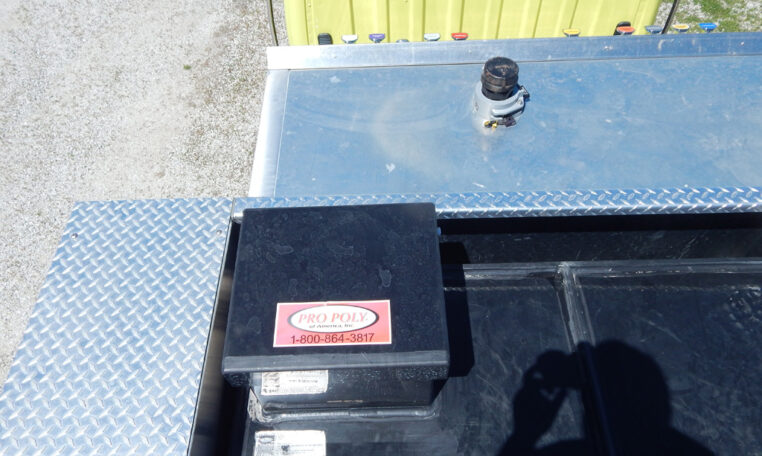

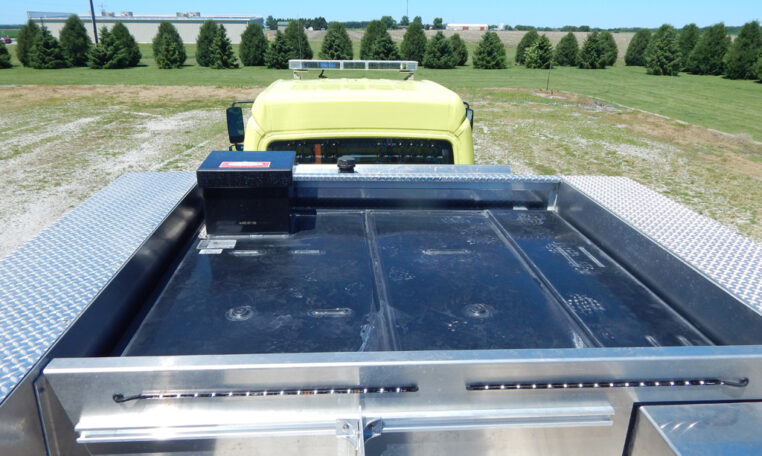

• 1,000 Gallon Poly Tank

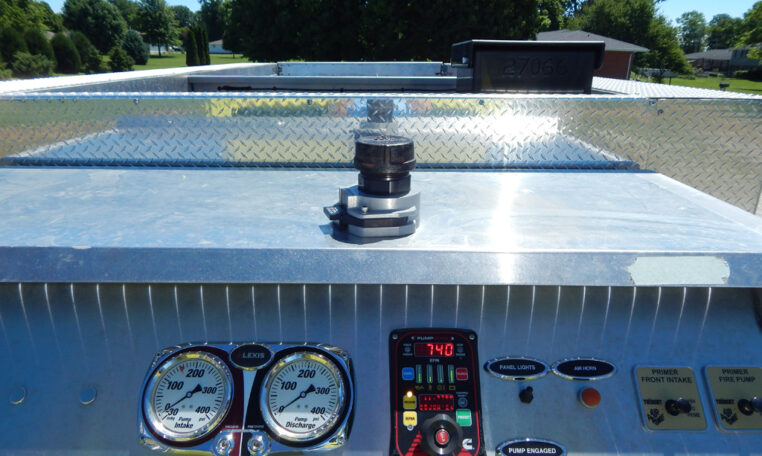

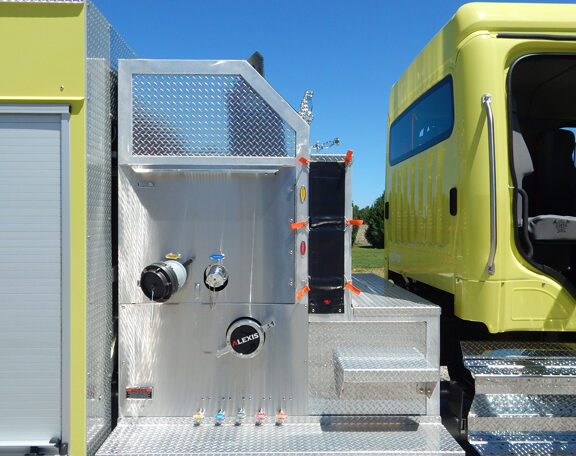

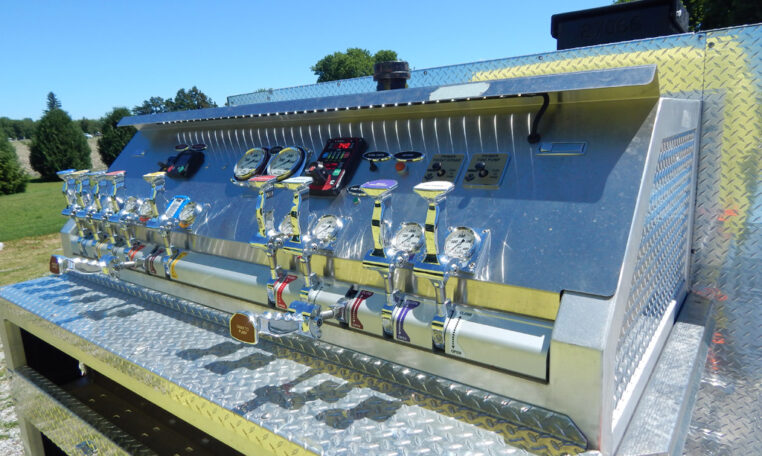

• Aluminum Top Mount Pump Module w/ 22” Walkway

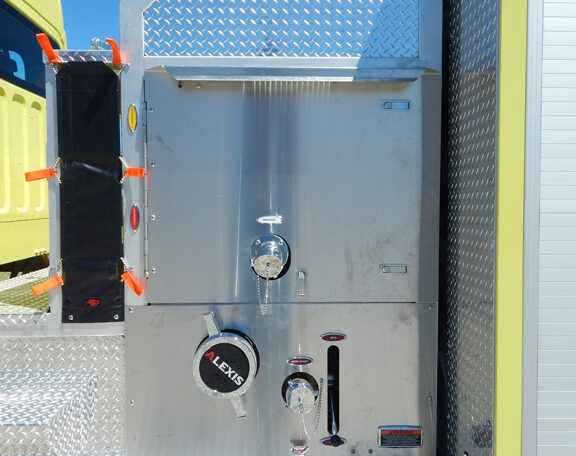

• Two (2) 6” Intakes, One Each Side, Left and Right
• One (1) 5” NST Electric Front Intake
• One (1) 1½” Bumper Extension Preconnect
• Two (2) 1½” Cartridge Lay Preconnects
• One (1) 2½” Discharge, Left Side

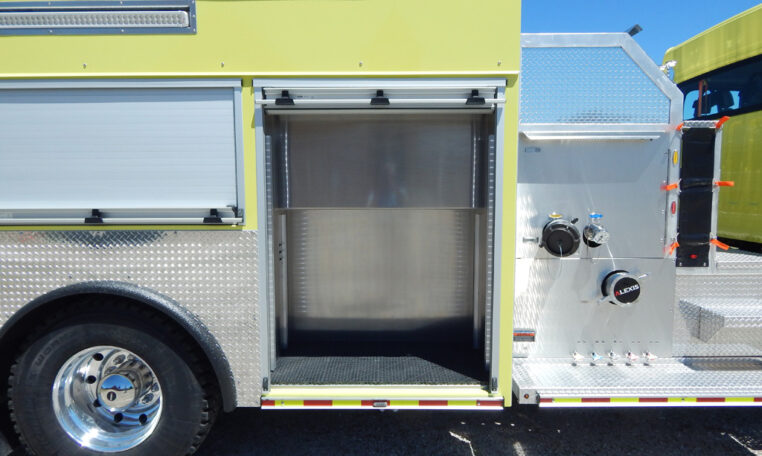

• One (1) 2½” Discharge, Right Side
• One (1) 2½” Discharge, Rear
• One (1) 3” Discharge Adapted to 5” Storz, Right Side

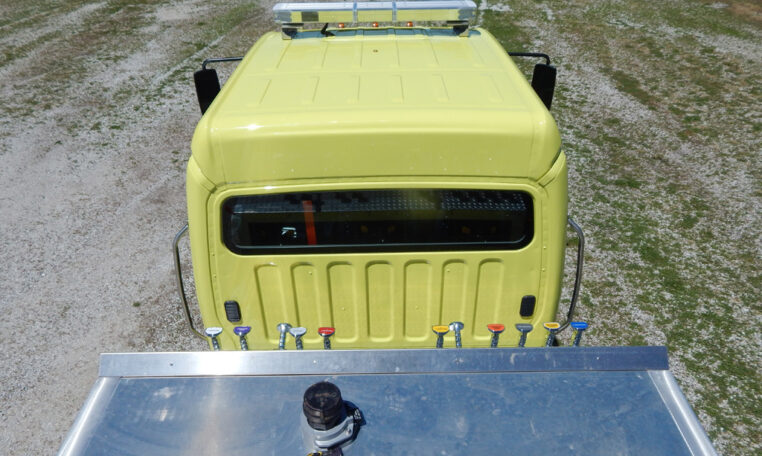

• 3” Fixed Monitor Piping Above Module
• 18” Front Bumper Extension with Center Hose Well
• One (1) Hose Bed Divider

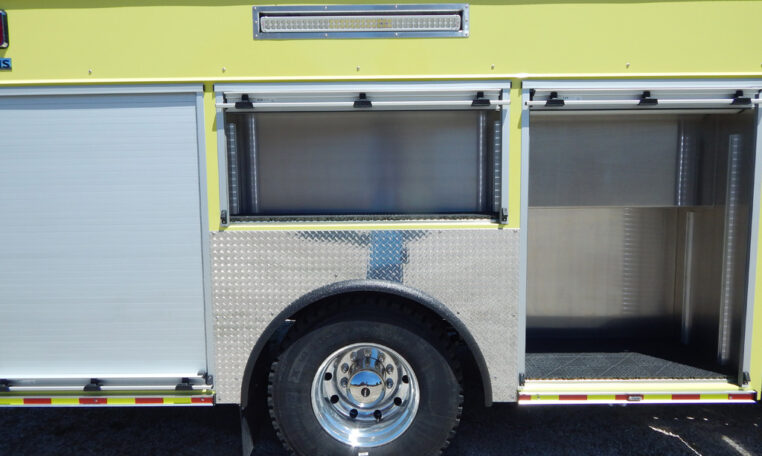

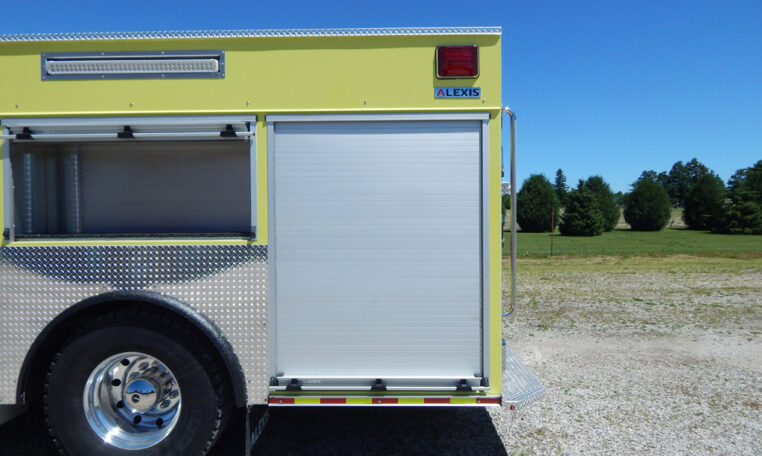

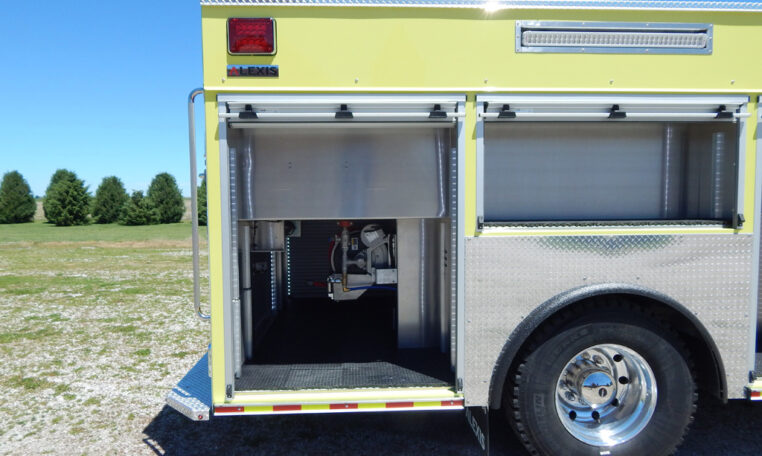

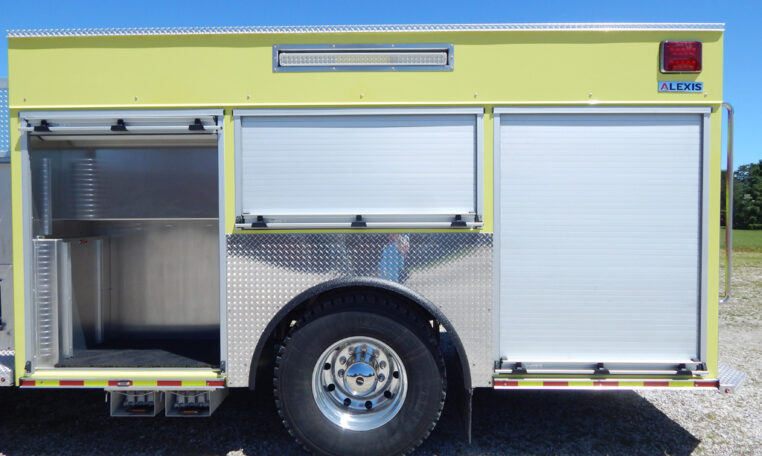

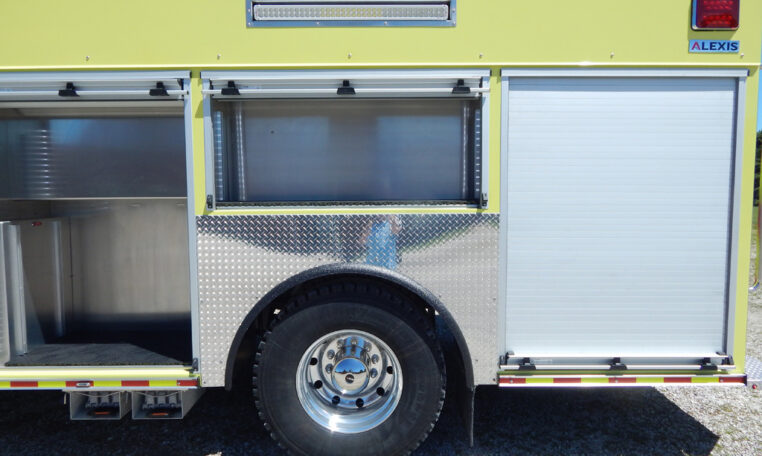

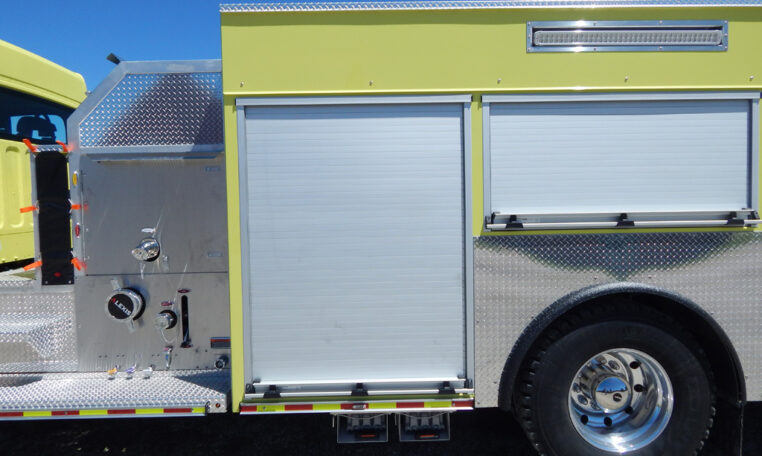

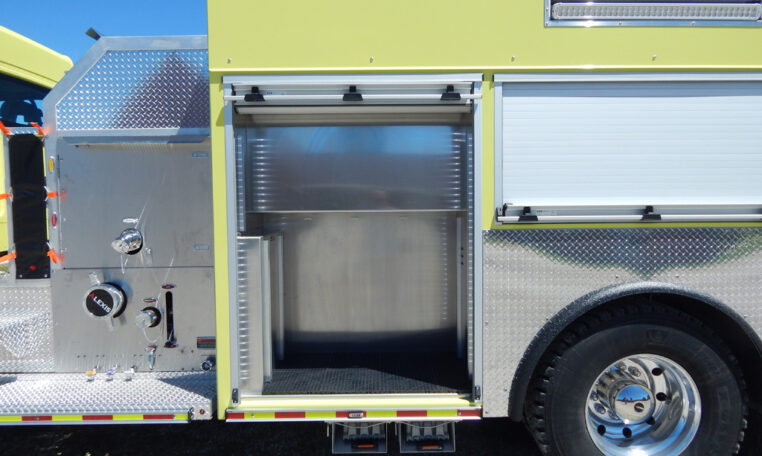

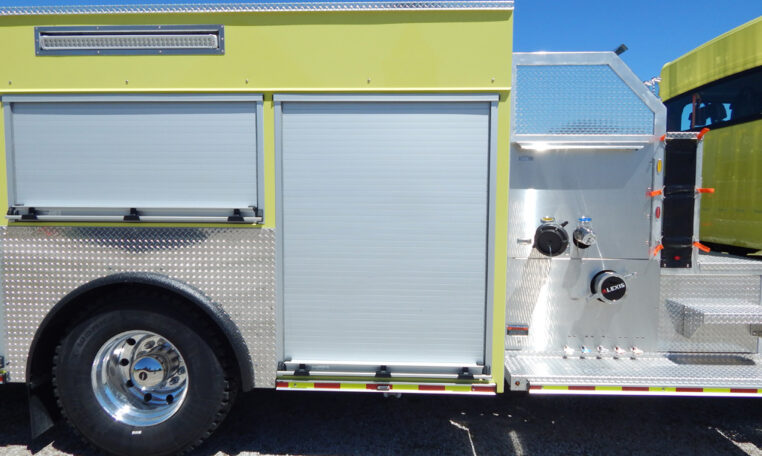

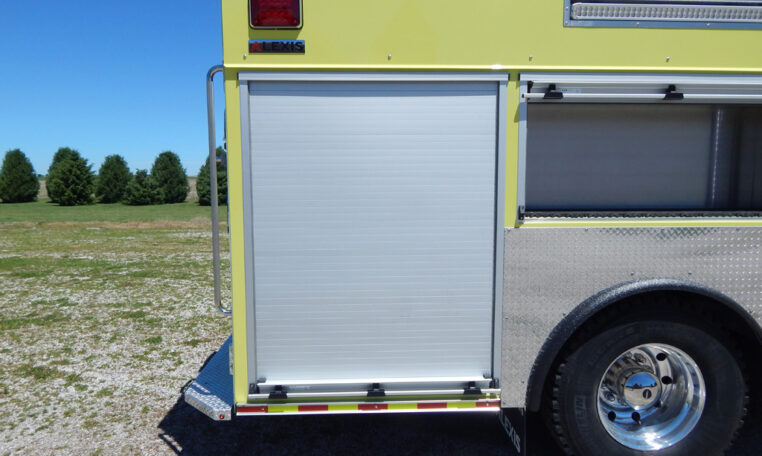

• ROM Satin Finish Roll-Up Doors
• Two (2) Hard Suction Hose Storage Compartments, Rear Access One (1) Each Side
• Ladder Storage Right Side Vertical in Hose Bed Below Crossbar

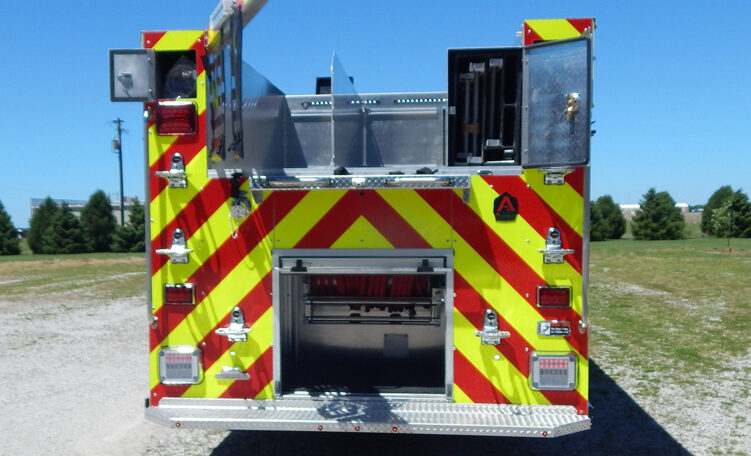

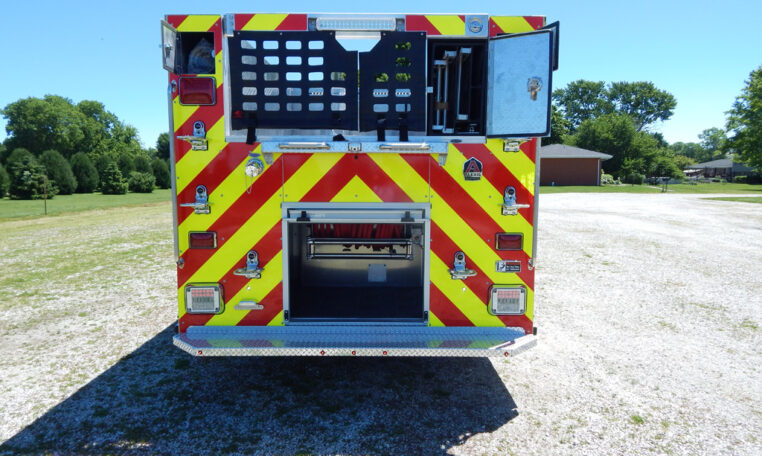

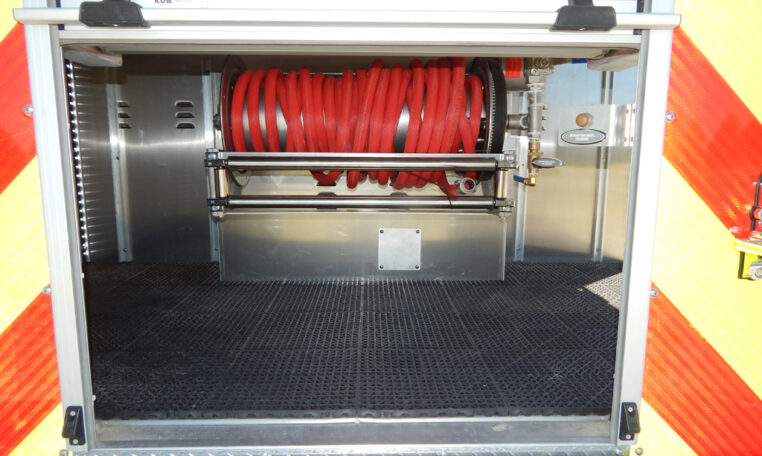

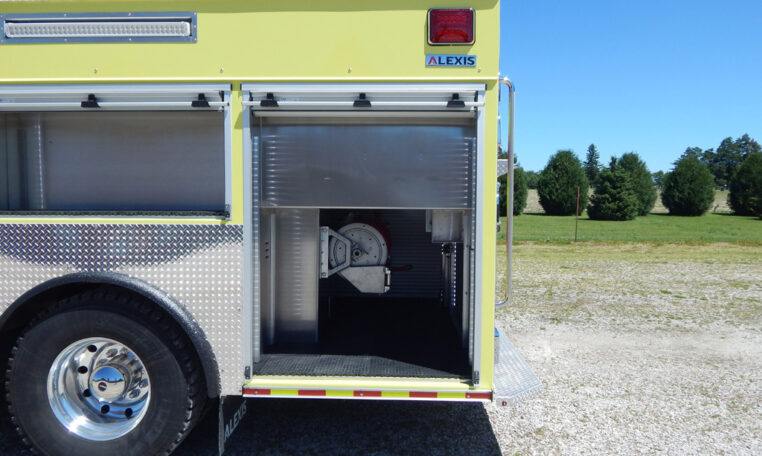

• Booster Reel 100’ of 1”, Rear Compartment
• Tecniq LED Warning Light Package
• FireTech Scene Light Package
• Whelen Electronic Siren & 100W Speaker
• Six (6) Folding Steps, Three (3) Each Side Rear
• 10’ 2” Overall Height
• 36’ 6” Overall Length
• 279” Wheelbase
• 166.5” Cab to Axle
• 16,000 FAWR
• 31,000 RAWR
• 47,000 GVWR
