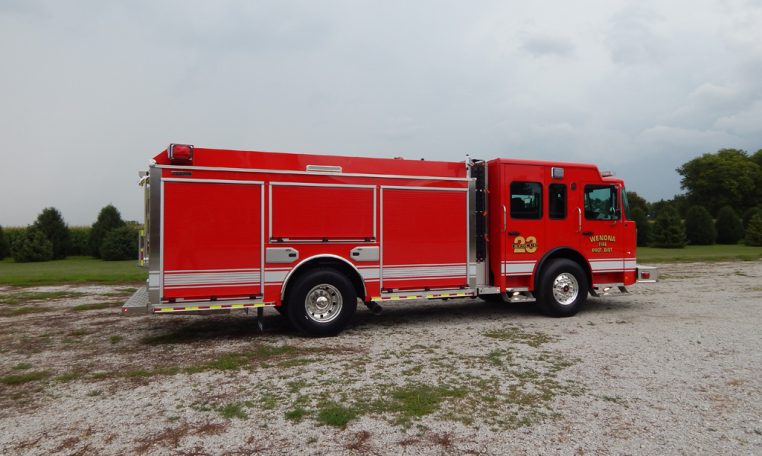

Delivered Apparatus

FEATURES:

• Spartan FC-94 MFD 10” Raised Roof
• Cummins L9 450 HP Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty Stainless-Steel Body and Subframe
• 1000-Gallon Poly Tank
• Hale DSD 150 SS, 1500-GPM Split-Shaft Pump
• Side Control Pump Module with Enclosed Pump Panel L1/R1
• Two (2) 6” Intakes, One (1) Each Side
• One (1) 2 ½” Gated Suction Left Side
• One 2½” FirePrograms Rear Tank Fill
• Cartridge Lay Preconnects, Two (2) 1½”, One (1) 2½”
• One (1) 24” Front Bumper Extension with 1¾” Front Bumper Discharge and Center Hose Well
• One (1) 2 ½” Discharge Left Side
• One (1) 2 ½” Discharge Right Side
• One (1) 3” Discharge with 5” Storz Adaptor, Right Side
• One (1) 3” Discharge adapted to 2½” NST, Rear
• One (1) Akron 3423 Deck Gun with 18” TFT Extend-A-Gun

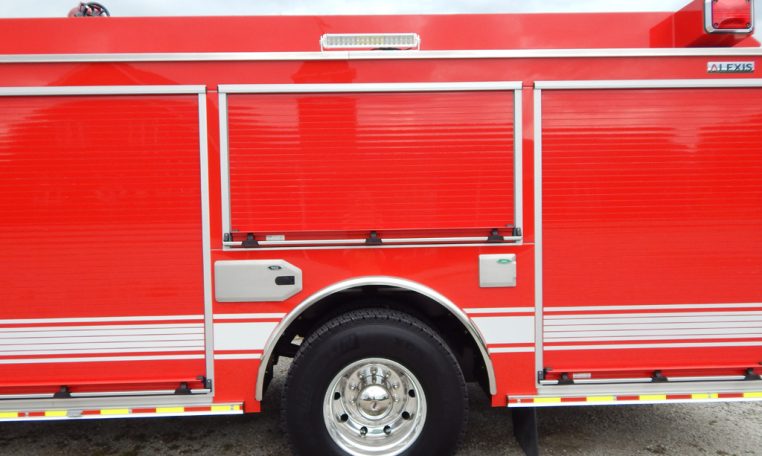

• ROM Painted Roll-Up Doors
• Three (3) Dual Bottle Wheel Well Compartments, One (1) Each side Ahead, Right side behind
• One (1) Vertical Pull Out Board, L1 Compartment
• Transverse Stokes Backboard Compartment, Above Cartridge Lays Ahead of Pump Module
• Ladder, Hard Suction, and Pike Pole Storage, Rear Access Through the Tank
• AFE Top Access Ladder
• Two (2) Hinged PacTrac Tool Board, L2 & R2 Compartments
• Two (2) 500# Roll-Out Trays, L3 Compartment & Rear Compartment
• One (1) Back-Up Camera with Cab Display
• Whelen Warning Light Package
• Whelen and FireTech Scene Lights
• Two (2) Fire Research Telescopic Scene Lights, One (1) Each side ahead of the Body
• Two (2) Air Horns Recess Bumper Mounted
• Whelen Electric Siren with 100W Speaker
• Kussmaul Battery Conditioner and Air Compressor with a Kussmaul 20-Amp 120V Super Auto-Eject Shoreline Inlet Left Side
• 9’ 10” Overall Height
• 32’ 8” Overall Length
• 182” Wheelbase
• 128” Cab to Axle
• 21,500 FAWR
• 31,500 RAWR
• 53,000 GVWR
