Delivered Apparatus

FEATURES:

• Spartan Gladiator LLFD 10” Raised Roof Chassis
• Cummins 450 HP L9 Diesel Engine
• Allison 3000 EVS Automatic Transmission
• 24” Front Bumper Extension
• Heavy-Duty Stainless Steel Body and Subframe
• Stainless Steel Side Control Pump Module
• Hale QMAX-XS 1500 gpm Split-Shaft Pump
• Trident Air Prime System
• FRC ThrottleXcel Pressure Governor & Monitoring System
• Two (2) 6” Intakes, One (1) Each Side
• One (1) 5” Front Bumper Intake Adapted to 6” NST
• One (1) 2½” Gated Intake, Left Side
• One (1) 2½” Gated Intake, Right Side
• One (1) 2½” Front Bumper Preconnect
• One (1) 1½” and One (1) 2 ½” Mattydale Preconnects
• One (1) 3” Discharge Left Side Adapted to 2½” NST
• Two (2) 3” Discharges Right Side Adapted to 2½” NST
• One (1) 3” Discharge Rear Adapted to 2½” NST
• One (1) 4” Discharge Rear Adapted to 5” Storz
• Akron Deck Gun with 18” Extend-A-Gun
• 750-Gallon Poly Tank
• ROM Painted Roll-Up Doors
• Six (6) Folding Steps Rear, Three (3) Each Side

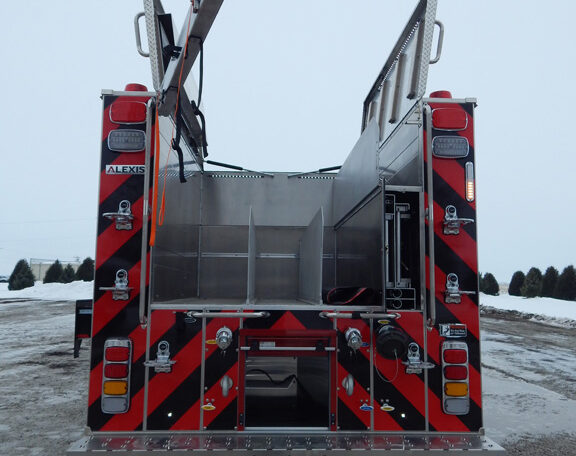

• Low Hose Bed with Aluminum Treadplate Cover and Three (3) Dividers
• Two (2) Double Wheel Well Air Bottle Compartments, One (1) Ahead Each Side
• One (1) Oil Dry Wheel Well Hopper, Left Side Behind

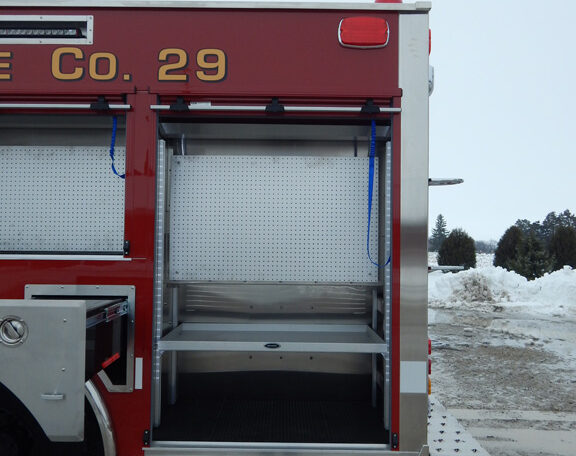

• Pegboard on Upper Rear Walls of Side Compartments
• Kussmaul Super Auto-Eject 20A 120V Shoreline Connection, Above Left Front Wheel Well
• Ladder Storage Compartment Rear Access Right Side
• Federal Q2B Siren Recess Mounted
• Whelen LED Warning Light Package
• FireTech Scene Lights
• Whelen LED Tank Gauge, One (1) Each Side, One (1) Rear
• Whelen Electric Siren & 100W Speaker
• 9’ 11” Overall height
• 32’ 6” Overall length
• 188” Wheelbase
• 118” Cab to Axle
• 20,000 FAWR
• 27,000 RAWR
• 47,000 GVWR
