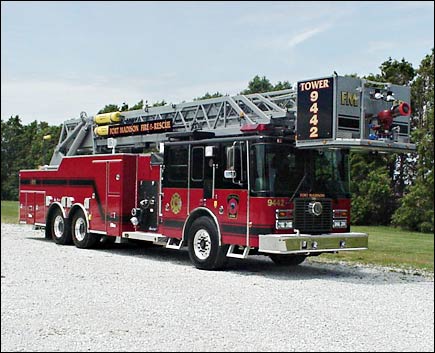

Delivered Apparatus

• HME 1871 MFD Custom Cab
• Detroit 60 Series 515 HP Diesel Engine
• Allison 4000 EVS Automatic Transmission
• 300 Gallon UPF Poly Tank IIE
• Waterous CSUYBX 2000 GPM Pump
• One (1) 2½”Mattydale Deadlay Hosebed
• Two (2) 1½” Cartridge Lay Preconnects
• Nozzle at the tip of the ladder
• One (1) 1½” Preconnect in bumper extension
• FoamLogix 2.1 Foam Concentrate Proportioning System

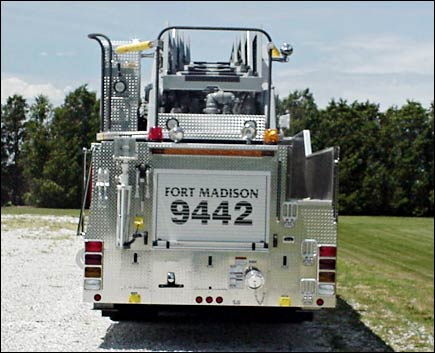

• Rear outrigger controls
• Ladder turntable access steps on left side
• 4500 PSI Breathing air bottles mounted one each side of base section

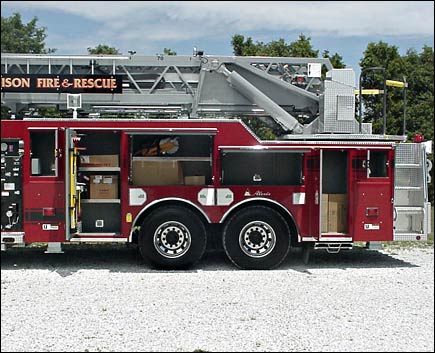

• Seven (7) air bottle compartments in the wheel well assemblies
• Side Control Pump Operator’s Panel
• Ladder and pike pole storage at the rear in the torque box
• Side stack hosebed on passenger side
• Whelen LED NFPA Warning Light Package
• Onan 10kw Hydraulic Generator with two (4) 500 Watt Telescopic Lights
• 11′-8″ Overall Height
• 44′-6″ Overall Length
• 246″ WB
• 186″ CA
• 21,500 FAWR
• 52,000 RAWR
• 73,500 GVWR
