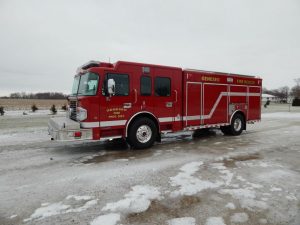

• Spartan Metro Star LFD 10″ raised roof Chassis
• Cummins ISL9, 450-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Seven (7) man cab seating with three (3) SCBA seats
• Heavy Duty 3/16″ Aluminum Body with ROM Painted Roll Up Doors
• 28″ Front bumper extension with rescue tool storage and hydraulic reels
• Two (2) Reese type hitch/winch receivers with electrical connections, front/rear
• Two (2) Winch points with electrical connections, one (1) each side
• One (1) Warn 9.5 Multi-mount Winch with electrical connections
• EMS cabinet with cargo netting, cab upper rear wall
• Two (2) Triple bottle Air bottle compartments, right side wheel well
• One (1) Open storage compartment, left side wheel well
• Stokes basket, backboard and little giant ladder storage, transverse compartment
• Two (2) Custom cribbing storage trays, one (1) each [...]

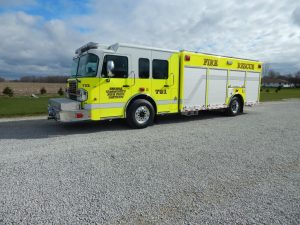

• Spartan Metro Star LFD with 10″ raised roof Chassis
• Cummins ISL9, 450-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Seven (7) man cab seating with six (6) SCBA seats
• Heavy Duty 3/16″ Aluminum Body with Amdor Roll Up Doors
• 28″ Front Bumper extension with Preconnected extrication tools
• Front and Rear Winch/Trailer hitches with electrical connections
• Two (2) Winch Points, one (1) each side behind rear wheels
• EMS compartment with shelves, LED lighting and retention webbing, cab
• Three (3) Fire Extinguisher compartments, two (2) right and one (1) left side
• Four (4) Upper storage compartments with Top Access ladder, rear mounted
• One (1) Oil Dry Hopper with upper fill access
• One (1) Backboard storage rack for four (4) backboards
• One (1) Stokes Basket storage rack and Little Giant ladder [...]

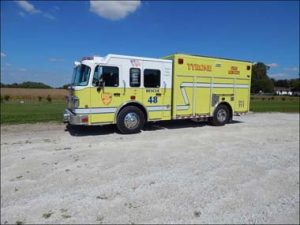

• HME 1871 W xLFD with 24″ raised roof Chassis
• Cummins ISL9, 400-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Two (2) man cab seating front seating with rear command center
• Heavy Duty 14 gauge Stainless Steel Body
• ROM Roll Up Doors
• Three (3) Triple bottle Air bottle compartments, one (1) left and two (2) right side
• Four (4) Upper storage compartments, apparatus roof
• Custom designed Top access ladder, mounted left side
• Two (2) Girard 12-volt Automatic awnings, one (1) each side
• On Spot Automatic tire chain system
• Cab Command Center with Desk, File and storage cabinets
• Two (2) vertical pull out tool boards with four (4) SCBA brackets each
• Kussmaul 1200 on-board automatic battery charger/air compressor
• Kussmaul Super Auto Eject 120-volt shoreline
• Audiovox back-up [...]

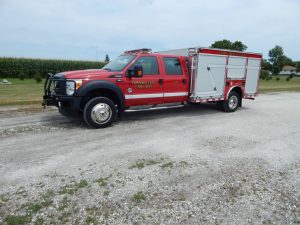

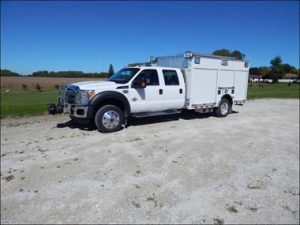

• Ford F-450 XL 4×4 4-Door DRW Chassis
• Ford PowerStroke 6.7L Diesel Engine
• Ford TorqShift 6-speed Automatic Transmission
• Knapheide Service Body
• Luverne stainless steel Nerf bars
• Warn stainless steel Brush Guard with wrap around and front receiver
• Ramsey QM 9000, 9,000-lb Winch with 12-volt electrical connections
• ROM rear open area shutter door with electric control
• Stokes Basket storage compartment, rear area
• Two (2) Pike pole storage, left side compartment top
• Floor mounted console for emergency switches with map/binder storage, cab
• Progressive Dynamics on-board battery charger
• Kussmaul Super Auto Eject 120-volt shoreline
• One (1) Akron Extenda-Lite 12-volt 220-watt LED telescopic light, right side
• Whelen LED Warning Light Package
• Chevron pattern striping, rear
• 6′ 11″ Overall height
• 23′ 1″ Overall length
• [...]

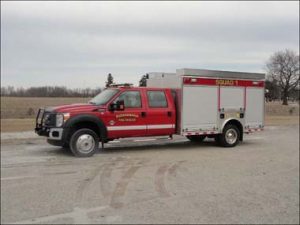

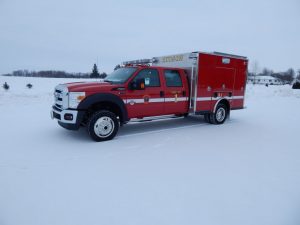

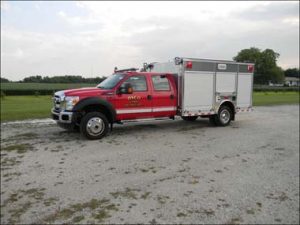

• Ford F-550 XLT 4×4 Super Cab DRW Chassis
• Ford Power Stroke 6.7L, 300-HP Diesel Engine
• Ford TorqShift 6-speed Automatic Transmission
• Heavy Duty 3/16″ Aluminum Body
• ROM painted Roll Up Doors
• Luverne stainless steel running boards
• Reese type front hitch/winch receiver with electrical connections
• Reese type rear hitch with electrical connections
• Warn XD 9000 multi-mount winch
• Two (2) Winch points, one (1) each side behind rear wheels under body
• Custom rear cab organizer
• Two (2) Upper storage compartments recessed into roof, one (1) each side
• One (1) Stainless steel top access ladder, rear mounted
• Stokes basket/backboard storage, transverse area
• Two (2) Vertical pull-out Tool boards, one (1) transverse and one (1) left side
• Progressive Dynamics on-board battery charger
• Kussmaul Super Auto Eject 120-volt [...]

• Ford F-350 Lariat 4×4 SRW Pick-Up with 8-ft box
• Ford 6.2L V8, 316-HP Gasoline Engine
• Ford Torqshift Automatic Transmission
• Luverne stainless steel side entry steps with box extensions
• Warn Zeon 10-S Multi-Mount 10,000 lb Winch with cover
• Warn stainless steel Brush Guard with wrap around, front receiver and custom crossbar
• Custom Leer Fiberglass Topper
• Custom rear roll-out tray with black Reflex coating
• Stokes basket/back board storage, under roll-out tray rear area
• Progressive Dynamics on-board battery charger
• Kussmaul Super Auto Eject 120-volt shoreline connection
• Floor mounted console for emergency switches with map/binder storage
• Whelen Electronic Siren with 100-watt Whelen speaker
• Whelen LED Scene Light Package
• Whelen LED Warning Light Package
• Diamond Grade Chevron pattern striping
• 172″ Wheelbase
• 5,200 FAWR
• [...]

• HME 1871W, MFDxL, 12″ raised roof Chassis
• Cummins ISL9, 450-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Six (6) man cab seating with four (4) SCBA seats
• Heavy Duty Stainless Steel Body with Painted ROM Roll Up Doors
• 18″ Front bumper extension with center storage compartment
• Front and rear Reese type Hitch/Winch receivers with electrical connections
• Two (2) Winch points with electrical connections, one (1) each side
• Custom Map Box and Norcold built-in refrigerator, cab
• Three (3) Triple bottle Air bottle compartments, two (2) right and one (1) left side
• One (1) Oil Dry Hopper system, right side rear
• Four (4) Upper recessed roof storage compartments with rear ladder access
• Compartment Power ventilation system
• Little Giant Ladder Storage, forward upper walkway
• Backboard/Stokes basket storage, front transverse [...]

• HME 1871 MFD Custom Cab
• Detroit 60 Series 515 HP Diesel Engine
• Allison 4000 EVS Automatic Transmission
• 300 Gallon UPF Poly Tank IIE
• Waterous CSUYBX 2000 GPM Pump
• One (1) 2½”Mattydale Deadlay Hosebed
• Two (2) 1½” Cartridge Lay Preconnects
• Nozzle at the tip of the ladder
• One (1) 1½” Preconnect in bumper extension
• FoamLogix 2.1 Foam Concentrate Proportioning System
• Rear outrigger controls
• Ladder turntable access steps on left side
• 4500 PSI Breathing air bottles mounted one each side of base section
• Seven (7) air bottle compartments in the wheel well assemblies
• Side Control Pump Operator’s Panel
• Ladder and pike pole storage at the rear in the torque box
• Side stack hosebed on passenger side
• Whelen LED NFPA Warning Light Package

• HME 1871 P2 LFD Custom Cab
• Caterpillar C13 430 HP Diesel Engine
• Allison 4000 EVS Automatic Transmission
• 300 Gallon UPF Poly Tank IIE
• Hale QMAX 200 Pump
• One (1) 3″Mattydale Deadlay Hosebed
• Two (2) 1½” Cartridge Lay Preconnects
• One (1) 2½” Cartridge Lay Preconnect
• Front 5″ Suction on bumper extension
• Nozzle at the tip of the ladder
• One (1) 2½” Preconnect in bumper extension
• Rear outrigger controls
• Ladder turntable access steps on left side
• 6000 PSI Breathing air bottles mounted on right side of base section
• Five () air bottle compartments in the wheel well assemblies
• Side Control Pump Operator’s Panel
• Ladder and pike pole storage at the rear in the torque box
• Side stack hosebed on passenger side
[...]
