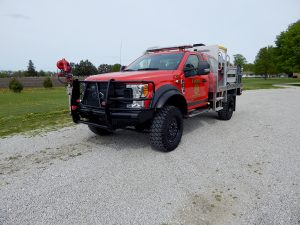

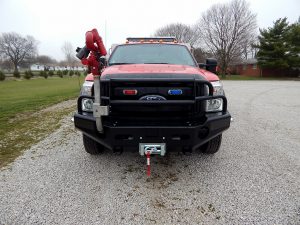

FLATBED BRUSH TRUCK #SK853

TOWN OF FLORA FIRE DEPARTMENT, FLORA, INDIANA
  • Ford F-550 XL 4×4 2-Door Chassis
  • Ford Power Stroke 6.7L V8, 300-HP Diesel Engine
  • Ford TorqShift 6-speed Automatic Transmission
  • Heavy Duty 3/16” Aluminum Body
  • Two (2) compartments, one (1) each side with ROM Roll Up Doors
  • Turtle Tile on floors of compartments
  • One (1) hose tray, right side compartment top
  • Luverne stainless steel Nerf bars
  • Xtreme Off Road Super Single Tire Package
  • Ranch Hand Black Brush Guard with wrap around and front receiver
  • One (1) Reese type rear trailer hitch/Winch receiver with electrical connections
  • 300-Gallon Poly Skid Tank
  • Under Skid Tool storage compartment, rear access
  • Darley 2BE Pump with 20-HP Honda gasoline engine
  • One (1) 2 ½” Discharge, rear
  • Two (2) 1” booster lines with 10-ft of hose each
  • One (1) Akron Front Turret with joystick  controlled from the cab
  • One (1) Hannay Electric Booster Reel with 150-ft of 1” hose, left side rear
  • Floor mounted Console for emergency switches, cab
  • Whelen Electronic Siren [...]

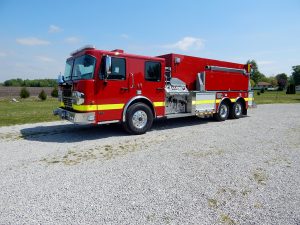

3000 GALLON WETSIDE TANKER #2311

FOX LAKE FIRE PROTECTION DISTRICT, INGLELAKE, ILLINOIS
  • June 15, 2017
  • Not categorized
  • Posted by
  • Comments Off on 3000 GALLON WETSIDE TANKER #2311
  • Spartan Metro Star SMFD flat roof Chassis
  • Cummins ISL9, 450-HP Diesel Engine
  • Allison 3000 EVS Automatic Transmission
  • Four (4) Man cab seating with three (3) SCBA seats
  • Heavy Duty Stainless Steel Body with ROM Roll Up Doors
  • 3000-Gallon Wetside Poly Tank
  • Two (2) 4” Fireman’s Friend Tank fills, rear
  • One (1) Newton 10” square electrically controlled swivel tank dump, rear
  • Hale DSD150, 1500-GPM Pump
  • Left side intermediate pump operator’s control panel
  • Three (3) 2 ½” Discharges, one (1) each side and one (1) rear
  • Two (2) 3” Discharges, one (1) each side
  • Two (2) 2 ½” Gated Suction, one (1) each side
  • One (1) 2 ½” and two (2) 1 ½” Mattydale Preconnects, behind cab
  • 6” Front Bumper Extension with 5” Suction through bumper
  • Two (2) Dual bottle Air bottle compartments, one (1) each side wheel well
  • Ziamatic hydraulic folding tank bracket for 3000-gallon tank, left side
  • Four (4) Pike pole storage tubes, left [...]

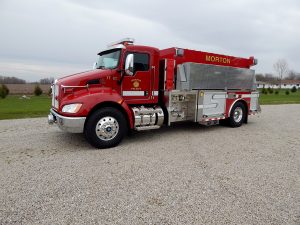

2000 Gallon Wetside Tanker #2309

Village of Morton Fire Department, Morton Illinois
  • June 15, 2017
  • Not categorized
  • Posted by
  • Comments Off on 2000 Gallon Wetside Tanker #2309
  • Kenworth T370 2-Door Chassis
  • Paccar PX-9, 330-HP Diesel Engine
  • Allison 3000 EVS 6-speed Automatic Transmission
  • Heavy Duty Stainless Steel Body
  • ROM Roll UP Doors
  • 2000-Gallon Wetside Poly Tank
  • Two (2) 2 ½” Fireman’s Friend Tank Fills, rear
  • One (1) Newton 10” square electric controlled  swivel dump with 36” extension
  • Darley HM, 500-GPM Pump
  • Left side under tank pump operator’s panel
  • Two (2) 2 ½” Discharges, left side
  • One (1) 3” Discharge, right side
  • Two (2) 1 ½” Mattydale Preconnects, behind cab above pump module
  • Two (2) Dual bottle Air bottle compartments, one (1) each side wheel well
  • Two (2) Walk-away air pack brackets, right side compartment
  • Turtle Tile on floors of compartments
  • Two (2) Ziamatic hydraulic folding tank brackets for 2500-gallon tanks
  • Suction Hose storage in the hosebed
  • Progressive Dynamics on-board battery charger with Viair air compressor
  • Kussmaul Super Auto Eject 120-volt shoreline connection
  • Floor mounted console for emergency switches with map/binder storage, cab
  • [...]

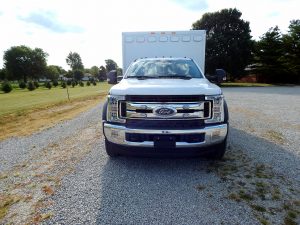

Type I Ambulance #A274

VAN BUREN COUNTY AMBULANCE, KEOSAUQUA, IOWA
  • Chassis: 2017, F-550  4×4
  • Engine: 7.3 L
  • Module, 172”x 95”x 72” HR
  • Warning Lights: Whelen M9 series
  • Liquid Spring suspension
  • Body Drop 6” both sides
  • Compartments Floors: Sweep out
  • Compartment Finish: Diamond Plate
  • Skirt Rails: Polished Diamond Plate
  • Skirt rail lights: (6) LED Kinequip strip lights with ground lighting
  • Rear tow hooks thru bumper
  • Running Boards: Full length with grip strut inserts
  • Stop, tail,turn lights: Whelen LED M6 series
  • Grill Lights: Whelen LINZ6
  • Power Door locks full module and cab
  • Back up camera with GPS
  • Custom console in cab
  • Vanner inverter
  • 20 amp auto eject shoreline
  • Attendant seat: AVS with built in child safety seat
  • Custom cabinets
  • (6) point restraint system, (2) on Squad bench, (1) CPR seat
  • Solid Surface counter tops: Light Beige Mirage
  • Flooring: Lonplate: # 164 Gunmetal
  • Cot mount set for: Stryker MX-pro
  • Dri-Dek all compartment floors
  • Paint: Custom paint
  • GVWR:18,000
  • Fawr:7,000
  • Rawr:13,660

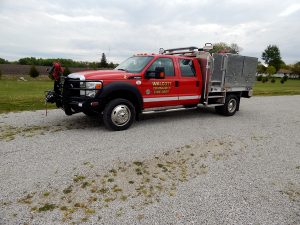

FLATBED BRUSH TRUCK #SK846

CITY OF WALCOTT FIRE DEPARTMENT, WALCOTT, IOWA
  • Ford F-550 XL 4-Door 4×4 DRW Chassis
  • Ford Power Stroke 6.7L V8, 300-HP Diesel Engine
  • Ford TorqShift 6-speed Automatic Transmission
  • Heavy Duty 3/16” Aluminum Flatbed Body
  • Two (2) compartments with two (2) swing-up doors each, one (1) each side
  • Custom long handled tool storage compartment with drop down door, left side
  • Suction hose storage compartment, upper right side with rear access
  • 400-Gallon Poly Skid Tank and 10-Gallon Foam tank
  • Waterous PB18-3030 Pump with Honda 20-HP Gasoline engine
  • Two (2) 1” Booster lines with 10-ft of hose each, walkway area
  • One (1) 2 ½” Discharge, rear
  • Scotty Around the Pump foam inductor/mixer
  • One (1) Akron front bumper Turret with remote joystick control in cab
  • One (1) Hannay Electric Booster Reel with 150-ft of 1” hose, rear
  • Luverne stainless steel Nerf bars
  • One (1) Reese type trailer hitch/Winch receiver with electrical connections, rear
  • Ranch Hand replacement bumper with Brush Guard and Winch receiver
  • Turtle Tile on [...]

FLATBED BRUSH TRUCK #SK851

CITY OF WILTON FIRE DEPARTMENT, WILTON, IOWA
  • Ford  F-550 4-Door 4×4 DRW Chassis
  • Ford 6.8L V-10, Gasoline Engine
  • Ford 5-speed Automatic Transmission
  • Heavy Duty 3/16” Aluminum Body
  • 300-Gallon Poly Skid Tank
  • Darley 1.5 AGE Pump with Honda 20-HP Gas engine
  • One (1) 1” Booster line with 10-ft of hose, walkway area
  • One (1) 1 ½” Discharge, rear
  • One (1) Akron front bumper turret with joystick control from cab interior
  • One (1) Hannay Electric Booster Reel with 150-ft of 1” hose
  • Luverne stainless steel Nerf bars
  • Buckstop brush guard with integrated Warn 12,000 lb Winch
  • Two (2) compartments with two (2) drop down doors each, one (1) each side
  • One (1) Hose tray, left side compartment top
  • One (1) Open storage tray for long handles tools, right side compartment top
  • Progressive Dynamics on-board battery charger
  • Kussmaul Super Auto Eject 120-volt shoreline connection
  • Floor mounted console for emergency switches, cab
  • Code 3 Electronic Siren with 100-watt Code 3 speaker
  • Two (2) Whelen LED [...]

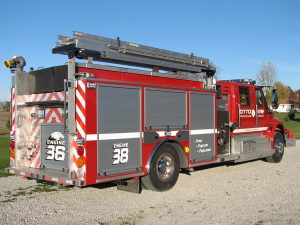

AFE Truck Modification Project

Collision and Remount Center

Truck Modification Project Details

  • Modified and upgraded apparatus.
  • Removed the ladder storage compartment from the apparatus hose bed.
  • Installed a new Zico dual arm hydraulic ladder rack with suction hose and pike pole storage mounted on the new ladder rack.
  • Installed a remote controlled Elkhart 3” monitor to the driver’s  side rear compartment top.
  • Installed new LED cross firing warning lights to the front and rear of the apparatus.
  • Removed existing front bumper. Install a new larger front bumper extension with a chevron pattern reflective stripe
  • Added a 5” front suction intake to the new extension.
  • Added a Federal Q2B siren to the new bumper extension.
  • Added a large diameter discharge to the passenger side discharge panel.
  • Installed a new Wilburt LED Nightscan Chief light tower on the pump module.
  • Installed an SCBA officers seat in cab.
  • Installed front, rear and side portable winch receivers with 12v power plugs.
  • Added under cab compartments in [...]

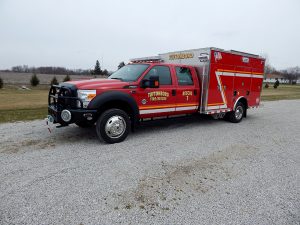

AFE Truck Modification Project

Collision and Remount Center

Truck Modification Project Details

  • Upgraded compartments, warning lights, and foam system.
  • Removed the existing hinged door compartments and related items from the flatbed body.
  • Fabricated larger treadplate aluminum cabinets with locking roll up doors.
  • Installed new adjustable shelving and custom brackets for equipment in the compartments.
  • Installed new LED tube lights in all new compartments
  • Installed new upper and lower rear LED warning lights
  • Applied chveron pattern reflective shapes to the rear lower apron on flatbed body.
  • Fabricated and install a multiple back board storage compartment.
  • Installed a Fecon around the pump foam system and 10 gallon foam cell.
  • Pumped test and inspect and test all systems.
  • Removed front bumper extension platform and install new shorten front stainless steel bumper.

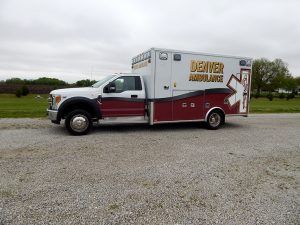

AFE Wreck Repair Project

Collision and Remount Center

Wreck Repair Project Details
•    Repaired all wreck damage to the exterior of the ambulance body.
•    Removed damaged side entry door and compartment doors, rub rails, fenderette, graphics, warning and ICC lights, and damage tail step end.
•    Fabricated and installed new lower treadplate rub rails and new tailstep corner section.
•    Installed new side entry door, window, door and compartment door hardware.
•    Installed new LED warning  lights.
•    Repaired all body damage and re-paint repaired areas.
•    Re-assembled all damaged areas
•    Applied new graphics to the damage repaired areas.
