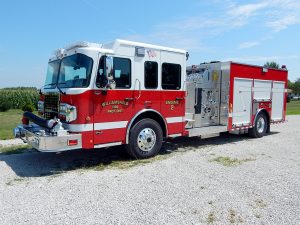

CUSTOM TOP CONTROL PUMPER #2305
HOMER FIRE PROTECTION DISTRICT - HOMER, ILLINOIS- June 15, 2017
- Not categorized
- Posted by Sara M
- Comments Off on CUSTOM TOP CONTROL PUMPER #2305
- HME 1871W MFDxL 12” raised roof Chassis
- Cummins ISL9, 450-HP Diesel Engine
- Allison 3000 EVS Automatic Transmission
- Six (6) man cab seating with five (5) SCBA seats
- Heavy Duty 3/16” Aluminum Body with ROM Roll Up Doors
- 24” Front bumper extension with one (1) 1 ½” Preconnect and hosewell
- EMS compartment, cab
- 1000-Gallon Poly Tank with 20-Gallon Foam tank
- Waterous CX, 1500-GPM Pump with operator’s panel across top of body
- Four (4) 2 ½” Discharges, two (2) left, one (1) right side and one (1) rear
- Two (2) 3” Discharges, one (1) right side and one (1) over pump for Deck Gun
- One (1) Akron Apollo Deck Gun with TFT Extend-A-Gun
- One (1) 2 ½” Gated Suction, left side and one (1) 5” Suction, rear
- Two (2) 1 ½” Cartridge Lay Preconnects, front of pump module
- One (1) 2 ½” Preconnect, front of hosebed
- Waterous Aquis 1.5 Foam System
- Two (2) Free floating hose [...]

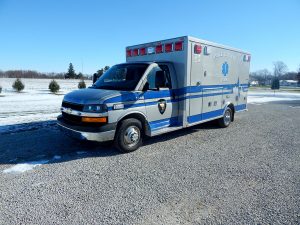

TYPE III AMBULANCE REMOUNT #A272
PIKE COUNTY EMS - PETERSBURG, IN- June 15, 2017
- Not categorized
- Posted by Sara M
- Comments Off on TYPE III AMBULANCE REMOUNT #A272
- Chassis: 2016 G-4500
- Engine: 6.6 L
- Transmission: 6-speed automatic
- Body: 164” x 95” x 72” HR
- New 6-point restraint system, (2) on Squad Bench
- New Vacuum pump installed
- New 02 outlets installed
- New Power door locks full module and cab
- Interior head room: 72”
- Warning Lights: Whelen 900 series
- Replaced all exterior door handles with Trimark Free floating chrome handles
- All new compartment lights
- New gas pistons on exterior compartment doors
- New Diamond Plate door panels
- New exterior door gaskets
- New rear bumper with fold up step
- New running boards installed
- New interior Dome Lights LED
- New Battery drawer
- New front console in cab. (2) drink holders and(2) notebook slots
- New ALS cabinet installed
- New Zico 02 lift installed front streetside compartment
- New rear Threshold, Stainless
- Replaced circuit board with new RMR
- Backup camera system, (2) camera system, 7” color monitor
- Complete new paint exterior.
22-FOOT HEAVY RESCUE #S753
ANDALUSIA FIRE PROTECTION DISTRICT - ANDALUSIA, ILLINOIS- June 15, 2017
- Not categorized
- Posted by Sara M
- Comments Off on 22-FOOT HEAVY RESCUE #S753
- Spartan Metro Star LFD 20” raised roof Chassis
- Cummins ISL9, 450-HP Diesel Engine
- Allison 3000 EVS Automatic Transmission
- Six (6) Man Seating with Five (5) SCBA seats
- Heavy Duty 3/16” Aluminum Body with ROM painted Roll Up Doors
- Custom EMS Compartment and Map box, cab
- 28” Front Bumper Extension with Preconnected Extrication tools
- One (1) Reese type rear hitch/winch receiver with electrical connections
- Two (2) Winch points with electrical connections, one (1) each side
- One (1) Warn 10-S Multi-Mount Winch
- Three (3) Triple bottle Air bottle compartments, one (1) left and two (2) right side
- Custom Tool box, Two (2) Vertical Pull out tool boards and Tarp storage area
- Four (4) Upper storage compartments, two (2) each side body roof
- One (1) stainless steel Top Access Ladder, rear mounted
- One (1) Oil Dry Hopper, left side
- One (1) Carefree Mirage Electric Awning, right side
- Four (4) Pike pole tubes, transverse compartment and two (2) [...]
RESPONSE ONE WITH SKID #SK822
TOWN OF TUFTONBORO FIRE/RESCUE DEPARTMENT - TUFTONBORO, NEW HAMPSHIRE- June 15, 2017
- Not categorized
- Posted by Sara M
- Comments Off on RESPONSE ONE WITH SKID #SK822
• Ford F-550 XL 4-Door 4×4 DRW Chassis
• Ford Powerstroke 6.7L V8, 300-HP Diesel Engine
• Ford TorqShift 6-speed Automatic Transmission
• Luverne Black Grip Step running boards
• Buckstop front brush guard and bumper with Warn 12,000-lb winch
• One (1) Reese type rear trailer hitch with electrical connections
• EMS compartment with shelf, lighting and die cut webbing, cab left rear area
• Heavy Duty Stainless Steel Body with Box Type Flush Doors
• Three (3) Upper Storage compartments, roof of body
• One (1) Sure-Grip stainless steel top access ladder, rear mounted
• One (1) Stokes Basket storage rack, front transverse area
• Custom Pike pole/Suction hose storage compartment with rear access
• One (1) Pull- out tool board, right side
• Two (2) Dual bottle Air bottle storage compartments, right side wheel well
• 275-Gallon Poly [...]
TYPE I AMBULANCE #A273
DENVER AMBULANCE - DENVER, IOWA- June 15, 2017
- Not categorized
- Posted by Sara M
- Comments Off on TYPE I AMBULANCE #A273
• Chassis: Ford 2017 F-450 4×4
• Engine: 6.7 L
• Transmission: 6-speed automatic
• Module Body: 172″ x 96″
• Body Drop: 6″ both sides
• Door Locks: Power locks full mod
• Walk Through/Cab Height
• Interior head room: 72″
• Warning Lights: Whelen LED
• Skirt Rail Lights: LED Red/White with White Ground lights
• Day Bright cabinet Lights
• Custom design interior
• Mirrors: Heated, power
• Custom console in cab
• Circuit Board: RMR Rail System with LED Diagram
• Tire valve Extensions, S/S Braided, Dual Rear Wheels
• Shoreline: 20amp auto eject
• Backup Camera: VCMS1401
• Inverter: Vanner Model 20-1050 with Battery Charger/Conditioner
• Siren: Whelen 295HFS2
• Speaker: Whelen SAK40
• Mica Color: Gloss Gray
• Upholstery: Dark Gray
• Flooring: Lonplate # 164 [...]
FLATBED BRUSH TRUCK #SK853
TOWN OF FLORA FIRE DEPARTMENT, FLORA, INDIANA- June 15, 2017
- Not categorized
- Posted by Sara M
- Comments Off on FLATBED BRUSH TRUCK #SK853
- Ford F-550 XL 4×4 2-Door Chassis
- Ford Power Stroke 6.7L V8, 300-HP Diesel Engine
- Ford TorqShift 6-speed Automatic Transmission
- Heavy Duty 3/16” Aluminum Body
- Two (2) compartments, one (1) each side with ROM Roll Up Doors
- Turtle Tile on floors of compartments
- One (1) hose tray, right side compartment top
- Luverne stainless steel Nerf bars
- Xtreme Off Road Super Single Tire Package
- Ranch Hand Black Brush Guard with wrap around and front receiver
- One (1) Reese type rear trailer hitch/Winch receiver with electrical connections
- 300-Gallon Poly Skid Tank
- Under Skid Tool storage compartment, rear access
- Darley 2BE Pump with 20-HP Honda gasoline engine
- One (1) 2 ½” Discharge, rear
- Two (2) 1” booster lines with 10-ft of hose each
- One (1) Akron Front Turret with joystick controlled from the cab
- One (1) Hannay Electric Booster Reel with 150-ft of 1” hose, left side rear
- Floor mounted Console for emergency switches, cab
- Whelen Electronic Siren [...]
3000 GALLON WETSIDE TANKER #2311
FOX LAKE FIRE PROTECTION DISTRICT, INGLELAKE, ILLINOIS- June 15, 2017
- Not categorized
- Posted by Sara M
- Comments Off on 3000 GALLON WETSIDE TANKER #2311
- Spartan Metro Star SMFD flat roof Chassis
- Cummins ISL9, 450-HP Diesel Engine
- Allison 3000 EVS Automatic Transmission
- Four (4) Man cab seating with three (3) SCBA seats
- Heavy Duty Stainless Steel Body with ROM Roll Up Doors
- 3000-Gallon Wetside Poly Tank
- Two (2) 4” Fireman’s Friend Tank fills, rear
- One (1) Newton 10” square electrically controlled swivel tank dump, rear
- Hale DSD150, 1500-GPM Pump
- Left side intermediate pump operator’s control panel
- Three (3) 2 ½” Discharges, one (1) each side and one (1) rear
- Two (2) 3” Discharges, one (1) each side
- Two (2) 2 ½” Gated Suction, one (1) each side
- One (1) 2 ½” and two (2) 1 ½” Mattydale Preconnects, behind cab
- 6” Front Bumper Extension with 5” Suction through bumper
- Two (2) Dual bottle Air bottle compartments, one (1) each side wheel well
- Ziamatic hydraulic folding tank bracket for 3000-gallon tank, left side
- Four (4) Pike pole storage tubes, left [...]

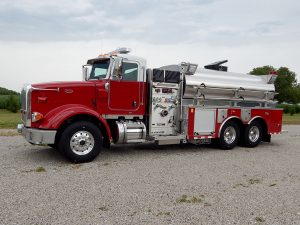

2000 Gallon Wetside Tanker #2309
Village of Morton Fire Department, Morton Illinois- June 15, 2017
- Not categorized
- Posted by Sara M
- Comments Off on 2000 Gallon Wetside Tanker #2309
- Kenworth T370 2-Door Chassis
- Paccar PX-9, 330-HP Diesel Engine
- Allison 3000 EVS 6-speed Automatic Transmission
- Heavy Duty Stainless Steel Body
- ROM Roll UP Doors
- 2000-Gallon Wetside Poly Tank
- Two (2) 2 ½” Fireman’s Friend Tank Fills, rear
- One (1) Newton 10” square electric controlled swivel dump with 36” extension
- Darley HM, 500-GPM Pump
- Left side under tank pump operator’s panel
- Two (2) 2 ½” Discharges, left side
- One (1) 3” Discharge, right side
- Two (2) 1 ½” Mattydale Preconnects, behind cab above pump module
- Two (2) Dual bottle Air bottle compartments, one (1) each side wheel well
- Two (2) Walk-away air pack brackets, right side compartment
- Turtle Tile on floors of compartments
- Two (2) Ziamatic hydraulic folding tank brackets for 2500-gallon tanks
- Suction Hose storage in the hosebed
- Progressive Dynamics on-board battery charger with Viair air compressor
- Kussmaul Super Auto Eject 120-volt shoreline connection
- Floor mounted console for emergency switches with map/binder storage, cab [...]
Type I Ambulance #A274
VAN BUREN COUNTY AMBULANCE, KEOSAUQUA, IOWA- June 15, 2017
- Not categorized
- Posted by Sara M
- Comments Off on Type I Ambulance #A274
- Chassis: 2017, F-550 4×4
- Engine: 7.3 L
- Module, 172”x 95”x 72” HR
- Warning Lights: Whelen M9 series
- Liquid Spring suspension
- Body Drop 6” both sides
- Compartments Floors: Sweep out
- Compartment Finish: Diamond Plate
- Skirt Rails: Polished Diamond Plate
- Skirt rail lights: (6) LED Kinequip strip lights with ground lighting
- Rear tow hooks thru bumper
- Running Boards: Full length with grip strut inserts
- Stop, tail,turn lights: Whelen LED M6 series
- Grill Lights: Whelen LINZ6
- Power Door locks full module and cab
- Back up camera with GPS
- Custom console in cab
- Vanner inverter
- 20 amp auto eject shoreline
- Attendant seat: AVS with built in child safety seat
- Custom cabinets
- (6) point restraint system, (2) on Squad bench, (1) CPR seat
- Solid Surface counter tops: Light Beige Mirage
- Flooring: Lonplate: # 164 Gunmetal
- Cot mount set for: Stryker MX-pro
- Dri-Dek all compartment floors
- Paint: Custom paint
- GVWR:18,000
- Fawr:7,000
- Rawr:13,660
