FEATURES:

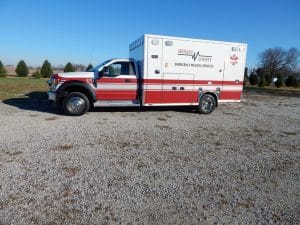

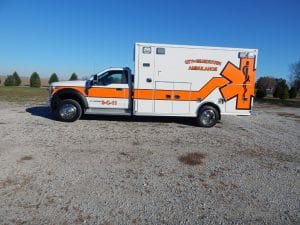

• Chassis: Ford 2019 F-550 4×4 193” WB
• Engine: 6.7 L OHV Powerstroke V8
• Transmission: 6-speed Automatic
• Module Body: 170″ x 96″
• Body Drop: 4″ both sides
• XLT Trim Package
• Mirrors: Manual Telescoping, Heated, Power Adjustable
• Dual Buell Strombos Air Horns
• Pass Thru-Type 1 w/Sliding Plexi Window
• Liquid Springs Rear Suspension
• Interior Head Room: 72″
• Warning Lights: Whelen LED
• Skirt Rail Lights: Whelen Strip Lights
• Siren Speaker: Cast Products
• Stone Guards 16”
• Custom Console in Cab
• Custom Design Interior
• Circuit Board: RMR Rail System with LED Diagram
• Tire Valve Extensions, Phoenix Air Max
• Shoreline: Kussmaul 20amp Auto Eject w/Red Cover
• Backup Camera: Safety Vision
• Battery Charger/Converter, Iota DLS-55 W/IQ4 55 Amp
[...]

FEATURES:

• International HV607 Tandem 2-Door Chassis
• Cummins L9, 450-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty Stainless Steel Body and Sub-frame
• ROM Roll Up Doors
• 3000-Gallon Wet side Poly Tank
• One (1) 2 ½” Fire Programs Tank fill, rear
• One (1) Newton 10” square manual swivel dump with 36” extension
• Darley PSM 1500-GPM PTO Pump
• Left side intermediate pump operator’s panel
• Three (3) 2 ½” Discharges, two (2) left side and one (1) right side
• One (1) 3” Discharge with 5” Storz, right side
• One (1) 1 ½” and one (1) 2 ½” Mattydale Preconnects, behind cab
• One (1) 2 ½” Gated Suction, left side
• Folding Tank storage, right side compartment top
• Suction hose storage, left side compartment top
• Manual [...]

FEATURES:

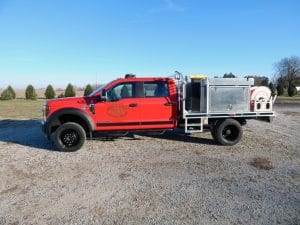

• Ford F-550XL 4-Door Chassis
• Ford 6.7L, PowerStroke 330-HP Diesel Engine
• Ford TorqShift 6-speed Automatic Transmission
• Stainless steel Body and Sub-Frame
• ROM Roll Up Doors
• One (1) Reese type rear hitch with 12-volt winch connections
• High Pressure skid unit with reel and 100-Gallon tank
• Duradeck on shelves and/or trays of compartments
• Four (4) walk-away air pack brackets, right side
• Audiovox Back-up Camera system with 7” color monitor
• Floor mounted console for Emergency switches, cab
• Whelen Electronic Siren with 100-watt speaker
• Two (2) Akron 12-volt LED Telescopic Scene lights, one (1) each side
• Whelen LED Warning Light and Scene Light Package
• Diamond Grade Chevron pattern striping, rear
• 8’ 2” Overall height
• 23’ 6” Overall length
• 179.8” Wheelbase
• 60” Cab to Axle
• 7,500 FAWR
• 14,706 RAWR
• 19,500 GVWR

Fire Apparatus Currently Available:

FEATURES:

• Spartan Metro Star MFD 10” Raised Roof Tandem Chassis
• Cummins L9, 400-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty Stainless Steel Body and Sub-Frame
• ROM Roll Up Compartment Doors
• Custom EMS Compartment with ROM Roll Up Door, Chassis Cab
• Severe Duty Front Bumper with One (1) 1½” Preconnect
• 2200 Gallon Poly Tank
• One (1) Newton 10” Square Electric Swivel Dump with 18” Extension, Rear
• Hale QMAX, 1500 GPM Pump
• Four (4) 2½” Discharges, Two (2) on Each Side
• One (1) 4” Discharge, Right Side
• One (1) 2½” Gated Suction, Left Side
• One (1) 5” Suction, Front
• Two (2) 1½” Mattydale Preconnects, Across Top of Body
• One (2) 2½” Preconnect, Front of Hose Bed
• Two (2) Free Floating Hose Wells in Running Boards, One (1) Each Side
• Two (2) Dual Bottle Air Bottle Compartments, One (1) on Each Side
• Two (2) Triple Bottle Air Bottle Compartments, One (1) on Each Side
• Folding [...]

FEATURES:

• Freightliner M2 106 2-Door Tandem Chassis
• Cummins L9, 350-HP Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty Stainless Steel Body and Sub-Frame
• ROM Roll Up Doors
• 3000-Gallon Poly Tank
• One (1) Newton 10” Square Manual Swivel Dump with 36” Extension, Rear
• Hale DSD, 1500-GPM Pump
• Three (3) 2½” Discharges, Two (2) Left and One (1) Right
• One (1) 5” Discharge, Right Side
• Two (2) 1½” Mattydale Preconnects and One (1) Deadlay
• One (1) 2½” Gated Suction, Left Side
• Folding Tank Storage, Left Side
• Six (6) Dual Bottle Air Bottle Compartments, Three (3) on Each Side Wheel Well
• Four (4) Walk-Away Air Pack Brackets, Left and Right Side Compartments
• Progressive Dynamics On-Board Battery Charger
• Kussmaul Super Auto Eject 120-Volt Shoreline Connection
[...]

FEATURES:

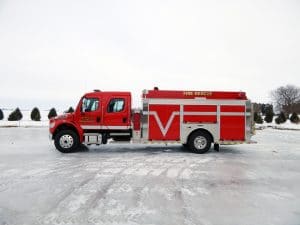

• Freightliner M2 106 4-Door Chassis
• Cummins L9, 350-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty Stainless steel Body and Sub-Frame
• ROM Roll Up Doors with right side hem door over wheel well
• Five (5) person cab seating with four (4) SCBA seats
• 1000-Gallon Poly Tank
• Darley PSM 1500-GPM Pump with operator’s panel across top of apparatus
• Four (4) 2 ½” Discharges, two (2) left side, one (10 right side and one (1) rear
• Two (2) 3” Discharges, one (1) right side and one (1) over pump for deck gun
• One (1) 2 ½” Gated Suction, left side
• Two (2) 1 ½” Cartridge Lay Preconnects, front of body
• Three (3) Dual bottle Air bottle compartments, one (1) left and two (2) right side
• Ziamatic Electrically controlled [...]

FEATURES:

• Spartan Metro Star MFD 10” Raised Roof Chassis
• Cummins L9, 450-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• On Spot Automatic Tire Chains
• Heavy Duty Stainless Steel Body and Sub-Frame
• ROM Roll Up Doors
• Six (6) Person Cab Seating with Five (5) SCBA Seats
• Custom EMS Compartment, on Top of Doghouse
• 24” Front Bumper Extension with 1½” Preconnect
• 1000-Gallon Poly Tank with 25 Gallon Foam Tank
• Waterous CX, 1500-GPM Pump with Left Side Control Operator’s Panel
• Five (5) 2½” Discharges, Two (2) Left, One (1) Right and Two (2) Rear
• Two (2) 3” Discharges, One (1) Right Side and One (1) Over Pump for Deck Gun
• Three (3) Mattydale Preconnects, Two 1½” and One 2½”, Across Top of Body
• One (1) 2½” Gated Suction, Left Side
• One (1) Wheel Well Oil Dry Hopper, Right Side
• Two (2) Triple Bottle Air Bottle Storage Compartments, One (1) on Each Side
• Foam Pro 1600 Foam System
[...]
